Bosch ---- / 0603234248 / F 220 Volt Spare Parts

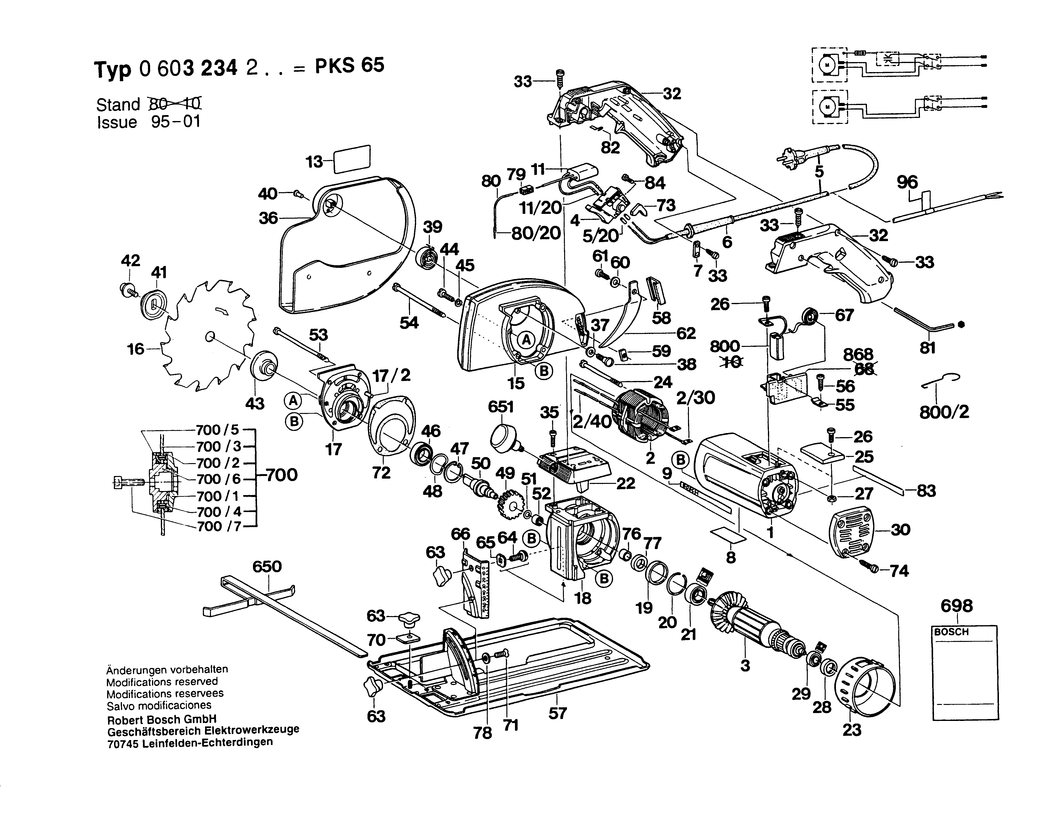

An exploded drawing and listing for the Bosch ---- / 0603234248 / F 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108110.A4 1605108110	-
2 - FIELD 220V BSD-1604220175.A6 1604220175	-
3 - ARMATURE 220V BSD-1604010187.A12 1604010187	-
4 - SWITCH BSD-2607200084.A43 2607200084	£10.10	£12.12
4 - ON-OFF SWITCH BSD-2607200109.A5 2607200109	-
5 - POWER SUPPLY CORD BSD-1607000389.A34 1607000389	-
6 - GROMMET dia6.4-dia7.5x75 MM BSD-1600703016.A241 1600703016	£1.75	£2.10
6 - GROMMET dia9.5 MM BSD-2600703006.A225 2600703006	-
6 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A319 2600703013	£2.61	£3.13
7 - CABLE CLIP BSD-2601035001.A680 2601035001	£1.75	£2.10
9 - STICKER BSD-1601110046.A89 1601110046	£1.75	£2.10
11 - SUPPRESSION CAPACITOR BSD-1607328023.A2 1607328023	-
13 - STICKER BSD-1601110092.A6 1601110092	-
15 - PROTECTIVE COVER BSD-1605510127.A5 1605510127	-
16 - CIRCULAR SAW BLADE dia16xdia190x1.4x2.4MM BSD-1608640029.A1 1608640029	-
17 - BEARING COVER BSD-1605808059.A9 1605808059	-
18 - GEAR HOUSING BSD-1605806377.A1 1605806377	-
19 - INTERMEDIATE RING BSD-1600206018.A18 1600206018	-
20 - RETAINING RING 35 DIN 9045 BSD-2916600018.A31 2916600018	£1.75	£2.10
21 - GROOVE BALL BEARING BSD-1600905003.A70 1600905003	-
21 - GROOVE BALL BEARING 15x32x9 BSD-1600905004.A36 1600905004	-
22 - FILLING PIECE BSD-1605500111.A6 1605500111	-
23 - AIR-DEFLECTOR RING BSD-1600502014.A21 1600502014	-
24 - TAPPING SCREW 4.80x75 MM BSD-3603435508.A21 3603435508	-
25 - SEALING CAP BSD-1605500109.A5 1605500109	-
26 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1447 2910021118	£1.75	£2.10
27 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A669 2915011005	£1.75	£2.10
28 - INTERMEDIATE RING BSD-1600502011.A112 1600502011	£2.61	£3.13
29 - BALL BEARING 7x19x6 BSD-2600905032.A39 2600905032	£5.30	£6.36
30 - HOUSING COVER BSD-1605500112.A5 1605500112	-
32 - HANDLE BSD-1605132092.A6 1605132092	-
33 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2022 2910211019	£1.75	£2.10
35 - SOCKET HEAD CAP SCREW DIN 84-AM5x16-8.8 BSD-2910021158.A46 2910021158	£1.32	£1.58
36 - PROTECTIVE COVER dia 115 MM BSD-1605510125.A10 1605510125	-
37 - PLAIN WASHER 0.3 MM BSD-1600100633.A149 1600100633	-
38 - PAN HEAD SCREW DIN 923-M5x5-5.8 BSD-2910271147.A33 2910271147	-
39 - SPIRAL SPRING BSD-1604652009.A0 1604652009	-
40 - ROUND-HEAD GROOVED PIN 2.6x3 DIN 1476-ST BSD-2917721051.A116 2917721051	-
41 - CONICAL SPRING WASHER SW 46 BSD-1605703069.A105 1605703069	-
42 - HEX SOCKET HEAD CAP SCREW M6x14 MM BSD-1603414007.A267 1603414007	£2.29	£2.75
43 - CONICAL SPRING WASHER BSD-1605703071.A5 1605703071	-
44 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8 BSD-2910021154.A82 2910021154	£1.75	£2.10
45 - SPRING LOCK WASHER DIN 127-B 5 BSD-2916680006.A369 2916680006	-
46 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A524 1900905163	£11.30	£13.56
47 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A374 2916660014	£1.75	£2.10
48 - SPRING WASHER dia27.5xdia34.8x0.5 MM BSD-1600150008.A27 1600150008	-
49 - CYLINDRICAL GEAR Z=41 BSD-1606320076.A17 1606320076	-
50 - DRIVE SHAFT BSD-1603124105.A7 1603124105	-
51 - SHIM 0.5 MM BSD-1600100631.A373 1600100631	£1.75	£2.10
52 - NEEDLE BEARING BSD-1600910013.A71 1600910013	£5.58	£6.70
53 - TAPPING SCREW B4.8x90 MM BSD-1603435006.A98 1603435006	-
54 - LENS HEAD SCREW BSD-3603435025.A2 3603435025	£1.75	£2.10
55 - TAB WASHER BSD-1601030022.A144 1601030022	£1.75	£2.10
56 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A157 2910211011	£1.75	£2.10
57 - BASE PLATE 110x298 MM BSD-1608000075.A30 1608000075	-
58 - RUBBER BUFFER BSD-1602386002.A144 1602386002	-
59 - PERFORATED PANEL M6-20x10x5 MM BSD-1601030025.A5 1601030025	-
60 - PLAIN WASHER dia6.4xdia16x2 MM BSD-1609201082.A214 1609201082	-
61 - HEX SOCKET HEAD CAP SCREW DIN 6912 M6x12-8.8 BSD-2910375193.A131 2910375193	-
62 - RIVING KNIFE BSD-1600025012.A24 1600025012	-
63 - WING NUT M6 BSD-1603339006.A35 1603339006	£2.52	£3.02
64 - ROUND-HEAD BOLT DIN 603-M6x20 BSD-2910281201.A137 2910281201	£1.75	£2.10
65 - SLIDE PLATE BSD-1601030026.A61 1601030026	-
66 - DIAL BSD-1608000076.A19 1608000076	-
67 - SPIRAL SPRING BSD-1604652006.A145 1604652006	£1.75	£2.10
70 - CLAMPING PIECE BSD-1601030024.A80 1601030024	-
71 - COUNTERSUNK-HEAD SCREW M6x20 MM BSD-1603490000.A33 1603490000	-
72 - SEAL BSD-1601015016.A6 1601015016	-
73 - DAMPING PLATE BSD-2601022000.A553 2601022000	£1.75	£2.10
74 - TAPPING SCREW DIN 7971-B4.8x19 BSD-2910211234.A41 2910211234	£1.75	£2.10
75 - TAB WASHER BSD-1611331007.A0 1611331007	£1.32	£1.58
76 - INTERMEDIATE RING BSD-1600300086.A1 1600300086	-
77 - ROTARY SHAFT LIP SEAL BSD-1600290012.A39 1600290012	-
78 - PLAIN WASHER DIN 433-6.4-ST 50 BSD-2916011013.A76 2916011013	£1.75	£2.10
79 - SOCKET-TERMINAL STRIP 1x1.5 MM/2 BSD-1901091012.A212 1901091012	£5.30	£6.36
80 - CONNECTING CABLE L=260 MM BSD-1604440008.A30 1604440008	-
80/20 - TERMINAL LUG BSD-1601353003.A99 1601353003	-
81 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A280 1907950006	£4.26	£5.11
82 - LEAF SPRING BSD-1601253007.A29 1601253007	-
84 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A685 2603410001	£1.75	£2.10
650 - END STOP BSD-1601336004.A17 1601336004	-
700/1 - CONICAL SPRING WASHER BSD-1600120071.A6 1600120071	-
700/2 - WOBBLING-DISC BSD-1600132001.A9 1600132001	-
700/3 - CIRCULAR SAW BLADE Z= 12 BSD-1608640043.A5 1608640043	-
700/4 - SLOTTED SPRING PIN 3x8 DIN 1481 BSD-2917760075.A26 2917760075	-
700/5 - WOBBLING-DISC BSD-1600132002.A6 1600132002	-
700/6 - DRIVE BUSHING BSD-1600390009.A6 1600390009	-
700/7 - HEX SOCKET HEAD CAP SCREW M 6x16 DIN 6912-8.8 BSD-2910372197.A11 2910372197	-
800 - CARBON-BRUSH SET BSD-1607014126.A66 1607014126	£16.41	£19.69
868 - BRUSH HOLDER BSD-1604336017.A220 1604336017	£7.36	£8.83
888 - NAMEPLATE BSD-160111A3H3.A1529 160111A3H3	£2.61	£3.13
