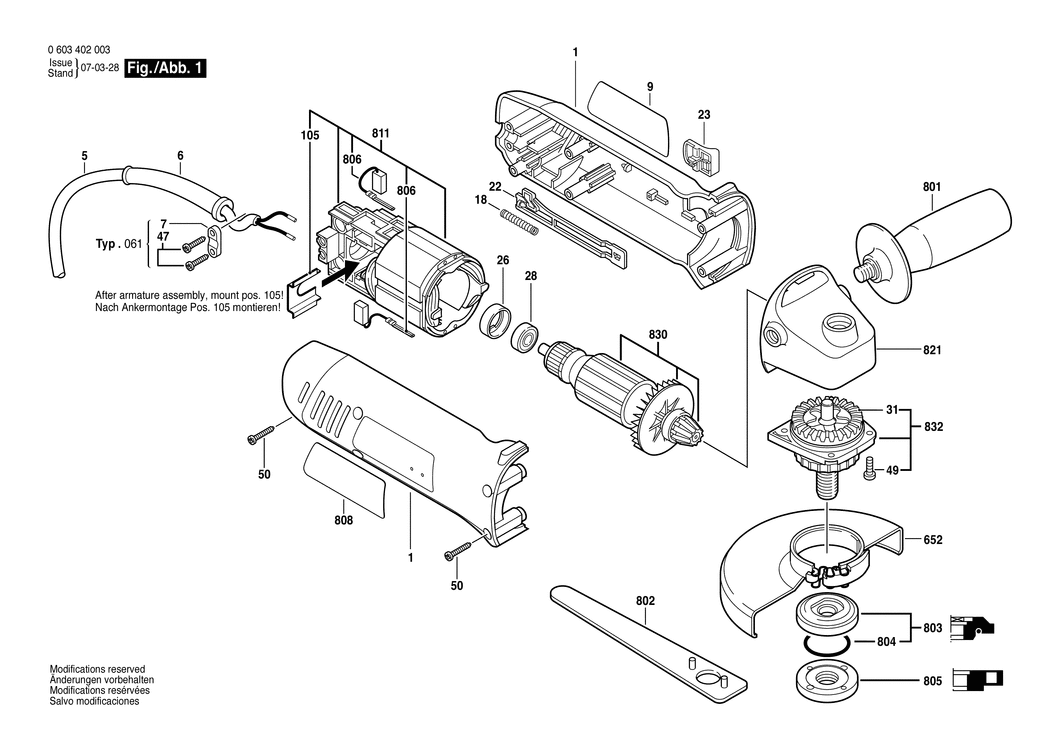

1 - HOUSING SECTION
BSD-1605108203.A19
1605108203
|
-
|
|
|
|
5 - POWER SUPPLY CORD CN 2.65m 2 x 0.75mm H05 W-F
BSD-1607000387.A83
1607000387
|
£11.30
|
£13.56
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1388
2600703012
|
£2.80
|
£3.36
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118856.A5
1601118856
|
-
|
|
|
|
18 - COMPRESSION SPRING
BSD-1604611026.A705
1604611026
|
£1.75
|
£2.10
|
|
|
22 - ADJUSTING SLIDE
BSD-1602319014.A41
1602319014
|
-
|
|
|
|
23 - SWITCH HANDLE
BSD-1602026077.A20
1602026077
|
£1.75
|
£2.10
|
|
|
26 - RUBBER BUSHING
BSD-1600502020.A186
1600502020
|
£2.61
|
£3.13
|
|
|
28 - BALL BEARING
BSD-1600905021.A53
1600905021
|
-
|
|
|
|
31 - CROWN GEAR
BSD-1606333624.A33
1606333624
|
-
|
|
|
|
49 - THREAD-FORMING TAP. SCREW DIN 7500. M4x10. SR10.2
BSD-1603435068.A31
1603435068
|
£1.75
|
£2.10
|
|
|
50 - TORX OVAL-HEAD SCREW 4x20
BSD-1619P00105.A113
1619P00105
|
£1.75
|
£2.10
|
|
|
105 - INTERMEDIATE PLATE
BSD-1600591034.A39
1600591034
|
-
|
|
|
|
652 - PROTECTIVE COVER dia 125 MM
BSD-1605510307.A18
1605510307
|
-
|
|
|
|
801 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A635
160202509T
|
£3.72
|
£4.47
|
|
|
802 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A442
1607950052
|
£3.72
|
£4.47
|
|
|
803 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A583
2605703014
|
£7.36
|
£8.83
|
|
|
804 - O-RING 20.35x1.78 MM
BSD-1600210039.A1038
1600210039
|
£2.16
|
£2.59
|
|
|
805 - ROUND NUT M14
BSD-1603345043.A1333
1603345043
|
£8.67
|
£10.41
|
|
|
806 - CARBON-BRUSH SET
BSD-1607000994.A35
1607000994
|
-
|
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A2857
160111A3H3
|
£2.61
|
£3.13
|
|
|
811 - FIELD 230-240V
BSD-1607000723.A35
1607000723
|
£33.45
|
£40.14
|
|
|
821 - GEAR HOUSING
BSD-1607000995.A11
1607000995
|
-
|
|
|
|
830 - ARMATURE 230-240V
BSD-1607000990.A1
1607000990
|
£21.42
|
£25.71
|
|
|
832 - GRINDING SPINDLE
BSD-1607000719.A34
1607000719
|
-
|
|
|
|
891 - AUXILIARY HANDLE M10. dia37x115 MM
BSD-1602025031.A98
1602025031
|
£18.96
|
£22.75
|
|
|
891/1 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A633
160202509T
|
£3.72
|
£4.47
|
|
