Bosch PWS 6-115 / 0603401807 / CH 230 Volt Spare Parts

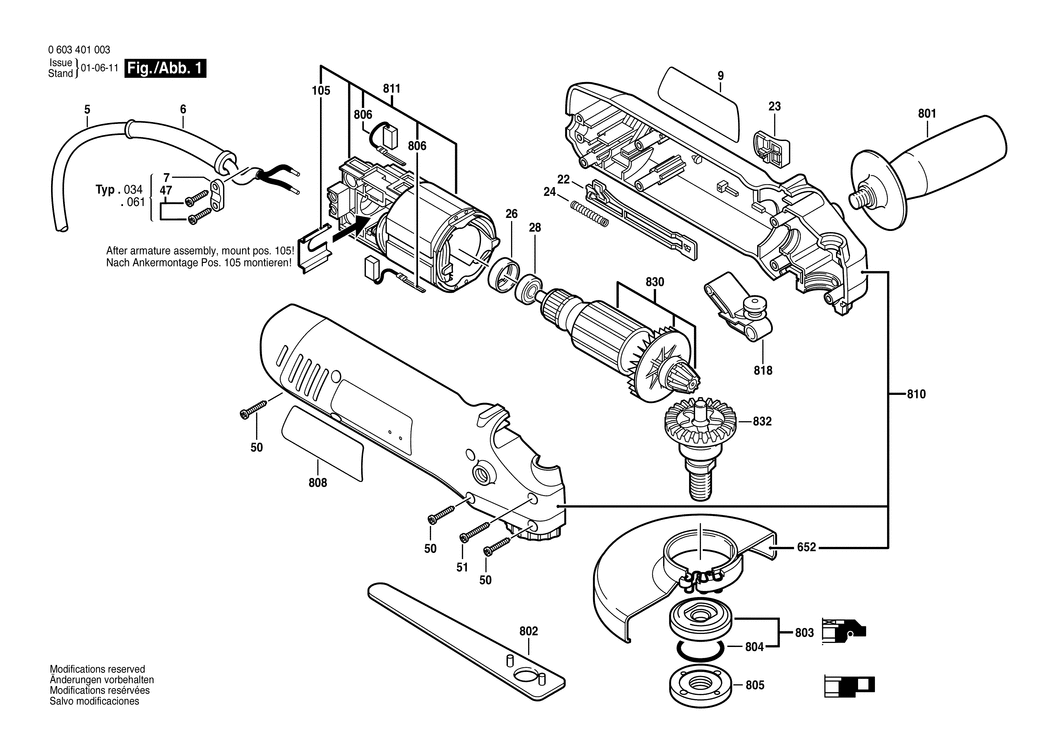

An exploded drawing and listing for the Bosch PWS 6-115 / 0603401807 / CH 230 Volt

	Ex VAT	Inc VAT
5 - POWER SUPPLY CORD BSD-1604460431.A24 1604460431	£11.87	£14.24
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1354 2600703012	£2.94	£3.53
9 - MANUFACTURER'S NAMEPLATE BSD-1601118854.A7 1601118854	-
22 - ADJUSTING SLIDE BSD-1602319014.A25 1602319014	-
23 - SWITCH HANDLE BSD-1602026077.A36 1602026077	£1.75	£2.10
24 - COMPRESSION SPRING BSD-1604611026.A747 1604611026	£1.84	£2.21
26 - RUBBER BUSHING BSD-1600502020.A167 1600502020	£2.74	£3.29
28 - BALL BEARING BSD-1600905021.A35 1600905021	-
50 - TORX OVAL-HEAD SCREW 4x20 BSD-1619P00105.A70 1619P00105	£1.75	£2.10
51 - SCREW BSD-1619P00106.A23 1619P00106	£1.84	£2.21
105 - INTERMEDIATE PLATE BSD-1600591034.A57 1600591034	-
652 - PROTECTIVE GUARD BSD-2609000390.A26 2609000390	£13.12	£15.75
801 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A667 160202509T	£3.91	£4.69
802 - PIN-TYPE FACE-WRENCH BSD-1607950052.A462 1607950052	£3.91	£4.69
803 - CLAMPING FLANGE dia22.3xdia42 MM BSD-2605703014.A554 2605703014	£7.72	£9.27
804 - O-RING 20.35x1.78 MM BSD-1600210039.A1065 1600210039	£2.27	£2.72
805 - ROUND NUT M14 BSD-1603345043.A1349 1603345043	£9.11	£10.93
806 - CARBON-BRUSH SET BSD-1607000994.A14 1607000994	-
808 - NAMEPLATE BSD-160111A3H3.A2837 160111A3H3	£2.74	£3.29
810 - MOTOR HOUSING BSD-1607000371.A11 1607000371	-
811 - FIELD 230-240V BSD-1607000723.A15 1607000723	-
818 - SPINDLE HOLDER BSD-1607000993.A16 1607000993	-
830 - ARMATURE 230-240V BSD-1607000990.A32 1607000990	£22.50	£27.00
832 - GRINDING SPINDLE M14 BSD-1607000992.A9 1607000992	-

Attribute Name	Value
Brand	Bosch
