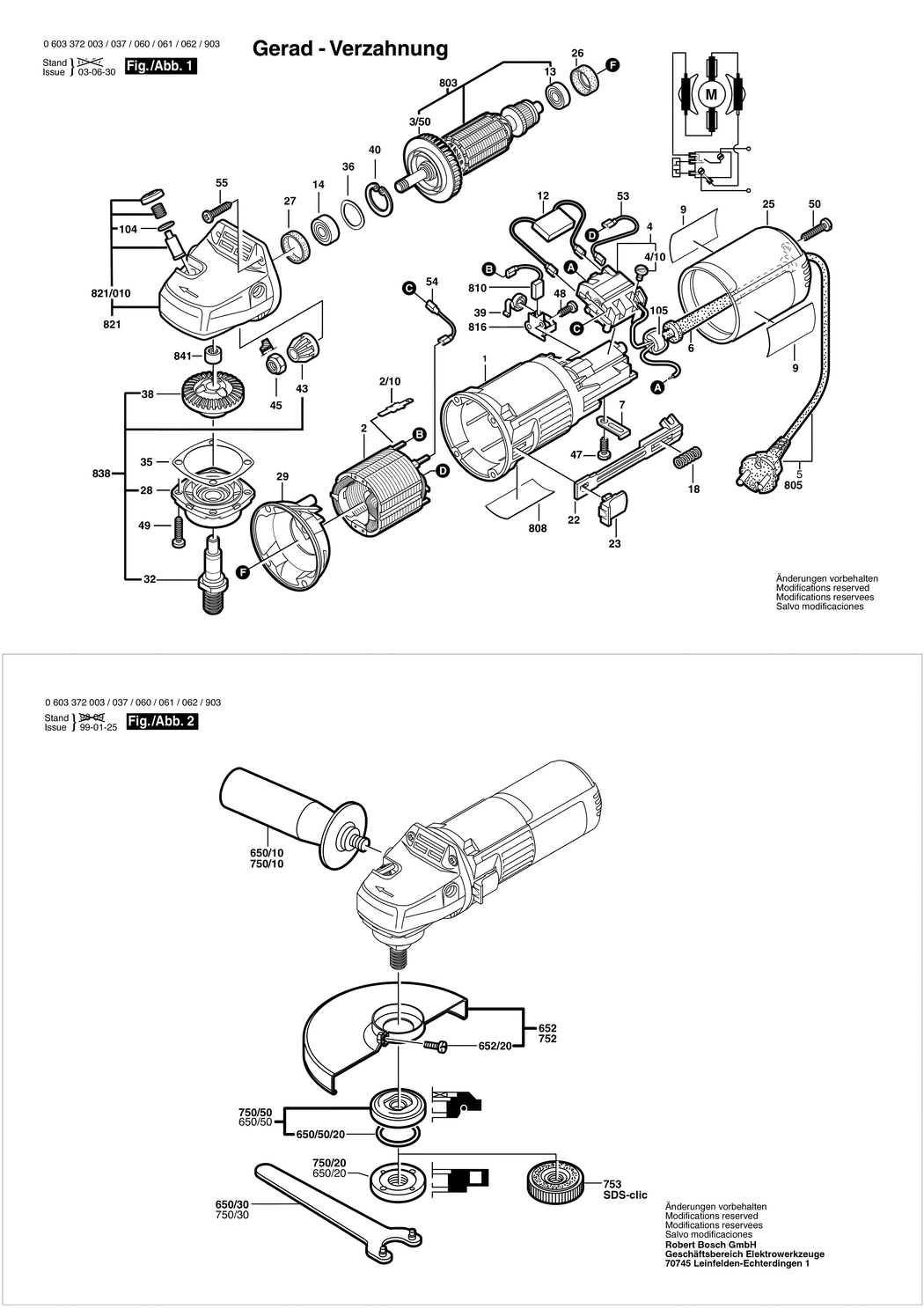

1 - MOTOR HOUSING
BSD-1605108189.A13
1605108189
|
£5.87
|
£7.04
|
|
|
2 - FIELD 220-230V
BSD-1604220272.A61
1604220272
|
-
|
|
|
|
2/10 - BLADE TERMINAL
BSD-1604477011.A30
1604477011
|
£2.16
|
£2.59
|
|
|
3/50 - FAN
BSD-1606610121.A19
1606610121
|
£1.75
|
£2.10
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A165
1607200086
|
£11.30
|
£13.56
|
|
|
4/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A126
2910110048
|
£1.75
|
£2.10
|
|
|
5 - POWER SUPPLY CORD I 2.65m 2 x 1.0mm H05VV-F
BSD-1604460152.A11
1604460152
|
-
|
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A575
2600703012
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A179
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118153.A6
1601118153
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328029.A202
1607328029
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1659
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A561
1600905011
|
£5.58
|
£6.70
|
|
|
18 - COMPRESSION SPRING
BSD-1604611026.A7
1604611026
|
£1.75
|
£2.10
|
|
|
22 - ADJUSTING SLIDE
BSD-1602319002.A204
1602319002
|
£2.61
|
£3.13
|
|
|
23 - SWITCH HANDLE
BSD-1602026057.A216
1602026057
|
£1.97
|
£2.36
|
|
|
25 - HOUSING COVER
BSD-1600508005.A15
1600508005
|
£3.80
|
£4.56
|
|
|
26 - RUBBER BUSHING
BSD-1600502020.A438
1600502020
|
£2.61
|
£3.13
|
|
|
27 - RUBBER RING
BSD-1600206025.A411
1600206025
|
£2.16
|
£2.59
|
|
|
28 - BEARING FLANGE
BSD-1605805061.A11
1605805061
|
£10.10
|
£12.12
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1601328005.A17
1601328005
|
£2.61
|
£3.13
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A640
1607000D6A
|
£7.36
|
£8.83
|
|
|
35 - SHIM 0.1 MM
BSD-1600136012.A213
1600136012
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.2 MM
BSD-1600136010.A220
1600136010
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136011.A109
1600136011
|
£2.16
|
£2.59
|
|
|
36 - SPRING WASHER
BSD-1600150011.A15
1600150011
|
£1.75
|
£2.10
|
|
|
38 - CROWN GEAR Z=36
BSD-1606333606.A27
1606333606
|
£11.30
|
£13.56
|
|
|
39 - SPIRAL SPRING
BSD-1604652013.A402
1604652013
|
£1.75
|
£2.10
|
|
|
40 - SPRING RETAINING RING DIN 472-25x1.2MM
BSD-2916660009.A293
2916660009
|
£2.16
|
£2.59
|
|
|
43 - BEVEL GEAR Z=11
BSD-1606333605.A73
1606333605
|
£3.72
|
£4.47
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A696
1603300016
|
£1.75
|
£2.10
|
|
|
47 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A506
2910211018
|
£1.75
|
£2.10
|
|
|
48 - TAPPING SCREW DIN 7971-ST2.9x9.5-F
BSD-2910211005.A362
2910211005
|
£1.75
|
£2.10
|
|
|
49 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A505
2912401420
|
£1.75
|
£2.10
|
|
|
50 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A506
2912401420
|
£1.75
|
£2.10
|
|
|
53 - CONNECTING CABLE
BSD-1604448015.A86
1604448015
|
£1.75
|
£2.10
|
|
|
54 - CONNECTING CABLE
BSD-1604448016.A63
1604448016
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A507
2912401420
|
£1.75
|
£2.10
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A539
1600210044
|
£1.75
|
£2.10
|
|
|
105 - FERRITE CORE
BSD-3602317039.A22
3602317039
|
£5.30
|
£6.36
|
|
|
650/20 - ROUND NUT WITH 2 HOLES
BSD-1619P09976.A28
1619P09976
|
£2.16
|
£2.59
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A1285
1600210039
|
£2.16
|
£2.59
|
|
|
652/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8
BSD-2910022197.A128
2910022197
|
-
|
|
|
|
652/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8
BSD-2910141197.A426
2910141197
|
£1.75
|
£2.10
|
|
|
750/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A187
160202509T
|
£3.72
|
£4.47
|
|
|
750/20 - CLAMPING NUT M14
BSD-1603340040.A186
1603340040
|
£6.20
|
£7.44
|
|
|
750/30 - PIN-TYPE FACE-WRENCH
BSD-1607950043.A1
1607950043
|
£4.02
|
£4.83
|
|
|
750/50 - CLAMPING-FLANGE dia22.2x42 MM
BSD-1605703099.A108
1605703099
|
£7.45
|
£8.94
|
|
|
752 - PROTECTIVE COVER dia 115 MM(4 1/2)
BSD-2605510125.A49
2605510125
|
£27.23
|
£32.68
|
|
|
753 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A279
1603340027
|
£46.82
|
£56.18
|
|
|
803 - ARMATURE WITH FAN 220-230V
BSD-1604010429.A6
1604010429
|
-
|
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A3077
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014116.A15
1607014116
|
£11.30
|
£13.56
|
|
|
816 - BRUSH HOLDER
BSD-1600A003G4.A147
1600A003G4
|
£3.72
|
£4.47
|
|
|
821 - GEAR HOUSING
BSD-1605806483.A16
1605806483
|
-
|
|
|
|
821/010 - PUSH-BUTTON
BSD-1607000253.A438
1607000253
|
£2.49
|
£2.99
|
|
|
838 - CROWN GEAR
BSD-1607000943.A30
1607000943
|
£23.86
|
£28.63
|
|
|
841 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A6
1600910018
|
£5.30
|
£6.36
|
|
