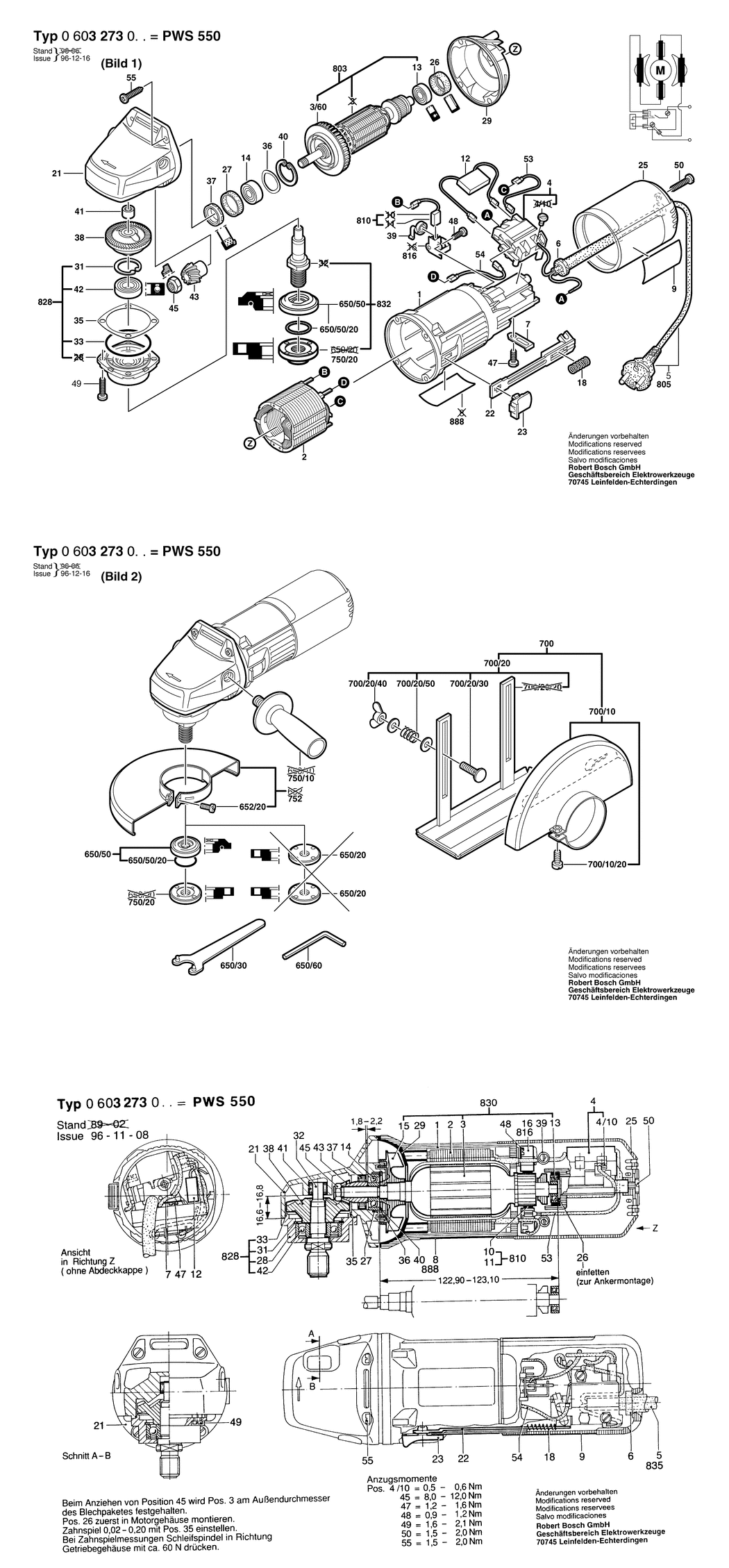

1 - MOTOR HOUSING
BSD-1605108127.A11
1605108127
|
-
|
|
|
|
2 - FIELD 230-240V
BSD-1604220224.A10
1604220224
|
-
|
|
|
|
3/60 - FAN
BSD-1606610121.A5
1606610121
|
£1.75
|
£2.10
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A152
1607200086
|
£11.87
|
£14.24
|
|
|
4/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A120
2910110048
|
£1.84
|
£2.21
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A800
2600703012
|
£2.94
|
£3.53
|
|
|
6 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A406
2600703013
|
£2.74
|
£3.29
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A24
1601302017
|
£1.84
|
£2.21
|
|
|
9 - STICKER
BSD-1601110256.A2
1601110256
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328029.A207
1607328029
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1497
2600905032
|
£5.57
|
£6.68
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A117
1600905032
|
£5.58
|
£6.70
|
|
|
18 - COMPRESSION SPRING
BSD-1604611026.A130
1604611026
|
£1.84
|
£2.21
|
|
|
21 - GEAR HOUSING
BSD-1605806411.A1
1605806411
|
£22.76
|
£27.31
|
|
|
22 - ADJUSTING SLIDE
BSD-1602319002.A210
1602319002
|
£2.74
|
£3.29
|
|
|
23 - SWITCH HANDLE
BSD-1602026057.A105
1602026057
|
£2.07
|
£2.48
|
|
|
25 - HOUSING COVER
BSD-1600508005.A23
1600508005
|
£3.80
|
£4.56
|
|
|
26 - RUBBER BUSHING
BSD-1600502020.A428
1600502020
|
£2.74
|
£3.29
|
|
|
27 - RUBBER RING
BSD-1600206025.A295
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1601328005.A5
1601328005
|
£2.74
|
£3.29
|
|
|
31 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A709
2916660013
|
£2.16
|
£2.59
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-3600210124.A0
3600210124
|
£2.94
|
£3.53
|
|
|
35 - SHIM 0.2 MM
BSD-1600136010.A228
1600136010
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136011.A101
1600136011
|
£2.16
|
£2.59
|
|
|
35 - SHIM 0.1 MM
BSD-1600136012.A222
1600136012
|
£1.75
|
£2.10
|
|
|
36 - SPRING WASHER
BSD-1600150011.A7
1600150011
|
£1.75
|
£2.10
|
|
|
37 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A546
1600290016
|
£2.74
|
£3.29
|
|
|
38 - CROWN GEAR Z=36
BSD-1606333601.A63
1606333601
|
£8.49
|
£10.19
|
|
|
39 - SPIRAL SPRING
BSD-1604652013.A248
1604652013
|
£1.84
|
£2.21
|
|
|
40 - SPRING RETAINING RING DIN 472-25x1.2MM
BSD-2916660009.A287
2916660009
|
£2.16
|
£2.59
|
|
|
41 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A80
1600910018
|
£5.57
|
£6.68
|
|
|
42 - GROOVE BALL BEARING 12x32x10
BSD-1600905006.A167
1600905006
|
£12.64
|
£15.17
|
|
|
43 - BEVEL GEAR Z=11
BSD-1606333242.A61
1606333242
|
£48.38
|
£58.06
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A651
1603300016
|
£1.84
|
£2.21
|
|
|
47 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A514
2910211018
|
£1.75
|
£2.10
|
|
|
48 - TAPPING SCREW DIN 7971-ST2.9x9.5-F
BSD-2910211005.A298
2910211005
|
£1.84
|
£2.21
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A205
1603435026
|
£2.27
|
£2.72
|
|
|
50 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A483
2912401420
|
£1.84
|
£2.21
|
|
|
53 - CONNECTING CABLE
BSD-1604448015.A80
1604448015
|
£1.84
|
£2.21
|
|
|
54 - CONNECTING CABLE
BSD-1604448016.A68
1604448016
|
£1.84
|
£2.21
|
|
|
55 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A482
2912401420
|
£1.84
|
£2.21
|
|
|
650/30 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A575
1607950052
|
£3.91
|
£4.69
|
|
|
650/50 - CLAMPING-FLANGE dia22.2x42 MM
BSD-1605703099.A20
1605703099
|
£7.82
|
£9.39
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A1160
1600210039
|
£2.27
|
£2.72
|
|
|
652/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8
BSD-2910022197.A122
2910022197
|
-
|
|
|
|
700 - SUCTION HOOD dia 125 MM
BSD-2605510066.A16
2605510066
|
-
|
|
|
|
700/10 - PROTECTIVE COVER dia 115 MM
BSD-1605510201.A29
1605510201
|
-
|
|
|
|
700/10/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8
BSD-2910022197.A121
2910022197
|
-
|
|
|
|
700/20/30 - ROUND-HEAD BOLT DIN 603-M 5x16
BSD-2910281158.A163
2910281158
|
-
|
|
|
|
700/20/40 - WING NUT M 5 DIN 315-G-5
BSD-2915191105.A72
2915191105
|
-
|
|
|
|
700/20/50 - COMPRESSION SPRING
BSD-1604643004.A146
1604643004
|
-
|
|
|
|
750/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A26
160202509T
|
£3.91
|
£4.69
|
|
|
750/20 - ROUND NUT M14
BSD-1603340015.A0
1603340015
|
£4.06
|
£4.87
|
|
|
752 - PROTECTIVE COVER dia 115 MM(4 1/2)
BSD-2605510125.A37
2605510125
|
£28.59
|
£34.31
|
|
|
803 - ARMATURE WITH FAN 230-240V
BSD-1604010259.A0
1604010259
|
-
|
|
|
|
803 - ARMATURE WITH FAN 240V
BSD-1604010262.A19
1604010262
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A568
1607000386
|
£22.60
|
£27.12
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014116.A10
1607014116
|
£11.30
|
£13.56
|
|
|
816 - BRUSH HOLDER
BSD-1600A003G4.A190
1600A003G4
|
£3.72
|
£4.47
|
|
|
828 - BEARING FLANGE
BSD-1607000936.A110
1607000936
|
£27.23
|
£32.68
|
|
|
832 - GRINDING SPINDLE
BSD-1607000D6A.A766
1607000D6A
|
£7.36
|
£8.83
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3414
160111A3H3
|
£2.74
|
£3.29
|
|
