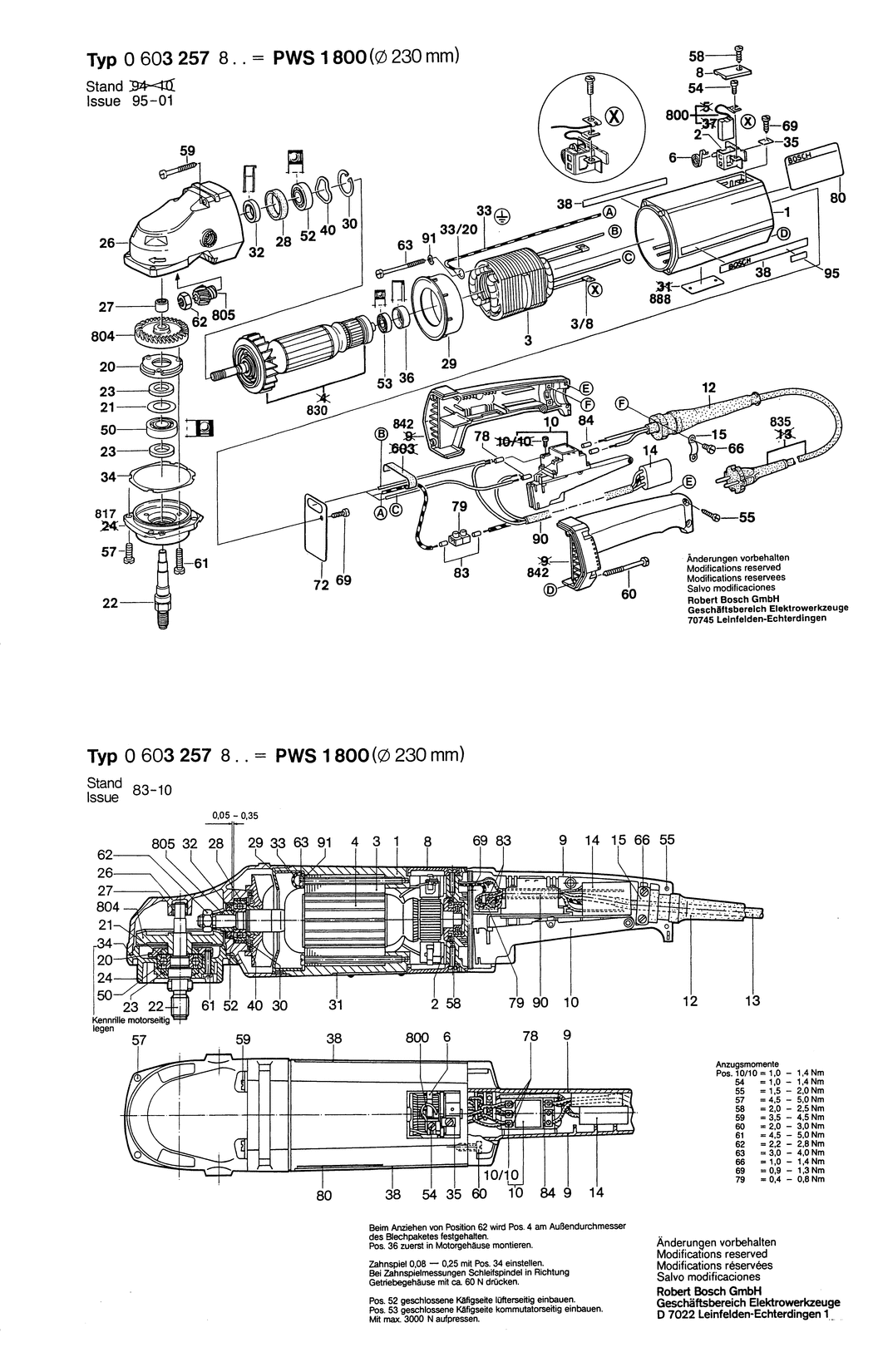

1 - MOTOR HOUSING
BSD-1605108121.A6
1605108121
|
-
|
|
|
|
2 - BRUSH HOLDER
BSD-1604336008.A166
1604336008
|
£22.60
|
£27.12
|
|
|
3 - FIELD 220V
BSD-1604220215.A3
1604220215
|
-
|
|
|
|
3/8 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A56
1901350003
|
£1.84
|
£2.21
|
|
|
6 - SPIRAL SPRING
BSD-1604652015.A525
1604652015
|
£2.94
|
£3.53
|
|
|
7 - BEVEL GEAR Z=14. dia 10 MM
BSD-1606333218.A9
1606333218
|
-
|
|
|
|
8 - SEALING CAP
BSD-1605500109.A40
1605500109
|
-
|
|
|
|
10 - ON-OFF SWITCH
BSD-1607200084.A1
1607200084
|
-
|
|
|
|
12 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A265
3600703011
|
£2.94
|
£3.53
|
|
|
12 - GROMMET dia5.5-dia8.3x75 MM
BSD-1600703012.A95
1600703012
|
£2.52
|
£3.02
|
|
|
13 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460440.A0
1604460440
|
£22.60
|
£27.12
|
|
|
14 - SUPPRESSION FILTER
BSD-1607328034.A250
1607328034
|
£4.48
|
£5.37
|
|
|
15 - FASTENING CLAMP
BSD-1601302014.A494
1601302014
|
£2.74
|
£3.29
|
|
|
20 - BEARING COVER
BSD-1605808054.A213
1605808054
|
-
|
|
|
|
21 - COVER DISC
BSD-1600102012.A213
1600102012
|
-
|
|
|
|
22 - GRINDING SPINDLE M14. L=101 MM
BSD-1603523090.A130
1603523090
|
-
|
|
|
|
23 - SEALING DISK
BSD-1600108055.A60
1600108055
|
£1.75
|
£2.10
|
|
|
26 - GEAR HOUSING
BSD-1605806403.A11
1605806403
|
-
|
|
|
|
27 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A292
2600910001
|
£4.48
|
£5.37
|
|
|
28 - RUBBER RING 7 MM
BSD-1600206020.A611
1600206020
|
£1.84
|
£2.21
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600502017.A3
1600502017
|
-
|
|
|
|
30 - SPRING RETAINING RING DIN 472 38X1.5MM
BSD-2916660017.A81
2916660017
|
£4.26
|
£5.11
|
|
|
32 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A36
1600290013
|
£2.74
|
£3.29
|
|
|
34 - SHIM 0.1 MM
BSD-1600190004.A57
1600190004
|
-
|
|
|
|
34 - SHIM 0.2 MM
BSD-1600190005.A226
1600190005
|
£1.38
|
£1.66
|
|
|
35 - TAB WASHER
BSD-1601030022.A647
1601030022
|
£1.84
|
£2.21
|
|
|
36 - RUBBER RING
BSD-1600206015.A148
1600206015
|
£2.27
|
£2.72
|
|
|
38 - MANUFACTURER'S NAMEPLATE
BSD-1601110493.A3
1601110493
|
-
|
|
|
|
40 - SPRING WASHER dia27.5x38.4 MM
BSD-1600150007.A88
1600150007
|
£1.84
|
£2.21
|
|
|
50 - GROOVE BALL BEARING 6203-2 Z DIN 625
BSD-1900905227.A60
1900905227
|
-
|
|
|
|
51 - SPRING WASHER DIN 137-A 4-ST
BSD-2916060005.A7
2916060005
|
£1.84
|
£2.21
|
|
|
52 - GROOVE BALL BEARING 10x35x11
BSD-1600905025.A62
1600905025
|
-
|
|
|
|
53 - GROOVE BALL BEARING
BSD-1600900029.A130
1600900029
|
-
|
|
|
|
53 - GROOVE BALL BEARING 10x26x8
BSD-1900900407.A4
1900900407
|
-
|
|
|
|
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A714
2910021118
|
£1.84
|
£2.21
|
|
|
55 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A516
2910211021
|
£1.75
|
£2.10
|
|
|
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A425
2910011157
|
-
|
|
|
|
58 - TAPPING SCREW DIN 7971-B 3.9x19
BSD-2910211220.A266
2910211220
|
-
|
|
|
|
59 - TAPPING SCREW B4.8x57.5 MM
BSD-1603429000.A70
1603429000
|
£1.84
|
£2.21
|
|
|
60 - TAPPING SCREW B4.8x57.5 MM
BSD-1603429000.A71
1603429000
|
£1.84
|
£2.21
|
|
|
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A280
2910011162
|
£1.84
|
£2.21
|
|
|
62 - HEX NUT
BSD-1603300018.A43
1603300018
|
-
|
|
|
|
63 - TAPPING SCREW B4.8x90 MM
BSD-1603435006.A219
1603435006
|
-
|
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A339
2910211018
|
£1.75
|
£2.10
|
|
|
69 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A412
2910211011
|
£1.84
|
£2.21
|
|
|
71 - INTERMEDIATE FLANGE
BSD-1605700020.A4
1605700020
|
-
|
|
|
|
72 - WIREWOUND RESISTOR
BSD-1604503007.A4
1604503007
|
-
|
|
|
|
78 - END SPLICE
BSD-1600452001.A19
1600452001
|
-
|
|
|
|
80 - MANUFACTURER'S NAMEPLATE
BSD-1601110494.A0
1601110494
|
-
|
|
|
|
120 - CROWN GEAR Z=59
BSD-1606333200.A9
1606333200
|
-
|
|
|
|
650/10 - AUXILIARY HANDLE M14
BSD-1602025022.A1132
1602025022
|
£13.41
|
£16.09
|
|
|
650/10 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A885
1602025030
|
£19.91
|
£23.89
|
|
|
650/20 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A180
2607950511
|
£4.48
|
£5.37
|
|
|
650/30 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A767
1607950061
|
£5.69
|
£6.83
|
|
|
650/40 - CLAMPING-FLANGE dia45 MM
BSD-2600501006.A5
2600501006
|
£17.26
|
£20.71
|
|
|
650/50 - ROUND NUT M14
BSD-2603345004.A115
2603345004
|
£6.52
|
£7.83
|
|
|
650/60 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A122
1907950007
|
£5.57
|
£6.68
|
|
|
652 - PROTECTIVE COVER dia 180 MM
BSD-2605510083.A0
2605510083
|
-
|
|
|
|
652 - PROTECTIVE COVER dia230 MM
BSD-1605510198.A55
1605510198
|
-
|
|
|
|
652/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x18-8.8
BSD-2910141240.A7
2910141240
|
£1.32
|
£1.58
|
|
|
700 - CUTTING DISC
BSD-1608600215.A1
1608600215
|
-
|
|
|
|
701 - CUTTING DISC
BSD-1608600236.A0
1608600236
|
-
|
|
|
|
702 - GRINDING WHEEL dia 230 MM
BSD-1608600285.A1
1608600285
|
-
|
|
|
|
703 - PARTS SET
BSD-1607000140.A87
1607000140
|
-
|
|
|
|
703/11 - HEX SCREW M14x16x1.5 MM
BSD-2603450007.A262
2603450007
|
£5.87
|
£7.04
|
|
|
712/20 - GUIDE BLOCK
BSD-1608135003.A85
1608135003
|
-
|
|
|
|
800 - CARBON-BRUSH SET
BSD-1607014103.A59
1607014103
|
£15.65
|
£18.78
|
|
|
805 - BEVEL GEAR Z=14. dia 12 MM
BSD-1606333201.A2
1606333201
|
-
|
|
|
|
810 - SEAL KIT
BSD-1607000138.A0
1607000138
|
-
|
|
|
|
817 - BEARING FLANGE
BSD-1607000229.A168
1607000229
|
-
|
|
|
|
830 - ARMATURE 220V
BSD-1604011130.A11
1604011130
|
-
|
|
|
|
830/01 - FAN
BSD-1606610119.A1
1606610119
|
-
|
|
|
|
842 - PARTS SET
BSD-1607000186.A5
1607000186
|
-
|
|
|
|
852 - GROOVE BALL BEARING 15x35x11
BSD-1900905234.A258
1900905234
|
£33.22
|
£39.87
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4458
160111A3H3
|
£2.74
|
£3.29
|
|
