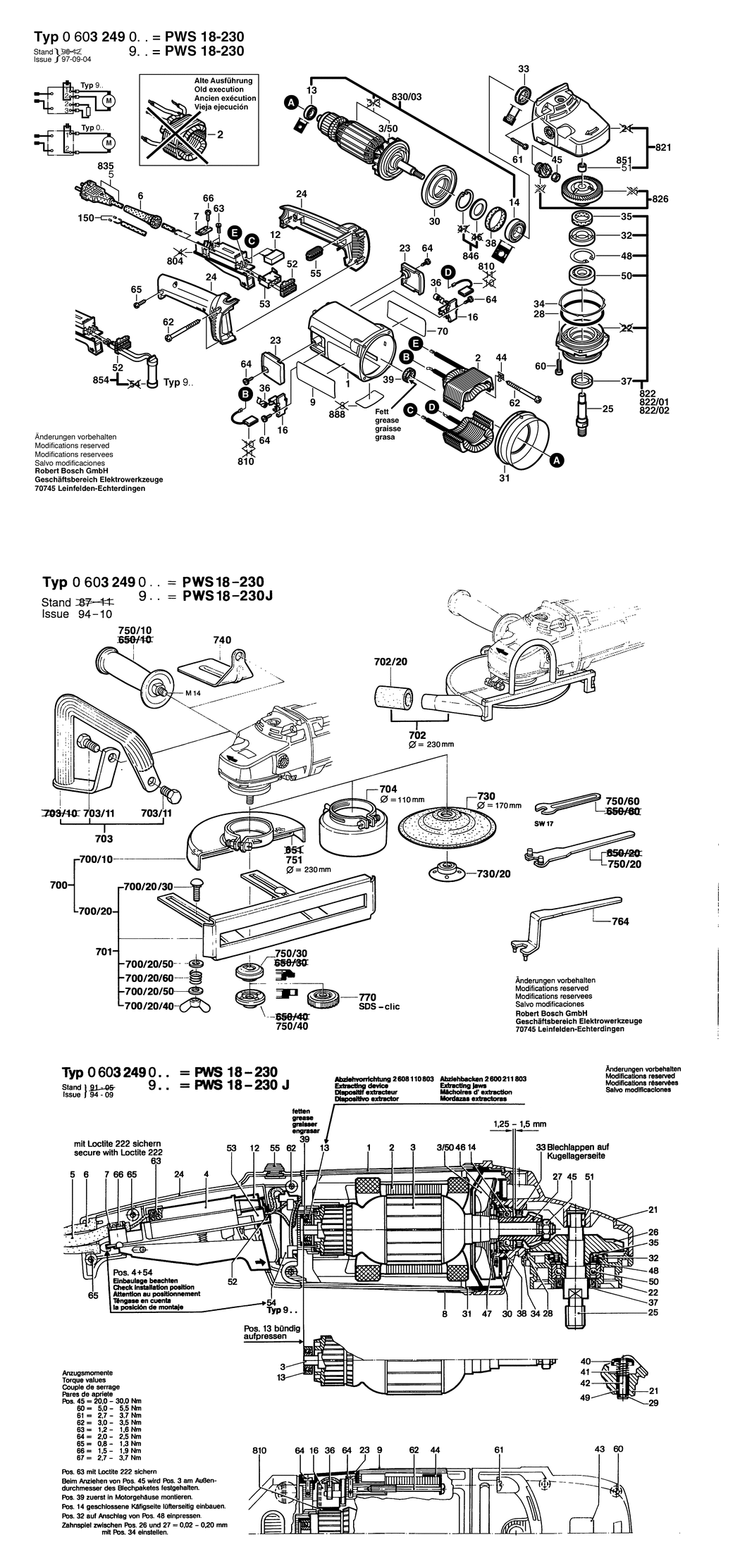

1 - MOTOR HOUSING
BSD-1605108146.A8
1605108146
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220380.A15
1604220380
|
£33.74
|
£40.49
|
|
|
3/50 - FAN
BSD-1606610127.A10
1606610127
|
£2.80
|
£3.36
|
|
|
5 - POWER SUPPLY CORD I 4.15m 2 x 1.0mm H07 RN-F
BSD-1614460039.A36
1614460039
|
£16.74
|
£20.09
|
|
|
6 - GROMMET dia 10.5-dia11.0x100 MM
BSD-1600703023.A354
1600703023
|
£2.61
|
£3.13
|
|
|
6 - GROMMET dia7.9-dia12.0x120 MM
BSD-1600703022.A9
1600703022
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia8.8-dia9.0x70 MM
BSD-1600703024.A9
1600703024
|
-
|
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A24
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118288.A1
1601118288
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328035.A48
1607328035
|
£4.26
|
£5.11
|
|
|
13 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A144
1600905011
|
£5.58
|
£6.70
|
|
|
14 - GROOVE BALL BEARING 10x35x11
BSD-1600905025.A127
1600905025
|
-
|
|
|
|
16 - BRUSH HOLDER
BSD-1604336021.A78
1604336021
|
£2.80
|
£3.36
|
|
|
23 - SEALING CAP
BSD-1605500151.A3
1605500151
|
-
|
|
|
|
24 - HANDLE
BSD-1605132118.A6
1605132118
|
-
|
|
|
|
25 - GRINDING SPINDLE M14. SW17
BSD-1603523100.A79
1603523100
|
£14.91
|
£17.89
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A152
1600210033
|
£1.75
|
£2.10
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591010.A10
1600591010
|
£2.16
|
£2.59
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591011.A168
1600591011
|
£1.75
|
£2.10
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A7
1600290019
|
£1.75
|
£2.10
|
|
|
33 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A481
1600290013
|
£2.61
|
£3.13
|
|
|
33 - ROTARY SHAFT LIP SEAL 16 MM
BSD-1600290064.A325
1600290064
|
£2.16
|
£2.59
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A706
1600190020
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A121
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A706
1600190022
|
£1.75
|
£2.10
|
|
|
35 - FELT WASHER
BSD-1600205034.A619
1600205034
|
£1.75
|
£2.10
|
|
|
36 - SPIRAL SPRING
BSD-1604652015.A3
1604652015
|
£2.80
|
£3.36
|
|
|
37 - SEAL RING
BSD-1600290036.A35
1600290036
|
£2.16
|
£2.59
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A456
1600206020
|
£1.75
|
£2.10
|
|
|
39 - RUBBER RING
BSD-1600206030.A242
1600206030
|
£1.75
|
£2.10
|
|
|
44 - HOLDING BRACKET
BSD-1601334008.A168
1601334008
|
£2.61
|
£3.13
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A594
1603300019
|
£1.75
|
£2.10
|
|
|
48 - RETAINING CLIP
BSD-1600119010.A7
1600119010
|
£1.75
|
£2.10
|
|
|
50 - GROOVE BALL BEARING
BSD-3600905134.A95
3600905134
|
£11.30
|
£13.56
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A422
1600200031
|
£2.80
|
£3.36
|
|
|
52 - CABLE ROUTING
BSD-1602388027.A87
1602388027
|
£2.61
|
£3.13
|
|
|
53 - SOCKET HOUSING
BSD-1605190038.A167
1605190038
|
£1.75
|
£2.10
|
|
|
55 - STORAGE LEDGE
BSD-1602388028.A3
1602388028
|
-
|
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A221
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A579
2912401038
|
£1.75
|
£2.10
|
|
|
62 - TAPPING SCREW C4.8x63 MM
BSD-1603435024.A108
1603435024
|
£1.75
|
£2.10
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A644
1603410014
|
£1.75
|
£2.10
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A461
1603435042
|
£1.75
|
£2.10
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A528
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2217
2910211019
|
£1.75
|
£2.10
|
|
|
70 - MANUFACTURER'S NAMEPLATE
BSD-1601118287.A4
1601118287
|
-
|
|
|
|
700/10 - PROTECTIVE COVER dia230 MM
BSD-1605510223.A121
1605510223
|
-
|
|
|
|
700/20 - GUIDE BLOCK
BSD-1608135003.A174
1608135003
|
-
|
|
|
|
700/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25
BSD-2910281244.A239
2910281244
|
-
|
|
|
|
700/20/40 - WING NUT DIN 315-M8-GT-C
BSD-2915191007.A131
2915191007
|
£3.72
|
£4.47
|
|
|
700/20/50 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A53
2600100041
|
£1.75
|
£2.10
|
|
|
700/20/60 - COMPRESSION SPRING
BSD-1604643003.A132
1604643003
|
£6.52
|
£7.83
|
|
|
701 - GUIDE BLOCK
BSD-1608135003.A175
1608135003
|
-
|
|
|
|
702 - PROTECTIVE COVER dia230 MM
BSD-1605510180.A25
1605510180
|
£71.74
|
£86.09
|
|
|
702/20 - UNION dia32.3xdia34.9x75 MM
BSD-1600309009.A61
1600309009
|
-
|
|
|
|
703 - STRAP-SHAPED HANDLE
BSD-1607000247.A94
1607000247
|
£50.82
|
£60.99
|
|
|
703/11 - HEX SCREW M14x16x1.5 MM
BSD-2603450007.A0
2603450007
|
£5.58
|
£6.70
|
|
|
704 - PROTECTIVE COVER dia110 MM
BSD-1605510181.A165
1605510181
|
-
|
|
|
|
730 - RUBBER BACKING PAD dia170 MM
BSD-1608601028.A8
1608601028
|
-
|
|
|
|
730 - BACKING PAD dia180 MM
BSD-1608601006.A77
1608601006
|
-
|
|
|
|
730/20 - ROUND NUT M14
BSD-1603345004.A130
1603345004
|
£7.87
|
£9.44
|
|
|
740 - PROTECTING COVER
BSD-1601329013.A223
1601329013
|
£11.37
|
£13.64
|
|
|
750/10 - AUXILIARY HANDLE M14x1.5 MM
BSD-2602025075.A41
2602025075
|
£10.30
|
£12.36
|
|
|
750/20 - PIN-TYPE FACE-WRENCH
BSD-1607950048.A110
1607950048
|
£4.88
|
£5.86
|
|
|
750/30 - CLAMPING-FLANGE dia22.2x42 MM
BSD-1605703099.A295
1605703099
|
£7.45
|
£8.94
|
|
|
750/40 - CLAMPING NUT M14
BSD-1603340040.A19
1603340040
|
£6.20
|
£7.44
|
|
|
750/60 - SINGLE-HEAD ENG. WRENCH SW17
BSD-1607950525.A3
1607950525
|
£2.70
|
£3.24
|
|
|
751 - PROTECTIVE COVER dia230 MM
BSD-1605510223.A120
1605510223
|
-
|
|
|
|
764 - PIN-TYPE FACE-WRENCH
BSD-1607950004.A90
1607950004
|
£8.33
|
£10.00
|
|
|
770 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A875
1603340027
|
£46.82
|
£56.18
|
|
|
804 - SWITCH
BSD-1607200103.A39
1607200103
|
£27.23
|
£32.68
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A51
1607014171
|
£14.91
|
£17.89
|
|
|
821 - GEAR HOUSING
BSD-1607000929.A7
1607000929
|
-
|
|
|
|
822 - BEARING FLANGE dia230 MM
BSD-1607000985.A95
1607000985
|
£27.23
|
£32.68
|
|
|
822/01 - BEARING FLANGE dia 230 MM
BSD-1607000922.A22
1607000922
|
£45.67
|
£54.80
|
|
|
826 - ASSEMBLY OF SERVICE PARTS
BSD-1600A005BH.A61
1600A005BH
|
£45.67
|
£54.80
|
|
|
830/03 - ARMATURE 230-240V
BSD-1604011148.A35
1604011148
|
£103.14
|
£123.77
|
|
|
846 - RETAINING WASHER
BSD-1607000C3E.A168
1607000C3E
|
£12.04
|
£14.45
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A692
2600910001
|
£4.26
|
£5.11
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2483
160111A3H3
|
£2.61
|
£3.13
|
|
