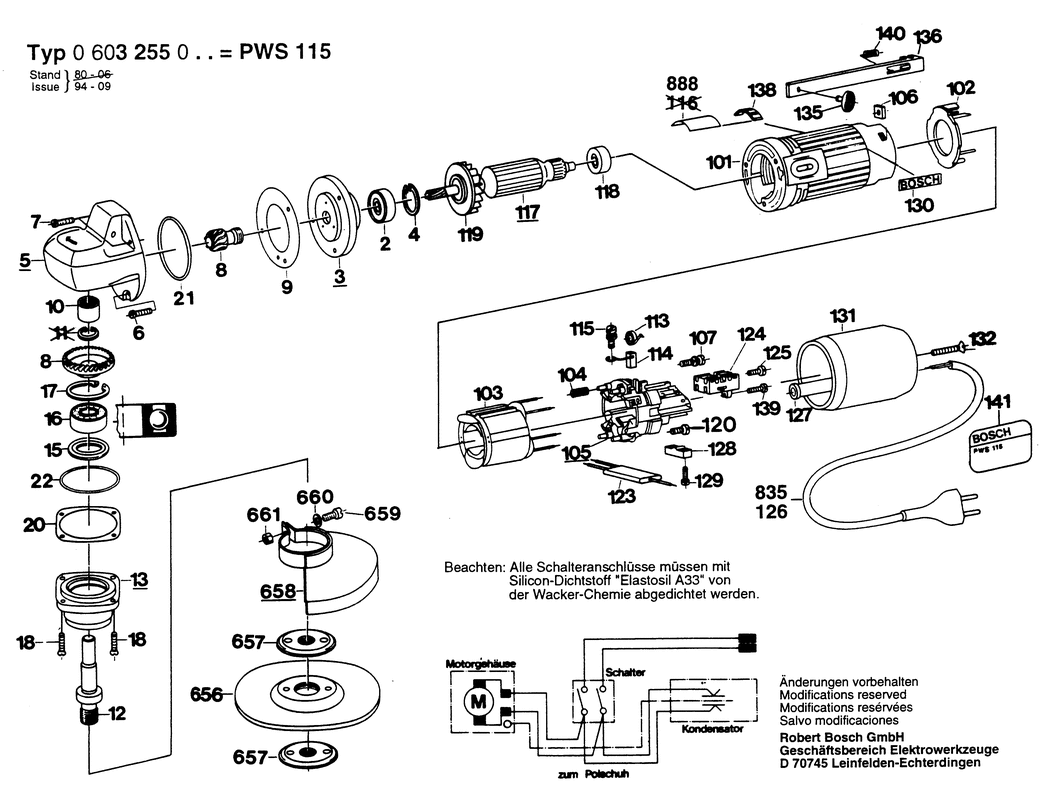

2 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A3
2600905007
|
-
|
|
|
|
3 - FLANGED BEARING
BSD-2605700918.A2
2605700918
|
-
|
|
|
|
4 - SPRING RETAINING RING DIN 472-26x1.2 MM
BSD-2916660010.A110
2916660010
|
£1.66
|
£1.99
|
|
|
5 - GEAR HOUSING
BSD-2605806968.A3
2605806968
|
-
|
|
|
|
6 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A351
2910021122
|
£1.66
|
£1.99
|
|
|
7 - SOCKET HEAD CAP SCREW DIN 84-AM4x16-8.8
BSD-2910021126.A66
2910021126
|
£1.66
|
£1.99
|
|
|
8 - SET OF GEARS
BSD-2607016015.A11
2607016015
|
-
|
|
|
|
9 - SHIM 0.1 MM
BSD-2600134002.A13
2600134002
|
-
|
|
|
|
10 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A301
2600910001
|
£4.26
|
£5.11
|
|
|
12 - STUD BOLT M14
BSD-1603523065.A4
1603523065
|
-
|
|
|
|
13 - FLANGED BEARING
BSD-2605820900.A3
2605820900
|
-
|
|
|
|
15 - CUPPED WASHER
BSD-2600500033.A37
2600500033
|
£1.95
|
£2.34
|
|
|
16 - GROOVE BALL BEARING 12x32x10
BSD-1600905006.A222
1600905006
|
£12.04
|
£14.45
|
|
|
17 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A599
2916660013
|
£1.95
|
£2.34
|
|
|
18 - COUNTERSUNK-HEAD SCREW DIN 63-AM 4x15-5.8
BSD-2910501125.A38
2910501125
|
-
|
|
|
|
20 - SHIM 0.1 MM
BSD-2600136002.A61
2600136002
|
-
|
|
|
|
20 - SHIM 0.2 MM
BSD-2600136003.A4
2600136003
|
-
|
|
|
|
21 - O-RING 40.0x1.5 MM
BSD-2600210003.A34
2600210003
|
£2.33
|
£2.80
|
|
|
22 - O-RING 45.7x1.5 MM
BSD-2600210002.A11
2600210002
|
-
|
|
|
|
101 - HOUSING SECTION
BSD-2605108903.A2
2605108903
|
-
|
|
|
|
101 - MOTOR HOUSING
BSD-2605108902.A16
2605108902
|
-
|
|
|
|
102 - COVER DISC
BSD-2600522009.A64
2600522009
|
-
|
|
|
|
103 - FIELD 115V
BSD-2604220379.A0
2604220379
|
-
|
|
|
|
104 - COMPRESSION SPRING
BSD-2604611024.A50
2604611024
|
£1.95
|
£2.34
|
|
|
105 - COMMUTATOR END SHIELD
BSD-2605808910.A22
2605808910
|
-
|
|
|
|
106 - SQUARE NUT M4
BSD-2603320001.A172
2603320001
|
£1.66
|
£1.99
|
|
|
107 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A552
1613435034
|
£1.66
|
£1.99
|
|
|
113 - SPIRAL SPRING
BSD-2604652000.A245
2604652000
|
-
|
|
|
|
114 - CARBON-BRUSH SET
BSD-2604320902.A105
2604320902
|
-
|
|
|
|
115 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8
BSD-2914501011.A5
2914501011
|
£1.66
|
£1.99
|
|
|
117 - ARMATURE 240V
BSD-2604010552.A0
2604010552
|
-
|
|
|
|
118 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A278
1900905019
|
£14.91
|
£17.89
|
|
|
119 - FAN
BSD-2606610016.A23
2606610016
|
-
|
|
|
|
120 - TAPPING SCREW 2.2x6.5
BSD-2603435016.A6
2603435016
|
-
|
|
|
|
123 - SUPPRESSION CAPACITOR
BSD-2607329076.A16
2607329076
|
-
|
|
|
|
124 - SWITCH
BSD-2607200674.A202
2607200674
|
£16.41
|
£19.69
|
|
|
125 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1680
2603410001
|
£1.66
|
£1.99
|
|
|
126 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460205.A88
2604460205
|
£27.23
|
£32.68
|
|
|
127 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A461
2600703012
|
£2.80
|
£3.36
|
|
|
127 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A684
2600703013
|
£2.33
|
£2.80
|
|
|
127 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A728
2600703011
|
£2.80
|
£3.36
|
|
|
128 - CABLE CLIP
BSD-2601035001.A2171
2601035001
|
£1.66
|
£1.99
|
|
|
129 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1034
2910211019
|
£1.66
|
£1.99
|
|
|
130 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A269
1601110013
|
-
|
|
|
|
131 - HOUSING COVER
BSD-2600508034.A3
2600508034
|
-
|
|
|
|
131 - HOUSING COVER
BSD-2600508001.A2
2600508001
|
-
|
|
|
|
132 - REC CT-SUNK TAPPING SCREW BZ 3.9x19 DIN 7972
BSD-2910601020.A10
2910601020
|
-
|
|
|
|
135 - SWITCH HANDLE
BSD-2602026015.A70
2602026015
|
£1.66
|
£1.99
|
|
|
136 - ADJUSTING SLIDE
BSD-2602319004.A16
2602319004
|
-
|
|
|
|
138 - INTERMEDIATE PIECE
BSD-2600026002.A3
2600026002
|
-
|
|
|
|
138 - INTERMEDIATE PIECE
BSD-1600026000.A64
1600026000
|
£1.66
|
£1.99
|
|
|
139 - TAPPING SCREW DIN 7971-ST2.9x9.5-F
BSD-2910211005.A191
2910211005
|
£1.66
|
£1.99
|
|
|
141 - STICKER
BSD-2601110232.A2
2601110232
|
-
|
|
|
|
651 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A128
1907950007
|
£5.30
|
£6.36
|
|
|
657 - ROUND NUT
BSD-2603340013.A3
2603340013
|
-
|
|
|
|
658 - PROTECTIVE COVER dia 120 MM
BSD-2605510002.A13
2605510002
|
-
|
|
|
|
659 - SOCKET HEAD CAP SCREW DIN 84-AM5x10-5.8
BSD-2910011152.A2
2910011152
|
£1.66
|
£1.99
|
|
|
660 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A5
2916011011
|
£1.66
|
£1.99
|
|
|
661 - HEX NUT DIN 934-M 5-m-8
BSD-2915011006.A148
2915011006
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4464
160111A3H3
|
£2.33
|
£2.80
|
|
