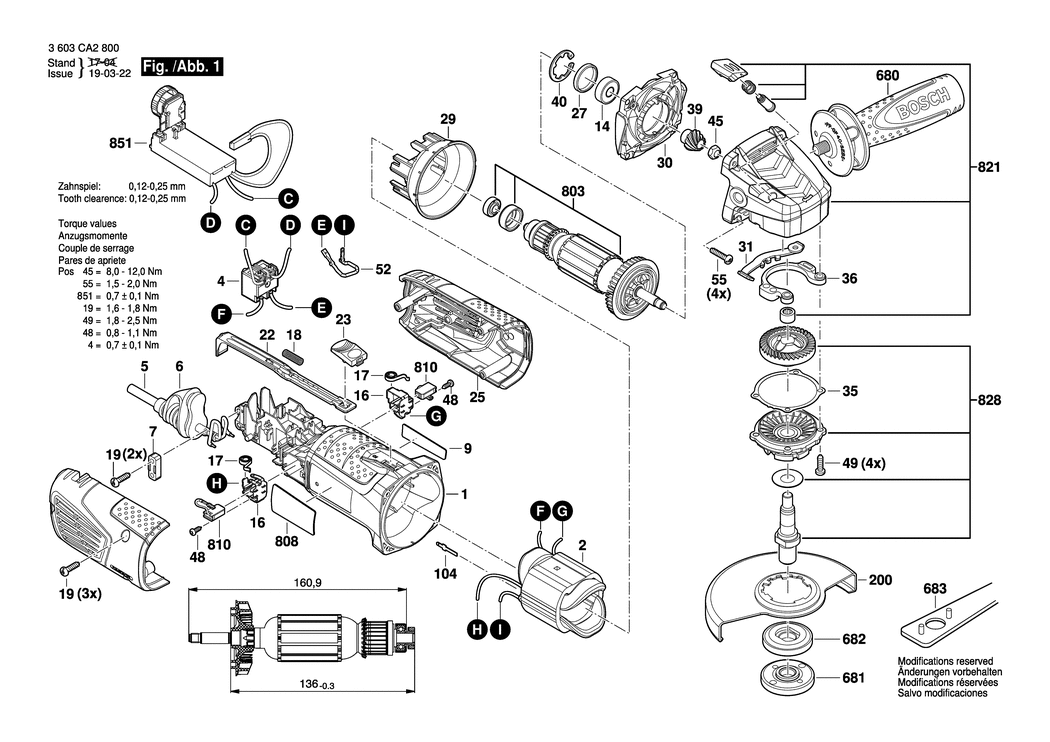

1 - MOTOR HOUSING
BSD-2609006368.A2
2609006368
|
£13.78
|
£16.54
|
|
|
2 - FIELD 220-240V
BSD-1604220301.A84
1604220301
|
£30.28
|
£36.33
|
|
|
4 - SWITCH
BSD-1607200146.A53
1607200146
|
£10.61
|
£12.73
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 0.75mm H05 VV-F
BSD-1604460433.A11
1604460433
|
£11.87
|
£14.24
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2609006376.A6
2609006376
|
£1.84
|
£2.21
|
|
|
7 - CABLE CLIP
BSD-2601035001.A841
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE PWS 1000-125 CE
BSD-2609006827.A1
2609006827
|
£2.74
|
£3.29
|
|
|
14 - GROOVE BALL BEARING
BSD-2600905078.A44
2600905078
|
£6.52
|
£7.83
|
|
|
16 - BRUSH HOLDER
BSD-1601323023.A10
1601323023
|
£3.91
|
£4.69
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A787
1604652013
|
£1.84
|
£2.21
|
|
|
18 - COMPRESSION SPRING
BSD-1604611026.A403
1604611026
|
£1.84
|
£2.21
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1119
2603490022
|
£1.84
|
£2.21
|
|
|
22 - CONTROL LEVER
BSD-2609006373.A1
2609006373
|
£1.84
|
£2.21
|
|
|
23 - SWITCH BUTTON
BSD-1600A007UL.A24
1600A007UL
|
£1.84
|
£2.21
|
|
|
25 - HOUSING
BSD-2609006370.A2
2609006370
|
£11.87
|
£14.24
|
|
|
27 - RUBBER RING
BSD-1600206025.A816
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-2609006367.A4
2609006367
|
£1.75
|
£2.10
|
|
|
30 - BAFFLE
BSD-2609006366.A7
2609006366
|
£2.27
|
£2.72
|
|
|
31 - LEAF SPRING
BSD-2609002205.A10
2609002205
|
£5.57
|
£6.68
|
|
|
35 - SHIM 0.1 MM
BSD-2609002208.A36
2609002208
|
£1.84
|
£2.21
|
|
|
35 - SHIM 0.2 MM
BSD-2609002209.A12
2609002209
|
£1.84
|
£2.21
|
|
|
35 - SHIM 0.3 MM
BSD-2609002210.A36
2609002210
|
£2.27
|
£2.72
|
|
|
35 - SHIM 1.5 MM
BSD-1600A00RE3.A3
1600A00RE3
|
£1.75
|
£2.10
|
|
|
36 - VIBRATION DAMPER
BSD-2609007464.A8
2609007464
|
£1.75
|
£2.10
|
|
|
39 - BEVEL GEAR
BSD-2609006725.A6
2609006725
|
£6.85
|
£8.22
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A444
1600119011
|
£2.27
|
£2.72
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A302
1603300016
|
£1.84
|
£2.21
|
|
|
48 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A964
2603490017
|
£2.27
|
£2.72
|
|
|
49 - THREAD-FORMING TAP. SCREW M4x16
BSD-2914491410.A222
2914491410
|
£1.84
|
£2.21
|
|
|
52 - CONNECTING CABLE
BSD-2609006786.A3
2609006786
|
£1.75
|
£2.10
|
|
|
55 - TORX OVAL-HEAD SCREW 4x20
BSD-2609001403.A11
2609001403
|
£1.84
|
£2.21
|
|
|
104 - CONTACT SPRING
BSD-2609003611.A2
2609003611
|
£1.84
|
£2.21
|
|
|
200 - PROTECTIVE COVER dia125 MM
BSD-2609002204.A23
2609002204
|
£17.22
|
£20.67
|
|
|
680 - HANDLE
BSD-2609002198.A17
2609002198
|
£10.61
|
£12.73
|
|
|
681 - ROUND NUT M14
BSD-1603345043.A1009
1603345043
|
£9.11
|
£10.93
|
|
|
682 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A1273
2605703014
|
£7.72
|
£9.27
|
|
|
683 - PIN-TYPE FACE-WRENCH
BSD-1619P08927.A44
1619P08927
|
£4.26
|
£5.11
|
|
|
803 - ARMATURE ASSEMBLY 230V
BSD-2609007330.A4
2609007330
|
£59.53
|
£71.44
|
|
|
808 - NAMEPLATE
BSD-160111A29E.A0
160111A29E
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014176.A269
1607014176
|
£13.78
|
£16.54
|
|
|
821 - GEAR HOUSING
BSD-2609007332.A4
2609007332
|
£27.23
|
£32.68
|
|
|
828 - BEARING FLANGE
BSD-2609007333.A7
2609007333
|
£27.23
|
£32.68
|
|
|
851 - ELECTRONIC MODULE
BSD-1600A00A4P.A3
1600A00A4P
|
£48.38
|
£58.06
|
|
