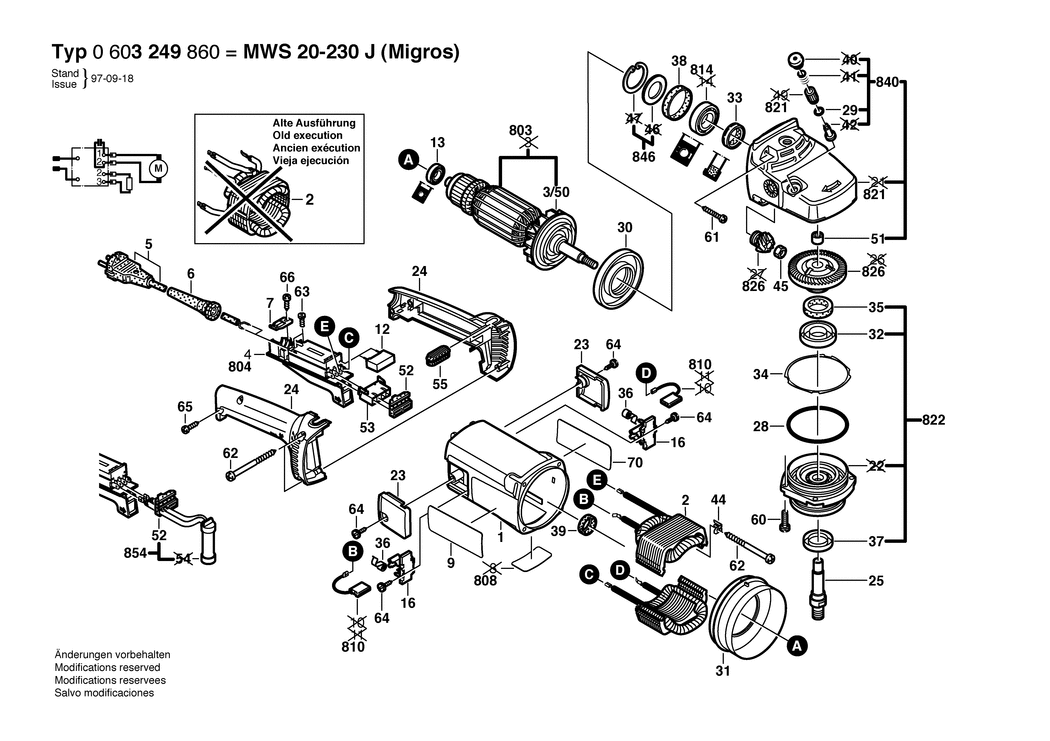

1 - MOTOR HOUSING
BSD-1605108164.A1
1605108164
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220380.A18
1604220380
|
£35.42
|
£42.51
|
|
|
3/50 - FAN
BSD-1606610127.A4
1606610127
|
£2.94
|
£3.53
|
|
|
4 - SWITCH
BSD-1607200111.A2
1607200111
|
-
|
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460440.A58
1604460440
|
£22.60
|
£27.12
|
|
|
6 - GROMMET dia 10.5-dia11.0x100 MM
BSD-1600703023.A358
1600703023
|
£2.74
|
£3.29
|
|
|
6 - GROMMET dia7.9-dia12.0x120 MM
BSD-1600703022.A5
1600703022
|
£2.94
|
£3.53
|
|
|
6 - GROMMET dia8.8-dia9.0x70 MM
BSD-1600703024.A5
1600703024
|
-
|
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A34
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110891.A1
1601110891
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328035.A39
1607328035
|
£4.48
|
£5.37
|
|
|
13 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A137
1600905011
|
£5.58
|
£6.70
|
|
|
16 - BRUSH HOLDER
BSD-1604336021.A88
1604336021
|
£2.94
|
£3.53
|
|
|
23 - SEALING CAP
BSD-1605500170.A1
1605500170
|
-
|
|
|
|
24 - HANDLE
BSD-1605132119.A2
1605132119
|
£11.87
|
£14.24
|
|
|
25 - GRINDING SPINDLE M14. SW17
BSD-1603523100.A83
1603523100
|
£15.65
|
£18.78
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A160
1600210033
|
£1.84
|
£2.21
|
|
|
29 - O-RING 4.0x1.0 MM
BSD-1600210034.A148
1600210034
|
£1.84
|
£2.21
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591010.A6
1600591010
|
£2.27
|
£2.72
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591011.A172
1600591011
|
£1.84
|
£2.21
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A16
1600290019
|
£1.84
|
£2.21
|
|
|
33 - ROTARY SHAFT LIP SEAL 18.7 MM
BSD-1600290013.A472
1600290013
|
£2.74
|
£3.29
|
|
|
33 - ROTARY SHAFT LIP SEAL 16 MM
BSD-1600290064.A317
1600290064
|
£2.27
|
£2.72
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A699
1600190020
|
£1.84
|
£2.21
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A128
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A699
1600190022
|
£1.84
|
£2.21
|
|
|
35 - FELT WASHER
BSD-1600205034.A612
1600205034
|
£1.75
|
£2.10
|
|
|
36 - SPIRAL SPRING
BSD-1604652015.A8
1604652015
|
£2.94
|
£3.53
|
|
|
37 - SEAL RING
BSD-1600290036.A44
1600290036
|
£2.27
|
£2.72
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A464
1600206020
|
£1.84
|
£2.21
|
|
|
39 - RUBBER RING
BSD-1600206030.A234
1600206030
|
£1.84
|
£2.21
|
|
|
44 - HOLDING BRACKET
BSD-1601334008.A179
1601334008
|
£2.61
|
£3.13
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A586
1603300019
|
£1.84
|
£2.21
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A430
1600200031
|
£2.80
|
£3.36
|
|
|
52 - CABLE ROUTING
BSD-1602388027.A76
1602388027
|
£2.74
|
£3.29
|
|
|
53 - SOCKET HOUSING
BSD-1605190038.A160
1605190038
|
£1.84
|
£2.21
|
|
|
55 - STORAGE LEDGE
BSD-1602388029.A0
1602388029
|
£1.84
|
£2.21
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A231
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A588
2912401038
|
£1.84
|
£2.21
|
|
|
62 - TAPPING SCREW C4.8x63 MM
BSD-1603435024.A98
1603435024
|
£1.75
|
£2.10
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A633
1603410014
|
£1.84
|
£2.21
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A458
1603435042
|
£1.84
|
£2.21
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A520
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2208
2910211019
|
£1.84
|
£2.21
|
|
|
70 - MANUFACTURER'S NAMEPLATE
BSD-1601118801.A0
1601118801
|
-
|
|
|
|
650/10 - AUXILIARY HANDLE M14
BSD-1602025022.A805
1602025022
|
£13.41
|
£16.09
|
|
|
650/10 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A174
1602025030
|
£19.91
|
£23.89
|
|
|
650/20 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A528
1607950061
|
£5.69
|
£6.83
|
|
|
650/30 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A417
2605703014
|
£7.72
|
£9.27
|
|
|
650/30/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A971
1600210039
|
£2.27
|
£2.72
|
|
|
650/40 - ROUND NUT M14
BSD-1603345043.A1153
1603345043
|
£9.11
|
£10.93
|
|
|
651 - PROTECTIVE COVER dia230 MM
BSD-1605510340.A4
1605510340
|
-
|
|
|
|
803 - ARMATURE 230-240V
BSD-1604011148.A31
1604011148
|
£108.30
|
£129.96
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A2473
160111A3H3
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A40
1607014171
|
£14.91
|
£17.89
|
|
|
814 - GROOVE BALL BEARING 10x35x11
BSD-1600905023.A13
1600905023
|
£12.64
|
£15.17
|
|
|
821 - GEAR HOUSING
BSD-1605805592.A114
1605805592
|
£72.18
|
£86.62
|
|
|
822 - BEARING FLANGE dia 230 MM
BSD-1607000959.A0
1607000959
|
-
|
|
|
|
826 - ASSEMBLY OF SERVICE PARTS
BSD-1600A005BH.A69
1600A005BH
|
£47.95
|
£57.54
|
|
|
840 - PUSH-BUTTON
BSD-1607000206.A129
1607000206
|
£11.30
|
£13.56
|
|
|
846 - RETAINING WASHER
BSD-1607000C3E.A179
1607000C3E
|
£12.64
|
£15.17
|
|
|
854 - WIREWOUND RESISTOR
BSD-1607000926.A14
1607000926
|
£17.22
|
£20.67
|
|
