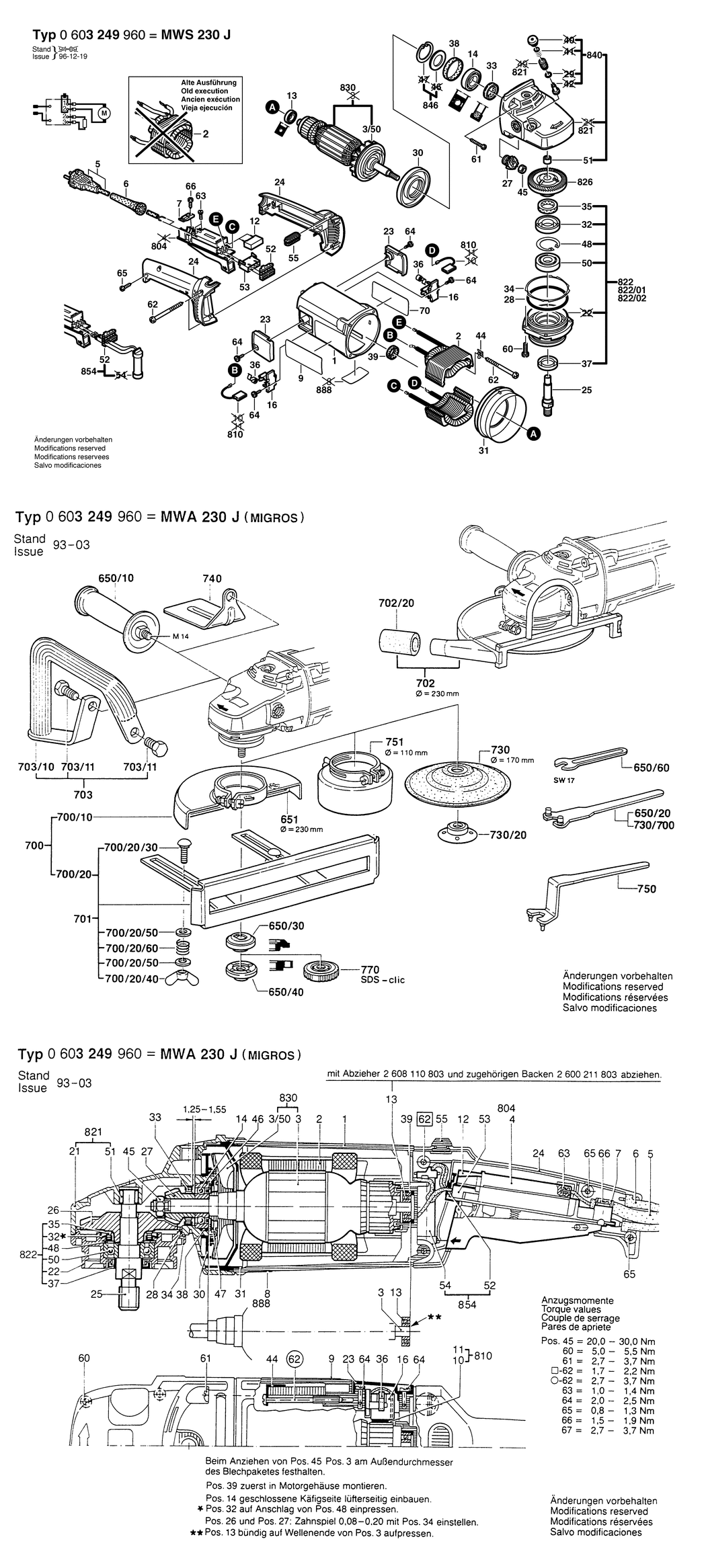

An exploded drawing and listing for the Bosch MWA 230 J / 0603249960 / CH 220 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108147.A0 1605108147 -
2 - FIELD 220-240V BSD-1604220380.A22 1604220380 £33.74 £40.49
3/50 - FAN BSD-1606610127.A0 1606610127 £2.80 £3.36
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460440.A61 1604460440 £21.52 £25.83
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A364 1600703023 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302018.A30 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601110529.A0 1601110529 -
12 - SUPPRESSION FILTER BSD-1607328035.A44 1607328035 £4.26 £5.11
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A141 1600905011 £5.58 £6.70
14 - GROOVE BALL BEARING 10x35x11 BSD-1600905025.A121 1600905025 -
16 - BRUSH HOLDER BSD-1604336021.A84 1604336021 £2.80 £3.36
23 - SEALING CAP BSD-1605500152.A0 1605500152 -
24 - HANDLE BSD-1605132119.A0 1605132119 £11.30 £13.56
25 - GRINDING SPINDLE M14. SW17 BSD-1603523100.A87 1603523100 £14.91 £17.89
27 - BEVEL GEAR BSD-1606333274.A1 1606333274 -
28 - O-RING 79.0x1.78 MM BSD-1600210033.A161 1600210033 £1.75 £2.10
30 - AIR-DEFLECTOR RING BSD-1600591010.A0 1600591010 £2.16 £2.59
31 - AIR-DEFLECTOR RING BSD-1600591011.A178 1600591011 £1.75 £2.10
32 - RETAINING SNAP RING BSD-1600290019.A13 1600290019 £1.75 £2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A475 1600290013 £2.61 £3.13
33 - ROTARY SHAFT LIP SEAL 16 MM BSD-1600290064.A322 1600290064 £2.16 £2.59
34 - SHIM 0.15 MM BSD-1600190020.A696 1600190020 £1.75 £2.10
34 - SHIM 0.3 MM BSD-1600190021.A131 1600190021 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190022.A696 1600190022 £1.75 £2.10
35 - FELT WASHER BSD-1600205034.A609 1600205034 £1.75 £2.10
36 - SPIRAL SPRING BSD-1604652015.A13 1604652015 £2.80 £3.36
37 - SEAL RING BSD-1600290036.A39 1600290036 £2.16 £2.59
38 - RUBBER RING 7 MM BSD-1600206020.A466 1600206020 £1.75 £2.10
39 - RUBBER RING BSD-1600206030.A232 1600206030 £1.75 £2.10
44 - HOLDING BRACKET BSD-1601334008.A173 1601334008 £2.61 £3.13
45 - HEX NUT M10. SW14 BSD-1603300019.A584 1603300019 £1.75 £2.10
48 - RETAINING CLIP BSD-1600119010.A16 1600119010 £1.75 £2.10
50 - GROOVE BALL BEARING BSD-3600905134.A92 3600905134 £11.30 £13.56
51 - PLAIN BEARING dia14 MM BSD-1600200031.A432 1600200031 £2.80 £3.36
52 - CABLE ROUTING BSD-1602388027.A81 1602388027 £2.61 £3.13
53 - SOCKET HOUSING BSD-1605190038.A157 1605190038 £1.75 £2.10
55 - STORAGE LEDGE BSD-1602388029.A1 1602388029 £1.75 £2.10
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A227 1603435023 £2.16 £2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A592 2912401038 £1.75 £2.10
62 - TAPPING SCREW C4.8x63 MM BSD-1603435024.A102 1603435024 £1.75 £2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A637 1603410014 £1.75 £2.10
64 - TAPPING SCREW C3.9x13 MM BSD-1603435025.A0 1603435025 £1.75 £2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A515 2912401020 £2.16 £2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2204 2910211019 £1.75 £2.10
70 - MANUFACTURER'S NAMEPLATE BSD-1601110795.A0 1601110795 -
650/10 - AUXILIARY HANDLE M14 BSD-1602025022.A807 1602025022 £13.41 £16.09
650/10 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A172 1602025030 £18.96 £22.75
650/20 - PIN-TYPE FACE-WRENCH BSD-1607950061.A527 1607950061 £5.42 £6.50
650/30 - CLAMPING-FLANGE dia22.2x42 MM BSD-1605703099.A290 1605703099 £7.45 £8.94
650/40 - CLAMPING NUT M14 BSD-1603340040.A10 1603340040 £6.20 £7.44
650/60 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A459 2607950511 £4.26 £5.11
651 - PROTECTIVE COVER dia230 MM BSD-1605510223.A106 1605510223 -
700 - PARTS SET dia230 MM BSD-1607000251.A47 1607000251 -
700/10 - PROTECTIVE COVER dia230 MM BSD-1605510340.A1 1605510340 -
700/20 - GUIDE BLOCK BSD-1608135006.A19 1608135006 -
700/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25 BSD-2910281244.A251 2910281244 -
700/20/40 - WING NUT DIN 315-M8-GT-C BSD-2915191007.A120 2915191007 £3.72 £4.47
700/20/50 - PLAIN WASHER DIN 315-M8-GT-C BSD-2600100041.A45 2600100041 £1.75 £2.10
700/20/60 - COMPRESSION SPRING BSD-1604643003.A123 1604643003 £6.52 £7.83
701 - GUIDE BLOCK BSD-1608135003.A188 1608135003 -
702 - PROTECTIVE COVER dia230 MM BSD-1605510180.A17 1605510180 £71.74 £86.09
702/20 - UNION dia32.3xdia34.9x75 MM BSD-1600309009.A63 1600309009 -
703 - STRAP-SHAPED HANDLE BSD-1607000247.A104 1607000247 £50.82 £60.99
703/11 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A9 2603450007 £5.58 £6.70
730 - RUBBER BACKING PAD dia170 MM BSD-1608601028.A11 1608601028 -
730 - BACKING PAD dia180 MM BSD-1608601006.A70 1608601006 -
730/20 - ROUND NUT M14 BSD-1603345004.A139 1603345004 £7.87 £9.44
730/700 - PIN-TYPE FACE-WRENCH BSD-1607950048.A104 1607950048 £4.88 £5.86
740 - PROTECTING COVER BSD-1601329013.A218 1601329013 £11.37 £13.64
750 - PIN-TYPE FACE-WRENCH BSD-1607950004.A97 1607950004 £8.33 £10.00
751 - PROTECTIVE COVER dia110 MM BSD-1605510181.A173 1605510181 -
770 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A884 1603340027 £46.82 £56.18
804 - SWITCH BSD-1607200111.A0 1607200111 -
810 - CARBON-BRUSH SET BSD-1607014171.A44 1607014171 £14.91 £17.89
821 - GEAR HOUSING BSD-1607000929.A1 1607000929 -
822 - BEARING FLANGE dia230 MM BSD-1607000985.A88 1607000985 £27.23 £32.68
822/01 - BEARING FLANGE dia230 MM BSD-1607000932.A34 1607000932 -
822/02 - BEARING FLANGE dia 230 MM BSD-1607000922.A15 1607000922 £45.67 £54.80
826 - ASSEMBLY OF SERVICE PARTS BSD-1600A005BH.A64 1600A005BH £45.67 £54.80
830 - ARMATURE 230-240V BSD-1604011148.A25 1604011148 £103.14 £123.77
840 - PUSH-BUTTON BSD-1607000206.A130 1607000206 £11.30 £13.56
846 - RETAINING WASHER BSD-1607000C3E.A175 1607000C3E £12.04 £14.45
854 - WIREWOUND RESISTOR BSD-1607000926.A18 1607000926 £16.41 £19.69
888 - NAMEPLATE BSD-160111A3H3.A2479 160111A3H3 £2.61 £3.13
