Bosch PFZ 500 E / 3603C98070 / GB 230 Volt Spare Parts

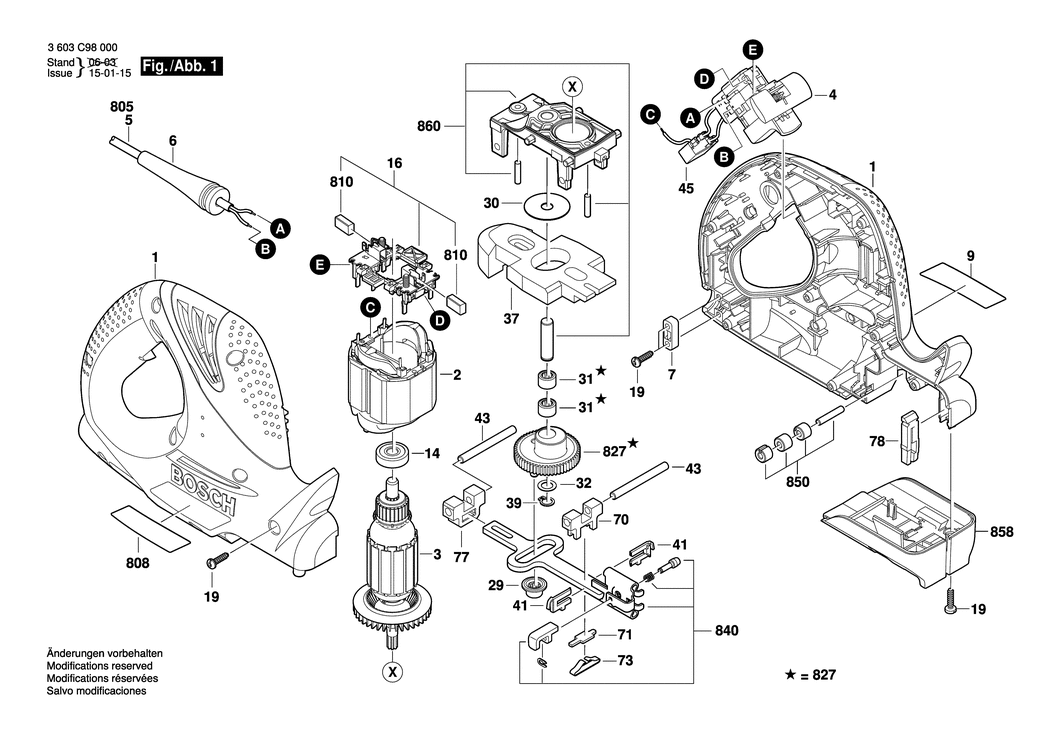

An exploded drawing and listing for the Bosch PFZ 500 E / 3603C98070 / GB 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609000751.A1 2609000751	£23.86	£28.63
2 - FIELD 220-240V BSD-2604220601.A52 2604220601	-
3 - ARMATURE 220-230V BSD-2604011305.A5 2604011305	£33.74	£40.49
4 - SWITCH BSD-2607200631.A1 2607200631	£31.64	£37.97
5 - POWER SUPPLY CORD GB 2.65m 2 x 1.0mm H05 VV-F BSD-2609001938.A1 2609001938	£12.04	£14.45
6 - GROMMET BSD-2609002019.A89 2609002019	£2.61	£3.13
7 - CABLE CLIP BSD-2601035001.A866 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE PFZ 500 E BSD-2609000782.A0 2609000782	£2.80	£3.36
14 - GROOVE BALL BEARING 8x19x6 BSD-2600905046.A30 2600905046	£11.30	£13.56
16 - BRUSH PLATE BSD-2609001171.A0 2609001171	£13.12	£15.75
19 - SCREW 4x16 BSD-2603490022.A995 2603490022	£1.75	£2.10
29 - NEEDLE BEARING BSD-2600914022.A67 2600914022	£6.52	£7.83
30 - SHIM 0.5 MM BSD-2600101048.A19 2600101048	£1.75	£2.10
31 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A527 2600917003	£2.80	£3.36
32 - SHIM 0.5 MM BSD-2600101077.A67 2600101077	£1.75	£2.10
37 - COUNTERWEIGHT BSD-2609000787.A0 2609000787	£16.41	£19.69
39 - SPRING RETAINING RING DIN 471-8x0.8 FSt BSD-2916640005.A57 2916640005	£1.75	£2.10
41 - SEAL BSD-2609001156.A1 2609001156	£2.61	£3.13
43 - NEEDLE ROLLER BSD-2603201089.A21 2603201089	£5.58	£6.70
45 - SUPPRESSION FILTER BSD-2609001375.A1 2609001375	£7.36	£8.83
70 - PLAIN BEARING BSD-2609001160.A0 2609001160	£5.30	£6.36
71 - PRESSURE ELEMENT BSD-2609001161.A1 2609001161	£1.75	£2.10
73 - COMPRESSION SPRING BSD-2609001163.A0 2609001163	£1.75	£2.10
77 - PLAIN BEARING BSD-2609001435.A1 2609001435	£5.30	£6.36
78 - LATERAL GUIDE BSD-2609001855.A1 2609001855	£4.26	£5.11
808 - NAMEPLATE BSD-160111A2L2.A0 160111A2L2	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-2610391290.A37 2610391290	£8.67	£10.41
827 - ECCENTRIC COG WHEEL BSD-2609001552.A0 2609001552	£40.80	£48.96
840 - LIFTING ROD BSD-2609001553.A1 2609001553	£68.42	£82.10
850 - RECEPTACLE BSD-2609001554.A0 2609001554	£21.52	£25.83
858 - PROTECTIVE COVER BSD-1600A0034U.A0 1600A0034U	£6.52	£7.83
860 - BEARING BRACKET BSD-2609001556.A1 2609001556	£37.27	£44.72

Attribute Name	Value
Brand	Bosch
