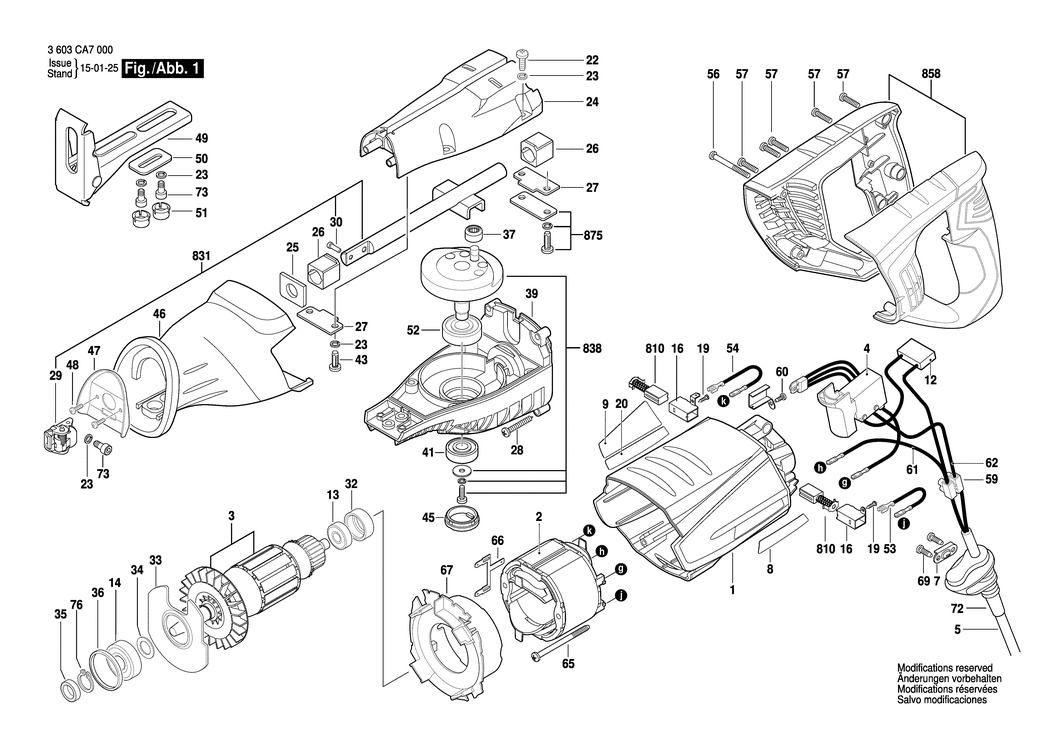

1 - HOUSING
BSD-1619PA3959.A1
1619PA3959
|
£14.91
|
£17.89
|
|
|
2 - FIELD 230V
BSD-1619PA3960.A2
1619PA3960
|
£18.96
|
£22.75
|
|
|
3 - ARMATURE 230V
BSD-1619PA3961.A1
1619PA3961
|
£33.74
|
£40.49
|
|
|
4 - SWITCH
BSD-1619PA3962.A2
1619PA3962
|
£18.96
|
£22.75
|
|
|
5 - POWER SUPPLY CORD EU 230V
BSD-1619PA3963.A1
1619PA3963
|
£11.30
|
£13.56
|
|
|
7 - CABLE CLIP
BSD-2610956868.A1
2610956868
|
£1.66
|
£1.99
|
|
|
8 - NAMEPLATE
BSD-1619PA8073.A0
1619PA8073
|
£2.33
|
£2.80
|
|
|
9 - BOSCH LABEL BOSCH
BSD-1619PA3971.A3
1619PA3971
|
£2.33
|
£2.80
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-1619PA1318.A4
1619PA1318
|
£5.30
|
£6.36
|
|
|
13 - GROOVE BALL BEARING
BSD-1619PA3973.A0
1619PA3973
|
£3.72
|
£4.47
|
|
|
14 - GROOVE BALL BEARING
BSD-1619PA3974.A3
1619PA3974
|
£3.72
|
£4.47
|
|
|
16 - BRUSH HOLDER
BSD-1619PA3975.A0
1619PA3975
|
£1.66
|
£1.99
|
|
|
19 - TAPPING SCREW
BSD-1619PA3976.A3
1619PA3976
|
£1.66
|
£1.99
|
|
|
20 - MANUFACTURER'S NAMEPLATE PSA 7100 E
BSD-1619PA8085.A0
1619PA8085
|
-
|
|
|
|
22 - THREAD-FORMING SCREW
BSD-2610956894.A2
2610956894
|
£1.66
|
£1.99
|
|
|
23 - SPRING WASHER
BSD-1619P04820.A4
1619P04820
|
£1.66
|
£1.99
|
|
|
24 - GEAR COVER
BSD-1619PA3978.A2
1619PA3978
|
£11.30
|
£13.56
|
|
|
25 - FELT SEAL
BSD-1619PA3979.A1
1619PA3979
|
£1.66
|
£1.99
|
|
|
26 - BUSHING
BSD-2610956896.A1
2610956896
|
£6.52
|
£7.83
|
|
|
27 - SEALING PLATE
BSD-1619PA3980.A2
1619PA3980
|
£1.66
|
£1.99
|
|
|
28 - SELF-CUTTING SCREW
BSD-2610956899.A1
2610956899
|
£1.66
|
£1.99
|
|
|
29 - BLADE HOLDER
BSD-1619PA4168.A1
1619PA4168
|
£16.41
|
£19.69
|
|
|
30 - PIN
BSD-1619P04839.A6
1619P04839
|
£1.74
|
£2.09
|
|
|
32 - BEARING HOLDER
BSD-1619PA3983.A1
1619PA3983
|
£1.66
|
£1.99
|
|
|
33 - SEALING PLATE
BSD-1619PA3984.A2
1619PA3984
|
£3.72
|
£4.47
|
|
|
34 - WASHER
BSD-1619PA3985.A1
1619PA3985
|
£1.66
|
£1.99
|
|
|
35 - BUSHING
BSD-1619PA3986.A2
1619PA3986
|
£1.66
|
£1.99
|
|
|
36 - RUBBER RING
BSD-1619PA3987.A1
1619PA3987
|
£1.95
|
£2.34
|
|
|
37 - NEEDLE-ROLLER BEARING
BSD-1619P04823.A3
1619P04823
|
£10.10
|
£12.12
|
|
|
39 - GEAR COVER
BSD-1619PA3989.A2
1619PA3989
|
£21.68
|
£26.01
|
|
|
41 - GROOVE BALL BEARING
BSD-1619PA3990.A1
1619PA3990
|
£4.26
|
£5.11
|
|
|
43 - THREAD-FORMING SCREW
BSD-1619PA3992.A2
1619PA3992
|
£1.66
|
£1.99
|
|
|
45 - COVER
BSD-1619PA3994.A1
1619PA3994
|
£1.66
|
£1.99
|
|
|
46 - INSULATING SLEEVE
BSD-1619PA3995.A2
1619PA3995
|
£16.41
|
£19.69
|
|
|
47 - SEALING PLATE
BSD-1619PA3996.A1
1619PA3996
|
£1.66
|
£1.99
|
|
|
48 - THREAD-FORMING SCREW
BSD-1619P04827.A8
1619P04827
|
£1.66
|
£1.99
|
|
|
49 - SUPPORTING FOOT
BSD-2610956898.A9
2610956898
|
£12.04
|
£14.45
|
|
|
50 - CLAMP
BSD-1619P04828.A1
1619P04828
|
£2.33
|
£2.80
|
|
|
51 - COVER
BSD-2610956900.A7
2610956900
|
£1.95
|
£2.34
|
|
|
52 - GROOVE BALL BEARING
BSD-1619PA9518.A3
1619PA9518
|
£3.72
|
£4.47
|
|
|
53 - CONNECTING CABLE
BSD-1619PA3997.A2
1619PA3997
|
£1.66
|
£1.99
|
|
|
54 - CONNECTING CABLE
BSD-1619PA3998.A1
1619PA3998
|
£1.66
|
£1.99
|
|
|
56 - TAPPING SCREW
BSD-2610956864.A11
2610956864
|
£1.95
|
£2.34
|
|
|
57 - TAPPING SCREW
BSD-2610956865.A3
2610956865
|
£1.95
|
£2.34
|
|
|
59 - TERMINAL BLOCK
BSD-2610956870.A3
2610956870
|
£2.33
|
£2.80
|
|
|
60 - SCREW
BSD-2610956869.A5
2610956869
|
£1.66
|
£1.99
|
|
|
61 - CONNECTING CABLE
BSD-1619PA4000.A2
1619PA4000
|
£1.66
|
£1.99
|
|
|
62 - CONNECTING CABLE
BSD-1619PA4001.A1
1619PA4001
|
£1.66
|
£1.99
|
|
|
65 - TAPPING SCREW
BSD-1619PA4002.A2
1619PA4002
|
£1.66
|
£1.99
|
|
|
66 - BLADE TERMINAL
BSD-1619PA4003.A1
1619PA4003
|
£1.66
|
£1.99
|
|
|
67 - AIR-DEFLECTOR RING
BSD-1619PA4004.A2
1619PA4004
|
£3.72
|
£4.47
|
|
|
69 - TAPPING SCREW
BSD-1619PA4005.A1
1619PA4005
|
£1.66
|
£1.99
|
|
|
72 - CORD GUARD
BSD-1619PA1319.A0
1619PA1319
|
£1.95
|
£2.34
|
|
|
73 - HEX SOCKET HEAD CAP SCREW
BSD-1619PA1331.A6
1619PA1331
|
£2.80
|
£3.36
|
|
|
76 - CLIP
BSD-1619PA4007.A2
1619PA4007
|
£1.66
|
£1.99
|
|
|
77 - WASHER
BSD-1619PA4008.A1
1619PA4008
|
£1.66
|
£1.99
|
|
|
810 - CARBON-BRUSH SET
BSD-1619PA4010.A2
1619PA4010
|
£6.52
|
£7.83
|
|
|
831 - SPINDLE ASSEMBLY
BSD-1619PA4011.A1
1619PA4011
|
£18.96
|
£22.75
|
|
|
838 - BEVEL GEAR
BSD-1619PA4012.A2
1619PA4012
|
£21.68
|
£26.01
|
|
|
858 - SET OF HANDLES
BSD-1619PA4013.A1
1619PA4013
|
£16.41
|
£19.69
|
|
|
875 - PLATE
BSD-1619PA4014.A2
1619PA4014
|
£2.80
|
£3.36
|
|
