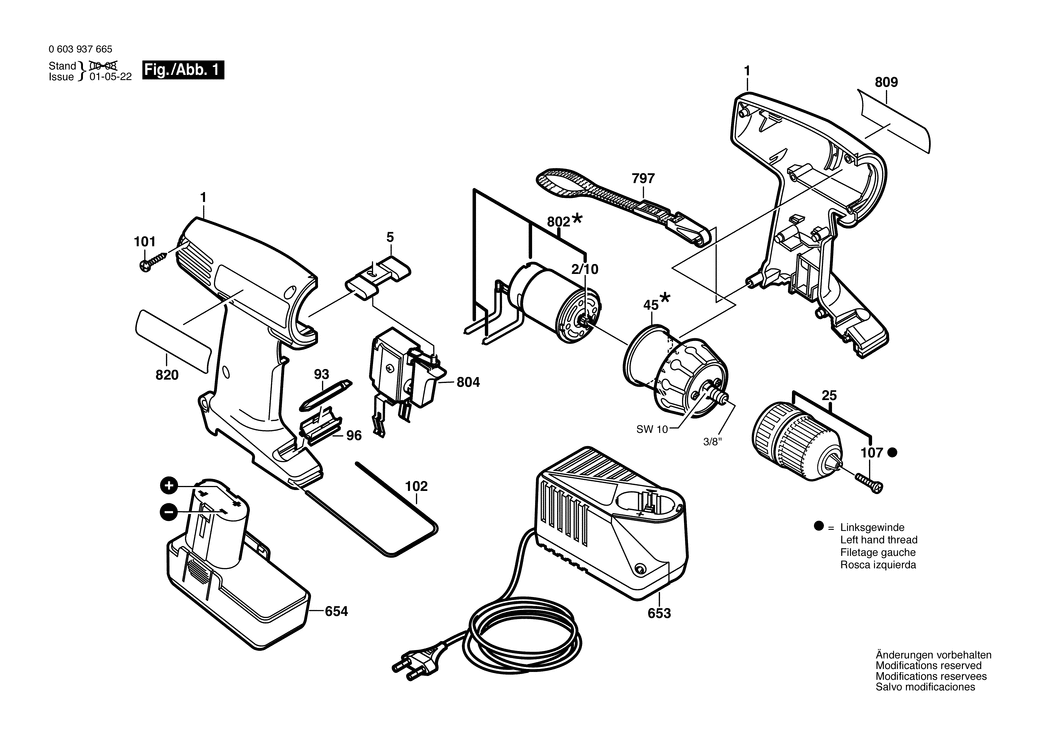

An exploded drawing and listing for the Bosch PSR 96 / 0603937665 / EU 9.6 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605104565.A5 2605104565 -
2/10 - PINION Z=9 BSD-2606316164.A21 2606316164 £4.26 £5.11
5 - ADJUSTING SLIDE BSD-2601099055.A82 2601099055 -
25 - KEYLESS CHUCK BSD-2608572200.A13 2608572200 -
45 - PLANETARY GEAR TRAIN BSD-2606200054.A19 2606200054 -
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A335 1609200147 £3.72 £4.47
96 - SUPPORT BSD-2608040079.A29 2608040079 £1.75 £2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A705 2603490018 £1.75 £2.10
102 - RETAINING BRACKET BSD-2601329041.A125 2601329041 £2.33 £2.80
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A28 2609110721 £2.16 £2.59
653 - FAST CHARGER EU 230/14.4V. 3-5h BSD-2607225011.A14 2607225011 -
654 - SLIDE-IN ACCU PACKAGE 9.6V. 1.5 Ah. NiCd BSD-2607336143.A37 2607336143 -
797 - CARRYING LOOP BSD-2601398009.A148 2601398009 -
802 - DC MOTOR 9.6V BSD-2607022949.A1 2607022949 -
804 - ON-OFF SWITCH BSD-2607200351.A39 2607200351 -
809 - MANUFACTURER'S NAMEPLATE BSD-2601117254.A0 2601117254 -
820 - REFERENCE PLATE BSD-2601117255.A3 2601117255 -
899 - CORDLESS SCREW DRIVER BSD-0603937664.A0 0603937664 -
