Bosch PSR 9.6 VES-2 / 0603936642 / GB 9.6 Volt Spare Parts

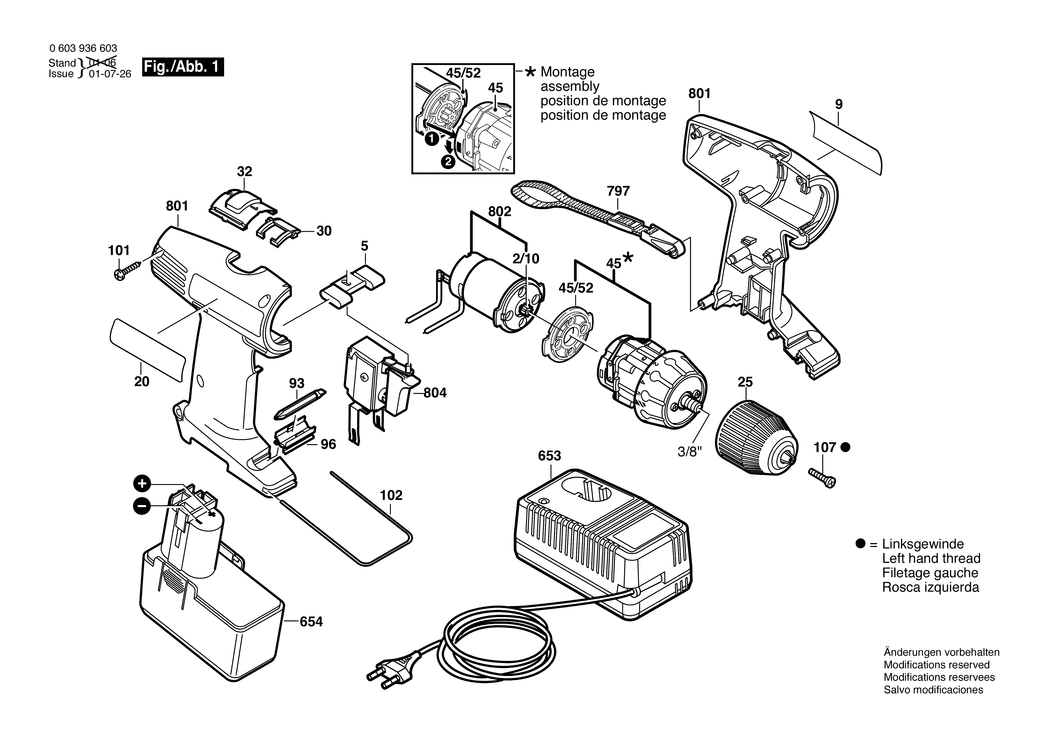

An exploded drawing and listing for the Bosch PSR 9.6 VES-2 / 0603936642 / GB 9.6 Volt

	Ex VAT	Inc VAT
2/10 - PINION Z=12 BSD-2606316161.A3 2606316161	-
5 - ADJUSTING SLIDE BSD-2601099055.A108 2601099055	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601118831.A1 2601118831	-
20 - MANUFACTURER'S NAMEPLATE BSD-2601118832.A3 2601118832	-
25 - KEYLESS CHUCK BSD-2608572214.A0 2608572214	£45.67	£54.80
30 - CONTROL LEVER BSD-2602033008.A29 2602033008	-
32 - ADJUSTING SLIDE BSD-2601099060.A13 2601099060	£1.75	£2.10
45 - PLANETARY GEAR TRAIN BSD-2606200047.A16 2606200047	-
45/52 - INTERMEDIATE FLANGE BSD-2605719011.A19 2605719011	£3.72	£4.47
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A307 1609200147	£3.72	£4.47
96 - SUPPORT BSD-2608040079.A8 2608040079	£1.75	£2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A654 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A106 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A43 2609110721	£2.16	£2.59
653 - FAST CHARGER GB 230/7.2-14.4V. 1h BSD-2607224393.A6 2607224393	-
654 - SLIDE-IN ACCU PACKAGE 9.6V. 1.5 Ah. NiCd BSD-2607336143.A53 2607336143	-
797 - CARRYING LOOP BSD-2601398009.A168 2601398009	-
801 - HOUSING SECTION BSD-2605104510.A4 2605104510	-
802 - DC MOTOR 7.2-12V BSD-2607022941.A7 2607022941	-
804 - ON-OFF SWITCH BSD-2607200351.A57 2607200351	-
899 - CORDLESS SCREW DRIVER BSD-0603936627.A1 0603936627	-
