Bosch PSR 14.4 VE / 0603937403 / EU 14.4 Volt Spare Parts

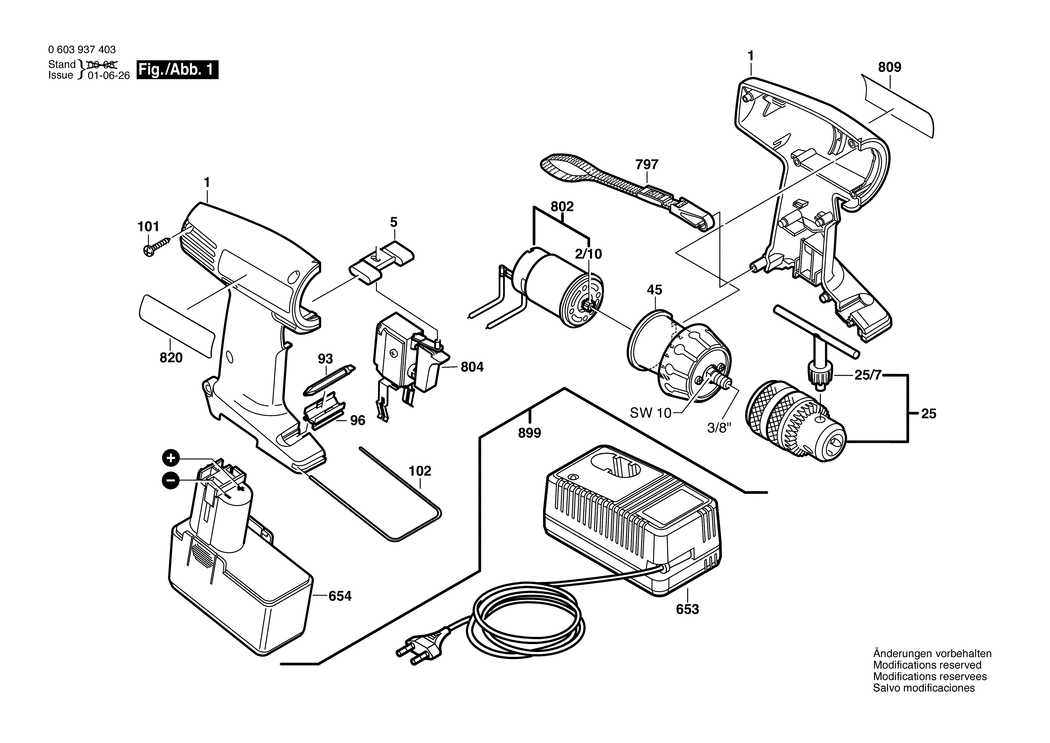

An exploded drawing and listing for the Bosch PSR 14.4 VE / 0603937403 / EU 14.4 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104578.A0 2605104578	-
2/10 - PINION Z=9 BSD-2606316164.A10 2606316164	£4.26	£5.11
5 - ADJUSTING SLIDE BSD-2601099055.A120 2601099055	-
25 - KEY CHUCK dia 1-10 MM. 3/8 BSD-1608571047.A24 1608571047	-
25/7 - CHUCK WRENCH SG2 BSD-2607950007.A515 2607950007	£6.52	£7.83
45 - PLANETARY GEAR TRAIN BSD-2606200054.A3 2606200054	-
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A294 1609200147	£3.72	£4.47
96 - SUPPORT BSD-2608040079.A0 2608040079	£1.75	£2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A659 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A95 2601329041	£2.33	£2.80
653 - FAST CHARGER EU 230/14.4V. 3-5h BSD-2607225011.A20 2607225011	-
654 - SLIDE-IN ACCU PACKAGE 14.4V.1.2Ah.NiCd BSD-2607335173.A0 2607335173	-
797 - CARRYING LOOP BSD-2601398009.A179 2601398009	-
802 - DC MOTOR 14.4V BSD-2607022952.A0 2607022952	-
804 - ON-OFF SWITCH BSD-2607200353.A0 2607200353	-
809 - MANUFACTURER'S NAMEPLATE BSD-2601119154.A0 2601119154	-
820 - REFERENCE PLATE BSD-2601119155.A1 2601119155	-
899 - CORDLESS SCREW DRIVER BSD-0603937420.A0 0603937420	-
