Bosch PSR 120 / 0603937562 / GB 12 Volt Spare Parts

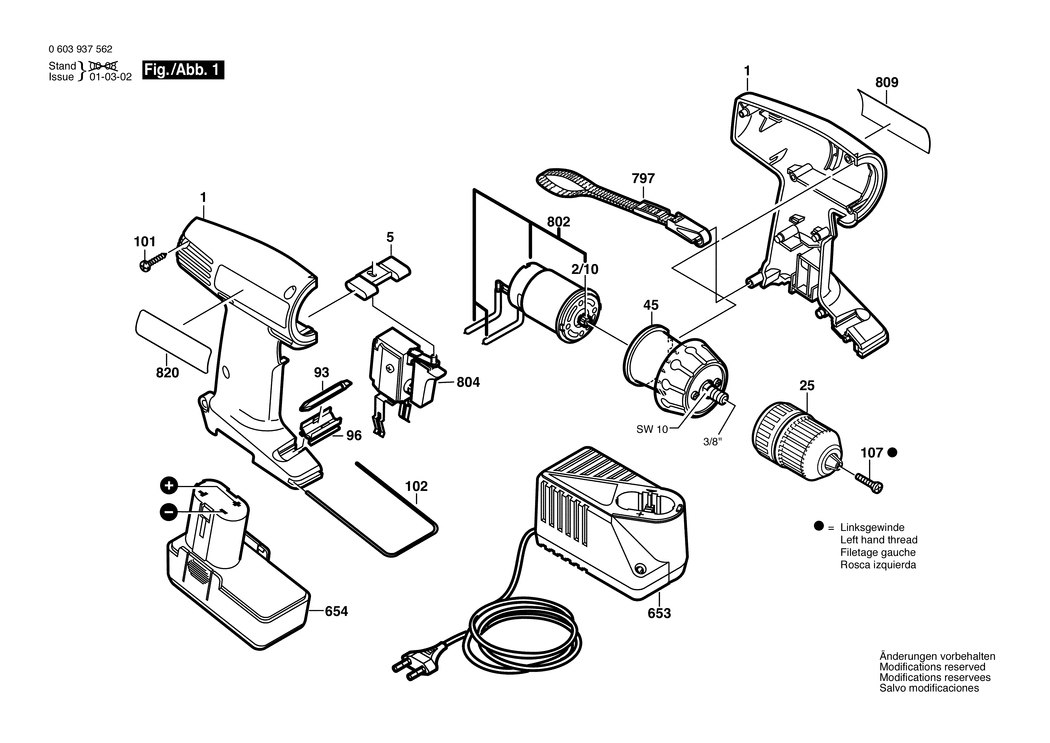

An exploded drawing and listing for the Bosch PSR 120 / 0603937562 / GB 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104566.A6 2605104566	-
2/10 - PINION Z=9 BSD-2606316164.A16 2606316164	£4.26	£5.11
5 - ADJUSTING SLIDE BSD-2601099055.A115 2601099055	-
25 - KEYLESS CHUCK BSD-2608572200.A2 2608572200	-
45 - PLANETARY GEAR TRAIN BSD-2606200054.A8 2606200054	-
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A299 1609200147	£3.72	£4.47
96 - SUPPORT BSD-2608040079.A5 2608040079	£1.75	£2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A666 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A100 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A53 2609110721	£2.16	£2.59
653 - BATTERY CHARGER GB 230/12V. 3h BSD-2607224331.A2 2607224331	-
654 - SLIDE-IN ACCU PACKAGE 12V. 1.5Ah. NiCd BSD-2607336145.A12 2607336145	-
797 - CARRYING LOOP BSD-2601398009.A174 2601398009	-
802 - DC MOTOR 12V BSD-2607022954.A2 2607022954	-
804 - ON-OFF SWITCH BSD-2607200351.A50 2607200351	-
809 - MANUFACTURER'S NAMEPLATE BSD-2601117370.A2 2601117370	-
820 - REFERENCE PLATE BSD-2601117371.A1 2601117371	-

Attribute Name	Value
Brand	Bosch
