Bosch PSR 12-2 / 3603J51500 / EU 12 Volt Spare Parts

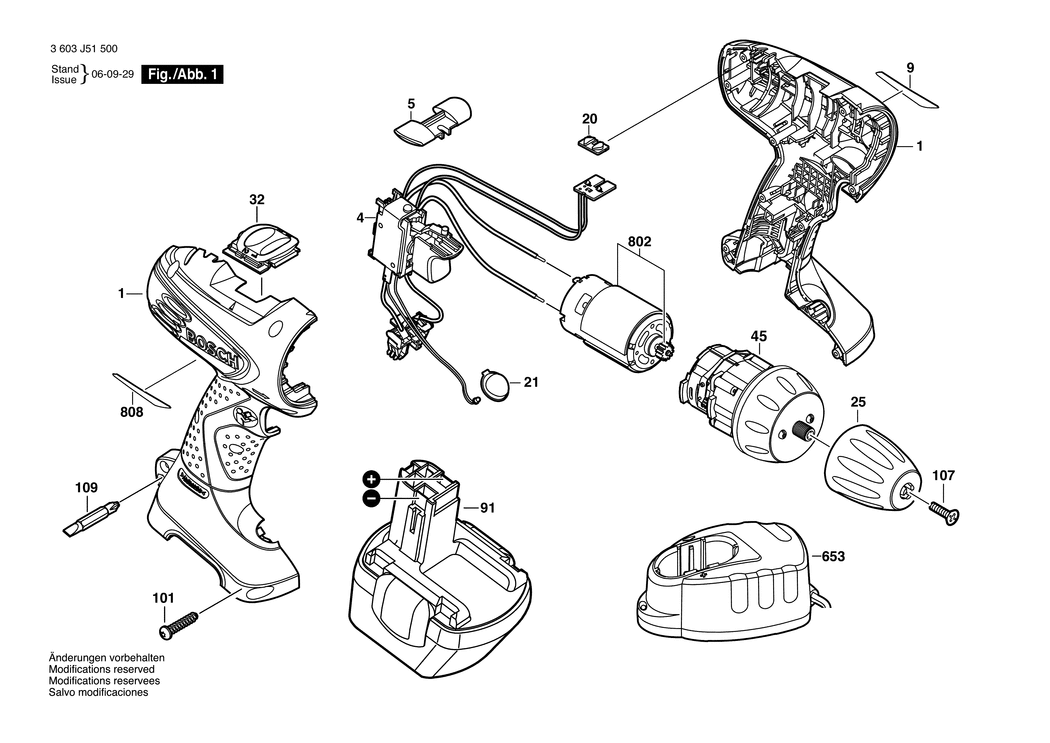

An exploded drawing and listing for the Bosch PSR 12-2 / 3603J51500 / EU 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100508.A1 2609100508	£21.52	£25.83
4 - ON-OFF SWITCH BSD-2609120270.A1 2609120270	£40.80	£48.96
5 - ADJUSTING SLIDE BSD-2601099096.A53 2601099096	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE PSR 12-2 BSD-2609131356.A0 2609131356	£2.33	£2.80
20 - LENS PLEXIGLASS 8N BSD-2609100257.A0 2609100257	£1.75	£2.10
21 - LENS BSD-2609100513.A5 2609100513	£2.16	£2.59
25 - KEYLESS CHUCK BSD-2609110668.A1 2609110668	£40.80	£48.96
32 - CHANGE-OVER SWITCH BSD-2609199124.A0 2609199124	£2.16	£2.59
45 - GEAR BOX BSD-2606200166.A7 2606200166	£45.67	£54.80
91 - SLIDE-IN ACCU PACKAGE 12V. 1.5Ah. NiCd BSD-1617S00N7F.A6 1617S00N7F	£61.98	£74.38
101 - TORX FLAT-HEAD SCREW 3x16 BSD-2609110201.A24 2609110201	£2.16	£2.59
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A276 2609110721	£2.16	£2.59
109 - SCREWDRIVER BIT BSD-2609160063.A44 2609160063	£3.72	£4.47
653 - FAST CHARGER EU 230/7.2-14.4V. 1h BSD-2607224391.A3 2607224391	£48.38	£58.06
653 - FAST CHARGER GB 230/7.2-14.4V. 1h BSD-2607224393.A29 2607224393	-
653 - FAST CHARGER EU 230/14.4V. 3-5h BSD-2607225011.A32 2607225011	-
802 - DC MOTOR 12V BSD-2609199137.A1 2609199137	£23.86	£28.63
808 - NAMEPLATE BSD-2609131341.A0 2609131341	£2.61	£3.13
