Bosch PSR 12 / 3603J55500 / EU 12 Volt Spare Parts

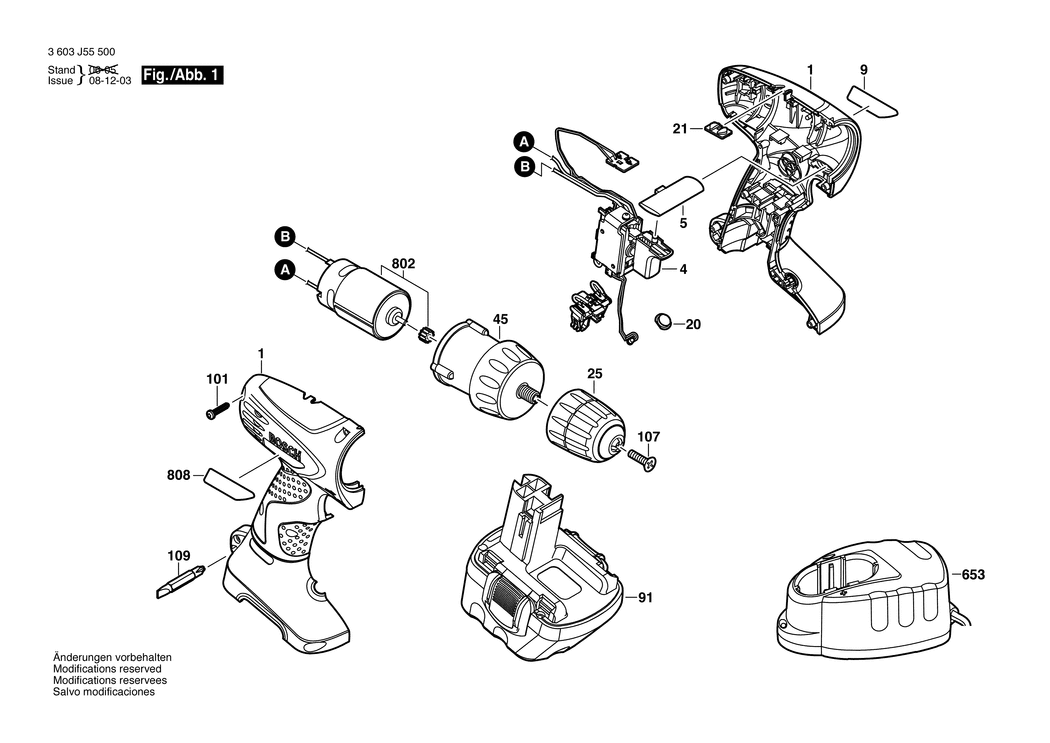

An exploded drawing and listing for the Bosch PSR 12 / 3603J55500 / EU 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100464.A0 2609100464	£22.76	£27.31
4 - ON-OFF SWITCH BSD-2609120455.A0 2609120455	£27.23	£32.68
5 - CHANGE-OVER SWITCH BSD-2609100482.A0 2609100482	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE PSR 1-12 BSD-2609131507.A0 2609131507	£2.74	£3.29
20 - LENS BSD-2609100471.A2 2609100471	£1.84	£2.21
21 - LENS PLEXIGLASS 8N BSD-2609100257.A2 2609100257	£1.75	£2.10
25 - KEYLESS CHUCK BSD-2609110565.A2 2609110565	£28.59	£34.31
45 - PLANETARY GEAR TRAIN BSD-2609110564.A0 2609110564	£37.27	£44.72
91 - SLIDE-IN ACCU PACKAGE 12V. 1.2Ah. NiCd BSD-2607335273.A11 2607335273	£49.16	£58.99
91 - SLIDE-IN ACCU PACKAGE 12V.2.0Ah.NiMh BSD-2607335697.A3 2607335697	-
101 - TORX OVAL-HEAD SCREW BSD-2609110236.A2 2609110236	£1.75	£2.10
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A283 2609110721	£2.27	£2.72
109 - SCREWDRIVER BIT BSD-2609160063.A37 2609160063	£3.72	£4.47
653 - FAST CHARGER EU 230/14.4V. 3-5h BSD-2607225011.A34 2607225011	-
653 - FAST CHARGER GB 230/14.4V. 3-5h BSD-2607225013.A0 2607225013	-
653 - FAST CHARGER AUS 240/7.2-14.4V. 1h BSD-2607224395.A2 2607224395	£73.75	£88.50
653 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A455 2607224425	£88.07	£105.68
802 - DC MOTOR 12V BSD-2609199120.A0 2609199120	-
808 - NAMEPLATE BSD-2609135937.A0 2609135937	£2.74	£3.29
