Bosch EasySander 12 / 3603J76901 / EU 12 Volt Spare Parts

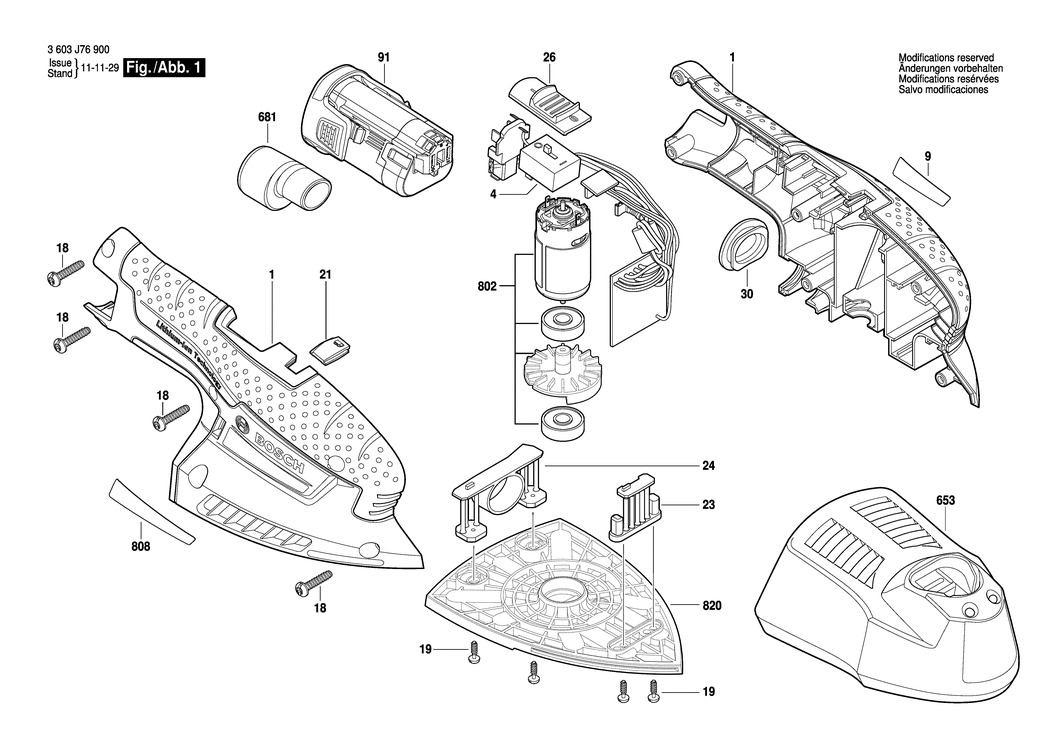

An exploded drawing and listing for the Bosch EasySander 12 / 3603J76901 / EU 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609005280.A1 2609005280	£18.96	£22.75
4 - ELECTRONIC ASSEMBLY BSD-2609005281.A0 2609005281	£52.15	£62.58
9 - MANUFACTURER'S NAMEPLATE EasySander 12 BSD-160111C1ST.A0 160111C1ST	£2.33	£2.80
18 - SCREW 4x16 BSD-2603490022.A1149 2603490022	£1.66	£1.99
19 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A924 2603490017	£1.66	£1.99
21 - LENS BSD-2609005282.A1 2609005282	£1.66	£1.99
23 - OSCILLATION INSERT BSD-2609001421.A5 2609001421	£5.58	£6.70
24 - VIBRATION FOOT BSD-2609005283.A0 2609005283	£6.52	£7.83
26 - SLIDER BSD-2609005284.A1 2609005284	£1.66	£1.99
30 - RUBBER PLUG BSD-2609005286.A0 2609005286	£1.95	£2.34
91 - BATTERY PACK PBA 12V 2.5Ah O-B BSD-1607A3503L.A8 1607A3503L	£68.42	£82.10
653 - FAST CHARGER EU AL 1115 CV 230/3.6-12V. 1h BSD-2607225513.A4 2607225513	£37.72	£45.27
653 - FAST CHARGER GB AL 1115 CV 230/3.6-12V. 1h BSD-2607225515.A15 2607225515	£46.37	£55.64
681 - FITTING BSD-2609005888.A0 2609005888	£3.72	£4.47
802 - DC MOTOR 10.8V BSD-2609005287.A1 2609005287	£27.23	£32.68
808 - NAMEPLATE BSD-160111A2E7.A0 160111A2E7	£2.33	£2.80
820 - SANDER PLATE BSD-2609001937.A5 2609001937	£13.99	£16.79

Attribute Name	Value
Brand	Bosch
