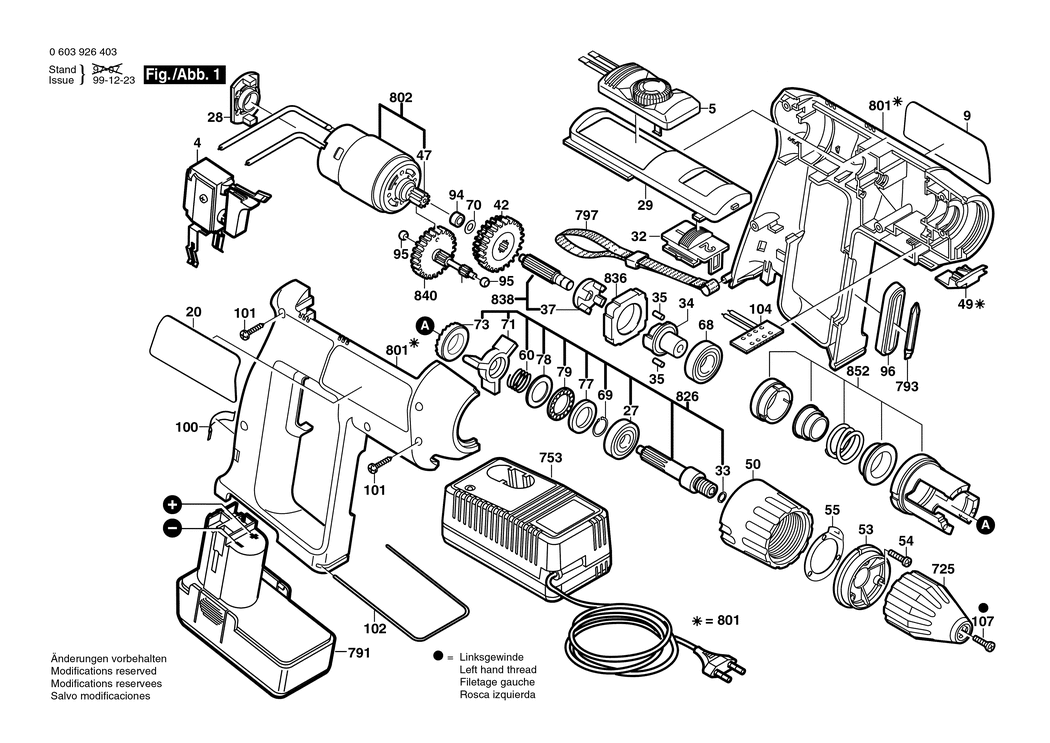

4 - ON-OFF SWITCH
BSD-2607200320.A4
2607200320
|
-
|
|
|
|
5 - TORQUE CONTROL
BSD-2607233030.A18
2607233030
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118386.A2
2601118386
|
-
|
|
|
|
20 - REFERENCE PLATE
BSD-2601118387.A1
2601118387
|
-
|
|
|
|
27 - GROOVE BALL BEARING 10x26x8
BSD-1900905120.A266
1900905120
|
-
|
|
|
|
28 - ADAPTER
BSD-2605719006.A10
2605719006
|
-
|
|
|
|
29 - INSERT PIECE
BSD-2605510116.A3
2605510116
|
-
|
|
|
|
32 - ADJUSTING SLIDE
BSD-2601099032.A2
2601099032
|
-
|
|
|
|
33 - RETAINING RING
BSD-2604601004.A364
2604601004
|
£1.66
|
£1.99
|
|
|
34 - ECCENTRIC
BSD-2602210014.A0
2602210014
|
£12.04
|
£14.45
|
|
|
35 - ROLLER BODY
BSD-2602329024.A101
2602329024
|
-
|
|
|
|
37 - CARRIER
BSD-2606440002.A10
2606440002
|
-
|
|
|
|
42 - SET OF GEARS Z=58/67
BSD-1609340007.A167
1609340007
|
£14.91
|
£17.89
|
|
|
47 - PINION Z=14
BSD-2606316120.A65
2606316120
|
-
|
|
|
|
49 - INSERT PIECE
BSD-2605510117.A23
2605510117
|
£1.66
|
£1.99
|
|
|
50 - ADJUSTING SCREW
BSD-2605190037.A0
2605190037
|
-
|
|
|
|
53 - CLAMPING SLEEVE
BSD-2608005045.A23
2608005045
|
-
|
|
|
|
54 - THREAD-FORMING TAP. SCREW
BSD-2603410043.A9
2603410043
|
-
|
|
|
|
55 - LOCATING WASHER
BSD-2600190056.A61
2600190056
|
-
|
|
|
|
60 - COMPRESSION SPRING
BSD-2604618001.A54
2604618001
|
-
|
|
|
|
68 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A170
1900905122
|
£10.10
|
£12.12
|
|
|
69 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A7
2916650001
|
£1.66
|
£1.99
|
|
|
70 - SHIM 1.0 MM
BSD-2600100569.A251
2600100569
|
£1.66
|
£1.99
|
|
|
71 - BACKUP RING
BSD-2600290023.A4
2600290023
|
-
|
|
|
|
73 - CATCH DISK
BSD-2606490060.A9
2606490060
|
-
|
|
|
|
77 - CORRUGATED WASHER
BSD-2600190064.A47
2600190064
|
-
|
|
|
|
78 - THRUST BEARING DISC
BSD-2600101516.A54
2600101516
|
£2.33
|
£2.80
|
|
|
79 - BALL CAGE
BSD-2600923003.A52
2600923003
|
-
|
|
|
|
94 - SINTERED-METAL BUSHING
BSD-2600301011.A75
2600301011
|
£1.66
|
£1.99
|
|
|
95 - SINTERED-METAL BUSHING
BSD-2600302002.A126
2600302002
|
£1.66
|
£1.99
|
|
|
96 - INSERT
BSD-2600290022.A6
2600290022
|
-
|
|
|
|
100 - CLAMP SPRING
BSD-2601322016.A244
2601322016
|
£2.52
|
£3.02
|
|
|
101 - SCREW 4x16
BSD-2603490022.A1638
2603490022
|
£1.66
|
£1.99
|
|
|
102 - RETAINING BRACKET
BSD-2601329041.A253
2601329041
|
£2.33
|
£2.80
|
|
|
104 - CONTACT RETAINER
BSD-2608018004.A13
2608018004
|
£5.58
|
£6.70
|
|
|
107 - COUNTERSUNK-HEAD SCREW M6x38/12(dia10)
BSD-2603421218.A17
2603421218
|
-
|
|
|
|
725 - KEYLESS CHUCK dia 1.5-10 MM.1/2
BSD-2608572053.A30
2608572053
|
-
|
|
|
|
753 - FAST CHARGER EU 230/7.2-24V. 1h
BSD-2607224425.A314
2607224425
|
£88.07
|
£105.68
|
|
|
753 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN.
BSD-2607224701.A258
2607224701
|
£88.07
|
£105.68
|
|
|
793 - SCREWDRIVER BLADE 6 MM
BSD-1609200147.A214
1609200147
|
£3.72
|
£4.47
|
|
|
797 - CARRYING LOOP
BSD-2601398009.A92
2601398009
|
-
|
|
|
|
801 - HOUSING SECTION
BSD-2605104852.A3
2605104852
|
-
|
|
|
|
802 - DC MOTOR 9.6-12V
BSD-2607022921.A4
2607022921
|
-
|
|
|
|
826 - DRILLING SPINDLE 1/2.BIT-1/4.M6
BSD-2606309920.A7
2606309920
|
-
|
|
|
|
836 - RING
BSD-2600202025.A106
2600202025
|
-
|
|
|
|
838 - SPLINED SHAFT
BSD-2606309918.A50
2606309918
|
-
|
|
|
|
840 - TOOTHED SHAFT Z= 10/19/63
BSD-2606308914.A88
2606308914
|
-
|
|
|
|
852 - GUIDE SLEEVE
BSD-2600499903.A52
2600499903
|
-
|
|
|
