Bosch PSB 24 VE-2 / 0603941220 / EU 24 Volt Spare Parts

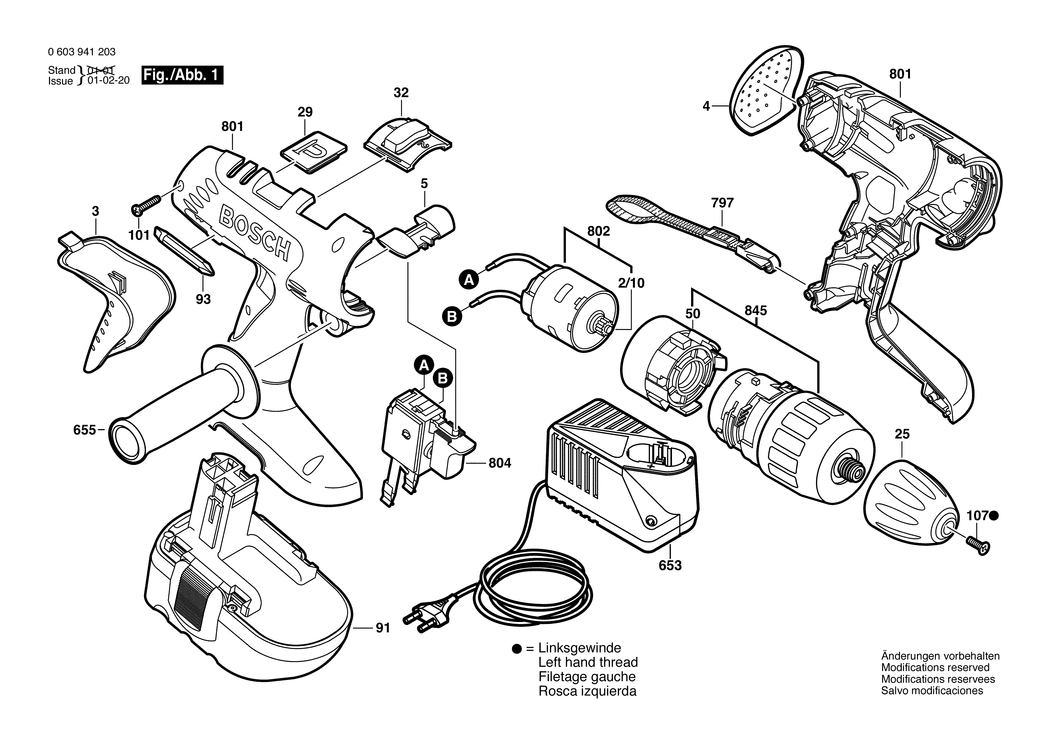

An exploded drawing and listing for the Bosch PSB 24 VE-2 / 0603941220 / EU 24 Volt

	Ex VAT	Inc VAT
2/10 - PINION Z=19 BSD-2606316180.A0 2606316180	£2.61	£3.13
3 - HANDLE COVER BSD-2608040154.A17 2608040154	£3.34	£4.01
4 - HANDLE COVER BSD-2608040157.A3 2608040157	-
5 - ADJUSTING SLIDE BSD-2601099096.A8 2601099096	£2.16	£2.59
25 - KEYLESS CHUCK BSD-2608572224.A1 2608572224	£46.82	£56.18
29 - MAGNET DISK BSD-2600290043.A19 2600290043	-
32 - ADJUSTING SLIDE BSD-2601099098.A10 2601099098	£1.75	£2.10
50 - INTERMEDIATE FLANGE BSD-2605719901.A62 2605719901	-
91 - BATTERY PACK 24V.2.6Ah.NiMh BSD-2607335561.A3 2607335561	-
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A349 1609200147	£3.72	£4.47
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A675 2603490018	£1.75	£2.10
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A306 2603421229	£1.75	£2.10
653 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A21 2607224425	£88.07	£105.68
653 - FAST CHARGER GB 230/7.2-24V. 1h BSD-2607224427.A248 2607224427	£103.14	£123.77
653 - FAST CHARGER AUS 240/7.2-24V. 1h BSD-2607224429.A0 2607224429	£102.57	£123.08
655 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A174 160202509T	£3.72	£4.47
797 - CARRYING LOOP BSD-2601398009.A166 2601398009	-
801 - HOUSING SECTION BSD-2605104809.A0 2605104809	-
802 - DC MOTOR 24V BSD-2607022992.A1 2607022992	-
804 - ON-OFF SWITCH BSD-2607200423.A1 2607200423	£45.67	£54.80
845 - PLANETARY GEAR TRAIN BSD-2606200922.A0 2606200922	£134.16	£160.99

Attribute Name	Value
Brand	Bosch
