Bosch MS 48-12 / 0603997788 / CH 4.8 Volt Spare Parts

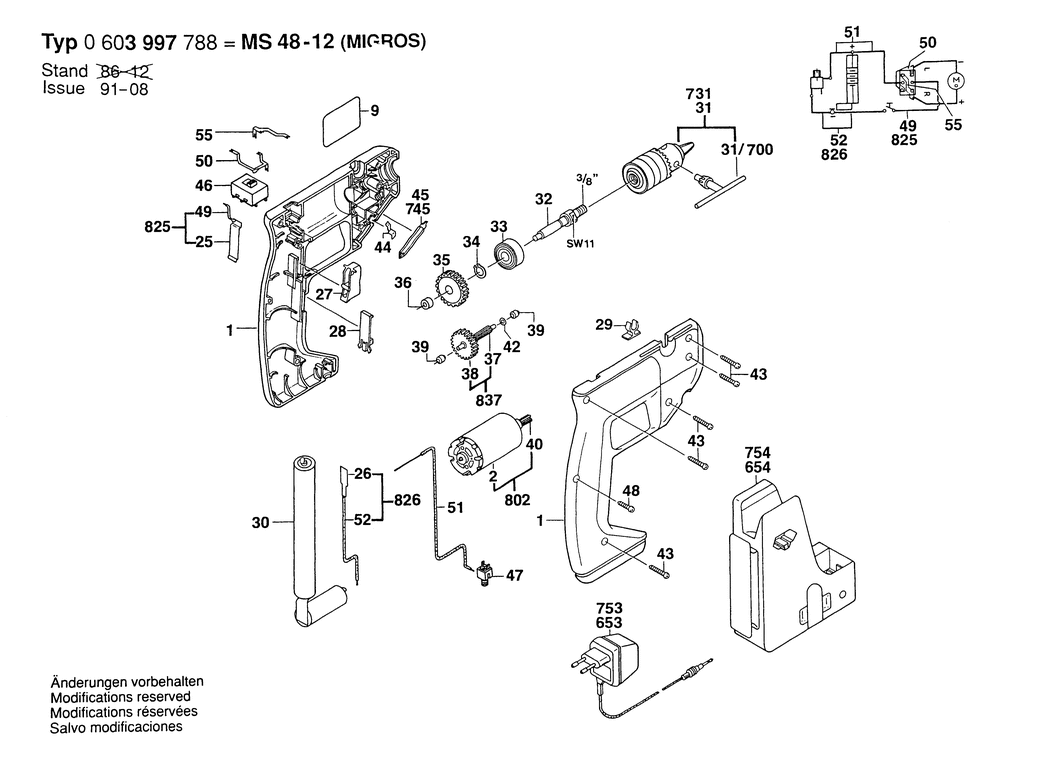

An exploded drawing and listing for the Bosch MS 48-12 / 0603997788 / CH 4.8 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104371.A0 2605104371	-
9 - CLAMP HANDLE BSD-2601118313.A0 2601118313	-
27 - CONTROL LEVER BSD-2603231012.A0 2603231012	-
28 - REJECTION SLIDE BSD-2601099010.A0 2601099010	-
29 - KEY HOLDER BSD-2608040029.A0 2608040029	-
30 - ACCUMULATOR BATTERY 4.8V. 1.2Ah. NiCd BSD-2607335006.A9 2607335006	-
31/700 - CHUCK WRENCH SG 1. dia4x60 MM BSD-1607950042.A115 1607950042	£3.67	£4.40
32 - DRILLING SPINDLE 3/8. SW 11 BSD-2606135022.A0 2606135022	£7.78	£9.33
33 - GROOVE BALL BEARING 10x26x8 BSD-1900905120.A371 1900905120	-
34 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A162 2916650001	£2.74	£3.29
35 - CYLINDRICAL GEAR Z=64 BSD-2606316114.A1 2606316114	-
36 - SINTERED-METAL BUSHING BSD-2600301011.A217 2600301011	£1.84	£2.21
39 - SINTERED-METAL BUSHING BSD-2600302002.A0 2600302002	£1.84	£2.21
40 - PINION Z=11 BSD-2606316112.A196 2606316112	£4.48	£5.37
42 - SHIM 0.3 MM BSD-2600100636.A42 2600100636	-
43 - CROSS RECESSED-HEAD SCREW 3x17 MM BSD-2603435023.A0 2603435023	-
44 - HOLDING SPRING BSD-2601250002.A50 2601250002	£1.32	£1.58
46 - CHANGE-OVER SWITCH BSD-2607200214.A11 2607200214	-
47 - SOCKET BSD-2604483001.A12 2604483001	-
48 - TAPPING SCREW DIN7981-ST2.9x13-C-Z BSD-2912401006.A1 2912401006	£1.84	£2.21
50 - BUS BAR BSD-2601390000.A0 2601390000	-
51 - CABLE L=173 MM BSD-2604413014.A29 2604413014	-
55 - BUS BAR BSD-2601390001.A12 2601390001	-
731 - KEY CHUCK dia1-10 MM. 3/8 BSD-1608571066.A55 1608571066	-
753 - BATTERY CHARGER EU 230/2.4-4.8V. 2h BSD-2607224154.A0 2607224154	-
754 - DRIVE-MACHINE HOLDER BSD-2608005030.A0 2608005030	-
802 - DC MOTOR 4.8V BSD-2607022905.A0 2607022905	-
825 - CONNECTING CABLE BSD-2604449037.A26 2604449037	-
826 - ELEC. CABLE W/CONNECTION BSD-2604449038.A0 2604449038	-
837 - TOOTHED SHAFT Z=58/11 BSD-2606100913.A11 2606100913	-

Attribute Name	Value
Brand	Bosch
