Bosch MA 72 E / 0603921260 / CH 7.2 Volt Spare Parts

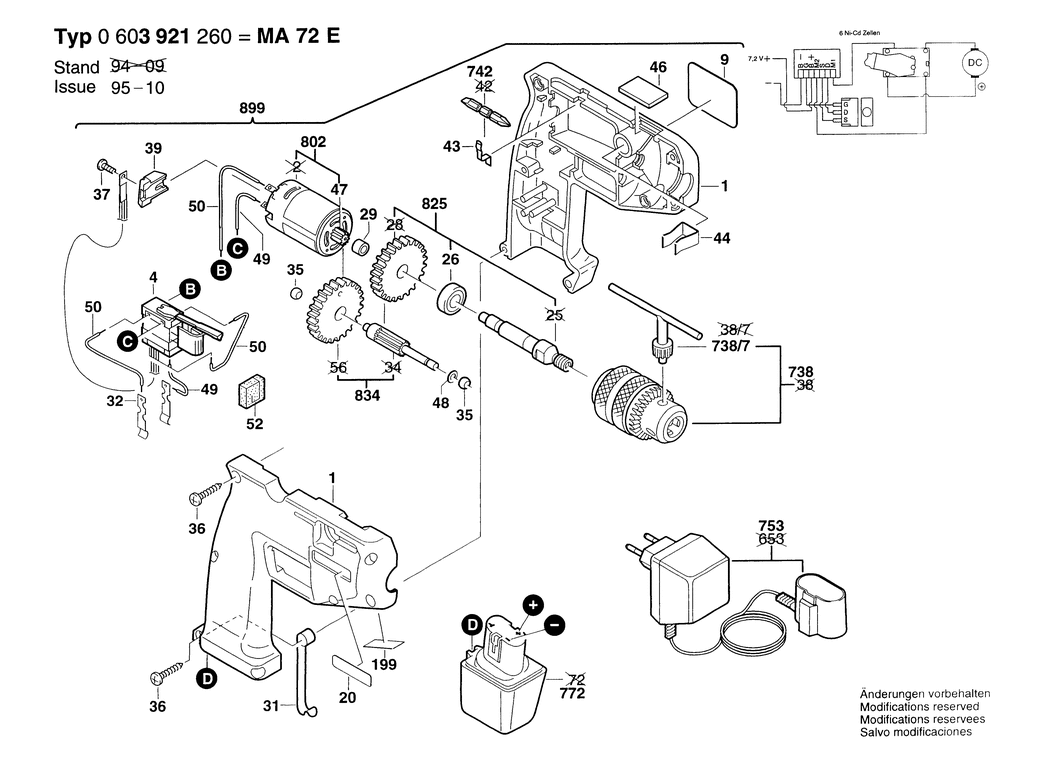

An exploded drawing and listing for the Bosch MA 72 E / 0603921260 / CH 7.2 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104556.A0 2605104556	-
4 - ON-OFF SWITCH BSD-2607200302.A88 2607200302	£45.67	£54.80
9 - MANUFACTURER'S NAMEPLATE BSD-2601118988.A0 2601118988	-
20 - REFERENCE PLATE BSD-2601118989.A0 2601118989	-
26 - GROOVE BALL BEARING 10x26x8 BSD-1900905120.A171 1900905120	-
29 - SINTERED-METAL BUSHING BSD-2600301011.A398 2600301011	£1.66	£1.99
31 - HOLDING SPRING dia8.7 MM BSD-2601251002.A10 2601251002	-
32 - CONTACT SPRING BSD-2601324012.A56 2601324012	£1.66	£1.99
35 - SINTERED-METAL BUSHING BSD-2600302002.A334 2600302002	£1.66	£1.99
36 - SCREW 4x16 BSD-2603490022.A413 2603490022	£1.66	£1.99
37 - OVAL-HEAD SCREW DIN 7985-M3x8-4.8 BSD-2910641050.A123 2910641050	£1.66	£1.99
39 - HEAT SINK BSD-2605715000.A34 2605715000	-
43 - HOLDING SPRING BSD-2601250002.A93 2601250002	£1.32	£1.58
44 - CLAMP SPRING BSD-2601250003.A62 2601250003	-
46 - COVER BSD-2601099075.A0 2601099075	-
49 - CABLE L=52 MM BSD-2604413005.A15 2604413005	-
50 - CABLE L=79 MM BSD-2604413004.A166 2604413004	-
52 - DUST PROTECTION BSD-2601010038.A179 2601010038	-
738 - KEY CHUCK dia1-10 MM. 3/8 BSD-1608571066.A35 1608571066	-
738/7 - CHUCK WRENCH SG 1. dia4x60 MM BSD-1607950042.A64 1607950042	£3.49	£4.19
742 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A66 1609200147	£3.72	£4.47
753 - BATTERY CHARGER EU 230/7.2V. 3h BSD-2607224028.A0 2607224028	-
772 - SLIDE-IN ACCU PACKAGE 7.2V. 1.2Ah. NiCd BSD-2607300004.A1 2607300004	-
802 - DC MOTOR 9.6V BSD-2607022902.A0 2607022902	-
825 - DRILLING SPINDLE 3/8. SW 11 BSD-2606135925.A4 2606135925	-
834 - SPINDLE WITH GEAR Z=12/81 BSD-2606308920.A2 2606308920	-

Attribute Name	Value
Brand	Bosch
