Bosch GCM 350-254 / 3601M22660 / GB 110 Volt Spare Parts

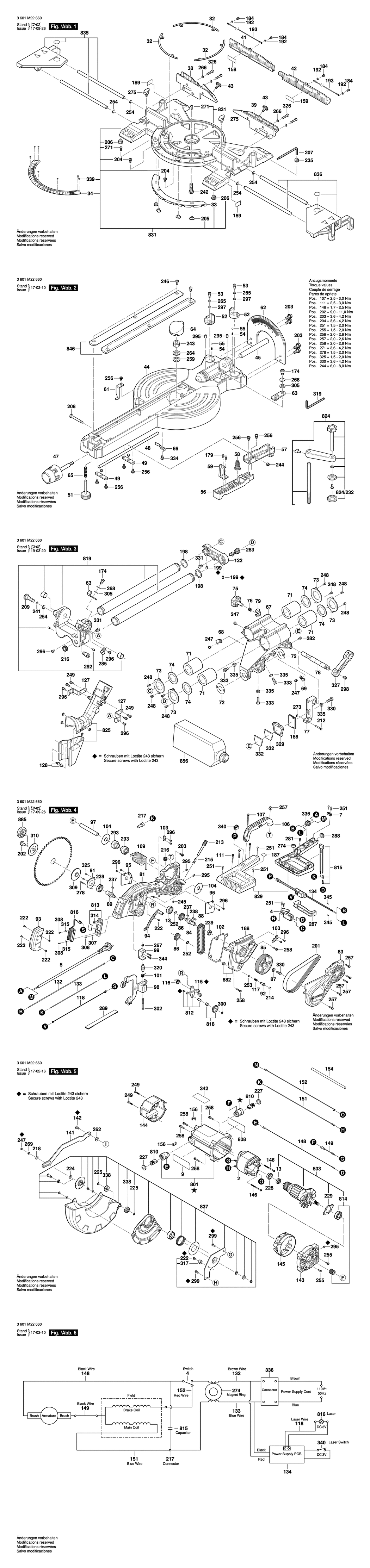

An exploded drawing and listing for the Bosch GCM 350-254 / 3601M22660 / GB 110 Volt

	Ex VAT	Inc VAT
2 - FIELD 110V BSD-1609B04897.A0 1609B04897	£63.50	£76.20
4 - SWITCH BSD-2610950336.A13 2610950336	£18.96	£22.75
5 - POWER SUPPLY CORD GB 3.5 2x1.5mm H05 RR-F BSD-1609B00379.A1 1609B00379	£59.53	£71.44
7 - CABLE CLIP BSD-1619P03808.A8 1619P03808	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GCM 350-254 BSD-1609B05071.A3 1609B05071	£7.36	£8.83
13 - BEARING BSD-1609B00597.A1 1609B00597	£10.10	£12.12
32 - SLIDING PLATE BSD-1609B05102.A2 1609B05102	£2.16	£2.59
33 - DETENT PLATE BSD-1609B05103.A1 1609B05103	£5.58	£6.70
34 - SCALE BSD-1609B05104.A2 1609B05104	£5.30	£6.36
38 - MITRE FENCE BSD-1609B05109.A1 1609B05109	£21.52	£25.83
39 - MITRE FENCE BSD-1609B05110.A2 1609B05110	£21.52	£25.83
41 - MITRE FENCE BSD-1609B05113.A1 1609B05113	£21.52	£25.83
42 - MITRE FENCE BSD-1609B05114.A2 1609B05114	£21.52	£25.83
43 - KNURLED THUMBSCREW BSD-1609B05382.A13 1609B05382	£1.75	£2.10
44 - TABLE BSD-1609B05121.A0 1609B05121	£135.25	£162.30
45 - SHAFT BSD-1609B04722.A11 1609B04722	£4.26	£5.11
47 - KNOB BSD-1609B04725.A0 1609B04725	£5.30	£6.36
48 - ROD BSD-1609B05125.A7 1609B05125	£1.75	£2.10
49 - COVER BSD-1609B04727.A8 1609B04727	£2.80	£3.36
51 - SUPPORTING FOOT BSD-1609B04728.A3 1609B04728	£2.80	£3.36
52 - TURRET BSD-1609B05132.A3 1609B05132	£5.58	£6.70
53 - SHOULDER SCREW BSD-1609B04878.A0 1609B04878	£5.30	£6.36
54 - CONTACT STRAP BSD-1609B04745.A8 1609B04745	£1.75	£2.10
55 - BALL BSD-1609B04746.A3 1609B04746	£1.75	£2.10
56 - DETENT BSD-1609B05124.A0 1609B05124	£2.16	£2.59
57 - ROD BSD-1609B05125.A6 1609B05125	£1.75	£2.10
58 - CONTACT STRAP BSD-1609B04749.A8 1609B04749	£1.75	£2.10
59 - LEAF SPRING BSD-1609B05127.A3 1609B05127	£1.75	£2.10
61 - POINTER BSD-1609B05126.A0 1609B05126	£1.75	£2.10
62 - SCALE BSD-1609B05122.A3 1609B05122	£2.16	£2.59
63 - TRAP DOOR BSD-1609B05131.A0 1609B05131	£2.16	£2.59
64 - COVER BSD-1609B05129.A0 1609B05129	£3.72	£4.47
65 - CONTACT STRAP BSD-1609B04756.A6 1609B04756	£1.75	£2.10
66 - LEAF SPRING BSD-1609B05133.A0 1609B05133	£7.36	£8.83
67 - POST BSD-1609B05141.A0 1609B05141	£54.42	£65.30
68 - POINTER BSD-1609B04773.A3 1609B04773	£1.75	£2.10
69 - POINTER BSD-1609B04774.A8 1609B04774	£1.75	£2.10
71 - BEARING BSD-1609B04775.A3 1609B04775	£40.80	£48.96
72 - WEAR PLATE BSD-1609B04776.A8 1609B04776	£2.16	£2.59
73 - PLATE BSD-1609B04778.A3 1609B04778	£3.72	£4.47
74 - FELT BSD-1609B04780.A8 1609B04780	£2.80	£3.36
75 - KNOB BSD-1609B04781.A3 1609B04781	£4.26	£5.11
76 - CONTACT STRAP BSD-1609BP7343.A24 1609BP7343	£1.75	£2.10
77 - LOCKING LEVER BSD-1609B05142.A3 1609B05142	£13.12	£15.75
78 - LEVER SHAFT BSD-1609B05143.A0 1609B05143	£14.91	£17.89
79 - COVER BSD-1609B04798.A9 1609B04798	£2.16	£2.59
81 - ARM BSD-1609B05161.A3 1609B05161	£72.18	£86.62
83 - BELT COVER BSD-1609B05163.A0 1609B05163	£5.58	£6.70
84 - TRANSMISSION SHAFT BSD-1609B04804.A9 1609B04804	£10.10	£12.12
85 - PULLEY BSD-1609B05165.A0 1609B05165	£10.10	£12.12
86 - SPROCKET BSD-1609B04806.A11 1609B04806	£13.12	£15.75
87 - WASHER BSD-1609B04807.A0 1609B04807	£1.75	£2.10
88 - CHAIN BSD-1609B05166.A3 1609B05166	£16.41	£19.69
89 - OUTPUT SHAFT BSD-1609B04809.A8 1609B04809	£10.10	£12.12
91 - PLATE BSD-1609B04810.A3 1609B04810	£1.75	£2.10
92 - SPINDLE BSD-1609B04811.A8 1609B04811	£1.75	£2.10
93 - COVER BSD-1609B05169.A0 1609B05169	£1.75	£2.10
94 - CHANNEL BSD-1609B05170.A3 1609B05170	£2.80	£3.36
95 - CHIP DEFLECTOR BSD-1609B05167.A0 1609B05167	£2.16	£2.59
96 - CHIP DEFLECTOR BSD-1609B05168.A3 1609B05168	£2.16	£2.59
97 - PIVOT PIN BSD-1609B04816.A9 1609B04816	£3.72	£4.47
98 - LOCKING LEVER BSD-1609B05172.A3 1609B05172	£6.52	£7.83
99 - BRACKET BSD-1609B04818.A7 1609B04818	£1.75	£2.10
101 - TORSION SPRING BSD-1609B04819.A0 1609B04819	£1.75	£2.10
102 - GASKET BSD-1609B05164.A3 1609B05164	£2.80	£3.36
103 - CLIP BSD-1609B05177.A0 1609B05177	£2.16	£2.59
104 - WEAR PLATE BSD-1609B00206.A9 1609B00206	£2.16	£2.59
106 - CARRYING HANDLE BSD-1609B05171.A0 1609B05171	£3.72	£4.47
107 - SCREW BSD-1609B04829.A7 1609B04829	£1.75	£2.10
109 - TORSION SPRING BSD-1609B00765.A5 1609B00765	£13.41	£16.09
111 - SCREW BSD-1609B04832.A6 1609B04832	£13.12	£15.75
115 - SCREW BSD-1609B04836.A5 1609B04836	£1.75	£2.10
116 - TORSION SPRING BSD-1609B04837.A6 1609B04837	£3.72	£4.47
117 - COMPRESSION SPRING BSD-1609B04838.A5 1609B04838	£2.16	£2.59
118 - WIRE BSD-1609B04839.A6 1609B04839	£3.72	£4.47
122 - END CAP BSD-1609B04843.A5 1609B04843	£10.10	£12.12
127 - SUPPORT BRACKET BSD-1609B04848.A6 1609B04848	£2.16	£2.59
128 - CLIP BSD-1609B04849.A2 1609B04849	£2.61	£3.13
132 - WIRE BSD-1609B04879.A0 1609B04879	£2.16	£2.59
133 - WIRE BSD-1609B04880.A1 1609B04880	£1.75	£2.10
134 - POWER SUPPLY BOARD BSD-1609B05145.A1 1609B05145	£14.91	£17.89
141 - LINKAGE BSD-1609B05195.A0 1609B05195	£8.67	£10.41
142 - SHOULDER SCREW BSD-1609B04876.A10 1609B04876	£1.75	£2.10
143 - INTERMEDIATE FLANGE BSD-1609B04892.A6 1609B04892	£14.91	£17.89
144 - END CAP BSD-1609B04901.A0 1609B04901	£3.72	£4.47
145 - BAFFLE BSD-1609B04904.A7 1609B04904	£2.80	£3.36
146 - SCREW BSD-1609B04911.A4 1609B04911	£3.72	£4.47
148 - WIRE BSD-1609B04915.A11 1609B04915	£2.80	£3.36
149 - WIRE BSD-1609B04916.A0 1609B04916	£1.75	£2.10
151 - WIRE BSD-1609B04924.A2 1609B04924	£2.16	£2.59
152 - WIRE BSD-1609B04918.A1 1609B04918	£2.61	£3.13
154 - SLEEVE BSD-1609B04921.A1 1609B04921	£1.75	£2.10
156 - CLIP BSD-1609B04923.A6 1609B04923	£1.75	£2.10
158 - LABEL BSD-1609B04949.A5 1609B04949	£2.61	£3.13
159 - LABEL BSD-1609B04950.A6 1609B04950	£2.61	£3.13
174 - SHOULDER SCREW BSD-1609B04783.A10 1609B04783	£1.75	£2.10
179 - RIVET BSD-1609B05359.A2 1609B05359	-
184 - SCREW BSD-1609B00780.A3 1609B00780	£1.75	£2.10
186 - LEAF SPRING BSD-1609B04762.A6 1609B04762	£1.75	£2.10
187 - LABEL BSD-1609B04959.A12 1609B04959	£2.61	£3.13
188 - SHRINKABLE TUBE BSD-1609B00583.A8 1609B00583	£1.75	£2.10
189 - LABEL BSD-1609B04960.A2 1609B04960	£2.61	£3.13
192 - PLAIN WASHER BSD-1609B04225.A22 1609B04225	£1.75	£2.10
193 - CABLE BSD-1609B05115.A0 1609B05115	£2.16	£2.59
198 - WASHER BSD-1609B05158.A5 1609B05158	£4.26	£5.11
199 - SCREW BSD-1609BP7139.A3 1609BP7139	£1.75	£2.10
201 - BELT BSD-1609B04253.A2 1609B04253	£21.52	£25.83
202 - FLANGE BOLT BSD-1609B00211.A8 1609B00211	£4.26	£5.11
203 - FLANGE BOLT BSD-1609B00213.A14 1609B00213	£1.75	£2.10
204 - SCREW BSD-1609B00223.A15 1609B00223	£1.75	£2.10
205 - NUT BSD-1609B00225.A3 1609B00225	£3.72	£4.47
206 - SUPPORTING FOOT BSD-1609B01431.A5 1609B01431	£2.16	£2.59
207 - WRENCH SOCKET BSD-1609B00256.A13 1609B00256	£2.16	£2.59
208 - BOLT BSD-1609B00305.A11 1609B00305	£2.61	£3.13
209 - KNOB BSD-1609B00350.A11 1609B00350	£1.75	£2.10
212 - SHAFT BSD-1609B00370.A16 1609B00370	£1.75	£2.10
213 - KNOB BSD-1609B00382.A27 1609B00382	£5.30	£6.36
214 - BUTTON BSD-1609B00390.A11 1609B00390	£1.75	£2.10
215 - COMPRESSION SPRING BSD-1609B00417.A17 1609B00417	£1.75	£2.10
216 - SLEEVE BSD-1609B00418.A1 1609B00418	£1.75	£2.10
217 - CONNECTOR BSD-1609B00430.A10 1609B00430	£1.75	£2.10
218 - BUSHING BSD-1609B00449.A11 1609B00449	£1.75	£2.10
222 - SCREW BSD-1609B00454.A17 1609B00454	£1.75	£2.10
224 - WASHER BSD-1609B00457.A10 1609B00457	£1.75	£2.10
225 - QUICK-LOCK BSD-1609B00458.A7 1609B00458	£1.75	£2.10
227 - BRUSH-COVER BSD-1609B00478.A13 1609B00478	£1.75	£2.10
228 - RUBBER BUSHING BSD-1609B01670.A7 1609B01670	£1.75	£2.10
229 - BEARING PLATE BSD-1609B00483.A6 1609B00483	-
235 - RUBBER BUSHING BSD-1609B00533.A9 1609B00533	£1.75	£2.10
237 - KEY BSD-1609B00592.A7 1609B00592	£1.75	£2.10
238 - KEY BSD-1609B00593.A11 1609B00593	£1.75	£2.10
239 - BEARING BSD-1609B00596.A14 1609B00596	£13.12	£15.75
241 - O-RING BSD-1609B00601.A2 1609B00601	£1.75	£2.10
242 - BOLT BSD-1609B00602.A18 1609B00602	£1.75	£2.10
243 - LOCK NUT BSD-1609B00603.A2 1609B00603	£1.75	£2.10
244 - LOCK NUT BSD-1609B00605.A17 1609B00605	£1.75	£2.10
245 - SET SCREW BSD-1609B00617.A7 1609B00617	£1.75	£2.10
246 - SCREW BSD-1609B00627.A11 1609B00627	£2.16	£2.59
247 - SCREW BSD-1609B00630.A17 1609B00630	£1.75	£2.10
248 - SCREW BSD-1609B00633.A10 1609B00633	£1.75	£2.10
249 - TAPPING SCREW BSD-1609B00636.A16 1609B00636	£2.61	£3.13
251 - TAPPING SCREW BSD-1609B00637.A9 1609B00637	£1.75	£2.10
252 - RETAINING RING BSD-1609B00641.A17 1609B00641	£1.75	£2.10
253 - RETAINING RING BSD-1609B00643.A11 1609B00643	£1.75	£2.10
254 - RETAINING RING BSD-1609B00644.A7 1609B00644	£2.16	£2.59
255 - SCREW BSD-1609B00649.A1 1609B00649	£1.75	£2.10
256 - SCREW BSD-1609B00650.A16 1609B00650	£1.75	£2.10
257 - SCREW BSD-1609B00652.A2 1609B00652	£1.75	£2.10
258 - SCREW BSD-1609B00654.A8 1609B00654	£1.75	£2.10
259 - SPRING WASHER BSD-1609B00658.A12 1609B00658	£1.75	£2.10
262 - WASHER BSD-1609B00662.A17 1609B00662	£1.75	£2.10
264 - WASHER BSD-1609B00665.A13 1609B00665	£1.75	£2.10
265 - WASHER BSD-1609B00667.A7 1609B00667	£1.75	£2.10
266 - WASHER BSD-1609B00669.A13 1609B00669	£1.75	£2.10
267 - LOCK NUT BSD-1609B00673.A11 1609B00673	£1.75	£2.10
268 - WASHER BSD-1609B00674.A7 1609B00674	£1.75	£2.10
269 - WASHER BSD-1609B00675.A4 1609B00675	£1.75	£2.10
271 - SCREW BSD-1609B00678.A19 1609B00678	£1.75	£2.10
273 - RETAINING RING BSD-1609B00690.A11 1609B00690	£1.75	£2.10
274 - RING BSD-1609B00813.A16 1609B00813	£1.75	£2.10
275 - KNOB BSD-1609B00861.A1 1609B00861	£1.32	£1.58
278 - SCREW BSD-1609B04799.A1 1609B04799	£1.75	£2.10
281 - CYL HEAD TAPPING SCREW BSD-1609B01356.A8 1609B01356	£1.75	£2.10
282 - SCREW BSD-1609B01388.A3 1609B01388	£1.75	£2.10
283 - CABLE HOLDER BSD-1609B04869.A6 1609B04869	£1.75	£2.10
285 - CABLE CLIP BSD-1609B01512.A8 1609B01512	£1.75	£2.10
287 - TRIGGER BSD-1609B01531.A4 1609B01531	£2.16	£2.59
288 - FIXED CALIPER BSD-1609B05533.A0 1609B05533	£1.75	£2.10
289 - CABLE TAPE BSD-1609B01538.A25 1609B01538	£1.75	£2.10
292 - CONTROL SCREW BSD-1609B01599.A5 1609B01599	£1.75	£2.10
293 - SLEEVE BSD-1609B00766.A0 1609B00766	£1.75	£2.10
295 - SCREW BSD-1609B01660.A5 1609B01660	£1.75	£2.10
296 - SCREW BSD-1609B01664.A8 1609B01664	£1.75	£2.10
297 - WASHER BSD-1609B01668.A29 1609B01668	£1.75	£2.10
298 - SCREW BSD-1609B01665.A15 1609B01665	£1.75	£2.10
299 - SCREW BSD-1609B01693.A6 1609B01693	£1.75	£2.10
300 - END CLIP BSD-1609B01992.A17 1609B01992	£1.75	£2.10
302 - SCREW BSD-1609B02177.A7 1609B02177	£1.75	£2.10
305 - WASHER BSD-1609BP7042.A9 1609BP7042	£1.75	£2.10
307 - WASHER BSD-1609B02191.A11 1609B02191	£2.61	£3.13
308 - SCREW BSD-1609B05179.A0 1609B05179	£2.61	£3.13
309 - FLANGE BSD-1609B05174.A2 1609B05174	£4.26	£5.11
310 - FLANGE BSD-1609B05175.A1 1609B05175	£4.26	£5.11
314 - SCREW BSD-1609B00414.A7 1609B00414	£5.30	£6.36
315 - GROOVED WASHER BSD-1609B02438.A14 1609B02438	£1.75	£2.10
317 - BUMPER BSD-1609B02467.A14 1609B02467	£1.75	£2.10
319 - WRENCH SOCKET BSD-1609B00415.A3 1609B00415	£2.61	£3.13
320 - BUSHING BSD-1609B02502.A3 1609B02502	£1.75	£2.10
325 - SCREW BSD-1609B03179.A7 1609B03179	£1.75	£2.10
326 - SCREW BSD-1609B03722.A23 1609B03722	£1.75	£2.10
327 - CONTROL LEVER BSD-1609B03733.A19 1609B03733	£4.26	£5.11
329 - LOCK PLATE BSD-1609B03741.A12 1609B03741	£2.61	£3.13
330 - ADJUSTING BOLT BSD-1609B03742.A9 1609B03742	£1.75	£2.10
331 - SLIDE STOP BSD-1609B03753.A23 1609B03753	£1.75	£2.10
332 - FRICTION PLATE BSD-1609B03770.A19 1609B03770	£7.36	£8.83
333 - STOP BOLT BSD-1609B03776.A23 1609B03776	£1.75	£2.10
334 - SCREW BSD-1609B04086.A30 1609B04086	£2.16	£2.59
335 - ADJUSTING NUT BSD-1609B04227.A12 1609B04227	£1.75	£2.10
336 - CONNECTION BLOCK BSD-1609BP7059.A30 1609BP7059	£1.75	£2.10
338 - ROLLER BSD-1609BP7124.A2 1609BP7124	£1.75	£2.10
339 - RIVET BSD-1609B00622.A16 1609B00622	£1.75	£2.10
340 - SWITCH BSD-1609B05392.A5 1609B05392	£4.26	£5.11
342 - WARNING LABEL BSD-1609B05130.A0 1609B05130	£2.33	£2.80
344 - HEX SCREW BSD-1609B01381.A0 1609B01381	£1.75	£2.10
345 - CONNECTING TERMINAL BSD-1609B01397.A8 1609B01397	£1.75	£2.10
801 - HOUSING ASSEMBLY BSD-1609B05013.A2 1609B05013	£21.52	£25.83
803 - ARMATURE ASSEMBLY 110V BSD-1609B05027.A0 1609B05027	£120.11	£144.13
808 - NAMEPLATE BSD-1609BN0194.A0 1609BN0194	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1609B02314.A1 1609B02314	£7.36	£8.83
812 - MOUNTING PLATE BSD-1609B05189.A4 1609B05189	£2.80	£3.36
813 - SUPPORT PLATE BSD-1609B02434.A18 1609B02434	£16.41	£19.69
814 - BEARING BSD-1609B02316.A0 1609B02316	£16.41	£19.69
815 - CONDENSER BSD-1609B05030.A4 1609B05030	£1.75	£2.10
816 - LASER BSD-1609B05188.A3 1609B05188	£63.50	£76.20
818 - SPROCKET BSD-1609B05020.A8 1609B05020	£13.12	£15.75
819 - YOKE BSD-1609B05156.A2 1609B05156	£68.42	£82.10
824 - ADJUSTABLE SCREW CLAMP BSD-1609B06203.A11 1609B06203	£14.99	£17.99
824/232 - RUBBER PAD BSD-1609B00523.A16 1609B00523	£2.61	£3.13
825 - DUST EXTRACTION BSD-1609B05159.A3 1609B05159	£10.10	£12.12
829 - SWITCH HANDLE BSD-1609B05012.A5 1609B05012	£21.52	£25.83
831 - BASE BSD-1609B05119.A1 1609B05119	£156.22	£187.46
835 - EXTENSION STAND BSD-1609B05117.A1 1609B05117	£40.80	£48.96
836 - EXTENSION STAND BSD-1609B05118.A2 1609B05118	£40.80	£48.96
837 - LOWER GUARD BSD-1609B05187.A0 1609B05187	£27.23	£32.68
846 - PLATE BSD-1609B05139.A0 1609B05139	£5.30	£6.36
882 - CHAIN COVER BSD-1609B05181.A3 1609B05181	£37.27	£44.72
885 - BOLT BSD-1609B05017.A2 1609B05017	£18.96	£22.75

Attribute Name	Value
Brand	Bosch

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
