Bosch GCM 350-254 / 3601M22630 / CH 230 Volt Spare Parts

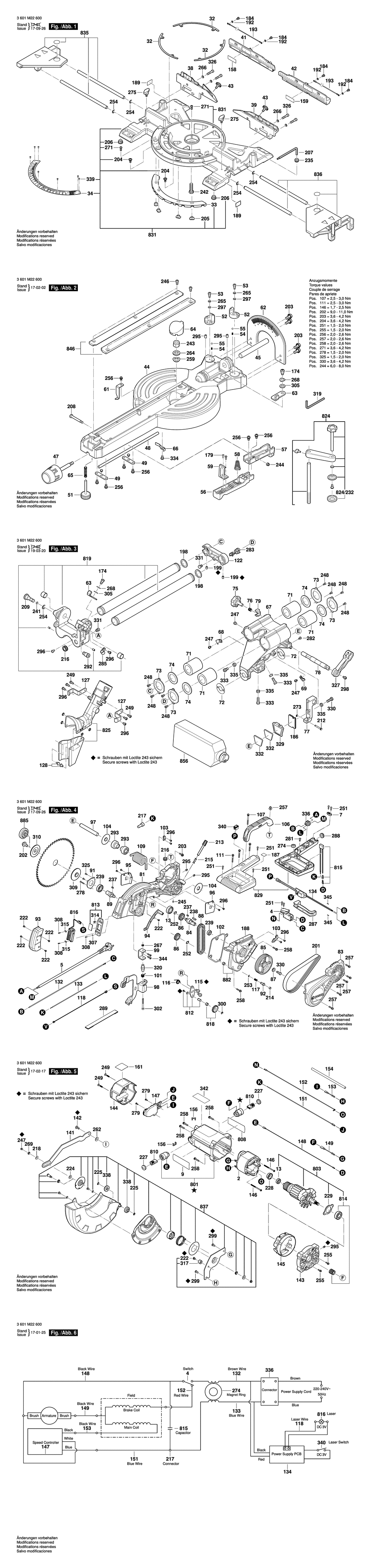

An exploded drawing and listing for the Bosch GCM 350-254 / 3601M22630 / CH 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-1609B04898.A7 1609B04898	£63.50	£76.20
4 - SWITCH BSD-2610950336.A14 2610950336	£18.96	£22.75
5 - POWER SUPPLY CORD CH 3.5m 2x1mm H05 RN-F BSD-1609B00374.A2 1609B00374	£13.12	£15.75
7 - CABLE CLIP BSD-1619P03808.A9 1619P03808	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GCM 350-254 BSD-1609B05071.A1 1609B05071	£7.36	£8.83
13 - BEARING BSD-1609B00597.A0 1609B00597	£10.10	£12.12
32 - SLIDING PLATE BSD-1609B05102.A1 1609B05102	£2.16	£2.59
33 - DETENT PLATE BSD-1609B05103.A2 1609B05103	£5.58	£6.70
34 - SCALE BSD-1609B05104.A1 1609B05104	£5.30	£6.36
38 - MITRE FENCE BSD-1609B05109.A2 1609B05109	£21.52	£25.83
39 - MITRE FENCE BSD-1609B05110.A1 1609B05110	£21.52	£25.83
41 - MITRE FENCE BSD-1609B05113.A2 1609B05113	£21.52	£25.83
42 - MITRE FENCE BSD-1609B05114.A1 1609B05114	£21.52	£25.83
43 - KNURLED THUMBSCREW BSD-1609B05382.A11 1609B05382	£1.75	£2.10
44 - TABLE BSD-1609B05121.A1 1609B05121	£135.25	£162.30
45 - SHAFT BSD-1609B04722.A9 1609B04722	£4.26	£5.11
47 - KNOB BSD-1609B04725.A2 1609B04725	£5.30	£6.36
48 - ROD BSD-1609B05125.A5 1609B05125	£1.75	£2.10
49 - COVER BSD-1609B04727.A6 1609B04727	£2.80	£3.36
51 - SUPPORTING FOOT BSD-1609B04728.A5 1609B04728	£2.80	£3.36
52 - TURRET BSD-1609B05132.A2 1609B05132	£5.58	£6.70
53 - SHOULDER SCREW BSD-1609B04878.A2 1609B04878	£5.30	£6.36
54 - CONTACT STRAP BSD-1609B04745.A6 1609B04745	£1.75	£2.10
55 - BALL BSD-1609B04746.A5 1609B04746	£1.75	£2.10
56 - DETENT BSD-1609B05124.A1 1609B05124	£2.16	£2.59
57 - ROD BSD-1609B05125.A4 1609B05125	£1.75	£2.10
58 - CONTACT STRAP BSD-1609B04749.A6 1609B04749	£1.75	£2.10
59 - LEAF SPRING BSD-1609B05127.A2 1609B05127	£1.75	£2.10
61 - POINTER BSD-1609B05126.A1 1609B05126	£1.75	£2.10
62 - SCALE BSD-1609B05122.A2 1609B05122	£2.16	£2.59
63 - TRAP DOOR BSD-1609B05131.A1 1609B05131	£2.16	£2.59
64 - COVER BSD-1609B05129.A1 1609B05129	£3.72	£4.47
65 - CONTACT STRAP BSD-1609B04756.A8 1609B04756	£1.75	£2.10
66 - LEAF SPRING BSD-1609B05133.A1 1609B05133	£7.36	£8.83
67 - POST BSD-1609B05141.A1 1609B05141	£54.42	£65.30
68 - POINTER BSD-1609B04773.A5 1609B04773	£1.75	£2.10
69 - POINTER BSD-1609B04774.A6 1609B04774	£1.75	£2.10
71 - BEARING BSD-1609B04775.A5 1609B04775	£40.80	£48.96
72 - WEAR PLATE BSD-1609B04776.A6 1609B04776	£2.16	£2.59
73 - PLATE BSD-1609B04778.A5 1609B04778	£3.72	£4.47
74 - FELT BSD-1609B04780.A6 1609B04780	£2.80	£3.36
75 - KNOB BSD-1609B04781.A5 1609B04781	£4.26	£5.11
76 - CONTACT STRAP BSD-1609BP7343.A23 1609BP7343	£1.75	£2.10
77 - LOCKING LEVER BSD-1609B05142.A2 1609B05142	£13.12	£15.75
78 - LEVER SHAFT BSD-1609B05143.A1 1609B05143	£14.91	£17.89
79 - COVER BSD-1609B04798.A11 1609B04798	£2.16	£2.59
81 - ARM BSD-1609B05161.A1 1609B05161	£72.18	£86.62
83 - BELT COVER BSD-1609B05163.A2 1609B05163	£5.58	£6.70
84 - TRANSMISSION SHAFT BSD-1609B04804.A11 1609B04804	£10.10	£12.12
85 - PULLEY BSD-1609B05165.A2 1609B05165	£10.10	£12.12
86 - SPROCKET BSD-1609B04806.A9 1609B04806	£13.12	£15.75
87 - WASHER BSD-1609B04807.A2 1609B04807	£1.75	£2.10
88 - CHAIN BSD-1609B05166.A1 1609B05166	£16.41	£19.69
89 - OUTPUT SHAFT BSD-1609B04809.A6 1609B04809	£10.10	£12.12
91 - PLATE BSD-1609B04810.A5 1609B04810	£1.75	£2.10
92 - SPINDLE BSD-1609B04811.A6 1609B04811	£1.75	£2.10
93 - COVER BSD-1609B05169.A2 1609B05169	£1.75	£2.10
94 - CHANNEL BSD-1609B05170.A1 1609B05170	£2.80	£3.36
95 - CHIP DEFLECTOR BSD-1609B05167.A2 1609B05167	£2.16	£2.59
96 - CHIP DEFLECTOR BSD-1609B05168.A1 1609B05168	£2.16	£2.59
97 - PIVOT PIN BSD-1609B04816.A11 1609B04816	£3.72	£4.47
98 - LOCKING LEVER BSD-1609B05172.A1 1609B05172	£6.52	£7.83
99 - BRACKET BSD-1609B04818.A5 1609B04818	£1.75	£2.10
101 - TORSION SPRING BSD-1609B04819.A2 1609B04819	£1.75	£2.10
102 - GASKET BSD-1609B05164.A1 1609B05164	£2.80	£3.36
103 - CLIP BSD-1609B05177.A1 1609B05177	£2.16	£2.59
104 - WEAR PLATE BSD-1609B00206.A8 1609B00206	£2.16	£2.59
106 - CARRYING HANDLE BSD-1609B05171.A2 1609B05171	£3.72	£4.47
107 - SCREW BSD-1609B04829.A8 1609B04829	£1.75	£2.10
109 - TORSION SPRING BSD-1609B00765.A7 1609B00765	£13.41	£16.09
111 - SCREW BSD-1609B04832.A8 1609B04832	£13.12	£15.75
115 - SCREW BSD-1609B04836.A3 1609B04836	£1.75	£2.10
116 - TORSION SPRING BSD-1609B04837.A8 1609B04837	£3.72	£4.47
117 - COMPRESSION SPRING BSD-1609B04838.A3 1609B04838	£2.16	£2.59
118 - WIRE BSD-1609B04839.A8 1609B04839	£3.72	£4.47
122 - END CAP BSD-1609B04843.A3 1609B04843	£10.10	£12.12
127 - SUPPORT BRACKET BSD-1609B04848.A8 1609B04848	£2.16	£2.59
128 - CLIP BSD-1609B04849.A0 1609B04849	£2.61	£3.13
132 - WIRE BSD-1609B04881.A0 1609B04881	£1.75	£2.10
133 - WIRE BSD-1609B04882.A5 1609B04882	£1.75	£2.10
134 - POWER SUPPLY BOARD BSD-1609B05144.A4 1609B05144	£18.96	£22.75
141 - LINKAGE BSD-1609B05195.A1 1609B05195	£8.67	£10.41
142 - SHOULDER SCREW BSD-1609B04876.A11 1609B04876	£1.75	£2.10
143 - INTERMEDIATE FLANGE BSD-1609B04892.A7 1609B04892	£14.91	£17.89
144 - END CAP BSD-1609B04902.A2 1609B04902	£4.26	£5.11
145 - BAFFLE BSD-1609B04904.A6 1609B04904	£2.80	£3.36
146 - SCREW BSD-1609B04911.A5 1609B04911	£3.72	£4.47
147 - SPEED GOVERNOR BSD-1609B04913.A1 1609B04913	£27.23	£32.68
148 - WIRE BSD-1609B04915.A10 1609B04915	£2.80	£3.36
149 - WIRE BSD-1609B04916.A1 1609B04916	£1.75	£2.10
151 - WIRE BSD-1609B04917.A8 1609B04917	£2.16	£2.59
152 - WIRE BSD-1609B04918.A0 1609B04918	£2.61	£3.13
153 - WIRE BSD-1609B04919.A8 1609B04919	£1.75	£2.10
154 - SLEEVE BSD-1609B04921.A0 1609B04921	£1.75	£2.10
156 - CLIP BSD-1609B04923.A7 1609B04923	£1.75	£2.10
158 - LABEL BSD-1609B04949.A6 1609B04949	£2.61	£3.13
159 - LABEL BSD-1609B04950.A5 1609B04950	£2.61	£3.13
161 - LABEL BSD-1609B05073.A0 1609B05073	£4.26	£5.11
174 - SHOULDER SCREW BSD-1609B04783.A11 1609B04783	£1.75	£2.10
179 - RIVET BSD-1609B05359.A3 1609B05359	-
184 - SCREW BSD-1609B00780.A2 1609B00780	£1.75	£2.10
186 - LEAF SPRING BSD-1609B04762.A7 1609B04762	£1.75	£2.10
187 - LABEL BSD-1609B04959.A13 1609B04959	£2.61	£3.13
188 - SHRINKABLE TUBE BSD-1609B00583.A9 1609B00583	£1.75	£2.10
189 - LABEL BSD-1609B04960.A1 1609B04960	£2.61	£3.13
192 - PLAIN WASHER BSD-1609B04225.A21 1609B04225	£1.75	£2.10
193 - CABLE BSD-1609B05115.A1 1609B05115	£2.16	£2.59
198 - WASHER BSD-1609B05158.A4 1609B05158	£4.26	£5.11
199 - SCREW BSD-1609BP7139.A2 1609BP7139	£1.75	£2.10
201 - BELT BSD-1609B04253.A0 1609B04253	£21.52	£25.83
202 - FLANGE BOLT BSD-1609B00211.A10 1609B00211	£4.26	£5.11
203 - FLANGE BOLT BSD-1609B00213.A12 1609B00213	£1.75	£2.10
204 - SCREW BSD-1609B00223.A17 1609B00223	£1.75	£2.10
205 - NUT BSD-1609B00225.A1 1609B00225	£3.72	£4.47
206 - SUPPORTING FOOT BSD-1609B01431.A3 1609B01431	£2.16	£2.59
207 - WRENCH SOCKET BSD-1609B00256.A12 1609B00256	£2.16	£2.59
208 - BOLT BSD-1609B00305.A12 1609B00305	£2.61	£3.13
209 - KNOB BSD-1609B00350.A10 1609B00350	£1.75	£2.10
212 - SHAFT BSD-1609B00370.A17 1609B00370	£1.75	£2.10
213 - KNOB BSD-1609B00382.A26 1609B00382	£5.30	£6.36
214 - BUTTON BSD-1609B00390.A12 1609B00390	£1.75	£2.10
215 - COMPRESSION SPRING BSD-1609B00417.A16 1609B00417	£1.75	£2.10
216 - SLEEVE BSD-1609B00418.A2 1609B00418	£1.75	£2.10
217 - CONNECTOR BSD-1609B00430.A9 1609B00430	£1.75	£2.10
218 - BUSHING BSD-1609B00449.A12 1609B00449	£1.75	£2.10
222 - SCREW BSD-1609B00454.A16 1609B00454	£1.75	£2.10
224 - WASHER BSD-1609B00457.A11 1609B00457	£1.75	£2.10
225 - QUICK-LOCK BSD-1609B00458.A6 1609B00458	£1.75	£2.10
227 - BRUSH-COVER BSD-1609B00478.A14 1609B00478	£1.75	£2.10
228 - RUBBER BUSHING BSD-1609B01670.A6 1609B01670	£1.75	£2.10
229 - BEARING PLATE BSD-1609B00483.A5 1609B00483	-
235 - RUBBER BUSHING BSD-1609B00533.A8 1609B00533	£1.75	£2.10
237 - KEY BSD-1609B00592.A6 1609B00592	£1.75	£2.10
238 - KEY BSD-1609B00593.A12 1609B00593	£1.75	£2.10
239 - BEARING BSD-1609B00596.A13 1609B00596	£13.12	£15.75
241 - O-RING BSD-1609B00601.A3 1609B00601	£1.75	£2.10
242 - BOLT BSD-1609B00602.A17 1609B00602	£1.75	£2.10
243 - LOCK NUT BSD-1609B00603.A3 1609B00603	£1.75	£2.10
244 - LOCK NUT BSD-1609B00605.A16 1609B00605	£1.75	£2.10
245 - SET SCREW BSD-1609B00617.A8 1609B00617	£1.75	£2.10
246 - SCREW BSD-1609B00627.A10 1609B00627	£2.16	£2.59
247 - SCREW BSD-1609B00630.A18 1609B00630	£1.75	£2.10
248 - SCREW BSD-1609B00633.A9 1609B00633	£1.75	£2.10
249 - TAPPING SCREW BSD-1609B00636.A17 1609B00636	£2.61	£3.13
251 - TAPPING SCREW BSD-1609B00637.A8 1609B00637	£1.75	£2.10
252 - RETAINING RING BSD-1609B00641.A18 1609B00641	£1.75	£2.10
253 - RETAINING RING BSD-1609B00643.A10 1609B00643	£1.75	£2.10
254 - RETAINING RING BSD-1609B00644.A8 1609B00644	£2.16	£2.59
255 - SCREW BSD-1609B00649.A0 1609B00649	£1.75	£2.10
256 - SCREW BSD-1609B00650.A17 1609B00650	£1.75	£2.10
257 - SCREW BSD-1609B00652.A1 1609B00652	£1.75	£2.10
258 - SCREW BSD-1609B00654.A9 1609B00654	£1.75	£2.10
259 - SPRING WASHER BSD-1609B00658.A11 1609B00658	£1.75	£2.10
262 - WASHER BSD-1609B00662.A18 1609B00662	£1.75	£2.10
264 - WASHER BSD-1609B00665.A12 1609B00665	£1.75	£2.10
265 - WASHER BSD-1609B00667.A8 1609B00667	£1.75	£2.10
266 - WASHER BSD-1609B00669.A12 1609B00669	£1.75	£2.10
267 - LOCK NUT BSD-1609B00673.A12 1609B00673	£1.75	£2.10
268 - WASHER BSD-1609B00674.A6 1609B00674	£1.75	£2.10
269 - WASHER BSD-1609B00675.A5 1609B00675	£1.75	£2.10
271 - SCREW BSD-1609B00678.A18 1609B00678	£1.75	£2.10
273 - RETAINING RING BSD-1609B00690.A12 1609B00690	£1.75	£2.10
274 - RING BSD-1609B00813.A17 1609B00813	£1.75	£2.10
275 - KNOB BSD-1609B00861.A0 1609B00861	£1.32	£1.58
278 - SCREW BSD-1609B04799.A2 1609B04799	£1.75	£2.10
279 - TAPPING SCREW BSD-1609B01194.A10 1609B01194	£1.75	£2.10
281 - CYL HEAD TAPPING SCREW BSD-1609B01356.A0 1609B01356	£1.75	£2.10
282 - SCREW BSD-1609B01388.A0 1609B01388	£1.75	£2.10
283 - CABLE HOLDER BSD-1609B01396.A2 1609B01396	£1.75	£2.10
285 - CABLE CLIP BSD-1609B01512.A2 1609B01512	£1.75	£2.10
287 - TRIGGER BSD-1609B01531.A9 1609B01531	£2.16	£2.59
288 - FIXED CALIPER BSD-1609B05533.A3 1609B05533	£1.75	£2.10
289 - CABLE TAPE BSD-1609B01538.A29 1609B01538	£1.75	£2.10
292 - CONTROL SCREW BSD-1609B01599.A3 1609B01599	£1.75	£2.10
293 - SLEEVE BSD-1609B00766.A3 1609B00766	£1.75	£2.10
295 - SCREW BSD-1609B01660.A3 1609B01660	£1.75	£2.10
296 - SCREW BSD-1609B01664.A2 1609B01664	£1.75	£2.10
297 - WASHER BSD-1609B01668.A23 1609B01668	£1.75	£2.10
298 - SCREW BSD-1609B01665.A21 1609B01665	£1.75	£2.10
299 - SCREW BSD-1609B01693.A0 1609B01693	£1.75	£2.10
300 - END CLIP BSD-1609B01992.A12 1609B01992	£1.75	£2.10
302 - SCREW BSD-1609B02177.A2 1609B02177	£1.75	£2.10
305 - WASHER BSD-1609BP7042.A11 1609BP7042	£1.75	£2.10
307 - WASHER BSD-1609B02191.A18 1609B02191	£2.61	£3.13
308 - SCREW BSD-1609B05179.A5 1609B05179	£2.61	£3.13
309 - FLANGE BSD-1609B05174.A0 1609B05174	£4.26	£5.11
310 - FLANGE BSD-1609B05175.A3 1609B05175	£4.26	£5.11
314 - SCREW BSD-1609B00414.A8 1609B00414	£5.30	£6.36
315 - GROOVED WASHER BSD-1609B02438.A16 1609B02438	£1.75	£2.10
317 - BUMPER BSD-1609B02467.A12 1609B02467	£1.75	£2.10
319 - WRENCH SOCKET BSD-1609B00415.A2 1609B00415	£2.61	£3.13
320 - BUSHING BSD-1609B02502.A6 1609B02502	£1.75	£2.10
325 - SCREW BSD-1609B03179.A4 1609B03179	£1.75	£2.10
326 - SCREW BSD-1609B03722.A21 1609B03722	£1.75	£2.10
327 - CONTROL LEVER BSD-1609B03733.A21 1609B03733	£4.26	£5.11
329 - LOCK PLATE BSD-1609B03741.A10 1609B03741	£2.61	£3.13
330 - ADJUSTING BOLT BSD-1609B03742.A11 1609B03742	£1.75	£2.10
331 - SLIDE STOP BSD-1609B03753.A21 1609B03753	£1.75	£2.10
332 - FRICTION PLATE BSD-1609B03770.A21 1609B03770	£7.36	£8.83
333 - STOP BOLT BSD-1609B03776.A21 1609B03776	£1.75	£2.10
334 - SCREW BSD-1609B04086.A32 1609B04086	£2.16	£2.59
335 - ADJUSTING NUT BSD-1609B04227.A14 1609B04227	£1.75	£2.10
336 - CONNECTION BLOCK BSD-1609BP7059.A24 1609BP7059	£1.75	£2.10
338 - ROLLER BSD-1609BP7124.A9 1609BP7124	£1.75	£2.10
339 - RIVET BSD-1609B00622.A18 1609B00622	£1.75	£2.10
340 - SWITCH BSD-1609B05392.A2 1609B05392	£4.26	£5.11
342 - WARNING LABEL BSD-1609B05130.A3 1609B05130	£2.33	£2.80
344 - HEX SCREW BSD-1609B01381.A3 1609B01381	£1.75	£2.10
345 - CONNECTING TERMINAL BSD-1609B01397.A0 1609B01397	£1.75	£2.10
801 - HOUSING ASSEMBLY BSD-1609B05013.A1 1609B05013	£21.52	£25.83
803 - ARMATURE ASSEMBLY 230V BSD-1609B04912.A4 1609B04912	£120.11	£144.13
808 - NAMEPLATE BSD-1609BN0193.A0 1609BN0193	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-2610021311.A8 2610021311	£18.96	£22.75
812 - MOUNTING PLATE BSD-1609B05189.A7 1609B05189	£2.80	£3.36
813 - SUPPORT PLATE BSD-1609B02434.A12 1609B02434	£16.41	£19.69
814 - BEARING BSD-1609B02316.A6 1609B02316	£16.41	£19.69
815 - CONDENSER BSD-1609B05030.A6 1609B05030	£1.75	£2.10
816 - LASER BSD-1609B05188.A0 1609B05188	£63.50	£76.20
818 - SPROCKET BSD-1609B05020.A11 1609B05020	£13.12	£15.75
819 - YOKE BSD-1609B05156.A0 1609B05156	£68.42	£82.10
824 - ADJUSTABLE SCREW CLAMP BSD-1609B06203.A20 1609B06203	£14.99	£17.99
824/232 - RUBBER PAD BSD-1609B00523.A12 1609B00523	£2.61	£3.13
825 - DUST EXTRACTION BSD-1609B05159.A0 1609B05159	£10.10	£12.12
829 - SWITCH HANDLE BSD-1609B05012.A6 1609B05012	£21.52	£25.83
831 - BASE BSD-1609B05119.A3 1609B05119	£156.22	£187.46
835 - EXTENSION STAND BSD-1609B05117.A3 1609B05117	£40.80	£48.96
836 - EXTENSION STAND BSD-1609B05118.A0 1609B05118	£40.80	£48.96
837 - LOWER GUARD BSD-1609B05187.A3 1609B05187	£27.23	£32.68
846 - PLATE BSD-1609B05139.A3 1609B05139	£5.30	£6.36
882 - CHAIN COVER BSD-1609B05181.A0 1609B05181	£37.27	£44.72
885 - BOLT BSD-1609B05017.A6 1609B05017	£18.96	£22.75

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GCM 350-254 / 3601M22630 / CH 230 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
