Bosch GCM 12 SDE / 3601M23160 / GB 110 Volt Spare Parts

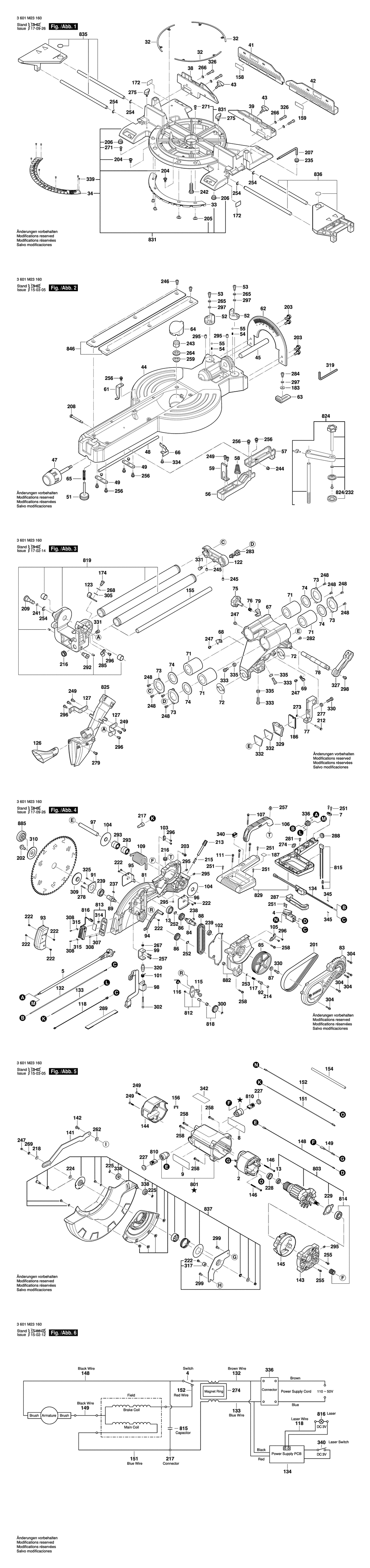

An exploded drawing and listing for the Bosch GCM 12 SDE / 3601M23160 / GB 110 Volt

	Ex VAT	Inc VAT
2 - FIELD 110V BSD-1609B04897.A1 1609B04897	£63.50	£76.20
4 - SWITCH BSD-2610950336.A10 2610950336	£18.96	£22.75
5 - POWER SUPPLY CORD GB 3.5 2x1.5mm H05 RR-F BSD-1609B00379.A2 1609B00379	£59.53	£71.44
7 - CABLE CLIP BSD-1619P03808.A13 1619P03808	£1.75	£2.10
8 - NAMEPLATE BSD-1609BN0173.A0 1609BN0173	£2.61	£3.13
9 - LABEL BSD-1609B00695.A3 1609B00695	£2.61	£3.13
13 - BEARING BSD-1609B00597.A3 1609B00597	£10.10	£12.12
32 - SLIDING PLATE BSD-1609B04702.A6 1609B04702	£6.52	£7.83
33 - DETENT PLATE BSD-1609B04703.A1 1609B04703	£7.36	£8.83
34 - SCALE BSD-1609B04704.A6 1609B04704	£5.58	£6.70
38 - MITRE FENCE BSD-1609B04991.A5 1609B04991	£27.68	£33.21
39 - MITRE FENCE BSD-1609b04992.A5 1609b04992	£24.45	£29.34
41 - MITRE FENCE BSD-1609B04993.A4 1609B04993	£27.23	£32.68
42 - MITRE FENCE BSD-1609B04994.A3 1609B04994	£27.23	£32.68
43 - KNOB BSD-1609B04715.A3 1609B04715	£2.61	£3.13
44 - TABLE BSD-1609B04721.A0 1609B04721	£195.26	£234.31
45 - SHAFT BSD-1609B04722.A8 1609B04722	£4.26	£5.11
47 - KNOB BSD-1609B04725.A3 1609B04725	£5.30	£6.36
48 - ROD BSD-1609B04726.A7 1609B04726	£2.80	£3.36
49 - COVER BSD-1609B04727.A0 1609B04727	£2.80	£3.36
51 - SUPPORTING FOOT BSD-1609B04728.A11 1609B04728	£2.80	£3.36
52 - DETENT BSD-1609B04743.A0 1609B04743	£13.12	£15.75
53 - SHOULDER SCREW BSD-1609B04744.A7 1609B04744	£1.75	£2.10
54 - CONTACT STRAP BSD-1609B04745.A0 1609B04745	£1.75	£2.10
55 - BALL BSD-1609B04746.A11 1609B04746	£1.75	£2.10
56 - DETENT BSD-1609B04747.A0 1609B04747	£2.80	£3.36
57 - DETENT BSD-1609B04748.A7 1609B04748	£10.10	£12.12
58 - CONTACT STRAP BSD-1609B04749.A0 1609B04749	£1.75	£2.10
59 - LEAF SPRING BSD-1609B04750.A7 1609B04750	£1.75	£2.10
61 - POINTER BSD-1609B04751.A0 1609B04751	£1.75	£2.10
62 - SCALE BSD-1609B04752.A7 1609B04752	£21.52	£25.83
63 - SLIDING PLATE BSD-1609B04754.A0 1609B04754	£2.16	£2.59
64 - COVER BSD-1609B04755.A7 1609B04755	£1.75	£2.10
65 - CONTACT STRAP BSD-1609B04756.A0 1609B04756	£1.75	£2.10
66 - LEAF SPRING BSD-1609B04758.A0 1609B04758	£1.75	£2.10
67 - POST BSD-1609B04761.A7 1609B04761	£68.42	£82.10
68 - POINTER BSD-1609B04773.A11 1609B04773	£1.75	£2.10
69 - POINTER BSD-1609B04774.A0 1609B04774	£1.75	£2.10
71 - BEARING BSD-1609B04775.A11 1609B04775	£40.80	£48.96
72 - WEAR PLATE BSD-1609B04776.A0 1609B04776	£2.16	£2.59
73 - PLATE BSD-1609B04778.A11 1609B04778	£3.72	£4.47
74 - FELT BSD-1609B04780.A0 1609B04780	£2.80	£3.36
75 - KNOB BSD-1609B04781.A11 1609B04781	£4.26	£5.11
76 - CONTACT STRAP BSD-1609B04791.A2 1609B04791	£1.32	£1.58
77 - LOCKING LEVER BSD-1609B04794.A5 1609B04794	£16.41	£19.69
78 - LEVER SHAFT BSD-1609B04795.A2 1609B04795	£16.41	£19.69
79 - COVER BSD-1609B04798.A6 1609B04798	£2.16	£2.59
81 - ARM BSD-1609B04801.A2 1609B04801	£102.57	£123.08
83 - BELT COVER BSD-1609B04803.A1 1609B04803	£10.10	£12.12
84 - TRANSMISSION SHAFT BSD-1609B04804.A7 1609B04804	£10.10	£12.12
85 - PULLEY BSD-1609B04805.A1 1609B04805	£14.91	£17.89
86 - SPROCKET BSD-1609B04806.A7 1609B04806	£13.12	£15.75
87 - WASHER BSD-1609B04807.A4 1609B04807	£1.75	£2.10
88 - CHAIN BSD-1609B04808.A6 1609B04808	£16.41	£19.69
89 - OUTPUT SHAFT BSD-1609B04809.A1 1609B04809	£10.10	£12.12
91 - PLATE BSD-1609B04810.A10 1609B04810	£1.75	£2.10
92 - SPINDLE BSD-1609B04811.A1 1609B04811	£1.75	£2.10
93 - COVER BSD-1609B04812.A6 1609B04812	£1.75	£2.10
94 - CHANNEL BSD-1609B04813.A1 1609B04813	£1.75	£2.10
95 - CHIP DEFLECTOR BSD-1609B04815.A1 1609B04815	£2.61	£3.13
96 - CHIP DEFLECTOR BSD-1609B04814.A3 1609B04814	£2.61	£3.13
97 - PIVOT PIN BSD-1609B04816.A6 1609B04816	£3.72	£4.47
98 - LOCKING LEVER BSD-1609B04817.A1 1609B04817	£6.52	£7.83
99 - BRACKET BSD-1609B04818.A3 1609B04818	£1.75	£2.10
101 - TORSION SPRING BSD-1609B04819.A4 1609B04819	£1.75	£2.10
102 - GASKET BSD-1609B04822.A6 1609B04822	£2.80	£3.36
103 - CABLE CLIP BSD-1609B04825.A0 1609B04825	£1.75	£2.10
104 - WEAR PLATE BSD-1609B04826.A6 1609B04826	£1.75	£2.10
105 - CABLE CLIP BSD-1609B04827.A1 1609B04827	£1.75	£2.10
106 - CARRYING HANDLE BSD-1609B04828.A6 1609B04828	£3.72	£4.47
107 - SCREW BSD-1609B04829.A1 1609B04829	£1.75	£2.10
109 - TORSION SPRING BSD-1609B04831.A6 1609B04831	£12.04	£14.45
111 - SCREW BSD-1609B04832.A1 1609B04832	£13.12	£15.75
115 - SCREW BSD-1609B04836.A10 1609B04836	£1.75	£2.10
116 - TORSION SPRING BSD-1609B04837.A1 1609B04837	£3.72	£4.47
117 - COMPRESSION SPRING BSD-1609B04838.A10 1609B04838	£2.16	£2.59
118 - WIRE BSD-1609B04839.A1 1609B04839	£3.72	£4.47
122 - END CAP BSD-1609B04843.A10 1609B04843	£10.10	£12.12
123 - PLATE BSD-1609B04844.A1 1609B04844	£1.95	£2.34
126 - DUST EXTRACTION BSD-1609B04847.A6 1609B04847	£4.26	£5.11
127 - SUPPORT BRACKET BSD-1609B04848.A1 1609B04848	£2.16	£2.59
132 - WIRE BSD-1609B04862.A0 1609B04862	£2.16	£2.59
133 - WIRE BSD-1609B04863.A0 1609B04863	£1.75	£2.10
134 - POWER SUPPLY BOARD BSD-1609B04860.A0 1609B04860	£16.41	£19.69
141 - LINKAGE BSD-1609B04875.A6 1609B04875	£10.10	£12.12
142 - SHOULDER SCREW BSD-1609B04876.A1 1609B04876	£1.75	£2.10
143 - INTERMEDIATE FLANGE BSD-1609B04892.A0 1609B04892	£14.91	£17.89
144 - END CAP BSD-1609B04901.A2 1609B04901	£3.72	£4.47
145 - BAFFLE BSD-1609B04904.A10 1609B04904	£2.80	£3.36
146 - SCREW BSD-1609B04911.A1 1609B04911	£3.72	£4.47
148 - WIRE BSD-1609B04915.A2 1609B04915	£2.80	£3.36
149 - WIRE BSD-1609B04916.A9 1609B04916	£1.75	£2.10
151 - WIRE BSD-1609B04924.A1 1609B04924	£2.16	£2.59
152 - WIRE BSD-1609B04918.A10 1609B04918	£2.61	£3.13
154 - SLEEVE BSD-1609B04921.A11 1609B04921	£1.75	£2.10
155 - SLEEVE BSD-1609B04922.A0 1609B04922	£1.75	£2.10
156 - CLIP BSD-1609B04923.A10 1609B04923	£1.75	£2.10
158 - LABEL BSD-1609B04949.A11 1609B04949	£2.61	£3.13
159 - LABEL BSD-1609B04950.A0 1609B04950	£2.61	£3.13
172 - LABEL BSD-1609B04960.A8 1609B04960	£2.61	£3.13
174 - SHOULDER SCREW BSD-1609B04783.A1 1609B04783	£1.75	£2.10
183 - WASHER BSD-1609B04757.A0 1609B04757	£1.75	£2.10
186 - LEAF SPRING BSD-1609B04762.A9 1609B04762	£1.75	£2.10
187 - LABEL BSD-1609B04959.A4 1609B04959	£2.61	£3.13
201 - BELT BSD-1609B00207.A6 1609B00207	£27.23	£32.68
202 - FLANGE BOLT BSD-1609B00211.A3 1609B00211	£4.26	£5.11
203 - FLANGE BOLT BSD-1609B00213.A7 1609B00213	£1.75	£2.10
204 - SCREW BSD-1609B00223.A10 1609B00223	£1.75	£2.10
205 - NUT BSD-1609B00225.A8 1609B00225	£3.72	£4.47
206 - SUPPORTING FOOT BSD-1609B01431.A13 1609B01431	£2.16	£2.59
207 - WRENCH SOCKET BSD-1609B00256.A16 1609B00256	£2.16	£2.59
208 - BOLT BSD-1609B00305.A17 1609B00305	£2.61	£3.13
209 - KNOB BSD-1609B00350.A14 1609B00350	£1.75	£2.10
212 - SHAFT BSD-1609B00370.A13 1609B00370	£1.75	£2.10
213 - KNOB BSD-1609B00382.A20 1609B00382	£5.30	£6.36
214 - BUTTON BSD-1609B00390.A18 1609B00390	£1.75	£2.10
215 - COMPRESSION SPRING BSD-1609B00417.A10 1609B00417	£1.75	£2.10
216 - SLEEVE BSD-1609B00418.A8 1609B00418	£1.75	£2.10
217 - CONNECTOR BSD-1609B00430.A3 1609B00430	£1.75	£2.10
218 - BUSHING BSD-1609B00449.A18 1609B00449	£1.75	£2.10
222 - SCREW BSD-1609B00454.A10 1609B00454	£1.75	£2.10
224 - WASHER BSD-1609B00457.A17 1609B00457	£1.75	£2.10
225 - QUICK-LOCK BSD-1609B00458.A0 1609B00458	£1.75	£2.10
227 - BRUSH-COVER BSD-1609B00478.A20 1609B00478	£1.75	£2.10
228 - RUBBER BUSHING BSD-1609B00480.A8 1609B00480	£2.16	£2.59
235 - RUBBER BUSHING BSD-1609B00533.A0 1609B00533	£1.75	£2.10
237 - KEY BSD-1609B00592.A5 1609B00592	£1.75	£2.10
238 - KEY BSD-1609B00593.A13 1609B00593	£1.75	£2.10
239 - BEARING BSD-1609B00596.A12 1609B00596	£13.12	£15.75
241 - O-RING BSD-1609B00601.A10 1609B00601	£1.75	£2.10
242 - BOLT BSD-1609B00602.A10 1609B00602	£1.75	£2.10
243 - LOCK NUT BSD-1609B00603.A10 1609B00603	£1.75	£2.10
244 - LOCK NUT BSD-1609B00605.A9 1609B00605	£1.75	£2.10
245 - SET SCREW BSD-1609B00617.A15 1609B00617	£1.75	£2.10
246 - SCREW BSD-1609B00627.A19 1609B00627	£2.16	£2.59
247 - SCREW BSD-1609B00630.A11 1609B00630	£1.75	£2.10
248 - SCREW BSD-1609B00633.A16 1609B00633	£1.75	£2.10
249 - TAPPING SCREW BSD-1609B00636.A10 1609B00636	£2.61	£3.13
251 - TAPPING SCREW BSD-1609B00637.A15 1609B00637	£1.75	£2.10
252 - RETAINING RING BSD-1609B00641.A11 1609B00641	£1.75	£2.10
253 - RETAINING RING BSD-1609B00643.A17 1609B00643	£1.75	£2.10
254 - RETAINING RING BSD-1609B00644.A1 1609B00644	£2.16	£2.59
255 - SCREW BSD-1609B00649.A7 1609B00649	£1.75	£2.10
256 - SCREW BSD-1609B00650.A10 1609B00650	£1.75	£2.10
257 - SCREW BSD-1609B00652.A8 1609B00652	£1.75	£2.10
258 - SCREW BSD-1609B00654.A5 1609B00654	£1.75	£2.10
259 - SPRING WASHER BSD-1609B00658.A15 1609B00658	£1.75	£2.10
262 - WASHER BSD-1609B00662.A14 1609B00662	£1.75	£2.10
264 - WASHER BSD-1609B00665.A16 1609B00665	£1.75	£2.10
265 - WASHER BSD-1609B00667.A4 1609B00667	£1.75	£2.10
266 - WASHER BSD-1609B00669.A16 1609B00669	£1.75	£2.10
267 - LOCK NUT BSD-1609B00673.A16 1609B00673	£1.75	£2.10
268 - WASHER BSD-1609B00674.A0 1609B00674	£1.75	£2.10
269 - WASHER BSD-1609B00675.A13 1609B00675	£1.75	£2.10
271 - SCREW BSD-1609B00678.A10 1609B00678	£1.75	£2.10
273 - RETAINING RING BSD-1609B00690.A20 1609B00690	£1.75	£2.10
274 - RING BSD-1609B00813.A18 1609B00813	£1.75	£2.10
275 - KNOB BSD-1609B00861.A7 1609B00861	£1.32	£1.58
277 - HEX NUT BSD-1609B01041.A1 1609B01041	£1.75	£2.10
278 - SCREW BSD-1609B04799.A6 1609B04799	£1.75	£2.10
279 - TAPPING SCREW BSD-1609B01194.A2 1609B01194	£1.75	£2.10
281 - CYL HEAD TAPPING SCREW BSD-1609B01356.A11 1609B01356	£1.75	£2.10
282 - SCREW BSD-1609B01388.A10 1609B01388	£1.75	£2.10
283 - CABLE HOLDER BSD-1609B04869.A2 1609B04869	£1.75	£2.10
284 - SHOULDER SCREW BSD-1609B01462.A7 1609B01462	£1.75	£2.10
285 - CABLE CLIP BSD-1609B01512.A12 1609B01512	£1.75	£2.10
287 - TRIGGER BSD-1609B01531.A11 1609B01531	£2.16	£2.59
288 - CORD GUARD BSD-1609BP7095.A3 1609BP7095	£1.75	£2.10
289 - CABLE TAPE BSD-1609B01538.A32 1609B01538	£1.75	£2.10
292 - CONTROL SCREW BSD-1609B01599.A12 1609B01599	£1.75	£2.10
293 - BUSHING BSD-1609B01605.A7 1609B01605	£1.75	£2.10
295 - SCREW BSD-1609B01660.A12 1609B01660	£1.75	£2.10
296 - SCREW BSD-1609B01664.A11 1609B01664	£1.75	£2.10
297 - WASHER BSD-1609B01668.A32 1609B01668	£1.75	£2.10
298 - SCREW BSD-1609B01665.A12 1609B01665	£1.75	£2.10
299 - SCREW BSD-1609B01693.A9 1609B01693	£1.75	£2.10
300 - END CLIP BSD-1609B01992.A19 1609B01992	£1.75	£2.10
302 - SCREW BSD-1609B02177.A0 1609B02177	£1.75	£2.10
304 - SCREW BSD-1609B00653.A5 1609B00653	£1.75	£2.10
305 - WASHER BSD-1609B01696.A1 1609B01696	£1.75	£2.10
307 - WASHER BSD-1609B02191.A5 1609B02191	£2.61	£3.13
308 - SCREW BSD-1609B02192.A5 1609B02192	£1.75	£2.10
309 - FLANGE BSD-1609B02350.A9 1609B02350	£12.04	£14.45
310 - FLANGE BSD-1609B02352.A5 1609B02352	£11.30	£13.56
314 - SCREW BSD-1609B02437.A2 1609B02437	£1.75	£2.10
315 - GROOVED WASHER BSD-1609B02438.A8 1609B02438	£1.75	£2.10
317 - BUMPER BSD-1609B02467.A4 1609B02467	£1.75	£2.10
319 - WRENCH SOCKET BSD-1609B02490.A2 1609B02490	£1.32	£1.58
320 - BUSHING BSD-1609B02502.A0 1609B02502	£1.75	£2.10
325 - SCREW BSD-1609B03179.A2 1609B03179	£1.75	£2.10
326 - SCREW BSD-1609B03722.A30 1609B03722	£1.75	£2.10
327 - CONTROL LEVER BSD-1609B03733.A12 1609B03733	£4.26	£5.11
329 - LOCK PLATE BSD-1609B03741.A19 1609B03741	£2.61	£3.13
330 - ADJUSTING BOLT BSD-1609B03742.A2 1609B03742	£1.75	£2.10
331 - SLIDE STOP BSD-1609B03753.A30 1609B03753	£1.75	£2.10
332 - FRICTION PLATE BSD-1609B03770.A12 1609B03770	£7.36	£8.83
333 - STOP BOLT BSD-1609B03776.A30 1609B03776	£1.75	£2.10
334 - SCREW BSD-1609B04086.A23 1609B04086	£2.16	£2.59
335 - ADJUSTING NUT BSD-1609B04227.A5 1609B04227	£1.75	£2.10
336 - CONNECTION BLOCK BSD-1609BP7059.A37 1609BP7059	£1.75	£2.10
338 - ROLLER BSD-1609BP7124.A10 1609BP7124	£1.75	£2.10
339 - RIVET BSD-1609B00622.A5 1609B00622	£1.75	£2.10
340 - SWITCH BSD-1609B05392.A11 1609B05392	£4.26	£5.11
342 - WARNING PLATE BSD-1609B02125.A2 1609B02125	£2.61	£3.13
345 - CONNECTING TERMINAL BSD-1609B01397.A11 1609B01397	£1.75	£2.10
801 - HOUSING ASSEMBLY BSD-1609B05013.A8 1609B05013	£21.52	£25.83
803 - ARMATURE ASSEMBLY 110V BSD-1609B05027.A2 1609B05027	£120.11	£144.13
810 - CARBON-BRUSH SET BSD-2610021310.A0 2610021310	-
812 - TENSIONING BRACKET BSD-1609B05016.A1 1609B05016	£4.26	£5.11
813 - SUPPORT PLATE BSD-1609B02434.A9 1609B02434	£16.41	£19.69
814 - BEARING BSD-1609B02316.A9 1609B02316	£16.41	£19.69
815 - CONDENSER BSD-1609B05030.A11 1609B05030	£1.75	£2.10
816 - LASER MODULE BSD-1609B05019.A2 1609B05019	£81.81	£98.17
818 - SPROCKET BSD-1609B05020.A1 1609B05020	£13.12	£15.75
819 - CARRIER BSD-1609B05021.A2 1609B05021	£93.88	£112.65
824 - ADJUSTABLE SCREW CLAMP BSD-1609B06203.A17 1609B06203	£14.99	£17.99
824/232 - RUBBER PAD BSD-1609B00523.A5 1609B00523	£2.61	£3.13
825 - DUST EXTRACTION BSD-1609B05018.A2 1609B05018	£12.04	£14.45
829 - SWITCH HANDLE BSD-1609B05012.A1 1609B05012	£21.52	£25.83
831 - BASE UNIT BSD-1609B05022.A1 1609B05022	£195.26	£234.31
835 - EXTENSION STAND BSD-1609B05023.A6 1609B05023	£40.80	£48.96
836 - EXTENSION STAND BSD-1609B05024.A1 1609B05024	£40.80	£48.96
837 - LOWER GUARD BSD-1609B05025.A6 1609B05025	£45.67	£54.80
846 - PLATE BSD-1609B05028.A0 1609B05028	£10.10	£12.12
882 - CHAIN COVER BSD-1609B05026.A1 1609B05026	£31.64	£37.97
885 - BOLT BSD-1609B05017.A8 1609B05017	£18.96	£22.75

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GCM 12 SDE / 3601M23160 / GB 110 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
