Bosch GCD 12 JL / 3601M28060 / GB 110 Volt Spare Parts

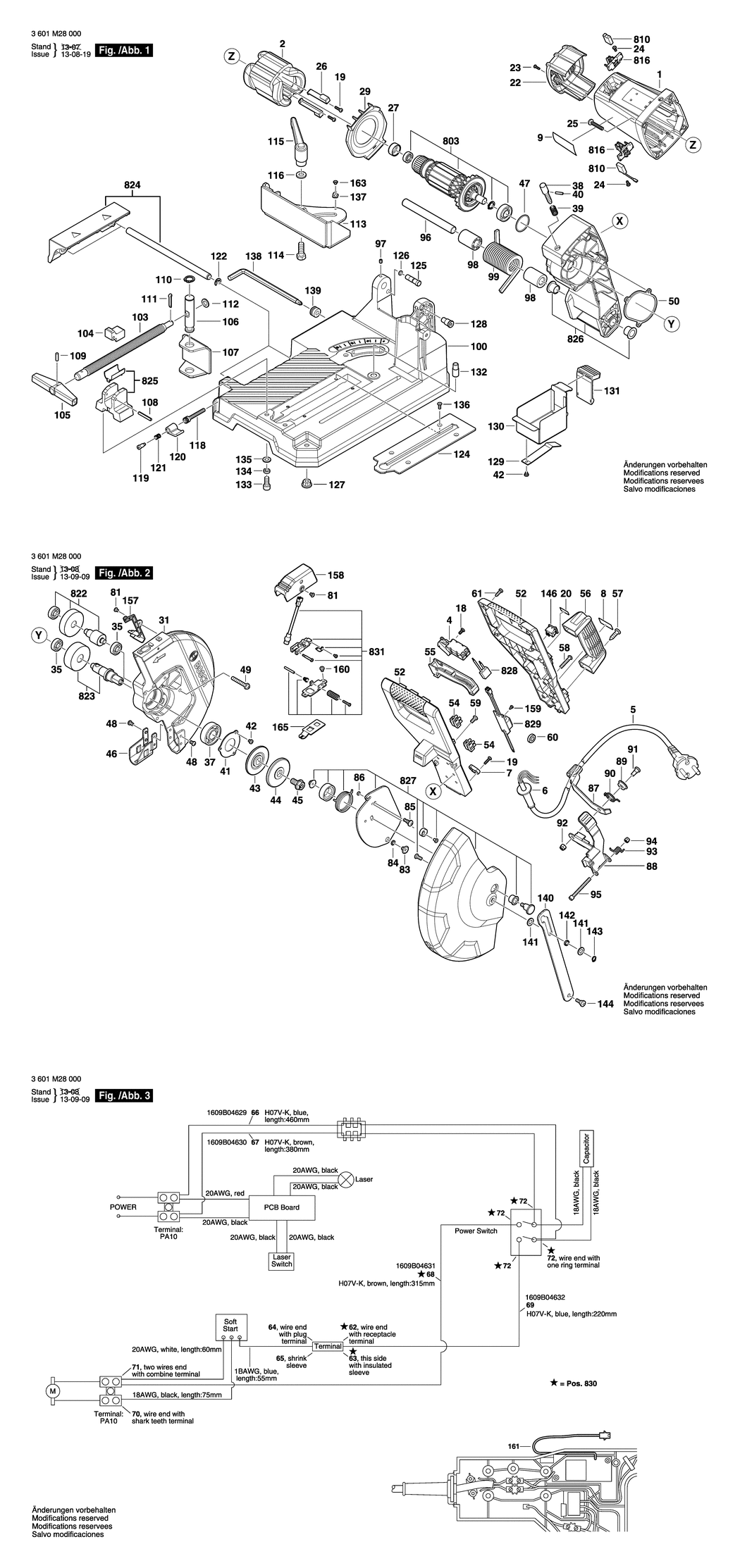

An exploded drawing and listing for the Bosch GCD 12 JL / 3601M28060 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1609B00054.A3 1609B00054	£27.23	£32.68
2 - FIELD 110V BSD-1609B00125.A0 1609B00125	£63.50	£76.20
4 - ON-OFF SWITCH BSD-1609B05400.A3 1609B05400	£21.52	£25.83
5 - POWER SUPPLY CORD BSD-1609B04670.A0 1609B04670	£23.86	£28.63
6 - GROMMET BSD-1609B04628.A0 1609B04628	£1.66	£1.99
7 - CABLE CLIP BSD-1619P03808.A5 1619P03808	£1.66	£1.99
8 - NAMEPLATE BSD-1609BN0143.A0 1609BN0143	£2.33	£2.80
9 - MANUFACTURER'S NAMEPLATE BSD-1609B04684.A2 1609B04684	£2.33	£2.80
18 - RAISED CTSUNK HEAD TAP SC BSD-1619P03837.A1 1619P03837	£1.66	£1.99
19 - SCREW ECO-SYN St 3.5x16 BSD-1619P03833.A5 1619P03833	£1.66	£1.99
20 - WARNING LABEL BSD-1609B02128.A2 1609B02128	£2.33	£2.80
22 - END CAP BSD-1609B04610.A3 1609B04610	£5.58	£6.70
23 - SCREW ECO-SYN St3x12 BSD-1619P03832.A1 1619P03832	£1.66	£1.99
24 - SCREW ECO-SYN St3.5x10 BSD-1619P03834.A6 1619P03834	£1.66	£1.99
25 - THREAD-FORMING TAP. SCREW DIN 7500 C-M6x35 BSD-1619P03835.A5 1619P03835	£1.66	£1.99
26 - PICKUP CLIP BSD-1609B00055.A1 1609B00055	£1.66	£1.99
27 - RUBBER RING BSD-1600206030.A413 1600206030	£1.66	£1.99
29 - AIR-DEFLECTOR RING BSD-1619P03822.A4 1619P03822	£4.26	£5.11
31 - UPPER GUARD BSD-1609B04603.A0 1609B04603	£89.79	£107.75
35 - BALL BEARING BSD-1609B01267.A2 1609B01267	£8.67	£10.41
37 - BEARING BSD-1609B04619.A3 1609B04619	£11.30	£13.56
38 - LOCKING PIN BSD-1609B04620.A0 1609B04620	£2.33	£2.80
39 - COMPRESSION SPRING BSD-1609B04621.A3 1609B04621	£1.66	£1.99
40 - SPRING PIN BSD-1609B04678.A0 1609B04678	£1.66	£1.99
41 - BEARING COVER BSD-1609B04622.A0 1609B04622	£1.66	£1.99
42 - SCREW BSD-1609B00780.A27 1609B00780	£1.66	£1.99
43 - FLANGE BSD-1609B04623.A3 1609B04623	£11.30	£13.56
44 - FLANGE BSD-1609B04624.A0 1609B04624	£10.10	£12.12
45 - FLANGE BOLT BSD-1609B04625.A3 1609B04625	£3.72	£4.47
46 - CHIP DEFLECTOR BSD-1609B04664.A3 1609B04664	£5.58	£6.70
47 - O-RING BSD-1609B00068.A8 1609B00068	£1.66	£1.99
48 - SCREW BSD-1609B00978.A1 1609B00978	£1.66	£1.99
49 - SCREW BSD-1609B04649.A1 1609B04649	£1.66	£1.99
50 - MAT SEAL BSD-1609B04650.A2 1609B04650	£1.66	£1.99
52 - SWITCH HANDLE BSD-1609B04605.A2 1609B04605	£31.64	£37.97
54 - CONNECTION BLOCK BSD-1609BP7059.A50 1609BP7059	£1.66	£1.99
55 - SWITCH-PAWL BSD-1609B04668.A1 1609B04668	£2.33	£2.80
56 - CARRYING HANDLE BSD-1609B04608.A1 1609B04608	£10.10	£12.12
57 - SCREW BSD-1609B04652.A1 1609B04652	£1.66	£1.99
58 - SCREW BSD-1609B00655.A10 1609B00655	£1.66	£1.99
59 - CYL HEAD TAPPING SCREW BSD-1609B01356.A15 1609B01356	£1.66	£1.99
60 - RING BSD-1619P03931.A6 1619P03931	£1.66	£1.99
61 - TAPPING SCREW BSD-1609B00637.A3 1609B00637	£1.66	£1.99
81 - SCREW BSD-1609B01561.A24 1609B01561	£1.66	£1.99
83 - SHOULDER SCREW BSD-1619P03802.A0 1619P03802	£1.66	£1.99
84 - SPRING WASHER DIN 127 B6 BSD-1619P03841.A3 1619P03841	£1.66	£1.99
85 - SPECIAL SCREW BSD-1609B05417.A1 1609B05417	£1.66	£1.99
86 - O-RING BSD-1609B00931.A1 1609B00931	£1.66	£1.99
87 - LOCKING LEVER BSD-1609B04611.A2 1609B04611	£5.30	£6.36
88 - LOCKING LEVER BSD-1609B04612.A1 1609B04612	£11.30	£13.56
89 - BUSHING BSD-1609B04647.A1 1609B04647	£1.66	£1.99
90 - TORSION SPRING BSD-1609B04657.A2 1609B04657	£1.66	£1.99
91 - SHOULDER SCREW BSD-1609B03779.A2 1609B03779	£1.66	£1.99
92 - LOCK NUT BSD-1609B00730.A5 1609B00730	£1.66	£1.99
93 - TORSION SPRING BSD-1609B04658.A1 1609B04658	£1.66	£1.99
94 - SELF-LOCKING NUT BSD-1609B03570.A1 1609B03570	£1.66	£1.99
95 - SCREW BSD-1609B04659.A1 1609B04659	£1.66	£1.99
96 - PIVOT SHAFT BSD-1609B04660.A2 1609B04660	£7.36	£8.83
97 - STOP SCREW ISO 4027-M 5x8-45H BSD-1619P03839.A5 1619P03839	£1.66	£1.99
98 - BUSHING BSD-1609B04648.A1 1609B04648	£1.66	£1.99
99 - TORSION SPRING BSD-1609B00024.A4 1609B00024	£8.67	£10.41
100 - BASE BSD-1609B04602.A1 1609B04602	£129.38	£155.25
103 - CLAMP SCREW BSD-1609B04637.A1 1609B04637	£12.04	£14.45
104 - CLAMPING BLOCK BSD-1609B03576.A11 1609B03576	£7.36	£8.83
105 - CLAMP HANDLE BSD-1609B03523.A1 1609B03523	£5.30	£6.36
106 - CONNECTING ROD BSD-1609B04638.A2 1609B04638	£6.52	£7.83
107 - CLAMP BRACKET BSD-1609B04639.A1 1609B04639	£27.23	£32.68
108 - SPRING PIN ISO 13337-4x35 BSD-1619P03762.A3 1619P03762	£1.66	£1.99
109 - SPRING PIN ISO 1337 4x18 BSD-1619P03752.A3 1619P03752	£1.66	£1.99
110 - SPRING RETAINING RING DIN 471-18 BSD-1619P03755.A6 1619P03755	£1.66	£1.99
111 - RIVET PIN DIN 94-4x22 BSD-1619P03756.A0 1619P03756	£1.66	£1.99
112 - PLAIN WASHER DIN 433-10 BSD-1619P03757.A6 1619P03757	£1.66	£1.99
113 - MITRE FENCE BSD-1609B04613.A1 1609B04613	£36.62	£43.95
114 - HEXAGON BOLT BSD-1609B04661.A1 1609B04661	£1.66	£1.99
115 - LEVER BSD-1609B00753.A7 1609B00753	£5.30	£6.36
116 - PLAIN WASHER BSD-1609B00757.A6 1609B00757	£1.66	£1.99
118 - SCREW BSD-1609B00234.A8 1609B00234	£4.26	£5.11
119 - SHOULDER SCREW BSD-1609B00236.A21 1609B00236	£1.66	£1.99
120 - LOCKING LEVER BSD-1609B00232.A21 1609B00232	£1.66	£1.99
121 - COMPRESSION SPRING BSD-1609B00237.A1 1609B00237	£1.66	£1.99
122 - RETAINING RING BSD-1609B00644.A23 1609B00644	£1.95	£2.34
124 - GUIDE PLATE BSD-1609B04641.A2 1609B04641	£8.67	£10.41
125 - LOCKING PIN BSD-1609B01600.A1 1609B01600	£2.33	£2.80
126 - O-RING BSD-1609B00601.A43 1609B00601	£1.66	£1.99
127 - RUBBER BUSHING BSD-1609B01431.A23 1609B01431	£1.95	£2.34
128 - CONTROL SCREW BSD-1609B01599.A16 1609B01599	£1.66	£1.99
129 - LEAF SPRING BSD-1609B04633.A1 1609B04633	£1.66	£1.99
130 - CHIP BOX BSD-1609B04634.A2 1609B04634	£14.91	£17.89
131 - PROTECTIVE COVER BSD-1609B04635.A1 1609B04635	£4.26	£5.11
132 - PIVOT PIN BSD-1609B04663.A2 1609B04663	£1.66	£1.99
133 - SOCKET HEAD CAP SCREW ISO 4762-M 8x20-8.8 BSD-1619P03827.A5 1619P03827	£1.66	£1.99
134 - SPRING WASHER DIN 127 B8 BSD-1619P03829.A5 1619P03829	£1.66	£1.99
135 - PLAIN WASHER DIN 125 A8 BSD-1619P03828.A1 1619P03828	£2.33	£2.80
136 - SCREW BSD-1609B00634.A2 1609B00634	£1.66	£1.99
137 - POINTER BSD-1609B04642.A1 1609B04642	£1.66	£1.99
138 - OFFSET SCREWDRIVER BSD-1609B05416.A2 1609B05416	£5.58	£6.70
139 - RUBBER BUSHING BSD-1609B05419.A1 1609B05419	£1.66	£1.99
140 - LINKAGE BSD-1609B04636.A2 1609B04636	£7.36	£8.83
141 - PLAIN WASHER BSD-1609B00703.A18 1609B00703	£1.66	£1.99
142 - BUSHING BSD-1609B04667.A2 1609B04667	£1.66	£1.99
143 - RETAINING CLIP BSD-1609B01956.A1 1609B01956	£1.66	£1.99
144 - SCREW BSD-1609B00971.A2 1609B00971	£1.66	£1.99
146 - ON-OFF SWITCH BSD-1619P03669.A11 1619P03669	£21.52	£25.83
157 - COVER BSD-1609B04644.A1 1609B04644	£1.66	£1.99
158 - PROTECTING COVER BSD-1609B04643.A2 1609B04643	£1.66	£1.99
159 - SCREW BSD-1609B01667.A5 1609B01667	£1.66	£1.99
160 - SCREW BSD-1609B01663.A2 1609B01663	£1.66	£1.99
161 - CONNECTING CABLE BSD-1609B01549.A4 1609B01549	£1.95	£2.34
163 - SCREW BSD-1609B05401.A1 1609B05401	£1.66	£1.99
165 - MOUNTING PLATE BSD-1609B05421.A2 1609B05421	£1.95	£2.34
803 - ARMATURE ASSEMBLY 110V BSD-1609B04680.A0 1609B04680	£129.38	£155.25
810 - CARBON-BRUSH SET BSD-1607014171.A240 1607014171	£14.91	£17.89
816 - BRUSH HOLDER BSD-1604336048.A5 1604336048	£6.52	£7.83
822 - SPINDLE WITH GEAR BSD-1609B04681.A0 1609B04681	£68.42	£82.10
823 - SPINDLE WITH GEAR BSD-1609B04682.A3 1609B04682	£40.80	£48.96
824 - EXTENSION STAND BSD-1609B04683.A0 1609B04683	£31.64	£37.97
825 - BEARING BLOCK BSD-1609B03533.A2 1609B03533	£7.36	£8.83
826 - ARM BSD-1609B04692.A1 1609B04692	£114.88	£137.86
827 - LOWER GUARD BSD-1609B04693.A2 1609B04693	£72.18	£86.62
828 - SOFT START-UP MODULE BSD-1609B04698.A0 1609B04698	£46.37	£55.64
829 - ELECTRONIC MODULE BSD-1609B04699.A0 1609B04699	£21.68	£26.01
830 - WIRE BSD-1609B04696.A2 1609B04696	£1.66	£1.99
831 - LASER BSD-1609B01726.A14 1609B01726	£21.52	£25.83
