Bosch GCO 20-14 / 3601M38100 / --- 230 Volt Spare Parts

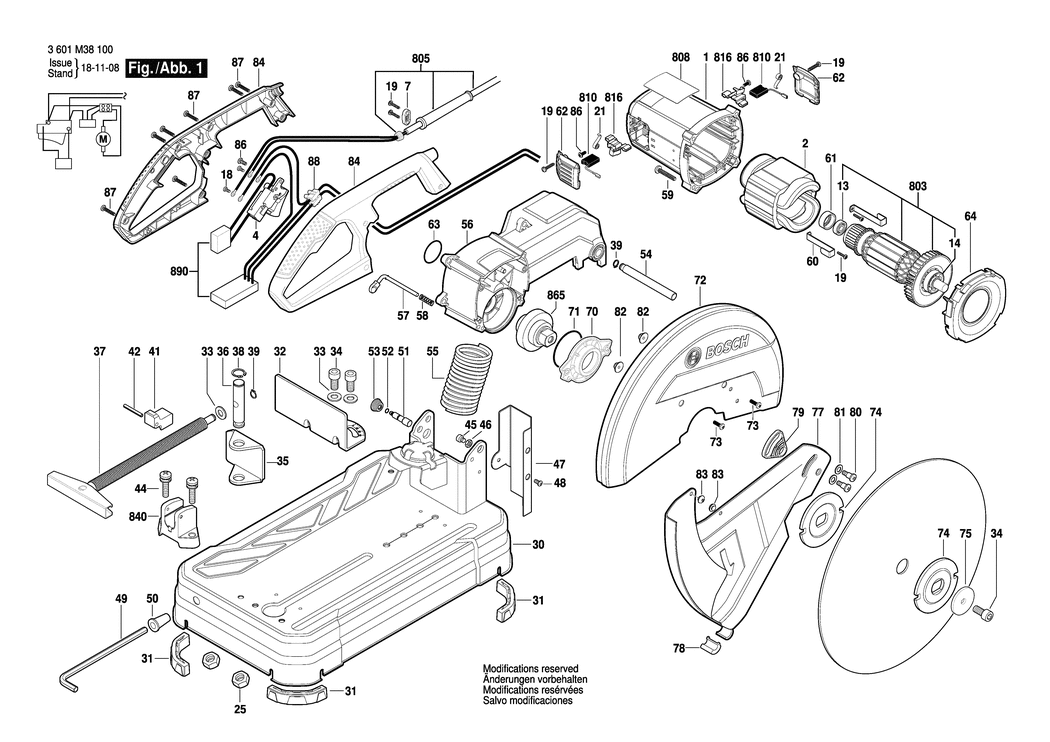

An exploded drawing and listing for the Bosch GCO 20-14 / 3601M38100 / --- 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1609B03601.A1 1609B03601	£16.41	£19.69
2 - FIELD BSD-1609B00153.A0 1609B00153	£54.42	£65.30
4 - SWITCH BSD-1609B03691.A0 1609B03691	£13.41	£16.09
7 - CABLE CLIP BSD-1609B02153.A2 1609B02153	-
13 - BEARING 608-2RS BSD-1619P03850.A6 1619P03850	£5.30	£6.36
14 - BEARING BSD-1609B00057.A2 1609B00057	£10.10	£12.12
18 - SCREW BSD-1609B03644.A4 1609B03644	£1.75	£2.10
19 - SCREW ST3.5x15 BSD-1609B02357.A1 1609B02357	£1.75	£2.10
21 - SPIRAL SPRING BSD-1604652019.A8 1604652019	£1.75	£2.10
25 - HEX NUT DIN 934-M8-8 BSD-1619P03831.A6 1619P03831	£1.75	£2.10
30 - BASE BSD-1609B02358.A4 1609B02358	£63.50	£76.20
31 - SUPPORTING FOOT BSD-1609B03594.A2 1609B03594	£1.75	£2.10
32 - STOP BRACKET BSD-1609B03667.A0 1609B03667	£11.30	£13.56
33 - PLAIN WASHER BSD-1609BP7045.A13 1609BP7045	£1.75	£2.10
34 - SCREW BSD-1609B03630.A1 1609B03630	£1.75	£2.10
35 - CLAMP BRACKET BSD-1609B03674.A4 1609B03674	£5.58	£6.70
36 - CONNECTING ROD BSD-1609B03675.A0 1609B03675	£16.41	£19.69
37 - CLAMP SCREW BSD-1609B03598.A3 1609B03598	£11.30	£13.56
38 - SPRING RETAINING RING DIN 471-18 BSD-1619P03755.A10 1619P03755	£1.75	£2.10
39 - CLIP BSD-1609B03628.A1 1609B03628	£1.75	£2.10
41 - CLAMPING BLOCK BSD-1609B03576.A6 1609B03576	£7.36	£8.83
42 - SPRING PIN ISO 13337-4x35 BSD-1619P03762.A5 1619P03762	£1.75	£2.10
44 - SCREW AND WASHER ASSEMBLY BSD-1609B03629.A4 1609B03629	£1.75	£2.10
45 - SCREW BSD-1609B03686.A3 1609B03686	£1.75	£2.10
46 - NUT BSD-1609B01654.A13 1609B01654	£1.75	£2.10
47 - PROTECTIVE GUARD BSD-1609B00497.A1 1609B00497	£5.30	£6.36
48 - THREAD-FORMING SCREW BSD-1609B06426.A2 1609B06426	£1.75	£2.10
49 - HEXAGON SOCKET WRENCH BSD-1609B03622.A1 1609B03622	£2.80	£3.36
50 - KEY HOLDER BSD-1609B03617.A3 1609B03617	£1.75	£2.10
51 - SHAFT BSD-1609B03623.A3 1609B03623	£1.75	£2.10
52 - O-RING 4.5x1.8 BSD-1619P03810.A7 1619P03810	£1.75	£2.10
53 - CAP BSD-1609B03624.A2 1609B03624	£1.75	£2.10
54 - PIVOT SHAFT BSD-1609B03618.A2 1609B03618	£2.61	£3.13
55 - CONTACT STRAP BSD-1609B03619.A3 1609B03619	£11.30	£13.56
56 - ARM BSD-1609B03591.A2 1609B03591	£54.42	£65.30
57 - LOCKING PIN BSD-1609B03610.A1 1609B03610	£2.16	£2.59
58 - COMPRESSION SPRING BSD-1619P03864.A2 1619P03864	£1.75	£2.10
59 - THREAD-FORMING TAP. SCREW DIN 7500 C-M6x35 BSD-1619P03835.A9 1619P03835	£1.75	£2.10
60 - PICKUP CLIP BSD-1619P03823.A0 1619P03823	£2.16	£2.59
61 - RUBBER RING BSD-1600206030.A419 1600206030	£1.75	£2.10
62 - BRUSH-COVER BSD-1609B03627.A1 1609B03627	£1.75	£2.10
63 - O-RING BSD-1609B00068.A2 1609B00068	£1.75	£2.10
64 - AIR-DEFLECTOR RING BSD-1609B03604.A4 1609B03604	£2.16	£2.59
70 - GEAR COVER BSD-1609B03612.A4 1609B03612	£5.30	£6.36
71 - O-RING BSD-1609B00060.A4 1609B00060	£1.75	£2.10
72 - SAFETY GUARD BSD-1609B06429.A3 1609B06429	£31.64	£37.97
73 - SCREW BSD-1609B01483.A2 1609B01483	£1.75	£2.10
74 - FLANGE BSD-1609B03592.A3 1609B03592	£7.36	£8.83
75 - PLAIN WASHER BSD-1609B03625.A3 1609B03625	£1.75	£2.10
77 - FLAP GUARD BSD-1609B03608.A4 1609B03608	£18.96	£22.75
78 - COVER BSD-1609B03631.A4 1609B03631	£1.75	£2.10
79 - SUPPORTING PLATE BSD-1609B03642.A2 1609B03642	£1.75	£2.10
80 - SHOULDER SCREW BSD-1609B03641.A3 1609B03641	£1.75	£2.10
81 - WASHER BSD-1609B03513.A1 1609B03513	£1.75	£2.10
82 - NUT BSD-1609B06545.A3 1609B06545	-
83 - RUBBER GASKET BSD-1619P03871.A7 1619P03871	£1.75	£2.10
84 - HANDLE BSD-1609B03614.A1 1609B03614	£13.41	£16.09
86 - SCREW BSD-1609B02356.A5 1609B02356	£1.75	£2.10
87 - SCREW BSD-1609B02355.A0 1609B02355	£1.75	£2.10
88 - CONNECTION BLOCK BSD-1609BP7059.A45 1609BP7059	£1.75	£2.10
803 - ARMATURE ASSEMBLY 220-240V BSD-1609B03639.A1 1609B03639	£68.42	£82.10
805 - POWER SUPPLY CORD BSD-1609B00490.A0 1609B00490	£21.68	£26.01
808 - NAMEPLATE BSD-1609BN0181.A0 1609BN0181	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1607014171.A233 1607014171	£14.91	£17.89
816 - BRUSH HOLDER BSD-1604336053.A8 1604336053	£5.58	£6.70
840 - CLAMPING HOLDER BSD-1609B03626.A1 1609B03626	£13.12	£15.75
865 - SET OF GEARS BSD-1609B03640.A1 1609B03640	£27.23	£32.68
890 - SOFT START-UP MODULE BSD-1609B03697.A0 1609B03697	£31.64	£37.97
