Bosch GCO 14-1 / 0601B10042 / GB 230 Volt Spare Parts

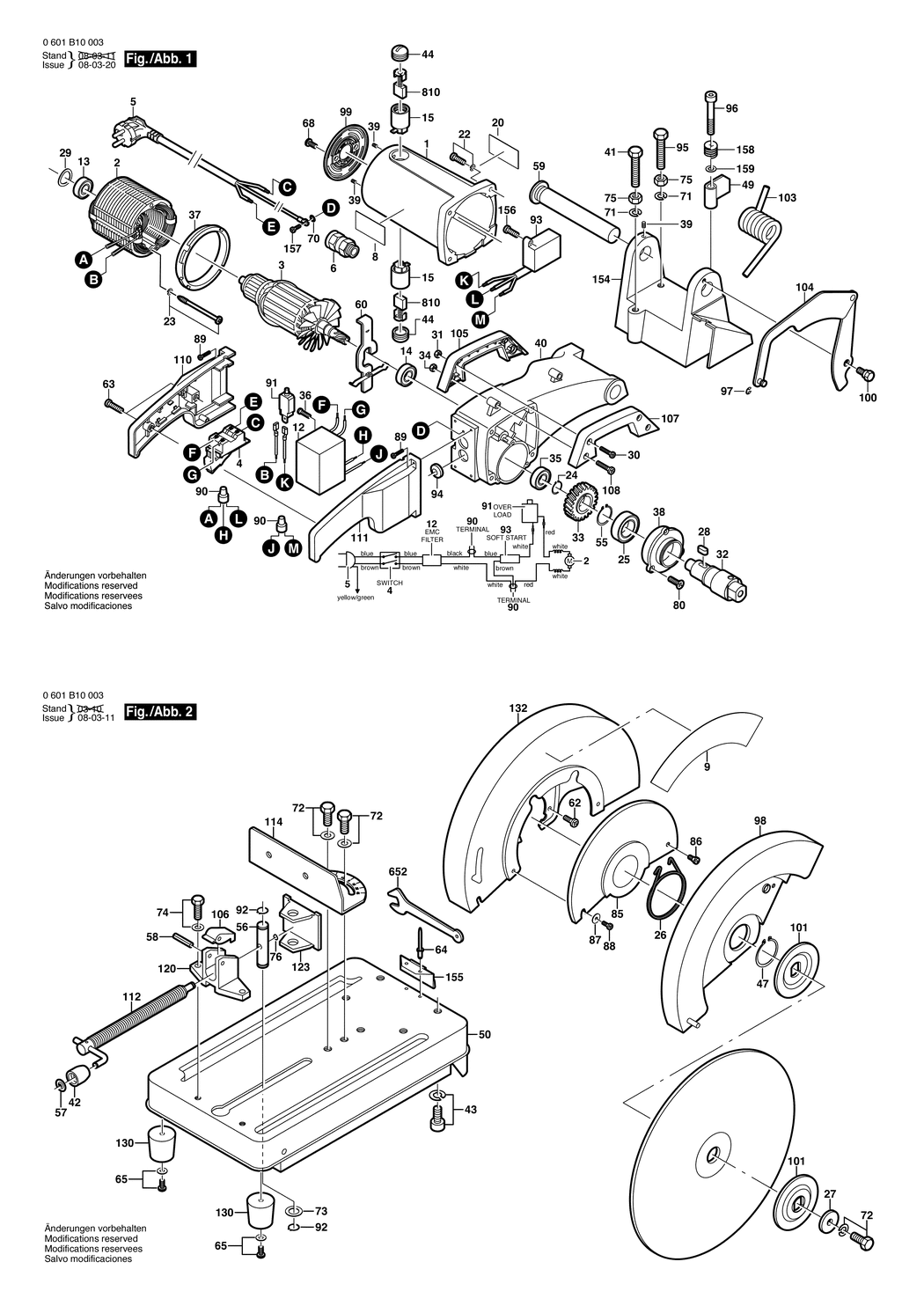

An exploded drawing and listing for the Bosch GCO 14-1 / 0601B10042 / GB 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2610913038.A3 2610913038	-
2 - STATOR BSD-2610911649.A0 2610911649	£70.24	£84.29
3 - ROTOR BSD-2610911655.A2 2610911655	£154.03	£184.84
4 - ON-OFF SWITCH BSD-2610913060.A0 2610913060	£51.22	£61.47
5 - POWER SUPPLY CORD BSD-1609902700.A0 1609902700	-
6 - FASTENING CLAMP BSD-2610913043.A3 2610913043	-
8 - NAMEPLATE BSD-1609902663.A0 1609902663	-
9 - MANUFACTURER'S NAMEPLATE BSD-2610994083.A0 2610994083	£3.72	£4.47
12 - INDUCTOR BSD-1619P04445.A0 1619P04445	£57.02	£68.42
13 - BALL BEARING BSD-2610913087.A2 2610913087	£10.82	£12.99
14 - BALL BEARING BSD-2610968044.A8 2610968044	£11.30	£13.56
15 - CARBON BRUSH BSD-2610913039.A0 2610913039	£14.91	£17.89
20 - NAMEPLATE BSD-1609902653.A0 1609902653	£3.34	£4.01
22 - SCREW BSD-2610913086.A2 2610913086	£1.32	£1.58
23 - SCREW BSD-2610913088.A2 2610913088	£1.75	£2.10
24 - SPRING RETAINING RING BSD-2610913091.A1 2610913091	£1.32	£1.58
25 - BALL BEARING BSD-2610913093.A1 2610913093	£24.45	£29.34
26 - SPRING BSD-2610913049.A3 2610913049	-
27 - PLAIN WASHER BSD-2610913096.A1 2610913096	£1.75	£2.10
28 - KEY BSD-2610355343.A1 2610355343	£5.01	£6.01
29 - PLAIN WASHER BSD-2615302981.A0 2615302981	£1.75	£2.10
30 - SCREW BSD-2610913089.A2 2610913089	£1.32	£1.58
31 - HEX NUT BSD-2610913090.A1 2610913090	-
32 - GRINDING SPINDLE BSD-2610913048.A0 2610913048	£30.28	£36.33
33 - TOOTHED GEAR BSD-2610913046.A0 2610913046	£27.31	£32.77
34 - NUT BSD-2610355339.A2 2610355339	-
35 - BALL BEARING BSD-2610327848.A0 2610327848	£9.49	£11.39
36 - SCREW BSD-1609902698.A1 1609902698	£1.66	£1.99
37 - AIR-DEFLECTOR RING BSD-2610913042.A0 2610913042	£3.80	£4.56
38 - BEARING COVER BSD-2610913047.A3 2610913047	£27.31	£32.77
39 - SCREW BSD-2610911456.A7 2610911456	-
40 - SWIVEL ARM BSD-2610913045.A3 2610913045	£70.24	£84.29
41 - SCREW BSD-2610913108.A2 2610913108	-
42 - HANDLE BSD-2610913063.A2 2610913063	£2.52	£3.02
43 - SCREW BSD-2610913114.A2 2610913114	£1.32	£1.58
44 - BRUSH-COVER BSD-2610913041.A3 2610913041	£2.16	£2.59
47 - SPRING RETAINING RING BSD-2610913095.A2 2610913095	£1.75	£2.10
49 - BUMPER BSD-2610913069.A1 2610913069	-
50 - BASE PLATE BSD-2610913073.A1 2610913073	£80.61	£96.73
55 - SPRING RETAINING RING BSD-2610913092.A1 2610913092	-
56 - BOLT BSD-1619P03791.A1 1619P03791	£5.01	£6.01
57 - SPRING RETAINING RING BSD-2610913104.A2 2610913104	£1.32	£1.58
58 - SLOTTED SPRING PIN BSD-2610913061.A1 2610913061	£1.32	£1.58
59 - BOLT BSD-2610913068.A2 2610913068	£13.12	£15.75
60 - REJECTION SLIDE BSD-2610913044.A0 2610913044	-
62 - SCREW 22 MM BSD-1619P03288.A1 1619P03288	£1.32	£1.58
63 - SCREW BSD-2610913101.A1 2610913101	£1.75	£2.10
64 - SCREW BSD-2610355293.A1 2610355293	£2.33	£2.80
65 - SCREW BSD-2610913115.A1 2610913115	£1.75	£2.10
68 - SCREW BSD-2615296774.A3 2615296774	£1.32	£1.58
70 - LOCKING WASHER BSD-1609203F78.A0 1609203F78	£1.75	£2.10
71 - PLAIN WASHER BSD-2610355264.A8 2610355264	£3.34	£4.01
72 - HEX SCREW BSD-2610913097.A2 2610913097	£1.75	£2.10
73 - PLAIN WASHER BSD-2610913106.A2 2610913106	£1.75	£2.10
74 - HEX SCREW BSD-2610913102.A2 2610913102	£1.75	£2.10
75 - HEX NUT BSD-2610905937.A1 2610905937	-
76 - PLAIN WASHER BSD-2610913107.A1 2610913107	£1.32	£1.58
80 - SCREW BSD-2610913094.A1 2610913094	£1.75	£2.10
85 - PROTECTIVE COVER BSD-2610913055.A3 2610913055	£7.78	£9.33
86 - SCREW BSD-2610913098.A1 2610913098	£1.75	£2.10
87 - PLAIN WASHER BSD-2610913099.A2 2610913099	-
88 - SCREW BSD-2610910784.A15 2610910784	-
89 - SCREW BSD-2610327867.A13 2610327867	£1.75	£2.10
90 - CONNECTING TERMINAL BSD-1609203G03.A0 1609203G03	£1.75	£2.10
91 - ON-OFF SWITCH BSD-1619P04446.A2 1619P04446	£10.82	£12.99
92 - RETAINING SNAP RING BSD-2610355290.A1 2610355290	£3.34	£4.01
93 - WIREWOUND RESISTOR BSD-1609203G01.A2 1609203G01	£51.22	£61.47
94 - GROMMET BSD-1609203G04.A3 1609203G04	£3.34	£4.01
95 - HEX SCREW BSD-2610913109.A2 2610913109	-
96 - HEX SCREW BSD-2610913110.A1 2610913110	£1.32	£1.58
97 - SPRING RETAINING RING BSD-2610913112.A1 2610913112	£1.32	£1.58
98 - PROTECTIVE COVER BSD-2610913050.A1 2610913050	£37.72	£45.27
99 - COVER PLATE BSD-2610913037.A1 2610913037	£3.34	£4.01
100 - HEX SCREW BSD-2610913113.A2 2610913113	£1.75	£2.10
101 - FLANGE BSD-2610913051.A2 2610913051	-
103 - SPRING BSD-2610913111.A2 2610913111	£7.78	£9.33
104 - LEVER BSD-2610913071.A1 2610913071	£13.12	£15.75
105 - HANDLE COVER BSD-2610913074.A2 2610913074	£7.78	£9.33
106 - THREADED FITTING BSD-2610913103.A1 2610913103	£7.78	£9.33
107 - HANDLE COVER BSD-2610913075.A1 2610913075	£7.78	£9.33
108 - SCREW BSD-2610358928.A8 2610358928	£1.66	£1.99
110 - HANDLE COVER BSD-1619P04447.A0 1619P04447	£13.41	£16.09
111 - HANDLE COVER BSD-1619P04448.A3 1619P04448	£13.41	£16.09
112 - THREADED SPINDLE BSD-2610913105.A2 2610913105	£11.78	£14.13
114 - CLAMPING JAW BSD-2610913067.A2 2610913067	£14.72	£17.67
120 - SPINDLE BEARING BSD-1619P03792.A2 1619P03792	£13.41	£16.09
123 - CLAMPING JAW BSD-1619P03790.A1 1619P03790	£8.49	£10.19
130 - SUPPORTING FOOT BSD-2610913072.A2 2610913072	£4.75	£5.70
132 - PROTECTIVE COVER BSD-2610913054.A1 2610913054	£41.62	£49.95
154 - BEARING BLOCK BSD-2610913070.A2 2610913070	£48.38	£58.06
155 - SUPPORT CLAMP BSD-1609203H36.A0 1609203H36	£2.33	£2.80
156 - SCREW BSD-1609203G05.A0 1609203G05	-
157 - SCREW BSD-1609203H37.A2 1609203H37	£1.75	£2.10
158 - SPRING BSD-1609902168.A1 1609902168	£1.75	£2.10
159 - PLAIN WASHER BSD-1609902169.A2 1609902169	£1.32	£1.58
652 - KEY BSD-2610913079.A2 2610913079	£6.61	£7.93
810 - CARBON-BRUSH SET BSD-1619P04451.A0 1619P04451	-
891 - SWITCH HANDLE BSD-1619P05635.A2 1619P05635	£102.57	£123.08
