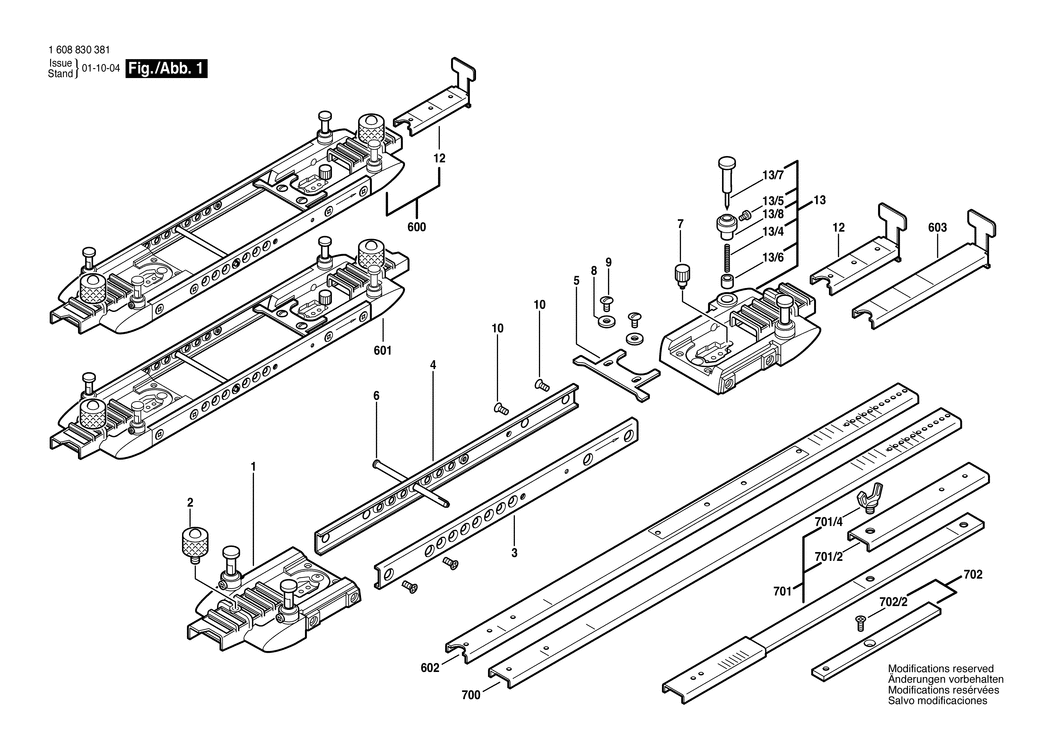

An exploded drawing and listing for the Bosch ---- / 1608830381 / ---

	Ex VAT	Inc VAT
1 - FRAME BSD-3605109510.A0 3605109510	-
2 - LOCK-SCREW BSD-3603481506.A0 3603481506	-
3 - GUIDE BSD-3601321521.A0 3601321521	-
4 - GUIDE BSD-3601321523.A1 3601321523	-
5 - GUIDE BSD-3601021508.A0 3601021508	-
6 - BOLT BSD-3603101502.A0 3603101502	-
7 - WING SCREW BSD-3603481503.A1 3603481503	-
8 - WASHER BSD-3600100503.A1 3600100503	-
9 - ROUND-HEAD SCREW BSD-3603415532.A0 3603415532	-
10 - COUNTERSUNK-HEAD SCREW BSD-3603421518.A0 3603421518	-
12 - GUIDE BSD-3601321509.A0 3601321509	-
13 - HOUSING BSD-3605109509.A0 3605109509	-
13/4 - SPRING BSD-3604613500.A1 3604613500	-
13/5 - PAN HEAD SCREW BSD-3603415558.A0 3603415558	-
13/6 - BUSHING BSD-3600250504.A1 3600250504	-
13/7 - BOLT BSD-3603123501.A0 3603123501	-
13/8 - BUSHING BSD-3603327500.A0 3603327500	-
600 - FRAME BSD-3605109511.A0 3605109511	-
601 - FRAME BSD-3605109512.A0 3605109512	-
602 - LINKAGE BSD-3601321513.A0 3601321513	-
603 - GUIDE BSD-3601321516.A0 3601321516	-
700 - SLIDE RAIL BSD-1608830041.A1 1608830041	-
701 - SLIDE RAIL BSD-3601032519.A0 3601032519	-
701 - SLIDE RAIL BSD-3601032518.A1 3601032518	-
701/2 - LINKAGE BSD-3601321511.A1 3601321511	-
701/4 - WING SCREW BSD-3603480501.A1 3603480501	-
702 - GAUGE BLOCK 3 BSD-1608830441.A0 1608830441	-
702 - GAUGE BLOCK 3.5 BSD-1608830451.A1 1608830451	-
702 - GAUGE BLOCK 4 BSD-1608830461.A0 1608830461	-
702 - GAUGE BLOCK 4.5 BSD-1608830471.A1 1608830471	-
702 - GAUGE BLOCK 5 BSD-1608830481.A0 1608830481	-
702/2 - COUNTERSUNK-HEAD SCREW BSD-3603421517.A0 3603421517	-
