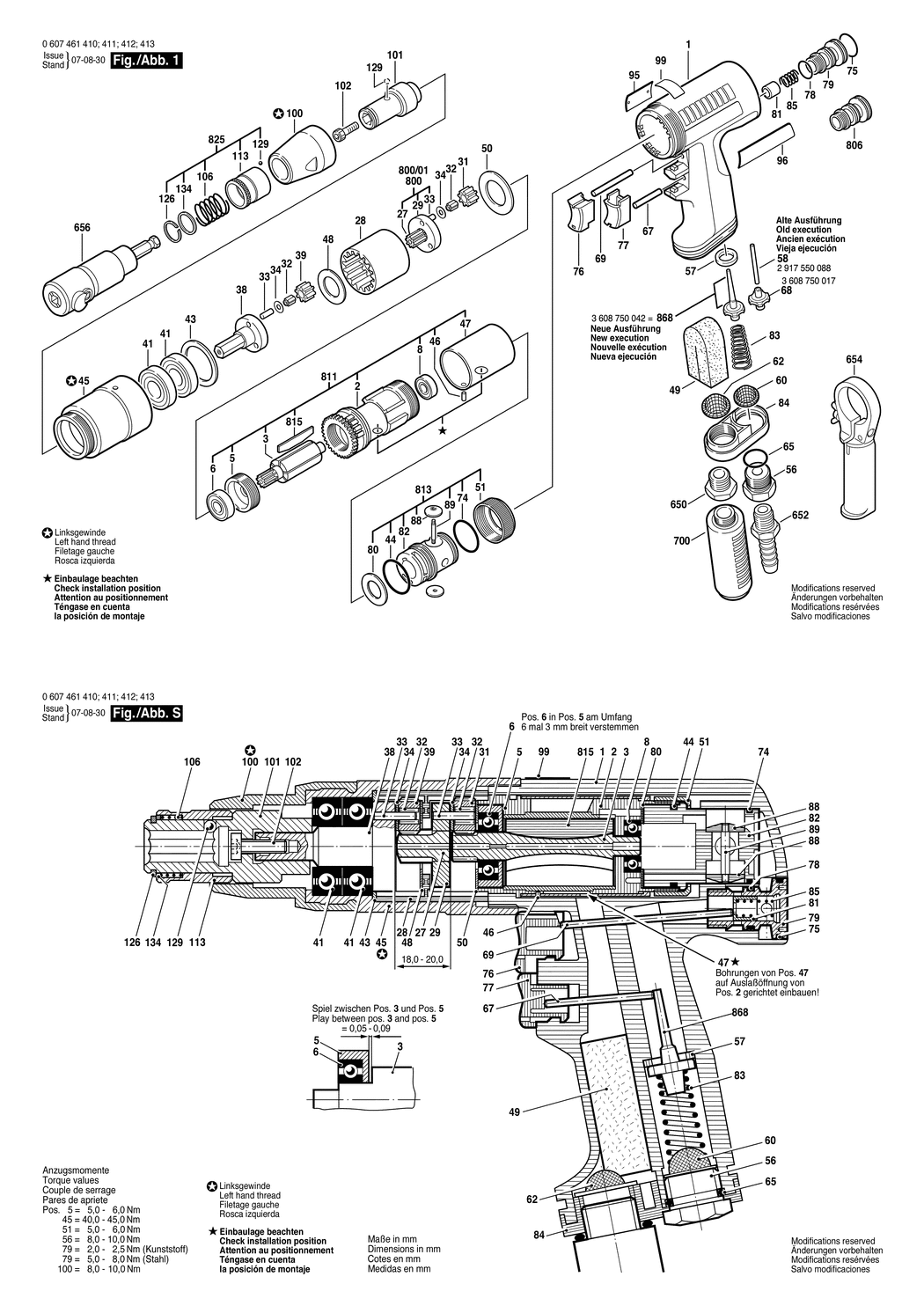

1 - MOTOR HOUSING
BSD-3605108073.A12
3605108073
|
£37.27
|
£44.72
|
|
|
2 - STATOR 320-400W
BSD-3604090044.A13
3604090044
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220058.A9
3604220058
|
£81.81
|
£98.17
|
|
|
5 - BEARING FLANGE
BSD-3605700076.A35
3605700076
|
£46.37
|
£55.64
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A58
3600905039
|
£12.04
|
£14.45
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A202
1900905028
|
£33.74
|
£40.49
|
|
|
27 - PINION Z=9
BSD-3606300072.A9
3606300072
|
£46.37
|
£55.64
|
|
|
28 - RING GEAR Z=42
BSD-3606334054.A8
3606334054
|
£10.10
|
£12.12
|
|
|
29 - CARRIER
BSD-3606337115.A14
3606337115
|
£31.64
|
£37.97
|
|
|
31 - CYLINDRICAL GEAR Z=16
BSD-3606316075.A17
3606316075
|
£13.41
|
£16.09
|
|
|
32 - NEEDLE-ROLLER CAGE
BSD-3600913006.A2
3600913006
|
£7.36
|
£8.83
|
|
|
33 - NEEDLE ROLLER
BSD-3603201047.A25
3603201047
|
£1.66
|
£1.99
|
|
|
34 - SHIM 0.20 MM
BSD-2600100586.A65
2600100586
|
£1.66
|
£1.99
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337143.A1
3606337143
|
£72.18
|
£86.62
|
|
|
39 - CYLINDRICAL GEAR Z=16
BSD-3606316075.A16
3606316075
|
£13.41
|
£16.09
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905045.A45
3600905045
|
£16.41
|
£19.69
|
|
|
43 - STOP DISC
BSD-3600102021.A21
3600102021
|
£3.72
|
£4.47
|
|
|
44 - O-RING 26.0x1.5 MM
BSD-2600210018.A99
2600210018
|
£3.72
|
£4.47
|
|
|
45 - GEAR HOUSING
BSD-3605125050.A1
3605125050
|
£81.81
|
£98.17
|
|
|
46 - SLOTTED SPRING PIN DIN 1481-1.5x4
BSD-2917760012.A14
2917760012
|
£1.66
|
£1.99
|
|
|
47 - SPIGOT
BSD-3600700033.A24
3600700033
|
£27.23
|
£32.68
|
|
|
48 - STOP DISC
BSD-3600101040.A4
3600101040
|
£1.95
|
£2.34
|
|
|
49 - SILENCER
BSD-3601010006.A35
3601010006
|
£1.66
|
£1.99
|
|
|
50 - RETAINING WASHER
BSD-3600101036.A1
3600101036
|
£4.26
|
£5.11
|
|
|
51 - UNION NUT
BSD-3603313001.A32
3603313001
|
£14.91
|
£17.89
|
|
|
56 - FITTING
BSD-3603462007.A18
3603462007
|
£7.36
|
£8.83
|
|
|
57 - SEALING DISK
BSD-3600206005.A15
3600206005
|
£5.30
|
£6.36
|
|
|
60 - STRAINER
BSD-3600002006.A67
3600002006
|
£3.72
|
£4.47
|
|
|
62 - STRAINER
BSD-3600002005.A15
3600002005
|
£2.80
|
£3.36
|
|
|
65 - O-RING 15x2 MM
BSD-1900210112.A145
1900210112
|
£2.33
|
£2.80
|
|
|
67 - STRAIGHT PIN
BSD-3603201048.A26
3603201048
|
£10.10
|
£12.12
|
|
|
69 - STRAIGHT PIN
BSD-3604710057.A13
3604710057
|
£10.10
|
£12.12
|
|
|
74 - O-RING 23.0x2.0 MM
BSD-3600210032.A3
3600210032
|
£4.75
|
£5.70
|
|
|
75 - O-RING 18x2 MM
BSD-1900210315.A15
1900210315
|
£2.80
|
£3.36
|
|
|
76 - PUSH-BUTTON
BSD-1600A00HZ4.A28
1600A00HZ4
|
£3.72
|
£4.47
|
|
|
77 - PUSH-BUTTON
BSD-1600A00HZ5.A5
1600A00HZ5
|
£2.33
|
£2.80
|
|
|
78 - O-RING 13.0x2.0 MM
BSD-3600210034.A10
3600210034
|
£3.72
|
£4.47
|
|
|
79 - PILOT-VALVE BUSHING
BSD-3600313007.A4
3600313007
|
£45.67
|
£54.80
|
|
|
80 - SEALING PLATE
BSD-3600054004.A13
3600054004
|
£6.52
|
£7.83
|
|
|
81 - CONTROL PISTON
BSD-3608750024.A10
3608750024
|
£4.26
|
£5.11
|
|
|
82 - INTERMEDIATE PIECE
BSD-3600390019.A0
3600390019
|
£10.10
|
£12.12
|
|
|
83 - COMPRESSION SPRING
BSD-3604643013.A13
3604643013
|
£1.95
|
£2.34
|
|
|
84 - CONNECTION COVER
BSD-3605500046.A10
3605500046
|
£4.26
|
£5.11
|
|
|
85 - COMPRESSION SPRING
BSD-3604610027.A0
3604610027
|
£2.33
|
£2.80
|
|
|
88 - VALVE CONE
BSD-3600250002.A4
3600250002
|
£8.67
|
£10.41
|
|
|
89 - HOLDING PIN
BSD-3603105003.A10
3603105003
|
£8.67
|
£10.41
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A448
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110038.A8
3601110038
|
£5.30
|
£6.36
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A883
3601119236
|
£3.72
|
£4.47
|
|
|
100 - GEAR HOUSING
BSD-3605125050.A0
3605125050
|
£81.81
|
£98.17
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445008.A5
3606445008
|
£81.81
|
£98.17
|
|
|
102 - HEX SOCKET HEAD CAP SCREW DIN 7984-M6x16-8.8
BSD-2910131197.A6
2910131197
|
-
|
|
|
|
106 - COMPRESSION SPRING
BSD-3604615001.A3
3604615001
|
£2.33
|
£2.80
|
|
|
113 - CLAMPING SLEEVE
BSD-3600311015.A58
3600311015
|
£31.64
|
£37.97
|
|
|
126 - RETAINING RING
BSD-3600224001.A48
3600224001
|
£3.72
|
£4.47
|
|
|
129 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A635
1903230007
|
£1.66
|
£1.99
|
|
|
134 - PLAIN WASHER
BSD-3600101055.A8
3600101055
|
£12.04
|
£14.45
|
|
|
650 - SILENCER
BSD-3603462000.A182
3603462000
|
£16.41
|
£19.69
|
|
|
652 - HOSE FITTING
BSD-2603386002.A56
2603386002
|
£5.30
|
£6.36
|
|
|
654 - AUXILIARY HANDLE
BSD-3602025009.A19
3602025009
|
£18.96
|
£22.75
|
|
|
700 - SILENCER
BSD-3607000073.A22
3607000073
|
£18.96
|
£22.75
|
|
|
800 - PLANETARY-GEAR CARRIER
BSD-3606337112.A3
3606337112
|
£81.81
|
£98.17
|
|
|
806 - PILOT-VALVE BUSHING
BSD-3609202746.A6
3609202746
|
£30.28
|
£36.33
|
|
|
811 - ASSEMBLY OF SERVICE PARTS
BSD-3607030092.A1
3607030092
|
£243.45
|
£292.14
|
|
|
813 - VALVE CONE
BSD-3607030093.A2
3607030093
|
£46.37
|
£55.64
|
|
|
815 - ROTOR LAMELLA
BSD-3607030030.A56
3607030030
|
£31.64
|
£37.97
|
|
|
825 - ASSEMBLY OF SERVICE PARTS
BSD-3607030109.A1
3607030109
|
£23.86
|
£28.63
|
|
|
868 - VALVE CONE
BSD-3608750042.A49
3608750042
|
£6.52
|
£7.83
|
|
