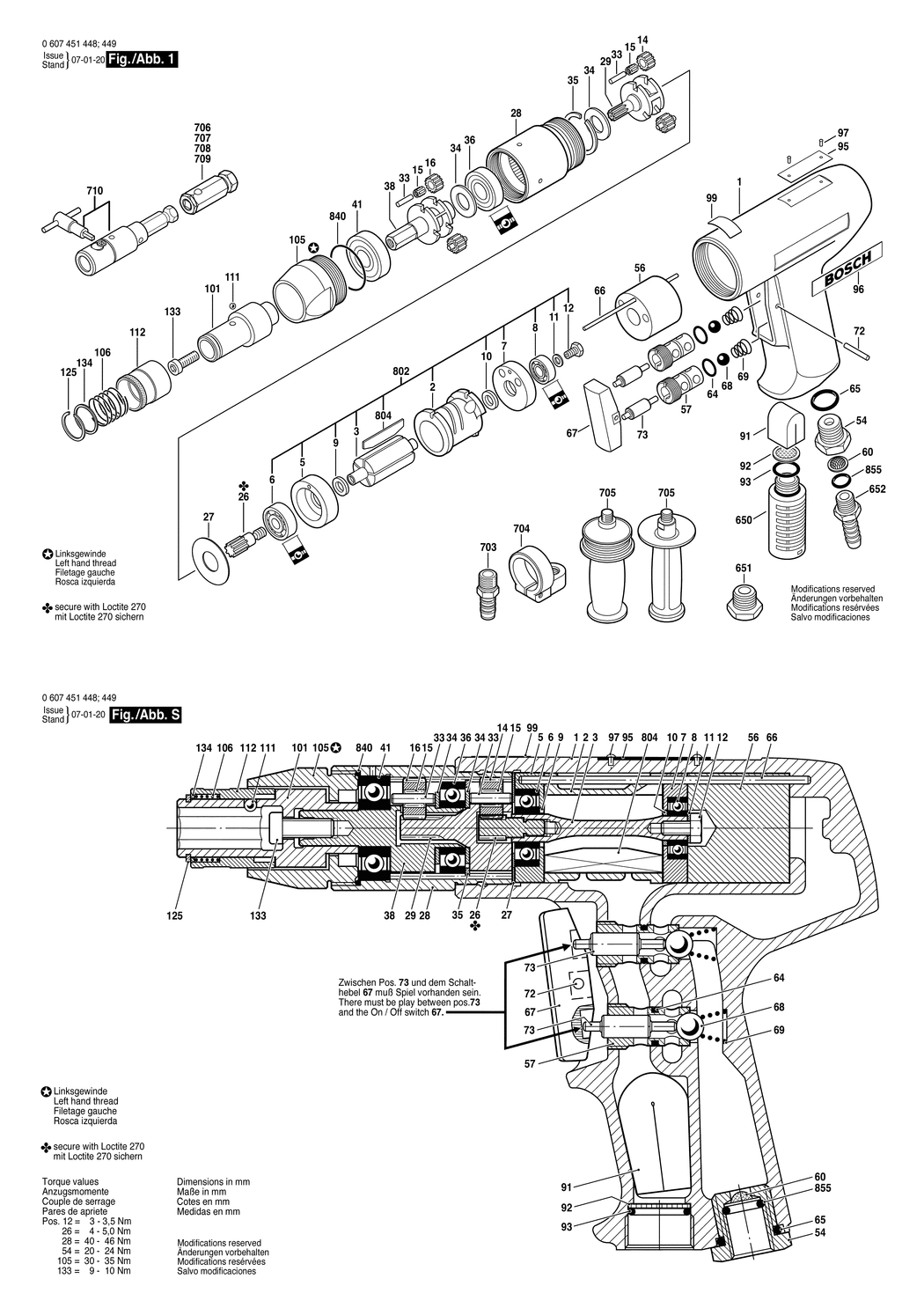

1 - MOTOR HOUSING
BSD-3605108032.A0
3605108032
|
-
|
|
|
|
2 - STATOR 370W
BSD-3604090002.A1
3604090002
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220003.A35
3604220003
|
£81.81
|
£98.17
|
|
|
5 - BEARING FLANGE
BSD-3605700005.A19
3605700005
|
£52.15
|
£62.58
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A318
3600905039
|
£12.04
|
£14.45
|
|
|
7 - BEARING FLANGE
BSD-3605700009.A3
3605700009
|
-
|
|
|
|
8 - BALL BEARING 7x19x6
BSD-2600905032.A424
2600905032
|
£5.30
|
£6.36
|
|
|
9 - SPACER RING
BSD-2600202013.A35
2600202013
|
£8.67
|
£10.41
|
|
|
10 - SPACER RING
BSD-2600202014.A161
2600202014
|
£11.30
|
£13.56
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A139
2916011012
|
£1.66
|
£1.99
|
|
|
12 - HEX SCREW DIN 933-M5x8-8.8
BSD-2911061150.A129
2911061150
|
£2.33
|
£2.80
|
|
|
14 - CYLINDRICAL GEAR
BSD-3606316100.A20
3606316100
|
£21.52
|
£25.83
|
|
|
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A315
3600913000
|
£4.26
|
£5.11
|
|
|
16 - CYLINDRICAL GEAR Z=16
BSD-3606316099.A118
3606316099
|
£21.68
|
£26.01
|
|
|
26 - PINION
BSD-3606300164.A20
3606300164
|
£37.27
|
£44.72
|
|
|
27 - STOP DISC
BSD-3600101001.A72
3600101001
|
£2.33
|
£2.80
|
|
|
28 - RING GEAR Z=49
BSD-3606334000.A111
3606334000
|
£98.11
|
£117.73
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337003.A2
3606337003
|
£81.81
|
£98.17
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A175
3603201000
|
£1.66
|
£1.99
|
|
|
34 - SHIM WASHER
BSD-3600103002.A109
3600103002
|
£3.72
|
£4.47
|
|
|
35 - RETAINING RING
BSD-3600224000.A116
3600224000
|
£1.66
|
£1.99
|
|
|
36 - GROOVE BALL BEARING 12x28x8
BSD-1900900287.A86
1900900287
|
£21.68
|
£26.01
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337025.A1
3606337025
|
-
|
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905069.A51
3600905069
|
£16.41
|
£19.69
|
|
|
45 - RADIAL SEAL
BSD-3600283000.A11
3600283000
|
-
|
|
|
|
54 - FITTING
BSD-3603458008.A54
3603458008
|
£8.67
|
£10.41
|
|
|
56 - VALVE BODY
BSD-3605190060.A4
3605190060
|
-
|
|
|
|
57 - VALVE BUSHING
BSD-3600364007.A10
3600364007
|
-
|
|
|
|
60 - STRAINER
BSD-3600002000.A208
3600002000
|
£3.72
|
£4.47
|
|
|
64 - O-RING 9.0x1.5 MM
BSD-2600210021.A30
2600210021
|
£1.66
|
£1.99
|
|
|
65 - O-RING 15.6x1.8 MM
BSD-3600210003.A90
3600210003
|
£1.66
|
£1.99
|
|
|
66 - STRAIGHT PIN
BSD-3604710025.A7
3604710025
|
£7.36
|
£8.83
|
|
|
67 - CONTROL LEVER
BSD-3602053000.A13
3602053000
|
-
|
|
|
|
68 - BALL
BSD-3603230000.A27
3603230000
|
£2.80
|
£3.36
|
|
|
69 - COMPRESSION SPRING
BSD-3604616002.A10
3604616002
|
£1.95
|
£2.34
|
|
|
72 - STRAIGHT PIN 3M6x24 DIN 7-C35K
BSD-2917610083.A98
2917610083
|
£1.66
|
£1.99
|
|
|
73 - VALVE SPOOL
BSD-3608750007.A1
3608750007
|
-
|
|
|
|
91 - SILENCER
BSD-3601010006.A69
3601010006
|
£1.66
|
£1.99
|
|
|
92 - FILTER SCREEN
BSD-3600002004.A13
3600002004
|
£2.80
|
£3.36
|
|
|
93 - O-RING 14.0x3.0 MM
BSD-3600210009.A11
3600210009
|
£1.32
|
£1.58
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A39
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A257
1601110481
|
£1.95
|
£2.34
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A232
3603133000
|
£1.95
|
£2.34
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1480
3601119236
|
£3.72
|
£4.47
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445008.A0
3606445008
|
£81.81
|
£98.17
|
|
|
105 - BACKUP RING
BSD-3600364003.A2
3600364003
|
-
|
|
|
|
106 - COMPRESSION SPRING
BSD-3604615001.A42
3604615001
|
£2.33
|
£2.80
|
|
|
111 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A344
1903230007
|
£1.66
|
£1.99
|
|
|
112 - CLAMPING SLEEVE
BSD-3600311015.A15
3600311015
|
£31.64
|
£37.97
|
|
|
125 - RETAINING RING
BSD-3600224001.A17
3600224001
|
£3.72
|
£4.47
|
|
|
133 - HEX SOCKET HEAD CAP SCREW DIN 7984-M6x16-8.8
BSD-2910131197.A10
2910131197
|
-
|
|
|
|
134 - PLAIN WASHER
BSD-3600101055.A61
3600101055
|
£12.04
|
£14.45
|
|
|
650 - SILENCER
BSD-3607000073.A162
3607000073
|
£18.96
|
£22.75
|
|
|
651 - SILENCER
BSD-3603462000.A97
3603462000
|
£16.41
|
£19.69
|
|
|
652 - HOSE FITTING
BSD-2603386002.A257
2603386002
|
£5.30
|
£6.36
|
|
|
703 - HOSE FITTING dia 8 MM
BSD-3603386001.A116
3603386001
|
£16.41
|
£19.69
|
|
|
704 - SUPPORT CLAMP
BSD-3608040000.A41
3608040000
|
-
|
|
|
|
705 - AUXILIARY HANDLE M14
BSD-1602025022.A654
1602025022
|
£13.41
|
£16.09
|
|
|
705 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A701
1602025030
|
£18.96
|
£22.75
|
|
|
706 - TAP CHUCK
BSD-3608502000.A3
3608502000
|
-
|
|
|
|
707 - TAP CHUCK
BSD-3608502001.A3
3608502001
|
-
|
|
|
|
708 - TAP CHUCK
BSD-3608502002.A1
3608502002
|
-
|
|
|
|
709 - TAP CHUCK
BSD-3608502003.A3
3608502003
|
-
|
|
|
|
710 - TWO-JAW DRILL JUCK
BSD-1608573003.A1
1608573003
|
-
|
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031025.A1
3607031025
|
-
|
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030248.A85
3607030248
|
£31.64
|
£37.97
|
|
|
840 - PARTS SET
BSD-3607010007.A14
3607010007
|
£18.96
|
£22.75
|
|
|
855 - O-RING 10x2 MM
BSD-1900210306.A168
1900210306
|
£1.66
|
£1.99
|
|
