Bosch 7595-100 / 0607595100 / --- Spare Parts

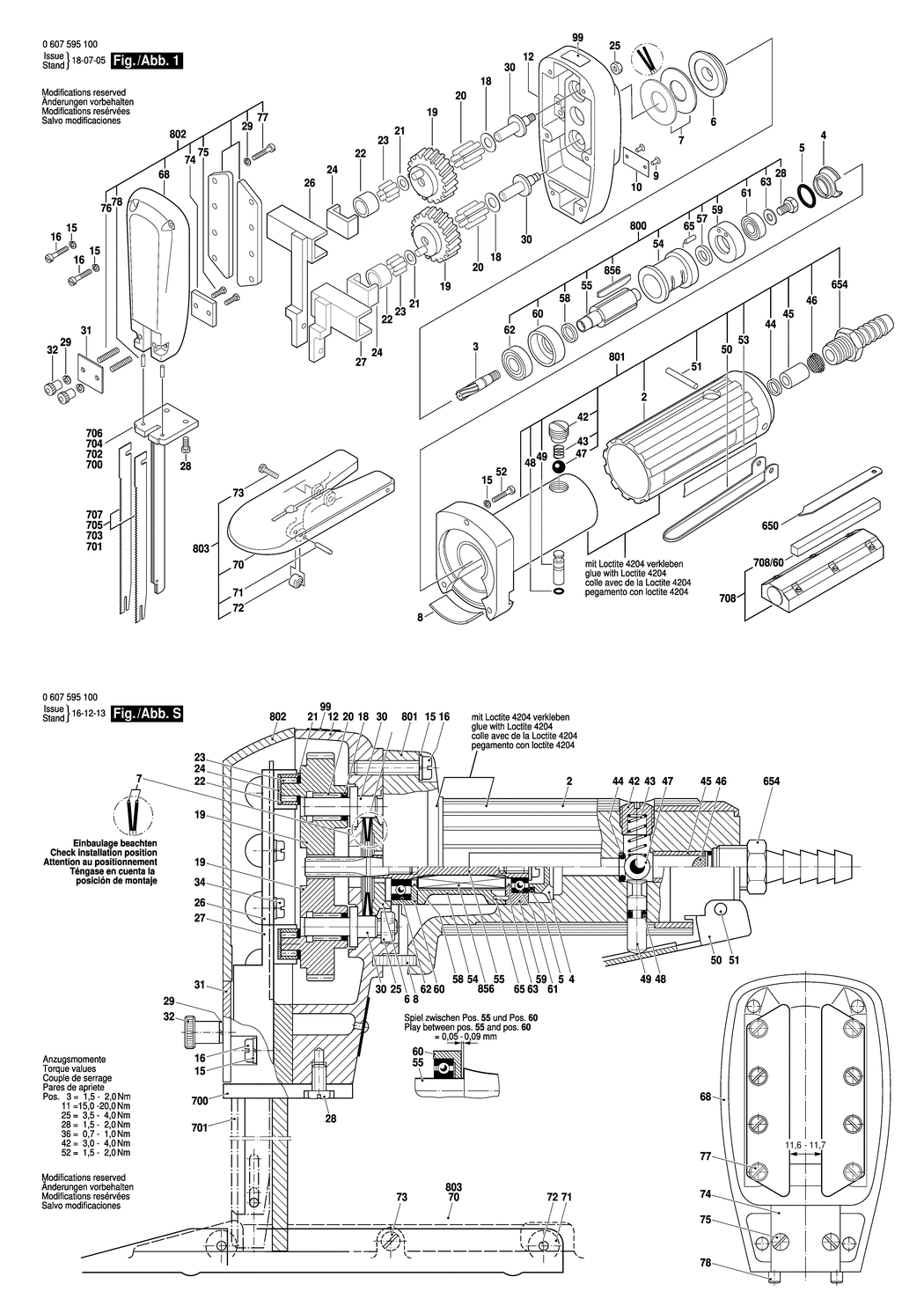

An exploded drawing and listing for the Bosch 7595-100 / 0607595100 / ---

	Ex VAT	Inc VAT
2 - HOUSING BSD-2600723012.A0 2600723012	£68.42	£82.10
3 - PINION BSD-2606302022.A0 2606302022	£68.42	£82.10
4 - THRUST MEMBER BSD-2600521012.A0 2600521012	£13.12	£15.75
5 - O-RING 10.82x1.78 MM BSD-2600210004.A0 2600210004	£4.26	£5.11
6 - THRUST MEMBER BSD-2600120045.A0 2600120045	£7.36	£8.83
7 - DISC SPRING BSD-2600550006.A0 2600550006	£2.16	£2.59
8 - SILENCER BSD-2601010051.A0 2601010051	£12.04	£14.45
9 - GROOVED NAIL BSD-3603133000.A280 3603133000	£2.61	£3.13
10 - NAMEPLATE BSD-160111A3HF.A147 160111A3HF	£3.72	£4.47
12 - GEAR HOUSING BSD-2605806323.A0 2605806323	£93.88	£112.65
15 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A0 2916690003	£1.75	£2.10
16 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A362 2910011128	£1.75	£2.10
18 - SHIM 0.3 MM BSD-2600100612.A12 2600100612	£2.61	£3.13
19 - ECCENTRIC COG WHEEL Z=49 BSD-2606319007.A14 2606319007	£59.53	£71.44
20 - NEEDLE-ROLLER ASSEMBLY BSD-3600910000.A0 3600910000	£4.26	£5.11
21 - SHIM 0.20 MM BSD-2600100586.A0 2600100586	£1.75	£2.10
21 - SHIM 0.30 MM BSD-2600100587.A14 2600100587	£1.75	£2.10
21 - SHIM 0.5 MM BSD-2600100588.A0 2600100588	£1.75	£2.10
22 - ROLLER BSD-2600300005.A14 2600300005	£8.67	£10.41
23 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A130 2603201037	£2.61	£3.13
24 - RETAINING BRACKET BSD-2601320018.A0 2601320018	£2.80	£3.36
25 - SLOTTED ROUND NUT BSD-2603341007.A4 2603341007	£1.75	£2.10
26 - LIFTING ROD BSD-2602305016.A13 2602305016	£54.42	£65.30
27 - LIFTING ROD BSD-2602305014.A4 2602305014	£54.42	£65.30
28 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1010 2910021118	£1.75	£2.10
29 - SPRING LOCK WASHER DIN128-A5-FST BSD-2916690002.A14 2916690002	£1.75	£2.10
30 - BEARING BOLT BSD-2603520010.A10 2603520010	£16.41	£19.69
31 - PRESSURE PLATE BSD-2601034010.A0 2601034010	£6.52	£7.83
32 - ROUND NUT BSD-3603345016.A17 3603345016	£13.12	£15.75
42 - SCREW PLUG BSD-3603463009.A4 3603463009	£31.64	£37.97
43 - COMPRESSION SPRING BSD-2604611019.A0 2604611019	£2.16	£2.59
44 - SEAL RING BSD-2600206004.A18 2600206004	£7.36	£8.83
45 - MOUNTING DEVICE BSD-2600309000.A0 2600309000	£2.16	£2.59
46 - STRAINER BSD-2600002006.A1 2600002006	£4.26	£5.11
47 - BALL 7.5 MM IIIDIN5401-ST BSD-1903230024.A10 1903230024	£2.80	£3.36
48 - O-RING 2.4x1.9 MM BSD-2600210007.A44 2600210007	£2.16	£2.59
49 - LOCKING BOLT BSD-2603105019.A0 2603105019	£7.36	£8.83
50 - CONTROL LEVER BSD-3601902023.A0 3601902023	£23.86	£28.63
51 - STRAIGHT PIN DIN 7-3H8x24-ST BSD-2917500083.A1 2917500083	£2.16	£2.59
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x20-8.8 BSD-2910021130.A159 2910021130	£1.75	£2.10
53 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A263 1601110481	£2.16	£2.59
54 - STATOR BSD-2605110112.A0 2605110112	£120.11	£144.13
55 - ROTOR BSD-2604090017.A0 2604090017	£179.37	£215.24
57 - SPACER RING BSD-2600103001.A0 2600103001	£11.30	£13.56
58 - SPACER RING BSD-2600202014.A197 2600202014	£11.30	£13.56
59 - BACKUP RING BSD-2600220012.A0 2600220012	£45.67	£54.80
60 - BACKUP RING BSD-2600220013.A0 2600220013	£31.64	£37.97
61 - GROOVE BALL BEARING 6x15x5 BSD-2600905009.A0 2600905009	£16.41	£19.69
62 - GROOVE BALL BEARING DIN 625-7x19x6 BSD-3600905148.A29 3600905148	£8.49	£10.19
63 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A142 2916011010	£1.75	£2.10
65 - STRAIGHT PIN DIN 7-2h8x4-ST BSD-2917570032.A0 2917570032	£2.16	£2.59
68 - GEAR COVER BSD-2605500056.A6 2605500056	£72.18	£86.62
70 - BASE PLATE BSD-2608000114.A0 2608000114	-
71 - ROLLER BSD-2600300011.A0 2600300011	£1.75	£2.10
72 - NEEDLE ROLLER BSD-1903201521.A7 1903201521	£1.75	£2.10
73 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-8.8 BSD-2910021132.A0 2910021132	£1.75	£2.10
74 - SUPPORT PLATE BSD-3602307009.A0 3602307009	£81.81	£98.17
75 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x8-5.8 BSD-2910011084.A4 2910011084	£1.75	£2.10
76 - STUD BSD-2603502015.A17 2603502015	£3.72	£4.47
77 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x6-5.8 BSD-2910011082.A79 2910011082	£1.75	£2.10
78 - STRAIGHT PIN 4H8x8 DIN 7 BSD-2917500093.A4 2917500093	£1.75	£2.10
95 - REFERENCE PLATE BSD-3601110574.A82 3601110574	£2.61	£3.13
99 - REFERENCE PLATE BSD-3601119236.A1309 3601119236	£3.72	£4.47
650 - SCRAPER BSD-2601030010.A3 2601030010	£2.61	£3.13
654 - HOSE FITTING BSD-2603386001.A0 2603386001	£7.36	£8.83
700 - GUIDE 70 MM. T42D BSD-2608135023.A17 2608135023	£62.99	£75.59
701 - SAW BLADE SET 70 MM. T 43D BSD-2607018013.A3 2607018013	£20.99	£25.19
702 - GUIDE 130 MM. T42A BSD-2608135020.A0 2608135020	£63.87	£76.64
703 - SAW BLADE SET 130 MM. T43A BSD-2607018010.A14 2607018010	£27.12	£32.54
704 - GUIDE 220 MM. T42B BSD-2608135021.A17 2608135021	£69.99	£83.99
705 - SAW BLADE SET 220 MM. T43B BSD-2607018011.A3 2607018011	£27.12	£32.54
706 - GUIDE 300 MM. T42C BSD-2608135022.A0 2608135022	£76.12	£91.34
707 - SAW BLADE SET 300 MM. T43C BSD-2607018012.A14 2607018012	£29.74	£35.69
708 - SHARPENING SET BSD-2608133000.A3 2608133000	-
708/60 - WHETSTONE BSD-3607950012.A8 3607950012	-
800 - PNEUMATIC MOTOR BSD-2607219900.A0 2607219900	£410.78	£492.94
801 - VALVE HOUSING BSD-2605110901.A0 2605110901	£357.27	£428.72
802 - GEAR COVER BSD-2605500905.A14 2605500905	£120.11	£144.13
803 - BASE PLATE BSD-2608000908.A0 2608000908	£72.38	£86.86
856 - ROTOR LAMELLA BSD-3607030415.A0 3607030415	£31.64	£37.97
