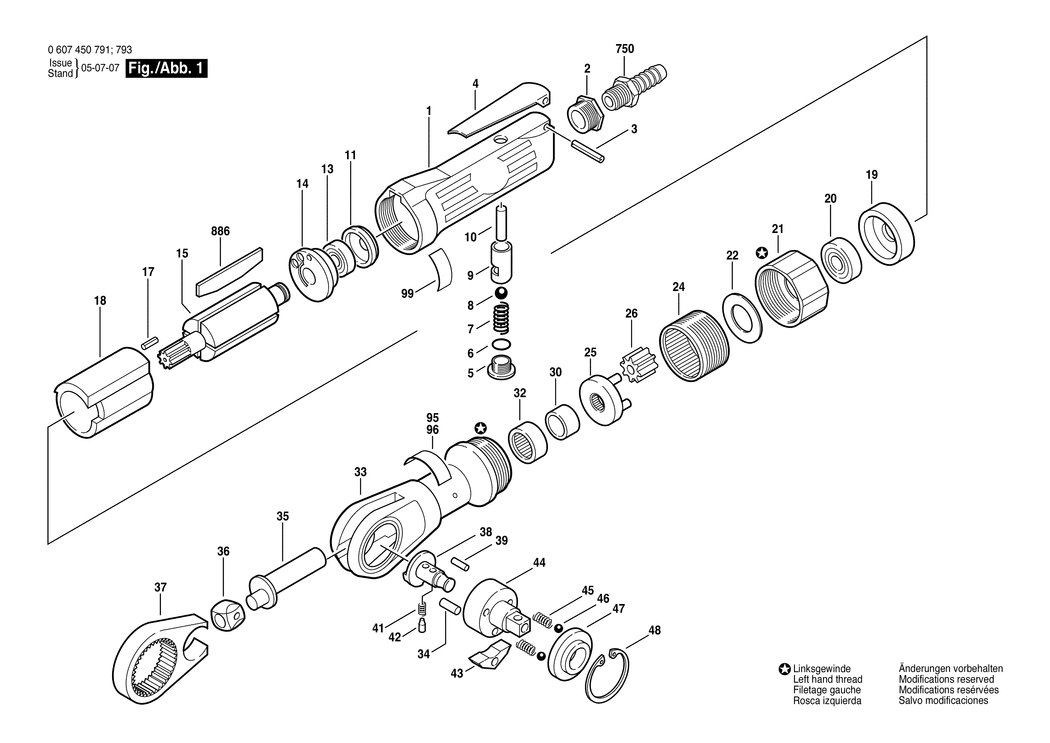

1 - MOTOR HOUSING
BSD-1609302046.A2
1609302046
|
£46.37
|
£55.64
|
|
|
2 - FITTING
BSD-1609302047.A1
1609302047
|
£8.67
|
£10.41
|
|
|
3 - SLOTTED SPRING PIN
BSD-1609302048.A2
1609302048
|
£4.26
|
£5.11
|
|
|
4 - CONTROL LEVER
BSD-3609202306.A0
3609202306
|
£14.91
|
£17.89
|
|
|
5 - SCREW PLUG
BSD-1609302050.A3
1609302050
|
£6.52
|
£7.83
|
|
|
6 - O-RING
BSD-1609302051.A0
1609302051
|
£4.26
|
£5.11
|
|
|
7 - COMPRESSION SPRING
BSD-1609302052.A3
1609302052
|
£5.58
|
£6.70
|
|
|
8 - BALL
BSD-3609202307.A1
3609202307
|
£10.10
|
£12.12
|
|
|
9 - VALVE BUSHING
BSD-1609302054.A2
1609302054
|
-
|
|
|
|
10 - STRAIGHT PIN
BSD-1609302055.A1
1609302055
|
-
|
|
|
|
11 - SEALING CAP
BSD-1609302063.A3
1609302063
|
£2.80
|
£3.36
|
|
|
13 - GROOVE BALL BEARING
BSD-1609302056.A2
1609302056
|
£21.52
|
£25.83
|
|
|
14 - COVER
BSD-3609202308.A0
3609202308
|
£18.96
|
£22.75
|
|
|
15 - ROTOR
BSD-3609202309.A1
3609202309
|
£68.42
|
£82.10
|
|
|
17 - SLOTTED SPRING PIN
BSD-1609302060.A3
1609302060
|
£4.26
|
£5.11
|
|
|
18 - STATOR
BSD-1609302061.A0
1609302061
|
£27.23
|
£32.68
|
|
|
19 - COVER
BSD-3609202311.A0
3609202311
|
£18.96
|
£22.75
|
|
|
20 - BALL BEARING
BSD-3609202312.A1
3609202312
|
£45.67
|
£54.80
|
|
|
21 - CONNECTING NUT
BSD-1609302064.A0
1609302064
|
£14.75
|
£17.70
|
|
|
22 - SHIM WASHER
BSD-1609302065.A3
1609302065
|
£2.80
|
£3.36
|
|
|
24 - RING GEAR
BSD-1609302066.A0
1609302066
|
£21.52
|
£25.83
|
|
|
25 - SUPPORT
BSD-3609202313.A0
3609202313
|
-
|
|
|
|
26 - TOOTHED GEAR
BSD-3609202314.A1
3609202314
|
£12.04
|
£14.45
|
|
|
30 - GUIDE SLEEVE
BSD-3609202315.A0
3609202315
|
£11.78
|
£14.13
|
|
|
32 - NEEDLE-ROLLER BEARING
BSD-1609302072.A3
1609302072
|
£21.68
|
£26.01
|
|
|
33 - HOUSING
BSD-3609202316.A1
3609202316
|
-
|
|
|
|
34 - STRAIGHT PIN dia 4x12.7 MM
BSD-1609302074.A2
1609302074
|
£2.80
|
£3.36
|
|
|
35 - CAMSHAFT
BSD-3609202317.A0
3609202317
|
£27.23
|
£32.68
|
|
|
36 - DRIVE ELEMENT
BSD-1609302076.A2
1609302076
|
£12.04
|
£14.45
|
|
|
37 - SWIVELLING LEVER
BSD-1609302077.A1
1609302077
|
£33.74
|
£40.49
|
|
|
38 - CHANGEOVER LEVER
BSD-3609202318.A0
3609202318
|
£31.64
|
£37.97
|
|
|
39 - PIN
BSD-3609202319.A1
3609202319
|
£4.26
|
£5.11
|
|
|
41 - COMPRESSION SPRING
BSD-1609302089.A2
1609302089
|
£4.26
|
£5.11
|
|
|
42 - PRESSURE SPINDLE
BSD-1609302082.A2
1609302082
|
£4.26
|
£5.11
|
|
|
43 - SWITCH-PAWL
BSD-1609302083.A1
1609302083
|
£27.23
|
£32.68
|
|
|
44 - SPINDLE
BSD-3609202320.A0
3609202320
|
£68.42
|
£82.10
|
|
|
45 - COMPRESSION SPRING
BSD-1609302085.A1
1609302085
|
£4.26
|
£5.11
|
|
|
46 - BALL
BSD-1609302086.A2
1609302086
|
£4.26
|
£5.11
|
|
|
47 - SLEEVE
BSD-3609202321.A1
3609202321
|
£14.91
|
£17.89
|
|
|
48 - SPRING RETAINING RING
BSD-1609302088.A1
1609302088
|
£4.26
|
£5.11
|
|
|
96 - NAMEPLATE
BSD-3609202748.A0
3609202748
|
-
|
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A346
3601119236
|
£3.72
|
£4.47
|
|
|
750 - HOSE FITTING
BSD-3609201095.A5
3609201095
|
£5.58
|
£6.70
|
|
|
886 - ASSEMBLY OF SERVICE PARTS
BSD-3607030322.A0
3607030322
|
£31.64
|
£37.97
|
|
