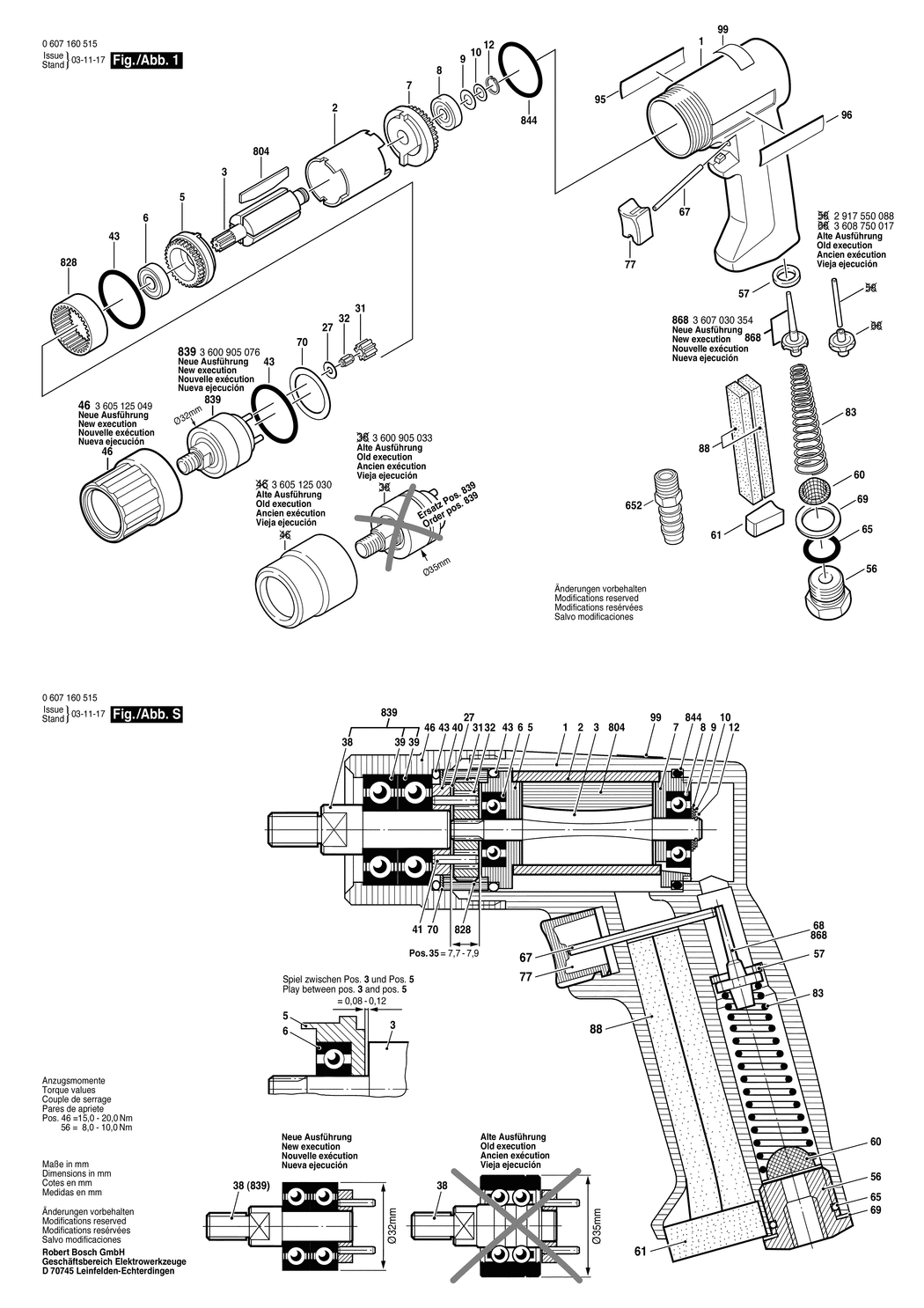

1 - MOTOR HOUSING
BSD-3605108040.A12
3605108040
|
£21.52
|
£25.83
|
|
|
2 - STATOR 320W
BSD-3604090029.A16
3604090029
|
£21.52
|
£25.83
|
|
|
3 - ROTOR
BSD-3604220067.A0
3604220067
|
-
|
|
|
|
5 - BEARING FLANGE
BSD-3605700085.A0
3605700085
|
-
|
|
|
|
6 - GROOVE BALL BEARING 10x22x6
BSD-3600905003.A3
3600905003
|
-
|
|
|
|
7 - BEARING FLANGE
BSD-3605700039.A15
3605700039
|
£8.67
|
£10.41
|
|
|
8 - GROOVE BALL BEARING
BSD-3600905020.A2
3600905020
|
-
|
|
|
|
9 - SHIM
BSD-3600150005.A5
3600150005
|
£2.16
|
£2.59
|
|
|
10 - SHIM 0.5 MM
BSD-1600100631.A143
1600100631
|
£1.75
|
£2.10
|
|
|
12 - SPRING RETAINING RING DIN 471-7x0.8-FST
BSD-2916640004.A10
2916640004
|
£1.75
|
£2.10
|
|
|
27 - STOP DISC
BSD-3600100015.A6
3600100015
|
£2.80
|
£3.36
|
|
|
31 - CYLINDRICAL GEAR Z=16
BSD-3606316099.A53
3606316099
|
£21.68
|
£26.01
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A51
3600913000
|
£4.26
|
£5.11
|
|
|
43 - O-RING 30x2.5 MM
BSD-1900210131.A89
1900210131
|
£4.26
|
£5.11
|
|
|
46 - GEAR HOUSING
BSD-3605125049.A4
3605125049
|
£11.30
|
£13.56
|
|
|
56 - FITTING
BSD-3603462011.A4
3603462011
|
£14.91
|
£17.89
|
|
|
57 - VALVE BUSHING
BSD-3600209004.A8
3600209004
|
£2.16
|
£2.59
|
|
|
60 - STRAINER
BSD-3600002006.A47
3600002006
|
£3.72
|
£4.47
|
|
|
61 - SILENCER
BSD-2607000179.A16
2607000179
|
£8.67
|
£10.41
|
|
|
65 - O-RING 15x2 MM
BSD-1900210112.A180
1900210112
|
£2.61
|
£3.13
|
|
|
67 - STRAIGHT PIN
BSD-3603201043.A18
3603201043
|
£2.16
|
£2.59
|
|
|
69 - SHIM WASHER
BSD-3600105001.A34
3600105001
|
£1.75
|
£2.10
|
|
|
70 - SHIM 0.15 MM
BSD-1600102634.A39
1600102634
|
£2.61
|
£3.13
|
|
|
77 - PUSH-BUTTON
BSD-3602053003.A9
3602053003
|
£2.61
|
£3.13
|
|
|
83 - COMPRESSION SPRING
BSD-3604643012.A8
3604643012
|
£1.75
|
£2.10
|
|
|
88 - SILENCER
BSD-3601010001.A130
3601010001
|
£2.16
|
£2.59
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A566
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601119055.A163
3601119055
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A307
3601119236
|
£3.72
|
£4.47
|
|
|
652 - HOSE FITTING
BSD-2603386002.A100
2603386002
|
£5.30
|
£6.36
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030244.A17
3607030244
|
£23.86
|
£28.63
|
|
|
828 - RING GEAR Z=49
BSD-3606334018.A7
3606334018
|
£4.26
|
£5.11
|
|
|
839 - GROOVE BALL BEARING
BSD-3600905076.A0
3600905076
|
-
|
|
|
|
844 - PARTS SET
BSD-3607010026.A38
3607010026
|
£8.67
|
£10.41
|
|
|
868 - VALVE CONE
BSD-3607030354.A28
3607030354
|
£14.91
|
£17.89
|
|
