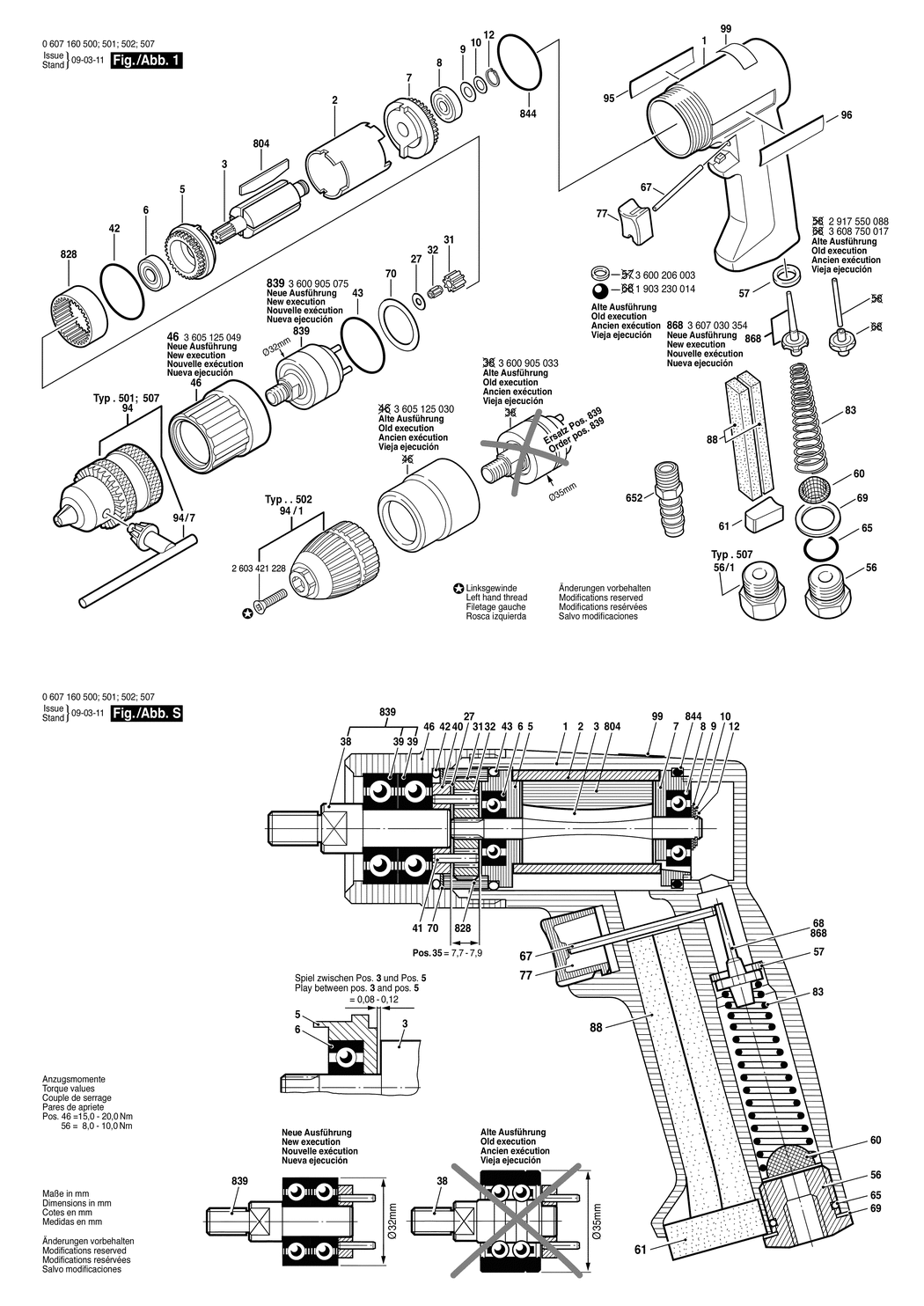

1 - MOTOR HOUSING
BSD-3605108040.A5
3605108040
|
£21.52
|
£25.83
|
|
|
2 - STATOR 320W
BSD-3604090029.A10
3604090029
|
£22.60
|
£27.12
|
|
|
3 - ROTOR
BSD-3604220034.A2
3604220034
|
£66.68
|
£80.01
|
|
|
5 - BEARING FLANGE
BSD-3605700040.A8
3605700040
|
£6.52
|
£7.83
|
|
|
6 - GROOVE BALL BEARING 7x22x7
BSD-3600905122.A12
3600905122
|
£5.58
|
£6.70
|
|
|
7 - BEARING FLANGE
BSD-3605700039.A7
3605700039
|
£9.11
|
£10.93
|
|
|
8 - GROOVE BALL BEARING 7x22x7
BSD-3600905122.A11
3600905122
|
£5.58
|
£6.70
|
|
|
9 - SHIM
BSD-3600150005.A16
3600150005
|
£2.27
|
£2.72
|
|
|
10 - SHIM 0.5 MM
BSD-1600100631.A142
1600100631
|
£1.75
|
£2.10
|
|
|
12 - SPRING RETAINING RING DIN 471-7x0.8-FST
BSD-2916640004.A8
2916640004
|
£1.84
|
£2.21
|
|
|
27 - STOP DISC
BSD-3600100015.A4
3600100015
|
£2.80
|
£3.36
|
|
|
31 - CYLINDRICAL GEAR
BSD-3606316090.A0
3606316090
|
£2.61
|
£3.13
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A46
3600913000
|
£4.26
|
£5.11
|
|
|
42 - O-RING 30x2.5 MM
BSD-1900210131.A77
1900210131
|
£4.48
|
£5.37
|
|
|
43 - O-RING 30x2.5 MM
BSD-1900210131.A78
1900210131
|
£4.48
|
£5.37
|
|
|
46 - GEAR HOUSING
BSD-3605125049.A10
3605125049
|
£11.87
|
£14.24
|
|
|
56/1 - FITTING
BSD-3603462011.A9
3603462011
|
£15.65
|
£18.78
|
|
|
57 - VALVE BUSHING
BSD-3600209004.A18
3600209004
|
£2.27
|
£2.72
|
|
|
60 - STRAINER
BSD-3600002006.A29
3600002006
|
£3.72
|
£4.47
|
|
|
61 - SILENCER
BSD-2607000179.A4
2607000179
|
£9.11
|
£10.93
|
|
|
65 - O-RING 15x2 MM
BSD-1900210112.A192
1900210112
|
£2.61
|
£3.13
|
|
|
67 - STRAIGHT PIN
BSD-3603201043.A5
3603201043
|
£2.27
|
£2.72
|
|
|
69 - SHIM WASHER
BSD-3600105001.A24
3600105001
|
£1.75
|
£2.10
|
|
|
70 - SHIM 0.15 MM
BSD-1600102634.A33
1600102634
|
£2.74
|
£3.29
|
|
|
77 - PUSH-BUTTON
BSD-3602053003.A5
3602053003
|
£2.74
|
£3.29
|
|
|
83 - COMPRESSION SPRING
BSD-3604643012.A3
3604643012
|
£1.75
|
£2.10
|
|
|
88 - SILENCER
BSD-3601010001.A137
3601010001
|
£2.16
|
£2.59
|
|
|
94 - KEY CHUCK dia 1-10 MM. 3/8
BSD-1608571047.A6
1608571047
|
-
|
|
|
|
94/7 - CHUCK WRENCH SG2
BSD-2607950007.A340
2607950007
|
£6.85
|
£8.22
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A552
160111A3HF
|
£3.91
|
£4.69
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601119055.A154
3601119055
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A303
3601119236
|
£3.91
|
£4.69
|
|
|
652 - HOSE FITTING
BSD-3603386068.A4
3603386068
|
£22.60
|
£27.12
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030244.A14
3607030244
|
£25.05
|
£30.06
|
|
|
828 - RING GEAR Z=49
BSD-3606334018.A2
3606334018
|
£4.26
|
£5.11
|
|
|
839 - GROOVE BALL BEARING
BSD-3600905075.A8
3600905075
|
£81.81
|
£98.17
|
|
|
844 - PARTS SET
BSD-3607010026.A21
3607010026
|
£8.67
|
£10.41
|
|
|
868 - VALVE CONE
BSD-3607030354.A13
3607030354
|
£15.65
|
£18.78
|
|
