Bosch DMH 320 / 0607560505 / --- Spare Parts

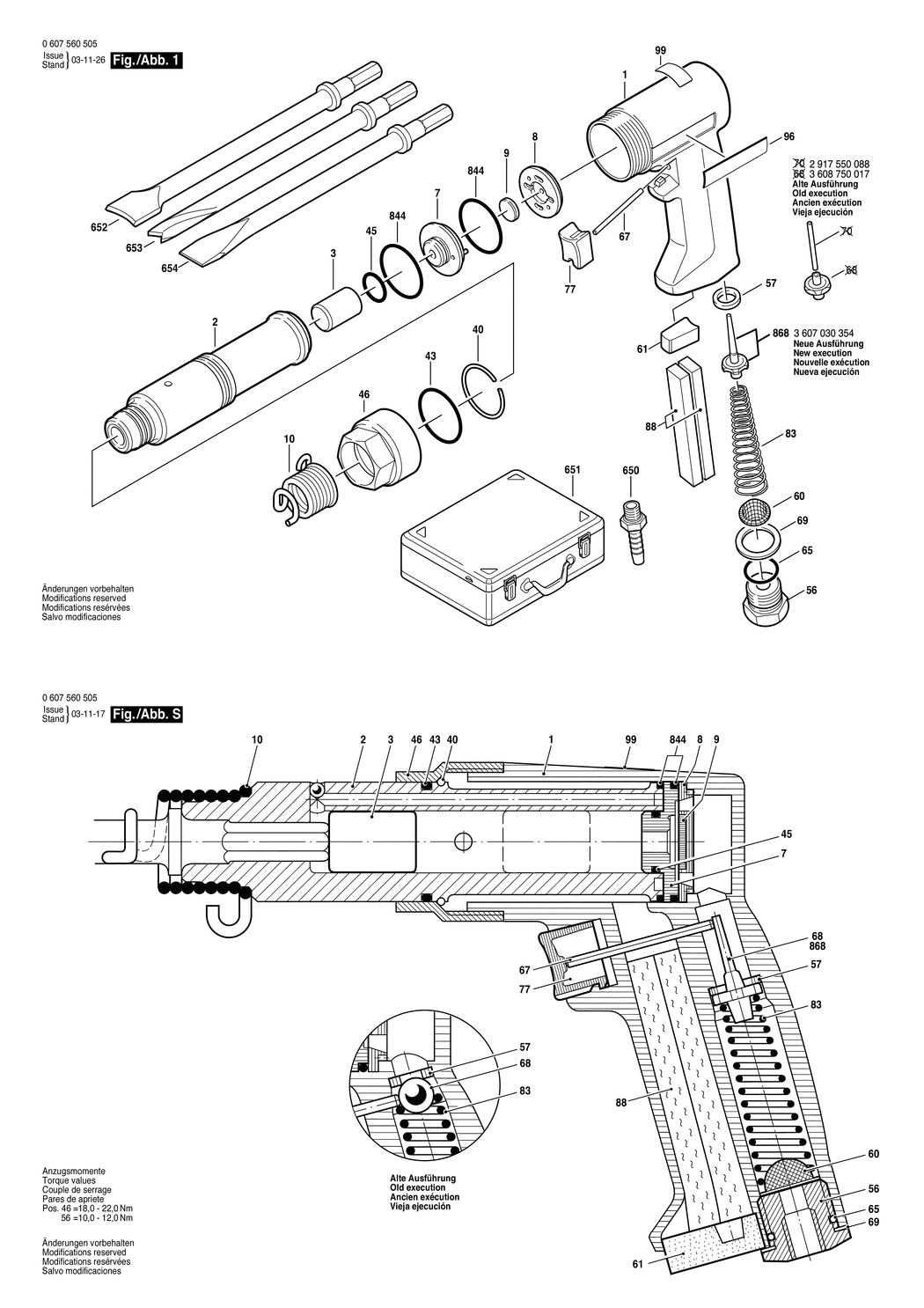

An exploded drawing and listing for the Bosch DMH 320 / 0607560505 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108119.A0 3605108119	-
2 - IMPACT MECHANISM HOUSING BSD-3605190199.A2 3605190199	£81.81	£98.17
3 - STRIKER BSD-3603200007.A0 3603200007	£5.58	£6.70
7 - VALVE PLATE BSD-3605500025.A3 3605500025	£2.16	£2.59
8 - VALVE PLATE BSD-3605500026.A2 3605500026	£4.26	£5.11
9 - VALVE PLATE BSD-3600009001.A0 3600009001	£2.16	£2.59
10 - HOLDING SPRING BSD-3604650000.A5 3604650000	£11.30	£13.56
40 - RETAINING RING 35 DIN 9045 BSD-2916600018.A27 2916600018	£1.75	£2.10
43 - O-RING 30x2.5 MM BSD-1900210131.A4 1900210131	£4.26	£5.11
45 - O-RING 18x2.5 MM BSD-1900210311.A3 1900210311	-
46 - UNION NUT BSD-3603313007.A2 3603313007	£31.64	£37.97
56 - FITTING BSD-3603462019.A16 3603462019	£16.41	£19.69
57 - VALVE BUSHING BSD-3600209004.A31 3600209004	£2.16	£2.59
60 - STRAINER BSD-3600002006.A19 3600002006	£3.72	£4.47
61 - SILENCER BSD-2607000179.A29 2607000179	£8.67	£10.41
65 - O-RING 15x2 MM BSD-1900210112.A3 1900210112	£2.61	£3.13
67 - STRAIGHT PIN BSD-3603201043.A27 3603201043	£2.16	£2.59
69 - SHIM WASHER BSD-3600105001.A49 3600105001	£1.75	£2.10
77 - PUSH-BUTTON BSD-3602053003.A23 3602053003	£2.61	£3.13
83 - COMPRESSION SPRING BSD-3604643012.A32 3604643012	£1.75	£2.10
88 - SILENCER BSD-3601010001.A12 3601010001	£2.16	£2.59
96 - MANUFACTURER'S NAMEPLATE BSD-3601110168.A0 3601110168	-
99 - REFERENCE PLATE BSD-3601119236.A1880 3601119236	£3.72	£4.47
650 - HOSE FITTING BSD-3603386068.A72 3603386068	£21.52	£25.83
651 - HOLD-ALL BSD-3605438005.A0 3605438005	-
652 - SHEARING CHISEL BSD-2609390013.A3 2609390013	£30.42	£36.51
653 - SHEARING CHISEL BSD-2609390014.A0 2609390014	£30.42	£36.51
654 - WIDE CHISEL BSD-2609390015.A3 2609390015	£23.86	£28.63
844 - PARTS SET BSD-3607010026.A6 3607010026	£8.67	£10.41
868 - VALVE CONE BSD-3607030354.A6 3607030354	£14.91	£17.89

Attribute Name	Value
Brand	Bosch
