Bosch ---- / 0607550589 / --- Spare Parts

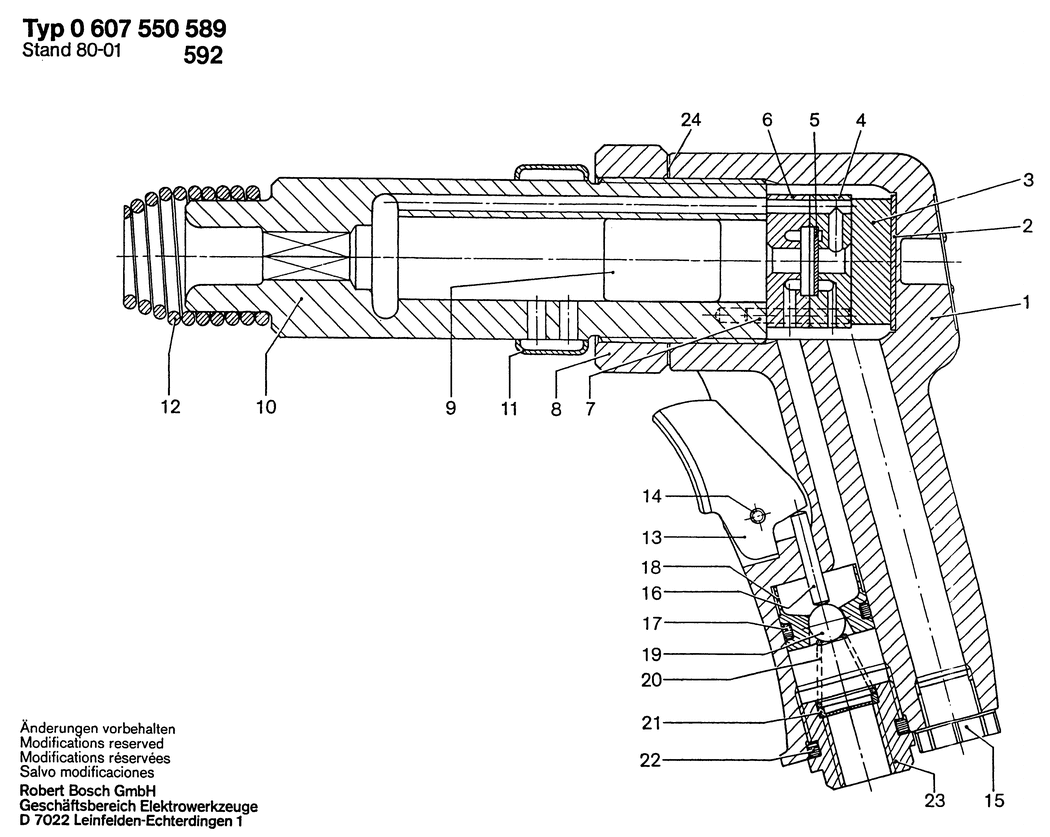

An exploded drawing and listing for the Bosch ---- / 0607550589 / ---

	Ex VAT	Inc VAT
1 - HOUSING BSD-1609310346.A0 1609310346	-
2 - SUPPORT PLATE BSD-1609310033.A1 1609310033	-
3 - SUPPORTING DISC BSD-1609310347.A1 1609310347	-
4 - VALVE PLATE BSD-1609310047.A1 1609310047	-
5 - ADAPTOR PLATE BSD-1609310032.A0 1609310032	-
6 - VALVE PLATE BSD-1609310048.A0 1609310048	-
7 - NEEDLE ROLLER A 3x23.8 G2 DIN 5402 BSD-1903201047.A7 1903201047	-
8 - HEX NUT BSD-1609310348.A0 1609310348	-
9 - CYLINDRICAL ROLLER BSD-1609310302.A1 1609310302	-
10 - IMPACT MECHANISM HOUSING BSD-1609310349.A0 1609310349	-
11 - AIR-DEFLECTOR RING BSD-1609310074.A1 1609310074	-
12 - HOLDING SPRING BSD-3604650000.A1 3604650000	£11.30	£13.56
13 - CONTROL LEVER BSD-1609310300.A2 1609310300	-
14 - SLOTTED SPRING PIN BSD-1609310350.A1 1609310350	-
15 - SCREW PLUG BSD-1609310351.A0 1609310351	-
16 - NEEDLE ROLLER BSD-1609310021.A11 1609310021	-
17 - O-RING BSD-1609310352.A0 1609310352	-
18 - VALVE BUSHING BSD-1609310353.A2 1609310353	-
19 - BALL BSD-1609310076.A0 1609310076	-
20 - COMPRESSION SPRING BSD-1609310354.A0 1609310354	-
21 - STRAINER BSD-1609310355.A2 1609310355	-
22 - O-RING BSD-1609310118.A2 1609310118	-
23 - FITTING BSD-1609310356.A0 1609310356	-
24 - SEALING DISK BSD-1609310357.A1 1609310357	-
95 - NAMEPLATE BSD-1601107008.A0 1601107008	-
96 - MANUFACTURER'S NAMEPLATE BSD-1601110107.A0 1601110107	-
97 - ROUND-HEAD GROOVED PIN BSD-1609310358.A0 1609310358	-
650 - HOSE FITTING BSD-1609310043.A0 1609310043	-

Attribute Name	Value
Brand	Bosch
