Black & Decker P2128 Type 1 Drill Spare Parts

Black & Decker P2128 Type 1 Drill Spare Parts
Home Details Reviews Delivery

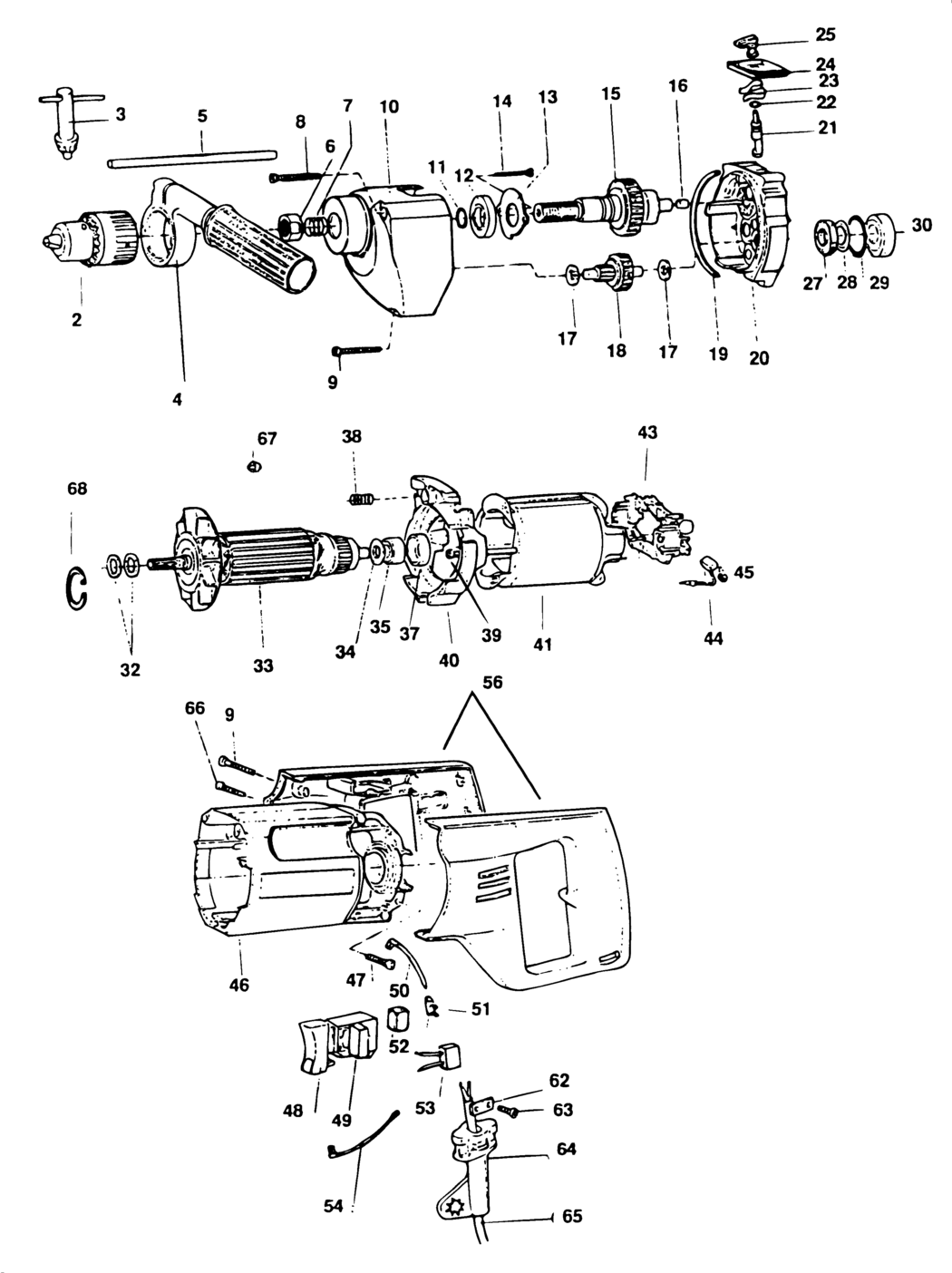

An exploded drawing and spare parts listing for the Black & Decker P2128 Type 1 Drill
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE S8 BDE-000000-00.A72649 000000-00 -
1 - NO LONGER AVAILABLE S2A BDE-000000-00.A72650 000000-00 -
2 - NO LONGER AVAILABLE S8 BDE-000000-00.A72651 000000-00 -
2 - CHUCK 13MM S2A BDE-5140071-68.A69 5140071-68 £14.57 £17.48
3 - CHUCK KEY S8 BDE-330034-07.A171 330034-07 £1.66 £1.99
3 - CHUCK KEY S2A BDE-330034-07.A172 330034-07 £1.66 £1.99
4 - NO LONGER AVAILABLE BDE-000000-00.A72652 000000-00 -
5 - NO LONGER AVAILABLE BDE-000000-00.A72653 000000-00 -
6 - NO LONGER AVAILABLE BDE-000000-00.A72654 000000-00 -
7 - NO LONGER AVAILABLE BDE-000000-00.A72655 000000-00 -
8 - SCREW BDE-930082-01.A32 930082-01 £1.50 £1.80
9 - SCREW BDE-931297-00.A95 931297-00 £1.50 £1.80
11 - O RING BDE-930028-00.A130 930028-00 £1.50 £1.80
12 - NO LONGER AVAILABLE BDE-000000-00.A72656 000000-00 -
13 - NO LONGER AVAILABLE BDE-000000-00.A72657 000000-00 -
14 - NO LONGER AVAILABLE BDE-000000-00.A72658 000000-00 -
15 - NO LONGER AVAILABLE BDE-000000-00.A72659 000000-00 -
16 - NO LONGER AVAILABLE BDE-000000-00.A72660 000000-00 -
17 - WASHER BDE-930102-00.A111 930102-00 £1.50 £1.80
18 - NO LONGER AVAILABLE BDE-000000-00.A72661 000000-00 -
19 - NO LONGER AVAILABLE BDE-000000-00.A72662 000000-00 -
20 - NO LONGER AVAILABLE BDE-000000-00.A72663 000000-00 -
21 - NO LONGER AVAILABLE BDE-000000-00.A72664 000000-00 -
22 - NO LONGER AVAILABLE BDE-000000-00.A72665 000000-00 -
23 - NO LONGER AVAILABLE BDE-000000-00.A72666 000000-00 -
24 - NO LONGER AVAILABLE BDE-000000-00.A72667 000000-00 -
25 - NO LONGER AVAILABLE BDE-000000-00.A72668 000000-00 -
26 - NO LONGER AVAILABLE BDE-000000-00.A72669 000000-00 -
27 - NO LONGER AVAILABLE BDE-000000-00.A72670 000000-00 -
28 - NO LONGER AVAILABLE BDE-000000-00.A72671 000000-00 -
29 - SEAL BDE-930039.A33 930039 £1.42 £1.70
30 - NO LONGER AVAILABLE BDE-000000-00.A72672 000000-00 -
31 - NO LONGER AVAILABLE BDE-000000-00.A72673 000000-00 -
32 - NO LONGER AVAILABLE BDE-000000-00.A72674 000000-00 -
33 - NO LONGER AVAILABLE BDE-000000-00.A72675 000000-00 -
34 - NO LONGER AVAILABLE BDE-000000-00.A72676 000000-00 -
35 - BEARING BDE-330003-02.A119 330003-02 -
36 - NO LONGER AVAILABLE BDE-000000-00.A72677 000000-00 -
37 - SLEEVE BDE-930275-00.A2 930275-00 £2.26 £2.71
38 - NO LONGER AVAILABLE BDE-000000-00.A72678 000000-00 -
39 - SCREW BDE-930077-00.A37 930077-00 £1.42 £1.70
40 - NO LONGER AVAILABLE BDE-000000-00.A72679 000000-00 -
41 - NO LONGER AVAILABLE BDE-000000-00.A72680 000000-00 -
42 - NO LONGER AVAILABLE BDE-000000-00.A72681 000000-00 -
43 - NO LONGER AVAILABLE BDE-000000-00.A72682 000000-00 -
44 - BRUSH CUT OFF BDE-939539-01.A17 939539-01 £2.78 £3.34
45 - BRUSH SPRING BDE-930090-00.A79 930090-00 £1.50 £1.80
47 - SCREW BDE-930284-01.A221 930284-01 £1.50 £1.80
48 - NO LONGER AVAILABLE BDE-000000-00.A72683 000000-00 -
49 - NO LONGER AVAILABLE BDE-000000-00.A72684 000000-00 -
50 - NO LONGER AVAILABLE BDE-000000-00.A72685 000000-00 -
51 - NO LONGER AVAILABLE BDE-000000-00.A72686 000000-00 -
52 - NO LONGER AVAILABLE BDE-000000-00.A72687 000000-00 -
53 - CAPACITOR BDE-949877-02.A4 949877-02 -
54 - NO LONGER AVAILABLE BDE-000000-00.A72688 000000-00 -
56 - NO LONGER AVAILABLE BDE-000000-00.A72689 000000-00 -
57 - NO LONGER AVAILABLE BDE-000000-00.A72690 000000-00 -
58 - NO LONGER AVAILABLE BDE-000000-00.A72691 000000-00 -
59 - NO LONGER AVAILABLE BDE-000000-00.A72692 000000-00 -
60 - NO LONGER AVAILABLE BDE-000000-00.A72693 000000-00 -
61 - NO LONGER AVAILABLE BDE-000000-00.A72694 000000-00 -
62 - CORD CLAMP BDE-930103-00.A95 930103-00 £1.50 £1.80
63 - NO LONGER AVAILABLE BDE-000000-00.A72707 000000-00 -
64 - NO LONGER AVAILABLE BDE-000000-00.A72708 000000-00 -
65 - NO LONGER AVAILABLE BDE-000000-00.A72709 000000-00 -
66 - SCREW BDE-930079-01.A158 930079-01 £1.42 £1.70
