Black & Decker GD300 Type 1 Lawnraker Spare Parts

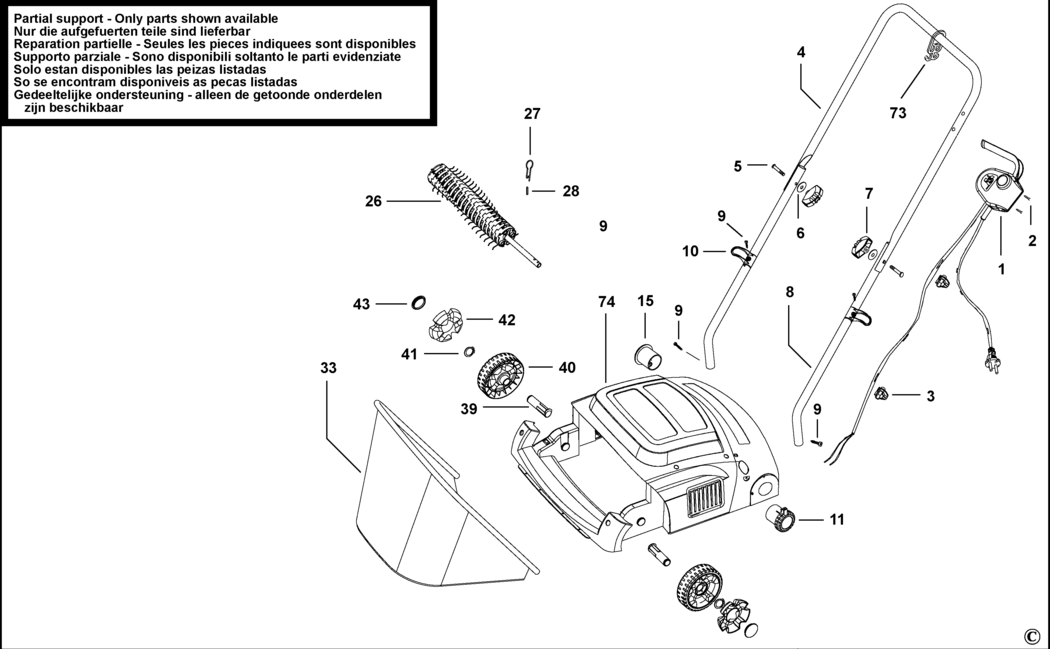

An exploded drawing and spare parts listing for the Black & Decker GD300 Type 1 Lawnraker

	Ex VAT	Inc VAT
1 - SWITCHBOX & CABLE GB BDE-1003771-00.A0 1003771-00	£74.15	£88.98
2 - SCREW BDE-1003773-00.A1 1003773-00	£1.50	£1.80
3 - CABLE GUIDE BDE-1003813-00.A4 1003813-00	£1.50	£1.80
4 - HANDLE UPPER BDE-1003775-00.A0 1003775-00	£9.41	£11.29
5 - BOLT BDE-1003812-00.A5 1003812-00	£1.50	£1.80
6 - WASHER BDE-1003811-00.A4 1003811-00	£1.50	£1.80
7 - KNOB BDE-1004776-61.A4 1004776-61	£1.50	£1.80
8 - LOWER HANDLE BDE-1003779-00.A0 1003779-00	£17.48	£20.97
9 - SCREW BDE-1003780-00.A1 1003780-00	£1.50	£1.80
10 - CABLE GUIDE BDE-1003809-00.A5 1003809-00	£1.50	£1.80
11 - WHEEL ADJUSTER BDE-1003782-00.A0 1003782-00	£4.69	£5.63
15 - WHEEL ADJUSTER BDE-1003783-00.A1 1003783-00	£4.69	£5.63
26 - COMB SA BDE-1004302-00.A1 1004302-00	£34.00	£40.80
27 - SPRING BDE-1003785-00.A0 1003785-00	£1.50	£1.80
28 - PIN BDE-1003786-00.A1 1003786-00	£1.50	£1.80
33 - BAG COLLECTION BDE-1003787-00.A0 1003787-00	£38.80	£46.56
39 - SHAFT BDE-1003788-00.A1 1003788-00	£10.85	£13.02
40 - WHEEL BDE-1003789-00.A0 1003789-00	£16.03	£19.24
41 - RING BDE-1003790-00.A1 1003790-00	£1.50	£1.80
42 - COVER BDE-1003801-00.A2 1003801-00	£1.50	£1.80
43 - COVER BDE-1003803-00.A5 1003803-00	£1.50	£1.80
73 - HOOK BDE-1003821-00.A6 1003821-00	£1.50	£1.80
74 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE GB BDE-000000-05.A138 000000-05	-

Attribute Name	Value
Brand	Black & Decker
