Black & Decker EMAX38i Type 5 Rotary Mower Spare Parts

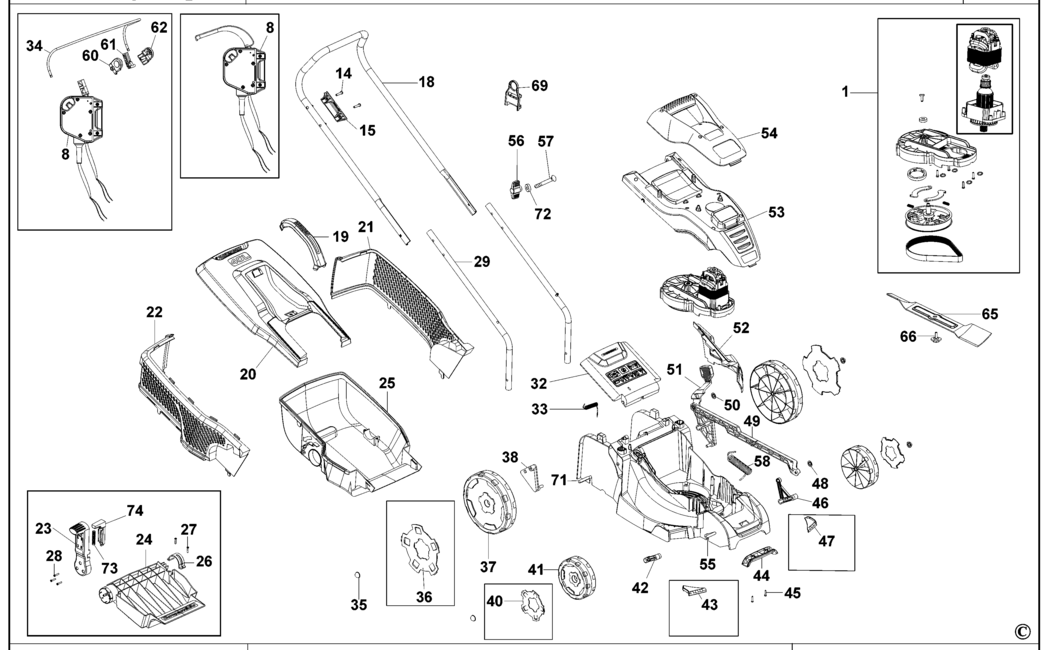

An exploded drawing and spare parts listing for the Black & Decker EMAX38i Type 5 Rotary Mower

	Ex VAT	Inc VAT
1 - TRANSMISSION SA BDE-N538644 N538644	£125.16	£150.19
8 - SWITCHBOX & CABLE BDE-N531930 N531930	-
14 - SCREW BDE-747329.A647 747329	£1.50	£1.80
15 - BRACKET BDE-90563921-01.A1 90563921-01	£1.50	£1.80
18 - HANDLE UPPER BDE-90569080.A5 90569080	£37.35	£44.82
19 - HANDLE BDE-90567333.A10 90567333	£2.78	£3.34
20 - COVER BDE-90562894-07 90562894-07	-
21 - GRASSBOX LEFT BDE-90566705.A2 90566705	£7.18	£8.62
22 - GRASSBOX RIGHT BDE-90566706.A4 90566706	£7.18	£8.62
24 - TRAY BDE-90569043.A3 90569043	£14.57	£17.48
25 - GRASSBOX BDE-90568884-01.A0 90568884-01	£19.90	£23.88
26 - CLAMP BDE-90567440.A14 90567440	£1.50	£1.80
27 - SCREW BDE-747329.A648 747329	£1.50	£1.80
28 - SCREW BDE-747329.A649 747329	£1.50	£1.80
29 - HANDLE BDE-90568475-01.A1 90568475-01	£16.03	£19.24
31 - SCREW BDE-90589823.A19 90589823	£1.50	£1.80
32 - GRASSFLAP BDE-90566704-02.A1 90566704-02	£7.18	£8.62
33 - SPRING BDE-90571059.A1 90571059	£1.50	£1.80
35 - WASHER LOCK BDE-90574276.A13 90574276	£1.50	£1.80
36 - COVER BDE-90567334.A10 90567334	£1.50	£1.80
37 - WHEEL BDE-90560300.A5 90560300	£7.01	£8.41
38 - BRACKET BDE-90561676-01.A11 90561676-01	£2.26	£2.71
40 - COVER BDE-90567335.A4 90567335	£1.50	£1.80
41 - WHEEL BDE-90560001.A16 90560001	£3.22	£3.86
42 - BRACKET BDE-90561653.A16 90561653	£1.50	£1.80
43 - HOUSING LOWER BDE-90577288-02.A1 90577288-02	-
44 - HANDLE BDE-90567331.A0 90567331	£1.42	£1.70
45 - SCREW BDE-747329.A650 747329	£1.50	£1.80
46 - BRACKET BDE-90561677.A5 90561677	£1.50	£1.80
47 - HOUSING LOWER BDE-90577288-02.A2 90577288-02	-
48 - WASHER LOCK BDE-90579431.A5 90579431	£1.50	£1.80
49 - LEVER BDE-90562575.A2 90562575	£5.88	£7.06
50 - WASHER LOCK BDE-90579432.A16 90579432	£1.50	£1.80
51 - LEVER BDE-90567592-02.A0 90567592-02	£5.88	£7.06
52 - COVER BDE-90566707.A2 90566707	£5.88	£7.06
53 - COVER SA BDE-90577141-01.A2 90577141-01	-
54 - HOUSING UPPER BDE-90563022-01.A2 90563022-01	-
55 - AXLE FRONT BDE-90561651.A5 90561651	£5.88	£7.06
56 - WING NUT BDE-90570279-01.A131 90570279-01	£1.50	£1.80
57 - BOLT BDE-90570805.A19 90570805	£1.50	£1.80
58 - SPRING BDE-90569681.A1 90569681	£1.50	£1.80
65 - BLADE BDE-90560645-01.A1 90560645-01	£12.17	£14.60
66 - BOLT BDE-90516533.A0 90516533	£1.50	£1.80
69 - CLIP CABLE BDE-90568882-01.A0 90568882-01	£1.50	£1.80
71 - AXLE REAR BDE-90561605.A3 90561605	£7.18	£8.62
72 - WASHER BDE-490624-00.A6 490624-00	£1.50	£1.80
73 - SPRING BDE-90570095.A14 90570095	£1.50	£1.80
74 - LEVER BDE-90567408.A4 90567408	£1.50	£1.80

Attribute Name	Value
Brand	Black & Decker
