Black & Decker EMAX38 Type 1 Rotary Mower Spare Parts

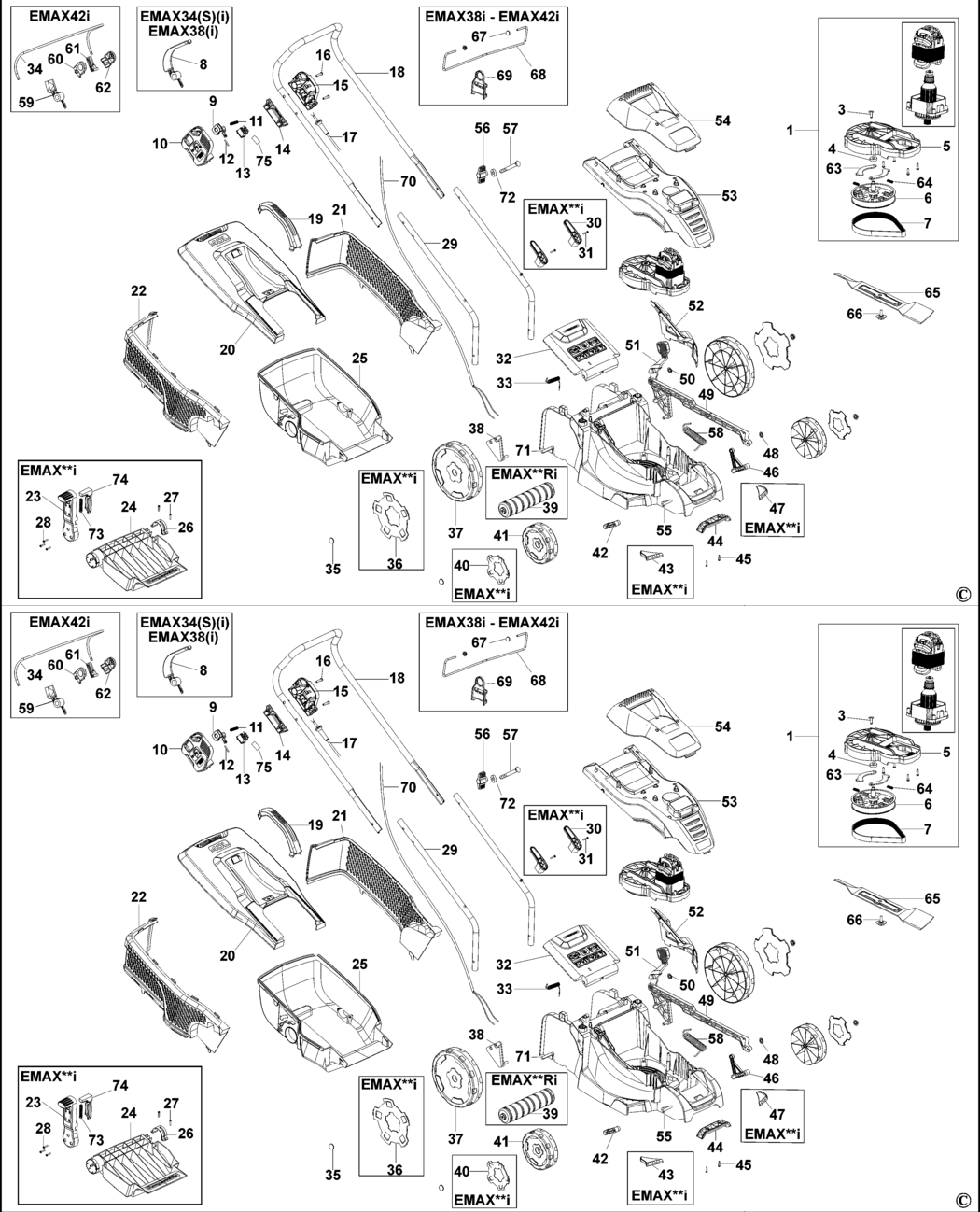

An exploded drawing and spare parts listing for the Black & Decker EMAX38 Type 1 Rotary Mower

	Ex VAT	Inc VAT
1 - TRANSMISSION SA GB BDE-90635929.A1 90635929	£128.18	£153.81
3 - BOLT BDE-90579523.A4 90579523	£1.50	£1.80
3 - BOLT BDE-90639221.A10 90639221	£1.66	£1.99
4 - BEARING BDE-574853-05.A10 574853-05	£3.30	£3.96
4 - NO LONGER AVAILABLE BDE-000000-00.A30373 000000-00	-
4 - BEARING BDE-574853-12.A3 574853-12	-
5 - BRACKET BDE-90560309.A3 90560309	-
6 - PULLEY BDE-90560305.A5 90560305	-
7 - BELT BDE-90560308.A7 90560308	£16.03	£19.24
8 - SWITCHBOX & CABLE GB BDE-N510979.A1 N510979	£55.30	£66.36
9 - SWITCHBOX & CABLE BDE-90577008-04 90577008-04	-
9 - SWITCHBOX & CABLE GB BDE-N510979.A2 N510979	£55.30	£66.36
9 - SWITCHBOX & CABLE BDE-90577008-03 90577008-03	-
10 - SWITCHBOX & CABLE GB BDE-N510979.A3 N510979	£55.30	£66.36
11 - SPRING BDE-90570092.A2 90570092	-
12 - SPRING BDE-90565052-01.A0 90565052-01	-
12 - NO LONGER AVAILABLE BDE-000000-00.A30374 000000-00	-
13 - SWITCH BDE-90562582.A5 90562582	£3.80	£4.56
14 - BRACKET BDE-90563921-01.A7 90563921-01	£1.50	£1.80
15 - SWITCHBOX & CABLE GB BDE-N510979.A4 N510979	£55.30	£66.36
17 - NO LONGER AVAILABLE GB BDE-000000-00.A30375 000000-00	-
18 - HANDLE UPPER BDE-90569080.A2 90569080	£37.35	£44.82
19 - HANDLE BDE-90567333.A21 90567333	£2.78	£3.34
20 - COVER BDE-90562894-01.A3 90562894-01	£15.63	£18.76
21 - GRASSBOX LEFT BDE-90566705.A5 90566705	£7.18	£8.62
22 - GRASSBOX RIGHT BDE-90566706.A1 90566706	£7.18	£8.62
23 - PEDAL BDE-90566450.A4 90566450	£2.21	£2.65
24 - TRAY BDE-90569043.A1 90569043	£14.57	£17.48
25 - GRASSBOX BDE-90568884-01.A4 90568884-01	£19.90	£23.88
26 - CLAMP BDE-90567440.A1 90567440	£1.50	£1.80
27 - SCREW BDE-747329.A195 747329	£1.50	£1.80
28 - SCREW BDE-747329.A196 747329	£1.50	£1.80
29 - HANDLE BDE-90568475.A0 90568475	£17.48	£20.97
29 - HANDLE BDE-90568475-01.A2 90568475-01	£16.03	£19.24
30 - CLIP CABLE BDE-90571019.A9 90571019	£1.50	£1.80
31 - SCREW BDE-90580712.A1 90580712	-
32 - GRASSFLAP BDE-90566704.A2 90566704	£7.85	£9.42
33 - SPRING BDE-90571059.A13 90571059	£1.50	£1.80
35 - WASHER LOCK BDE-90574276.A3 90574276	£1.50	£1.80
36 - COVER BDE-90567334.A5 90567334	£1.50	£1.80
37 - WHEEL BDE-90560300.A8 90560300	£7.01	£8.41
38 - BRACKET BDE-90561676.A4 90561676	£4.69	£5.63
38 - BRACKET BDE-90561676-01.A4 90561676-01	£2.26	£2.71
39 - ROLLER BDE-90565682.A1 90565682	£5.88	£7.06
40 - COVER BDE-90567335.A9 90567335	£1.50	£1.80
41 - WHEEL BDE-90560001.A3 90560001	£3.22	£3.86
42 - BRACKET BDE-90561653.A8 90561653	£1.50	£1.80
43 - CAP BDE-90569292.A1 90569292	£1.42	£1.70
44 - HANDLE BDE-90567331.A6 90567331	£1.42	£1.70
45 - SCREW BDE-747329.A200 747329	£1.50	£1.80
46 - BRACKET BDE-90561677.A14 90561677	£1.50	£1.80
47 - CAP BDE-90569293.A2 90569293	£1.42	£1.70
48 - WASHER LOCK BDE-90579431.A15 90579431	£1.50	£1.80
49 - LEVER BDE-90562575.A6 90562575	£5.88	£7.06
50 - WASHER LOCK BDE-90579432.A6 90579432	£1.50	£1.80
51 - LEVER BDE-90567592-02.A15 90567592-02	£5.88	£7.06
52 - COVER BDE-90566707.A6 90566707	£5.88	£7.06
53 - COVER HOUSING BDE-90563023.A5 90563023	£17.48	£20.97
54 - HOUSING UPPER BDE-90563022.A7 90563022	£9.17	£11.00
55 - AXLE FRONT BDE-90561651.A2 90561651	£5.88	£7.06
56 - WING NUT BDE-90570279-01.A102 90570279-01	£1.50	£1.80
56 - WING NUT BDE-90570279-01.A122 90570279-01	£1.50	£1.80
57 - BOLT BDE-90570805.A2 90570805	£1.50	£1.80
58 - SPRING BDE-90569681.A14 90569681	£1.50	£1.80
63 - NO LONGER AVAILABLE BDE-000000-00.A30376 000000-00	-
63 - PAD BDE-90561984.A4 90561984	-
64 - SPRING BDE-90571573.A5 90571573	-
65 - BLADE BDE-90560645-01.A3 90560645-01	£12.17	£14.60
65 - BLADE BDE-90560645.A0 90560645	£14.57	£17.48
66 - BOLT BDE-90516533.A17 90516533	£1.50	£1.80
67 - WASHER LOCK BDE-90574274.A1 90574274	£1.50	£1.80
68 - GUIDE BDE-90580512.A3 90580512	£4.69	£5.63
69 - CLIP CABLE BDE-90568882.A1 90568882	£1.42	£1.70
70 - NO LONGER AVAILABLE BDE-000000-00.A30377 000000-00	-
70 - CABLE BDE-90573705.A1 90573705	-
71 - AXLE REAR BDE-90561605.A5 90561605	£7.18	£8.62
72 - WASHER BDE-490624-00.A10 490624-00	£1.50	£1.80
73 - SPRING BDE-90570095.A0 90570095	£1.50	£1.80
74 - LEVER BDE-90567408.A11 90567408	£1.50	£1.80
75 - PAD BDE-90585848.A2 90585848	-
75 - NO LONGER AVAILABLE BDE-000000-00.A30378 000000-00	-
