Black & Decker MT18SSK Type 1 Shrub Trimmer Spare Parts

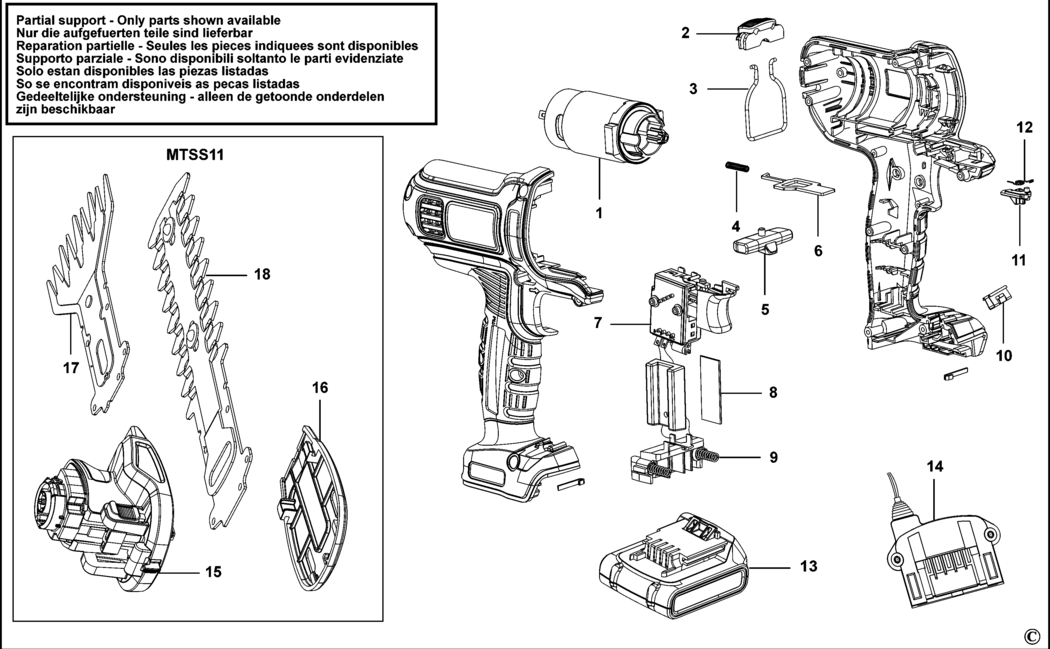

An exploded drawing and spare parts listing for the Black & Decker MT18SSK Type 1 Shrub Trimmer

	Ex VAT	Inc VAT
1 - MOTOR SA & MOUNT BDE-90585033.A0 90585033	-
2 - BUTTON BDE-90566493.A0 90566493	£1.66	£1.99
3 - SPRING CLIP BDE-90566084.A13 90566084	£1.66	£1.99
4 - SPRING COMPRESSION BDE-90569610.A7 90569610	£1.66	£1.99
5 - ACTUATOR FWD/REV BDE-90566412-03.A2 90566412-03	£1.66	£1.99
6 - PLATE LOCK BDE-90564839-01.A4 90564839-01	£2.78	£3.34
7 - SWITCH BDE-90584431-03.A0 90584431-03	£44.14	£52.97
8 - HEATSHIELD BDE-90570142.A3 90570142	£1.66	£1.99
9 - SPRING BDE-5100035-03.A55 5100035-03	£1.66	£1.99
10 - HOLDER BDE-148354-03.A463 148354-03	£1.66	£1.99
11 - LOCKING DEVICE BDE-90570144-01.A9 90570144-01	£1.66	£1.99
12 - SPRING TORSION BDE-90570087.A6 90570087	£1.66	£1.99
13 - BATTERY 18V - 1.5AH - 27WH BDE-90641356.A12 90641356	£80.98	£97.18
14 - CHARGER SA GB BDE-N588715.A37 N588715	£34.00	£40.80
15 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE BDE-000000-05.A552 000000-05	-
16 - COVER BDE-90605357.A0 90605357	£2.21	£2.65
17 - BLADE SA BDE-90590580.A4 90590580	£12.17	£14.60
18 - BLADE SA BDE-90588614.A1 90588614	£16.03	£19.24

Attribute Name	Value
Brand	Black & Decker
