Black & Decker GTC610 Type H3 C'less Hedgetrimmer Spare Parts

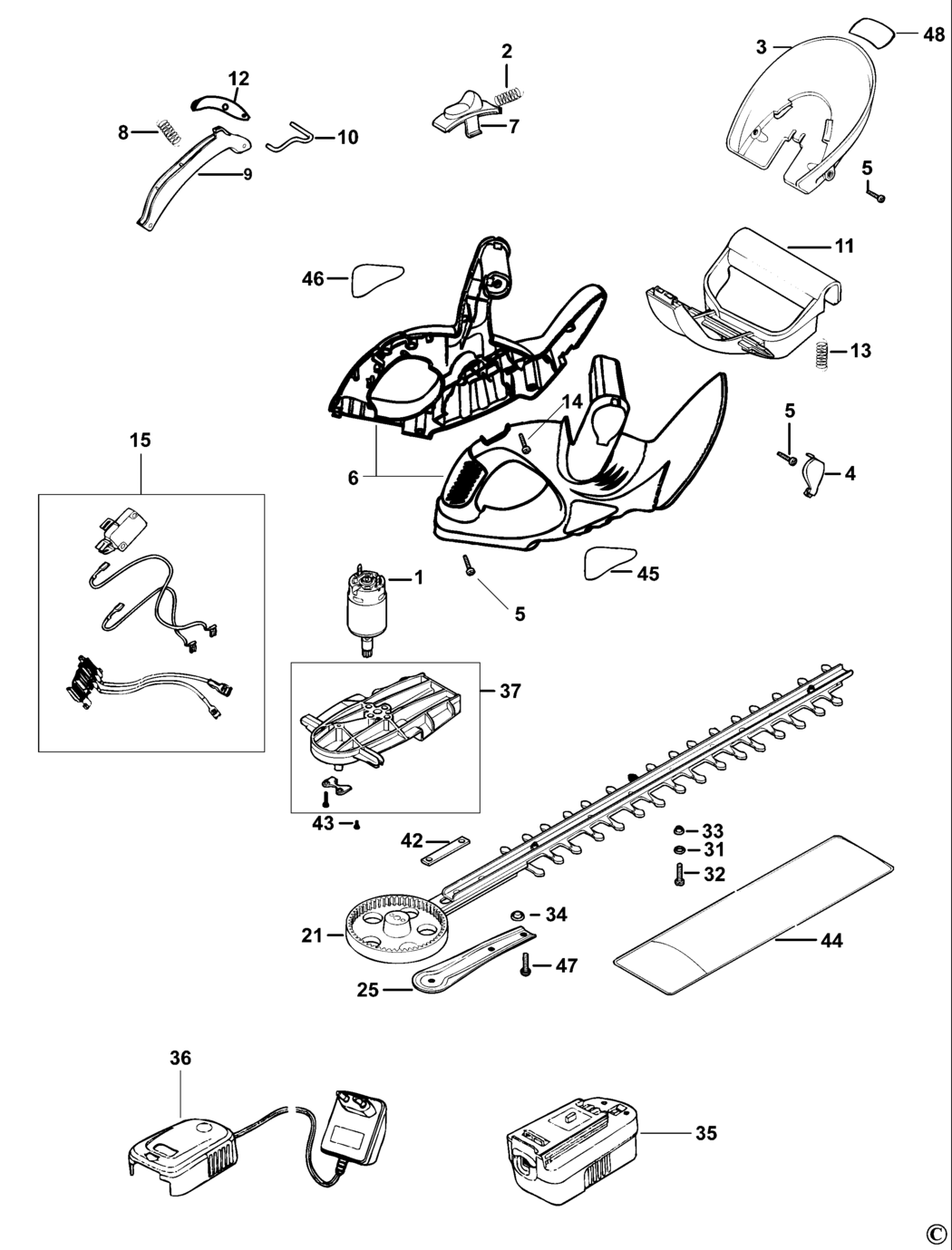

An exploded drawing and spare parts listing for the Black & Decker GTC610 Type H3 C'less Hedgetrimmer

	Ex VAT	Inc VAT
1 - MOTOR & PINION BDE-571833-02.A1 571833-02	-
2 - SPRING BDE-5103502-00.A4 5103502-00	£1.66	£1.99
3 - GUARD BDE-574137-11.A0 574137-11	£4.58	£5.49
4 - CAP BDE-574095-21.A0 574095-21	£1.66	£1.99
5 - SCREW BDE-5103541-00.A14 5103541-00	£1.66	£1.99
6 - CLAMSHELL SET BDE-584811-01.A2 584811-01	£17.03	£20.44
7 - LOCK BUTTON BDE-576736-11.A2 576736-11	£1.66	£1.99
8 - SPRING BDE-5103503-00.A1 5103503-00	£1.66	£1.99
9 - NO LONGER AVAILABLE BDE-000000-00.A29726 000000-00	-
10 - NO LONGER AVAILABLE BDE-000000-00.A29727 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A29728 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A29729 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A29730 000000-00	-
14 - SCREW BDE-5103555-00.A0 5103555-00	£1.66	£1.99
15 - SWITCH SA BDE-5103535-00.A0 5103535-00	£10.57	£12.68
21 - NO LONGER AVAILABLE BDE-000000-00.A29731 000000-00	-
25 - GEARCASE COVER BDE-571828-01.A3 571828-01	£1.66	£1.99
31 - NO LONGER AVAILABLE BDE-000000-00.A29734 000000-00	-
32 - BOLT BDE-371954-01.A108 371954-01	£1.66	£1.99
33 - NO LONGER AVAILABLE BDE-000000-00.A29732 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A29733 000000-00	-
35 - BATTERY 18V - 1.5AH - 27WH GTC610 BDE-5103553-00.A36 5103553-00	-
35 - BATTERY 18V - 1.5AH - 27WH GTC610B BDE-5103553-00.A37 5103553-00	-
36 - CHARGER GB BDE-90613804.A1 90613804	-
37 - GEARBOX SA BDE-571824-02.A0 571824-02	£7.01	£8.41
42 - COVERPLATE BDE-370927-01.A2 370927-01	£1.66	£1.99
43 - SCREW BDE-311940-03.A0 311940-03	£1.66	£1.99
44 - NO LONGER AVAILABLE BDE-000000-00.A29735 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A29736 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A29737 000000-00	-
47 - BOLT BDE-90527921.A24 90527921	£1.66	£1.99
48 - NO LONGER AVAILABLE BDE-000000-00.A29738 000000-00	-
