Black & Decker GTC610 Type H1 - H2 C'less Hedgetrimmer Spare Parts

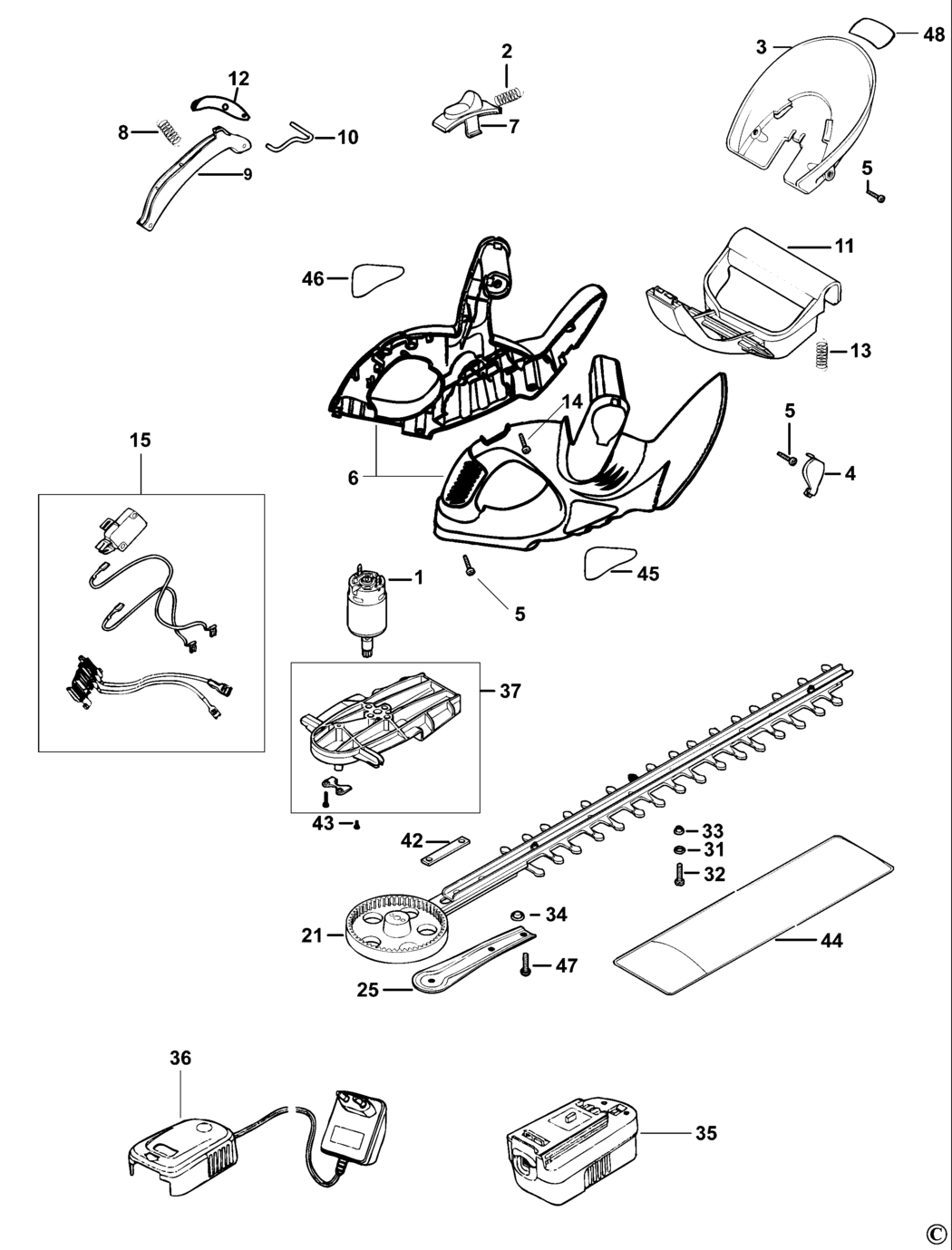

An exploded drawing and spare parts listing for the Black & Decker GTC610 Type H1 - H2 C'less Hedgetrimmer

	Ex VAT	Inc VAT
1 - MOTOR & PINION BDE-571833-02.A2 571833-02	-
2 - SPRING BDE-5103502-00.A5 5103502-00	£1.42	£1.70
3 - NO LONGER AVAILABLE BDE-000000-00.A25778 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A25779 000000-00	-
5 - SCREW BDE-5103541-00.A15 5103541-00	£1.42	£1.70
6 - NO LONGER AVAILABLE BDE-000000-00.A25780 000000-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A25781 000000-00	-
8 - SPRING BDE-5103503-00.A0 5103503-00	£1.42	£1.70
9 - NO LONGER AVAILABLE BDE-000000-00.A25782 000000-00	-
10 - NO LONGER AVAILABLE BDE-000000-00.A25783 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A25784 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A25785 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A25786 000000-00	-
14 - SCREW BDE-5103555-00.A1 5103555-00	£1.42	£1.70
15 - NO LONGER AVAILABLE BDE-000000-00.A25787 000000-00	-
21 - NO LONGER AVAILABLE BDE-000000-00.A25788 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A25789 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A25790 000000-00	-
32 - BOLT BDE-371954-01.A101 371954-01	£1.50	£1.80
33 - NUT M5 BDE-798755.A13 798755	-
34 - NO LONGER AVAILABLE BDE-000000-00.A25791 000000-00	-
35 - BATTERY 18V - 1.5AH - 27WH GT610 BDE-5103553-00.A34 5103553-00	-
35 - BATTERY 18V - 1.7AH GT610P BDE-5100385-57.A12 5100385-57	-
36 - CHARGER GB BDE-90613804.A13 90613804	-
37 - NO LONGER AVAILABLE BDE-000000-00.A25795 000000-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A25796 000000-00	-
43 - SCREW BDE-311940-03.A1 311940-03	£1.50	£1.80
44 - NO LONGER AVAILABLE BDE-000000-00.A25792 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A25793 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A25794 000000-00	-
47 - BOLT BDE-5103514-00.A8 5103514-00	£1.42	£1.70
48 - NO LONGER AVAILABLE BDE-000000-00.A25797 000000-00	-

Attribute Name	Value
Brand	Black & Decker
