Black & Decker GL710 Type 5 String Trimmer Spare Parts

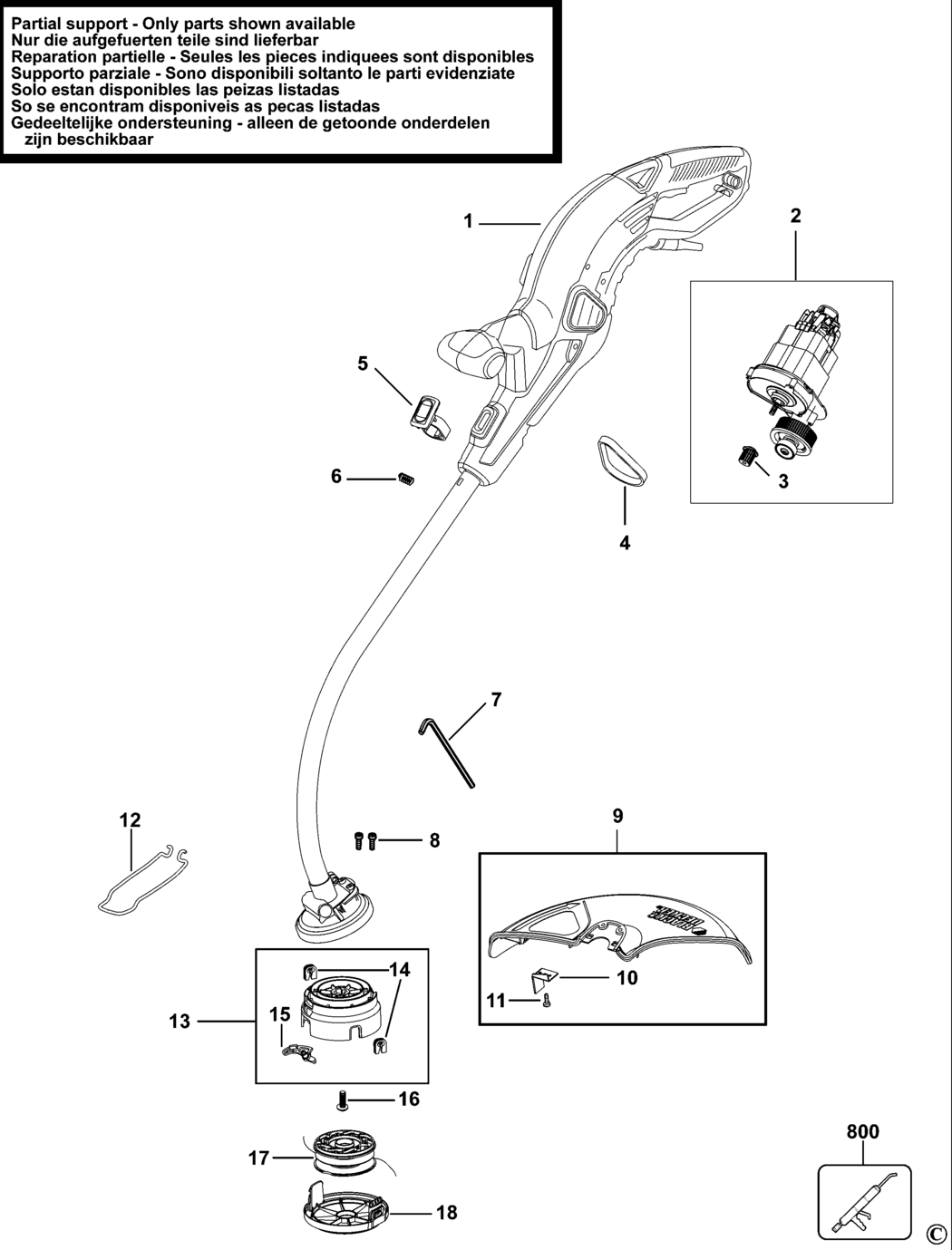

An exploded drawing and spare parts listing for the Black & Decker GL710 Type 5 String Trimmer

	Ex VAT	Inc VAT
1 - PARTIAL SUPPORT - ONLY PARTS LISTED AVAILABLE GB BDE-000000-05.A487 000000-05	-
2 - NO LONGER AVAILABLE BDE-000000-00.A30226 000000-00	-
3 - DRIVE PULLEY BDE-478626-00.A13 478626-00	£1.50	£1.80
4 - BELT BDE-90552006.A7 90552006	£5.88	£7.06
5 - BUTTON BDE-478517-00.A4 478517-00	-
6 - SPRING BDE-580936-00.A29 580936-00	£1.50	£1.80
7 - NO LONGER AVAILABLE BDE-000000-00.A30227 000000-00	-
8 - SCREW BDE-098119-23.A4 098119-23	-
9 - GUARD 12" BDE-479749-00.A12 479749-00	£5.88	£7.06
10 - BLADE BDE-487837-00.A0 487837-00	-
11 - SCREW BDE-681914-00.A25 681914-00	£1.50	£1.80
12 - GUIDE BDE-479698-00.A14 479698-00	-
13 - HOUSING BDE-90529877.A12 90529877	-
14 - EYELET BDE-495570-00.A15 495570-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A30228 000000-00	-
16 - BOLT BDE-371954-01.A124 371954-01	£1.50	£1.80
17 - SPOOL SA BDE-90553688.A14 90553688	£5.88	£7.06
18 - COVER SPOOL BDE-90529055-01.A17 90529055-01	£3.80	£4.56
800 - GREASE 100 GMS BDE-492241-00.A17 492241-00	-
