Black & Decker GL690 Type 1 String Trimmer Spare Parts

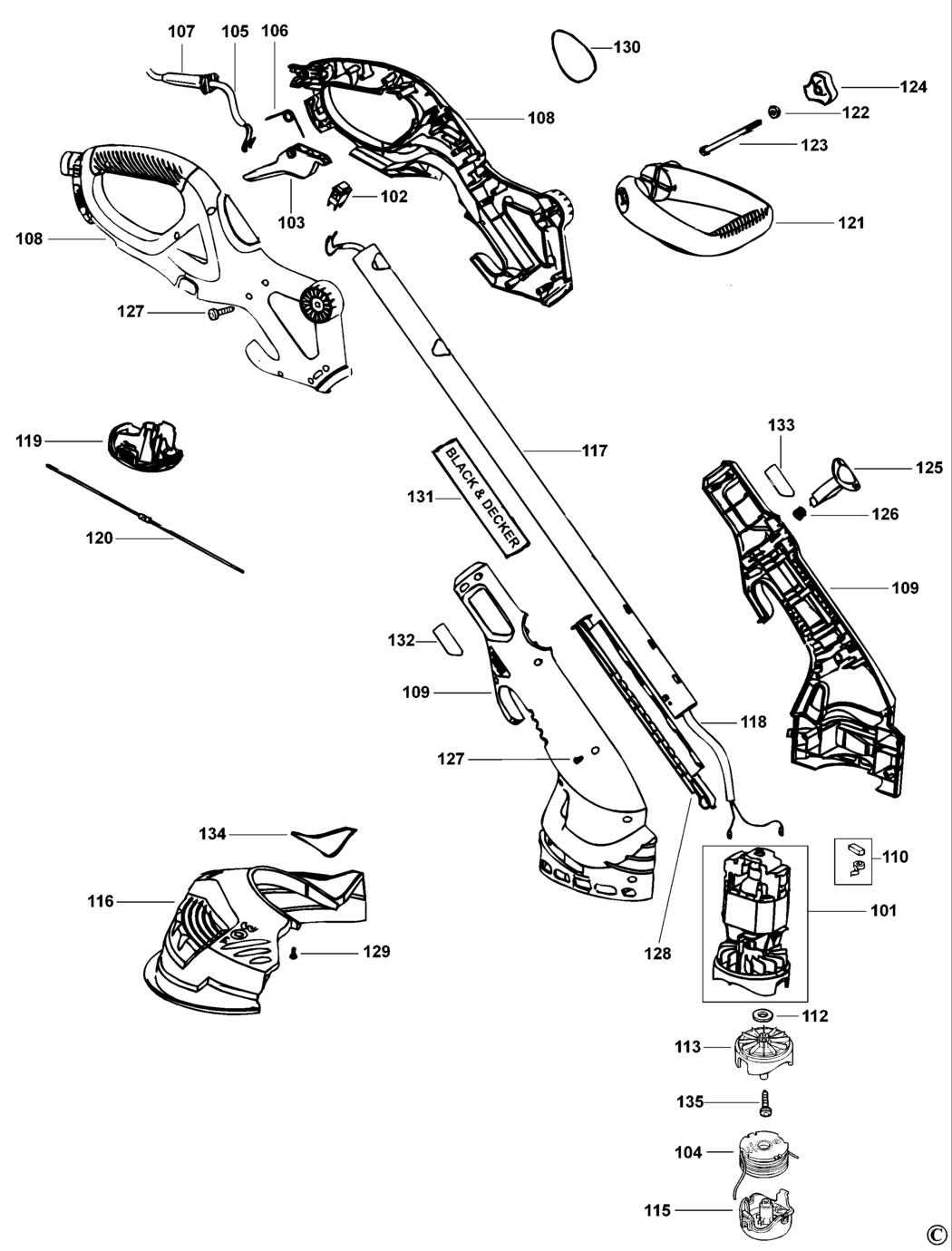

An exploded drawing and spare parts listing for the Black & Decker GL690 Type 1 String Trimmer

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE BDE-000000-00.A90983 000000-00	-
102 - SWITCH BDE-579318-00.A36 579318-00	£4.69	£5.63
103 - NO LONGER AVAILABLE BDE-000000-00.A90989 000000-00	-
104 - SPOOL & LINE BDE-575462-00.A2 575462-00	-
105 - NO LONGER AVAILABLE GB BDE-000000-00.A90990 000000-00	-
106 - NO LONGER AVAILABLE BDE-000000-00.A90991 000000-00	-
107 - CORD PROTECTOR BDE-806603.A71 806603	-
108 - NO LONGER AVAILABLE BDE-000000-00.A90992 000000-00	-
109 - CLAMSHELL SET BDE-579806-00.A1 579806-00	-
110 - NO LONGER AVAILABLE BDE-000000-00.A91013 000000-00	-
112 - CLIP BDE-581162-00.A2 581162-00	-
113 - HOUSING BDE-581237-00.A0 581237-00	-
115 - COVER SA BDE-575648-03.A2 575648-03	-
116 - NO LONGER AVAILABLE BDE-000000-00.A90993 000000-00	-
117 - NO LONGER AVAILABLE BDE-000000-00.A90994 000000-00	-
118 - NO LONGER AVAILABLE BDE-000000-00.A90995 000000-00	-
119 - COVER SA BDE-579838-00.A1 579838-00	-
120 - BLADE Heavy Duty BDE-580203-01.A1 580203-01	-
121 - NO LONGER AVAILABLE BDE-000000-00.A91008 000000-00	-
122 - NO LONGER AVAILABLE BDE-000000-00.A91009 000000-00	-
123 - NO LONGER AVAILABLE BDE-000000-00.A91010 000000-00	-
124 - NO LONGER AVAILABLE BDE-000000-00.A91011 000000-00	-
125 - NO LONGER AVAILABLE BDE-000000-00.A91012 000000-00	-
126 - SPRING BDE-580936-00.A9 580936-00	£1.50	£1.80
127 - SCREW BDE-747329.A870 747329	£1.50	£1.80
128 - NO LONGER AVAILABLE BDE-000000-00.A90996 000000-00	-
129 - NO LONGER AVAILABLE BDE-000000-00.A90997 000000-00	-
130 - NO LONGER AVAILABLE BDE-000000-00.A90998 000000-00	-
131 - NO LONGER AVAILABLE BDE-000000-00.A90999 000000-00	-
132 - NO LONGER AVAILABLE BDE-000000-00.A91000 000000-00	-
133 - NO LONGER AVAILABLE BDE-000000-00.A91001 000000-00	-
134 - NO LONGER AVAILABLE BDE-000000-00.A91002 000000-00	-
135 - NO LONGER AVAILABLE BDE-000000-00.A91003 000000-00	-

Attribute Name	Value
Brand	Black & Decker
