Black & Decker RS890 Type 1 Cut Saw Spare Parts

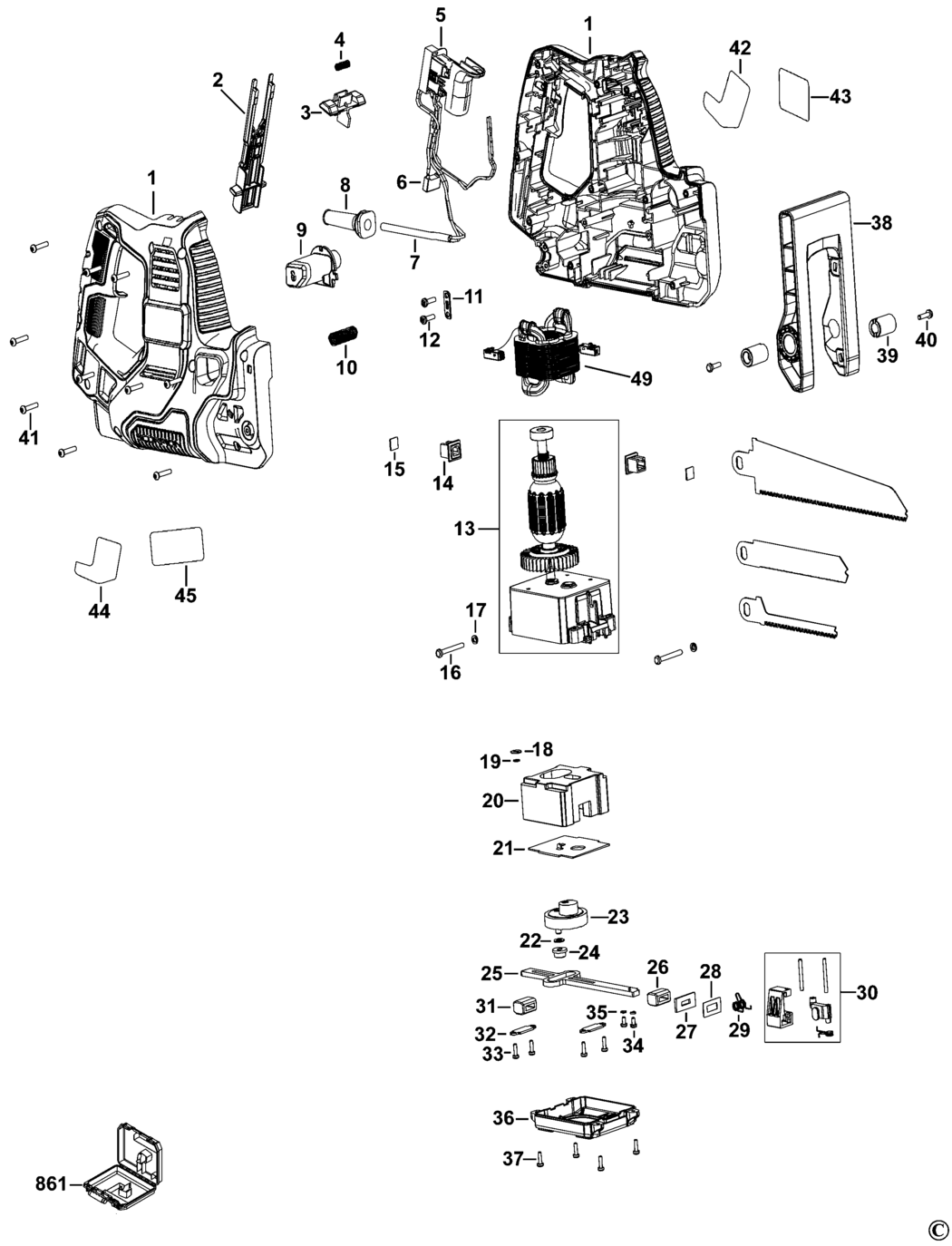

An exploded drawing and spare parts listing for the Black & Decker RS890 Type 1 Cut Saw

	Ex VAT	Inc VAT
1 - CLAMSHELL SET BDE-90583808 90583808	£25.70	£30.84
2 - ACTUATOR BDE-90588213 90588213	£1.50	£1.80
3 - SWITCH LOCK OFF BDE-90584063N 90584063N	£1.50	£1.80
4 - SPRING BDE-90532974.A4 90532974	-
5 - SWITCH BDE-90585223 90585223	£14.57	£17.48
6 - CAPACITOR BDE-90551199.A1 90551199	£1.50	£1.80
7 - CORDSET (M/PLUG) GB GB BDE-90578997-35 90578997-35	£16.03	£19.24
8 - PROTECTOR BDE-770235.A424 770235	£1.50	£1.80
9 - BUTTON RELEASE BDE-90585699 90585699	£1.50	£1.80
10 - SPRING BDE-90581764 90581764	£1.50	£1.80
11 - CORD CLAMP BDE-329301-00.A252 329301-00	£1.50	£1.80
12 - SCREW BDE-821057.A222 821057	£1.50	£1.80
13 - ARMATURE SA BDE-90597935 90597935	£41.24	£49.49
14 - INSERT BDE-875735.A38 875735	£1.50	£1.80
15 - INSERT BDE-90595464 90595464	£1.50	£1.80
16 - SCREW BDE-330019-06.A7 330019-06	£1.50	£1.80
17 - WASHER BDE-98197-03.A5 98197-03	£1.50	£1.80
18 - WASHER BDE-588593-00.A0 588593-00	£1.50	£1.80
19 - LOCKING RING BDE-588592-00.A2 588592-00	£1.50	£1.80
20 - CONNTERWEIGHT BDE-90584909 90584909	£14.57	£17.48
21 - PLATE THRUST BDE-90581138 90581138	£1.50	£1.80
22 - WASHER BDE-823954.A30 823954	£1.50	£1.80
23 - GEAR SA BDE-90597892 90597892	£17.48	£20.97
24 - DRIVE ROLLER BDE-90595094 90595094	£1.50	£1.80
25 - RECIPROCATOR BDE-90585683 90585683	£7.18	£8.62
26 - BEARING BDE-90585693.A1 90585693	£1.50	£1.80
27 - FELT SEAL BDE-90592973 90592973	£1.50	£1.80
28 - PLATE BDE-90590450 90590450	£1.50	£1.80
29 - SPRING BDE-90585684 90585684	£1.50	£1.80
30 - BLADE CLAMP BDE-90597891 90597891	£19.90	£23.88
31 - BEARING BDE-90585693.A0 90585693	£1.50	£1.80
32 - PLATE BDE-90593281 90593281	£1.50	£1.80
33 - SCREW BDE-98091-10.A68 98091-10	£1.50	£1.80
34 - SCREW BDE-324007-02 324007-02	£1.50	£1.80
35 - WASHER SPRING BDE-90572517 90572517	£1.50	£1.80
36 - GEARCASE COVER BDE-90584908 90584908	£1.50	£1.80
37 - SCREW BDE-98091-10.A67 98091-10	£1.50	£1.80
38 - SHOE BDE-90581135 90581135	£4.69	£5.63
39 - POST BDE-90582696 90582696	£1.50	£1.80
40 - SCREW BDE-330019-02.A96 330019-02	£1.50	£1.80
41 - SCREW BDE-375669.A1 375669	-
42 - LABEL BDE-90597134 90597134	£1.50	£1.80
43 - BRAND LABEL BDE-90589142 90589142	£1.50	£1.80
44 - LABEL BDE-90597215 90597215	£1.50	£1.80
45 - RATING PLATE GB BDE-90589143 90589143	£1.50	£1.80
49 - FIELD SA BDE-90597890 90597890	£24.39	£29.27
861 - KITBOX RS890K BDE-90590477NL 90590477NL	£19.90	£23.88
