Black & Decker KS900S(K) Type 1 Jigsaw Spare Parts

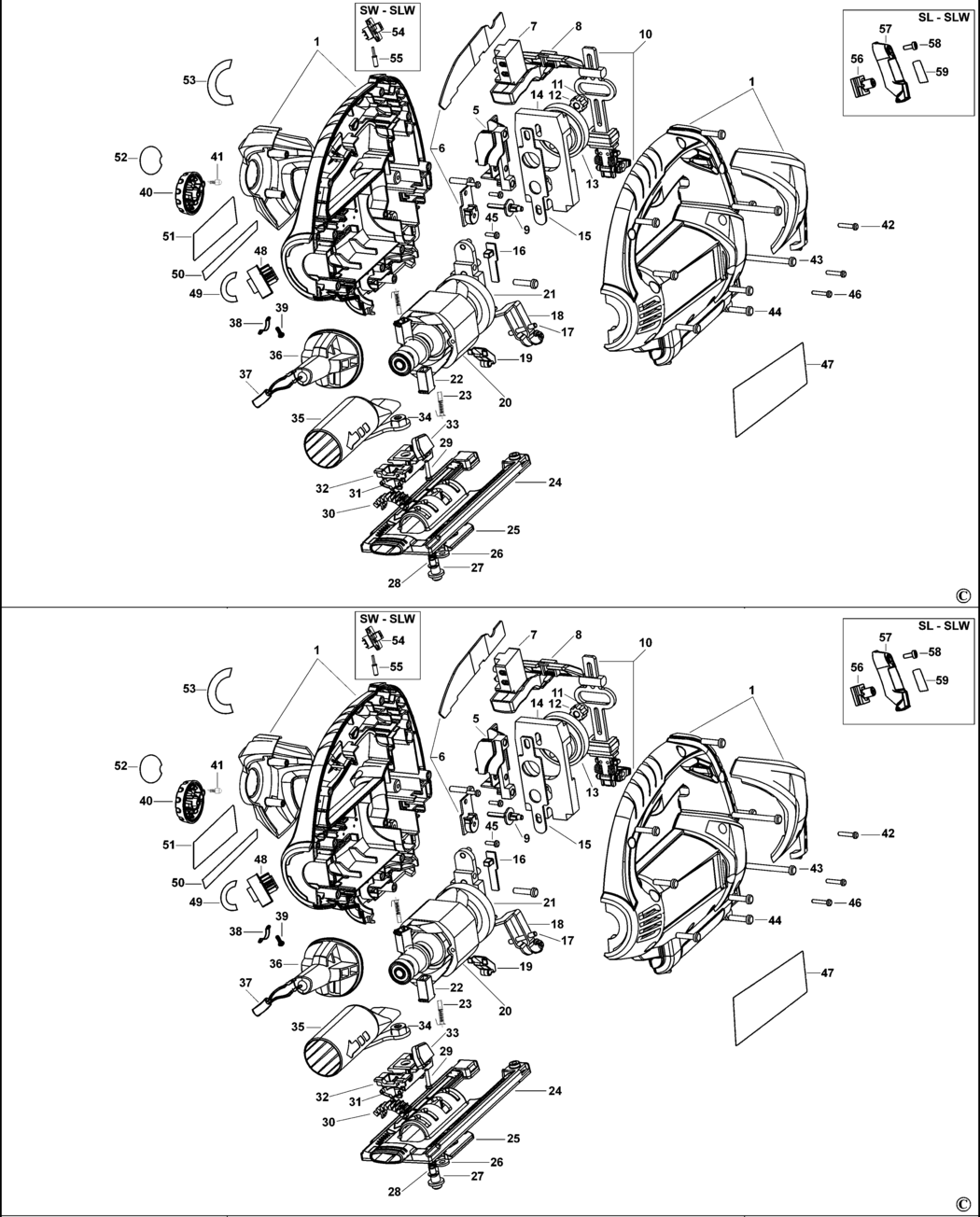

An exploded drawing and spare parts listing for the Black & Decker KS900S(K) Type 1 Jigsaw

	Ex VAT	Inc VAT
1 - CLAMSHELL SET to wk 08 2008 BDE-90523331.A1 90523331	£37.82	£45.38
1 - CLAMSHELL SET BDE-90523331.A2 90523331	£37.82	£45.38
1 - CLAMSHELL SA BDE-90532158.A0 90532158	£25.05	£30.06
1 - CLAMSHELL SA from wk08 2008 BDE-90532158.A1 90532158	£25.05	£30.06
1 - CLAMSHELL SET BDE-90544140 90544140	£38.80	£46.56
5 - SUPPORT BDE-90514323.A5 90514323	£1.66	£1.99
5 - SUPPORT BDE-90514323.A6 90514323	£1.66	£1.99
6 - PCB 230V BDE-90518917.A5 90518917	£25.05	£30.06
6 - PCB 230V BDE-90518917.A6 90518917	£25.05	£30.06
7 - SWITCH SA BDE-585385-00.A4 585385-00	£3.80	£4.56
7 - SWITCH SA BDE-585385-00.A5 585385-00	£3.80	£4.56
8 - ACTUATOR BDE-90517413.A8 90517413	-
8 - ACTUATOR BDE-90517413.A9 90517413	-
9 - CAM BDE-90514375.A10 90514375	£1.66	£1.99
9 - CAM BDE-90514375.A11 90514375	£1.66	£1.99
10 - CLAMP SA BDE-90517396.A1 90517396	£14.57	£17.48
10 - CLAMP SA BDE-90517396.A2 90517396	£14.57	£17.48
11 - WASHER BDE-823954.A26 823954	£1.66	£1.99
11 - WASHER BDE-823954.A27 823954	£1.66	£1.99
12 - ROLLER BDE-795688 795688	-
12 - ROLLER BDE-795688-00.A0 795688-00	£1.66	£1.99
13 - GEAR SA BDE-90517366.A6 90517366	£10.85	£13.02
13 - GEAR SA BDE-90517366.A7 90517366	£10.85	£13.02
14 - BALANCE WEIGHT BDE-90516114.A1 90516114	£12.17	£14.60
14 - BALANCE WEIGHT BDE-90516114.A2 90516114	£12.17	£14.60
15 - FORK BDE-90516213.A0 90516213	£1.66	£1.99
15 - FORK BDE-90516213.A1 90516213	£1.66	£1.99
16 - PLATE THRUST BDE-90514354.A4 90514354	£1.66	£1.99
16 - PLATE THRUST BDE-90514354.A5 90514354	£1.66	£1.99
17 - PIN BDE-90514424.A6 90514424	£1.66	£1.99
17 - PIN BDE-90514424.A7 90514424	£1.66	£1.99
18 - ROLLER SA BDE-90545786.A15 90545786	£4.69	£5.63
18 - ROLLER SA BDE-90545786.A16 90545786	£4.69	£5.63
19 - DUST PORT BDE-90514324.A10 90514324	£1.66	£1.99
19 - DUST PORT BDE-90514324.A11 90514324	£1.66	£1.99
20 - FIELD 230V BDE-90517308.A1 90517308	£19.90	£23.88
20 - FIELD 230V to wk 08 2008 BDE-90517308.A2 90517308	£19.90	£23.88
20 - FIELD SA from wk08 2008 BDE-90527452.A0 90527452	£18.42	£22.10
20 - FIELD SA BDE-90527452.A1 90527452	£18.42	£22.10
21 - ARMATURE SA BDE-90523334.A1 90523334	£38.80	£46.56
21 - ARMATURE SA to wk 08 2008 BDE-90523334.A2 90523334	£38.80	£46.56
21 - ARMATURE SA BDE-90544139.A0 90544139	£34.00	£40.80
21 - ARMATURE SA from wk 08 2008 BDE-90544139.A1 90544139	£34.00	£40.80
22 - BRUSHBOX BDE-582696-00.A11 582696-00	£2.26	£2.71
22 - BRUSHBOX BDE-582696-00.A12 582696-00	£2.26	£2.71
23 - BRUSH PAIR BDE-90554571.A1 90554571	-
23 - BRUSH & SPRING BDE-90521673.A7 90521673	£2.78	£3.34
24 - SHOE SA BDE-90517433.A6 90517433	-
24 - SHOE SA BDE-90517433.A7 90517433	-
25 - PLATE LOCK BDE-90513772.A3 90513772	£1.66	£1.99
25 - PLATE LOCK BDE-90513772.A4 90513772	£1.66	£1.99
26 - WASHER BDE-90514216.A24 90514216	£1.66	£1.99
26 - WASHER BDE-90514216.A25 90514216	£1.66	£1.99
27 - BOLT BDE-90514219.A3 90514219	£1.66	£1.99
27 - BOLT BDE-90514219.A4 90514219	£1.66	£1.99
28 - BOLT BDE-582827-00.A38 582827-00	£1.66	£1.99
28 - BOLT BDE-582827-00.A39 582827-00	£1.66	£1.99
29 - SCREW BDE-330019-00.A71 330019-00	£1.66	£1.99
29 - SCREW BDE-330019-00.A72 330019-00	£1.66	£1.99
30 - INSERT BDE-90514228.A20 90514228	£2.26	£2.71
30 - INSERT BDE-90514228.A21 90514228	£2.26	£2.71
31 - SPRING BDE-90521871.A8 90521871	£1.66	£1.99
31 - SPRING BDE-90521871.A9 90521871	£1.66	£1.99
32 - BLOCK BDE-90515286.A0 90515286	£3.80	£4.56
32 - BLOCK BDE-90515286.A1 90515286	£3.80	£4.56
33 - HANDLE BDE-90514276.A12 90514276	£1.66	£1.99
33 - HANDLE BDE-90514276.A13 90514276	£1.66	£1.99
34 - LEVER SA BDE-90517427.A11 90517427	£1.66	£1.99
34 - LEVER SA BDE-90517427.A12 90517427	£1.66	£1.99
35 - VACUUM ADAPTOR BDE-90501915.A12 90501915	£1.66	£1.99
35 - VACUUM ADAPTOR BDE-90501915.A13 90501915	£1.66	£1.99
36 - CORD PROTECTOR BDE-90514628.A12 90514628	£1.66	£1.99
36 - CORD PROTECTOR BDE-90514628.A13 90514628	£1.66	£1.99
37 - CORDSET GB BDE-90523264.A20 90523264	£16.03	£19.24
38 - CORD CLAMP BDE-329301-00.A212 329301-00	£1.66	£1.99
38 - CORD CLAMP BDE-329301-00.A213 329301-00	£1.66	£1.99
39 - SCREW BDE-370748.A1 370748	£1.66	£1.99
39 - SCREW BDE-370748.A2 370748	£1.66	£1.99
40 - KNOB BDE-90514622.A4 90514622	£1.66	£1.99
40 - KNOB BDE-90514622.A5 90514622	£1.66	£1.99
41 - DETENT BDE-N403227.A19 N403227	£1.66	£1.99
41 - DETENT BDE-N403227.A20 N403227	£1.66	£1.99
42 - SCREW BDE-330045-02.A1 330045-02	£1.66	£1.99
42 - SCREW BDE-330045-02.A2 330045-02	£1.66	£1.99
43 - SCREW BDE-330019-17.A22 330019-17	£1.66	£1.99
43 - SCREW BDE-330019-17.A23 330019-17	£1.66	£1.99
44 - SCREW BDE-330019-13.A190 330019-13	£1.66	£1.99
44 - SCREW BDE-330019-13.A191 330019-13	£1.66	£1.99
45 - SCREW BDE-98091-10.A63 98091-10	£1.66	£1.99
45 - SCREW BDE-98091-10.A64 98091-10	£1.66	£1.99
46 - SCREW BDE-330019-00.A73 330019-00	£1.66	£1.99
46 - SCREW BDE-330019-00.A74 330019-00	£1.66	£1.99
47 - RATING PLATE GB BDE-90556604.A7 90556604	-
48 - INDICATOR BDE-90514273.A11 90514273	£1.66	£1.99
48 - INDICATOR BDE-90514273.A12 90514273	£1.66	£1.99
49 - LABEL BDE-90520107.A3 90520107	£1.66	£1.99
49 - LABEL BDE-90520107.A4 90520107	£1.66	£1.99
50 - LABEL PIVOT BDE-90520273.A13 90520273	£1.66	£1.99
50 - LABEL PIVOT BDE-90520273.A14 90520273	£1.66	£1.99
51 - BRAND LABEL BDE-90521533.A9 90521533	£1.66	£1.99
51 - BRAND LABEL BDE-90521533.A10 90521533	£1.66	£1.99
52 - LABEL BDE-90521787.A0 90521787	£1.66	£1.99
52 - LABEL BDE-90521787.A1 90521787	£1.66	£1.99
53 - LABEL BDE-90521788.A7 90521788	£1.66	£1.99
53 - LABEL BDE-90521788.A8 90521788	£1.66	£1.99
